Features & Details

• Sturdy Iron Construction: The mini metal lathe bed is made of high-grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, sturdy, and professional. Mini metal lathe power of motor: 400W. The full-length splash guard provides maximum protection.
• Infinitely Variable Speed: Variable speed from 50-2250 RPM. Forward and reverse at all speeds. Operate either manually or with the adjustable auto feed rate. The hardness and accuracy of the sideways are obtained by raw material, heat hardening and grinding. The emergency stop button included.
• Accurate 3-Jaw Chuck: 3-jaw self-centering chuck for setting materials steadily. Backsplash guard included. The spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01 mm.
• Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting, and bevel cutting by changing the tool post angle and adjusting the compound rest. The professional slide is designed with abrasive resistance, moving blades freely with a feed rod.
• Extensive Application: Driven by the quality motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing, and modeling works. It is suitable for processing jobs, like drilling, milling, threading and cutting jobs on kinds of materials.

Frequently Bought Together

Videos for this product

About this item

Product specification

Volt

220V 50Hz

Motor Power

400W

Motor Type

Brushed

Phase

Single Phase

Variable Speed Gear

Plastic Nylon

Certification

CE

Swing Over Bed

7" / 180 mm

Distance Between Centers

11.8" / 300 mm

Spindle Accuracy

0.0004" / 0.01 mm

Spindle Speed

50 - 2250 RPM

Spindle Bore

0.83" / 21 mm

Tail Stock Taper

MT2

Spindle Taper

MT3

Top Slide Travel

1.38" / 35 mm

Cross Slide Travel

2.56" / 65 mm

Net Weight

102.5 lbs / 46.5 kg

Item Dimensions (L x W x H)

27.5 x 9 x 11.5 in / 69.9 x 22.9 x 29.2 cm

Description

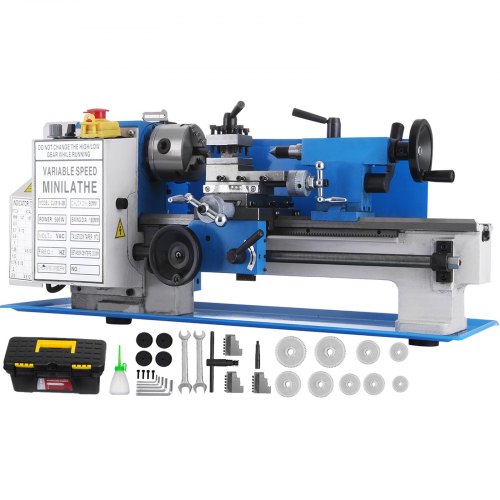

7'' x 12'' Metal Lathe Machine

400W Powerful Motor & MT3 Spindle & 0.01 mm Spindle Accuracy

The precision mini bench top lathe features a 3-jaw chuck, a spindle taper, a tailstock taper, a tool rest and a quality motor, designed to perform various types of metal turning, simple to operate through high-frequency quenching process and precision grinding of high-quality cast iron bed

• Sturdy Iron Construction
• Infinitely Variable Speed
• Accurate 3-Jaw Chuck
• Professional Compound Rest

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

Heavy & Sturdy Machine

Features with high quality iron material, this heavy-duty metal lathe is designed for durability and longevity.

Infinitely Variable Speeds

Variable speed: 50-2250 RPM. You can operate this bench top lathe manually. The feed speed can be adjusted according to the requirements of different workpieces.

High Accuracy Chuck

3-jaw self-centering chuck has gone tested with accuracy and repeatability to set materials steadily. The spindle is supported by precision tapered roller bearings.

Four-way Tool Post

T-slotted compound slide with 4-way tool post, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.

Professional Cross Slide

Our lathe is designed with abrasive resistance, moving blades optionally with feed rod. The slide ways with a distance between center is 12" / 300 mm, large workspace for more facilitate.

Adjustable MT2 Tailstock

The tailstock is compatible with MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation. All accessories are well-packed.

Specifications

• Volt: 220V 50Hz
• Motor Power: 400W
• Motor Type: Brushed
• Phase: Single Phase
• Variable Speed Gear: Plastic Nylon
• Certification: CE
• Swing Over Bed: 7" / 180 mm
• Distance Between Centers: 11.8" / 300 mm
• Spindle Accuracy: 0.0004" / 0.01 mm
• Spindle Speed: 50 - 2250 RPM
• Spindle Bore: 0.83" / 21 mm
• Tail Stock Taper: MT2
• Spindle Taper: MT3
• Top Slide Travel: 1.38" / 35 mm
• Cross Slide Travel: 2.56" / 65 mm
• Net Weight: 102.5 lbs / 46.5 kg
• Item Dimensions (L x W x H): 27.5 x 9 x 11.5 in / 69.9 x 22.9 x 29.2 cm

Package Content

• 1 x Mini Lathe
• 1 x Chuck Wrench
• 2 x Wrenches
• 3 x Chuck Jaws
• 9 x Nylon Gears
• 1 x Oil Can
• 5 x Hex Wrenches
• 1 x Dead Center
• 1 x Chuck Claw
• 1 x Protecting Mask
• 4 x Shockproof Foot Cushions
• 1 x Toolkit
• 1 x Instruction Manual

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

7'' x 12'' Metal Lathe Machine

400W Powerful Motor & MT3 Spindle & 0.01 mm Spindle Accuracy

The precision mini bench top lathe features a 3-jaw chuck, a spindle taper, a tailstock taper, a tool rest and a quality motor, designed to perform various types of metal turning, simple to operate through high-frequency quenching process and precision grinding of high-quality cast iron bed

• Sturdy Iron Construction
• Infinitely Variable Speed
• Accurate 3-Jaw Chuck
• Professional Compound Rest

Heavy & Sturdy Machine

Features with high quality iron material, this heavy-duty metal lathe is designed for durability and longevity.

Infinitely Variable Speeds

Variable speed: 50-2250 RPM. You can operate this bench top lathe manually. The feed speed can be adjusted according to the requirements of different workpieces.

High Accuracy Chuck

3-jaw self-centering chuck has gone tested with accuracy and repeatability to set materials steadily. The spindle is supported by precision tapered roller bearings.

Four-way Tool Post

T-slotted compound slide with 4-way tool post, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.

Professional Cross Slide

Our lathe is designed with abrasive resistance, moving blades optionally with feed rod. The slide ways with a distance between center is 12" / 300 mm, large workspace for more facilitate.

Adjustable MT2 Tailstock

The tailstock is compatible with MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation. All accessories are well-packed.

Package Content

• 1 x Mini Lathe
• 1 x Chuck Wrench
• 2 x Wrenches
• 3 x Chuck Jaws
• 9 x Nylon Gears
• 1 x Oil Can
• 5 x Hex Wrenches
• 1 x Dead Center
• 1 x Chuck Claw
• 1 x Protecting Mask
• 4 x Shockproof Foot Cushions
• 1 x Toolkit
• 1 x Instruction Manual

Specifications

• Volt: 220V 50Hz
• Motor Power: 400W
• Motor Type: Brushed
• Phase: Single Phase
• Variable Speed Gear: Plastic Nylon
• Certification: CE
• Swing Over Bed: 7" / 180 mm
• Distance Between Centers: 11.8" / 300 mm
• Spindle Accuracy: 0.0004" / 0.01 mm
• Spindle Speed: 50 - 2250 RPM
• Spindle Bore: 0.83" / 21 mm
• Tail Stock Taper: MT2
• Spindle Taper: MT3
• Top Slide Travel: 1.38" / 35 mm
• Cross Slide Travel: 2.56" / 65 mm
• Net Weight: 102.5 lbs / 46.5 kg
• Item Dimensions (L x W x H): 27.5 x 9 x 11.5 in / 69.9 x 22.9 x 29.2 cm
