Features & Details
- Durability Meets Reliability: Engineered from ABS insulation material and tested to CE standard, our PV combiner box ensures impeccable insulation, moisture resistance, and drip-free performance. Plus, It is built to resist impacts and breakage, ensuring your equipment remains secure in even the most challenging environments. Elevate your solar setup with our solar combiner box!

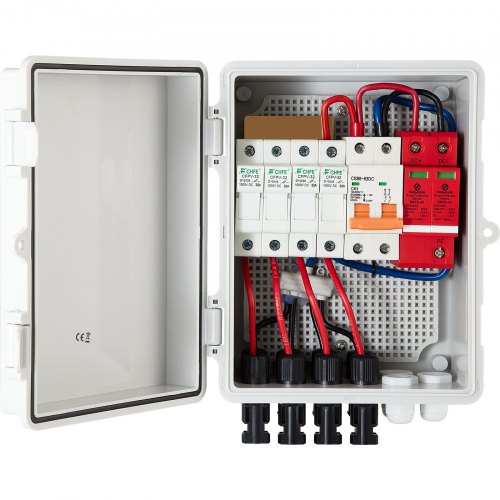

- Professional PV Combiner Box: Featuring 4 15A DC fuses and a 63A circuit breaker, our 4 string PV combiner box makes maintenance a breeze, and you can easily cut off circuits. Say goodbye to the large scope of power outages in case of PV system failures. Get ready to optimize your PV system's performance and boost output power to new heights.
- IP65 Dust & Water Barrier: Our solar PV combiner box boasts an IP65 rating, ensuring waterproof and dustproof protection for long-lasting durability. No frequent replacements are required—our combiner box is built to withstand the elements. Equipped with sealing strips, it ensures a dry interior, seamlessly deflecting rain and dust. Enjoy peace of mind with outdoor use!
- 24/7 Lightning Protection: Our solar PV combiner box is the perfect outdoor companion. With built-in lightning protection, it effortlessly shields against lightning strikes, ensuring peace of mind in any outdoor environment. Bring on the harshest weather—our combiner box is ready to weather the storm.
- Installation Made Easy: Set up your solar system in no time with our user-friendly PV combiner box, which is perfect for both grid-tied and off-grid solar power systems and is compatible with various solar panels that use standard solar connectors. Experience hassle-free installation and enjoy a secure connection that stands the test of time!
Frequently Bought Together
Videos for this product
Reviews 4.8
Sven-otto Petersen Davor Σιμος Samuel M. Szabó Béla Klabautermanden Luis Vladyslav About this item
- Model
- SWHL-4
- Number Of Max. Connection PV Array
- 4
- Max. Input Current of Single PV Array
- 15A
- Total Input Current of PV Array
- 60A
- Max Input Voltage of Single PV Array
- 500V
- Max Output Voltage
- 500V
- Protection Grade
- IP65
- Operational Environment Temperature
- -30℃ to 70℃ / -22℉ to 158℉
- Relative Humidity
- 0-95%, No Condensation
- Cooling Method
- Natural Cooling
- Surge Lightning Protection
- Yes
- Surge Protective Device
- in
- SPD Indicate Light Status
- Green
- Air Circuit Breaker Parameter
- 500V, 63A; ON/OFF
- Fuse Parameter
- DC1000V, 15A, 10 x 38 mm / 0.39 x 1.5 in
- Fuse Holder Parameter
- DC1000V, 32A
- RV Solar System
- 720W in 12V System, 1440W in 24V System, 2880W in 48V System
- Product Dimensions(L x W x H)
- 17 x 23 x 11 cm / 6.69 x 9.06 x 4.33 in
- Net Weight
- 1.8 kg / 3.9 lbs
PV Combiner Box Ensures Reliable Solar Panel Integration
The VEVOR PV combiner box is made to reliably integrate solar panels. It allows for the safe and efficient connection of multiple solar panel systems. The box features a strong construction that ensures durability. This includes both on-grid and off-grid solar panel combiner box systems, including essential components like fuses and circuit breakers. These features enhance safety and performance. With this PV combiner box, you can trust your solar setup to work seamlessly. You will get reliable power management for your system.
Easy Installation and Maintenance of Solar Combiner Box 4 String
The VEVOR PV combiner box is simple to install. It comes with clear instructions and all the necessary components. The compact design makes it easy to mount on various surfaces. Maintenance is also straightforward. You can quickly access the internal components for any checks or adjustments. Tightening connections or replacing fuses is hassle-free. This ease of maintenance ensures the box stays in top condition. Built to last for long-term reliability with minimal upkeep, this solar combiner box 4 string is an excellent choice for both DIY enthusiasts and professionals. Easy design and user-friendly features save time and effort.
IP65 Waterproofing and Durability for Outdoor Use
The VEVOR PV combiner box is built to withstand outdoor conditions. It has IP65 combiner box waterproofing, protecting it from dust and water. This makes it ideal for installation on roofs or in open areas. The durable materials ensure the box can handle harsh weather. Even in extreme temperatures, it remains functional. The strong design prevents damage from moisture and dirt. This high level of protection ensures the longevity of your solar setup. You can trust the box to perform reliably in any outdoor environment. It is an essential component for any outdoor solar installation.
Efficient Lightning Protection with Solar Panel Lightning Arrester
The VEVOR PV combiner box includes a built-in solar panel lightning arrester to protect your solar panels. This ensures the system is protected from electrical surges. The arresters prevent damage to connected equipment. It provides peace of mind, knowing your investment is safe. The efficient design guarantees optimal performance in all weather conditions. This feature is important for maintaining the long-term reliability of your solar setup. You can use this box for areas that are prone to lightning strikes.
Space-Saving Design with 4 String Configuration
The VEVOR PV combiner box has a space-saving 4-string configuration. Its compact design makes it ideal for installations with limited space. The box efficiently combines multiple solar panels, saving room. This design ensures an efficient and organized setup. Perfect for small-scale solar projects or tight spaces, the box offers strong performance despite its small size. Up to 60A of total input current can be used effectively. It’s versatile and suitable for various applications. The efficient design maximizes the output from your solar panel system.
User-Friendly Design with Plug and Play Features
The VEVOR PV combiner box is designed with user-friendliness in mind. It has plug-and-play features, making installation quick and easy. The box comes pre-wired, saving you time and effort. Simply connect your solar panels and the box is ready to use. This makes it ideal for DIY enthusiasts or those new to solar installations. Our simple design ensures you can set it up without professional help. Easy-to-follow instructions guide you through the process. This user-friendly feature enhances the overall usability of the box.
High-Quality Build with Sturdy Materials
The VEVOR PV combiner box is made with high-quality materials. It features a strong build that ensures long-term durability. The robust construction makes it resistant to wear and tear. The box is designed to handle the rigors of outdoor use. The strong materials ensure it can withstand various environmental factors. This high-quality build provides peace of mind, knowing your investment is protected. The durable design ensures the box remains functional for years. Anyone looking for a dependable solar combiner box will find this model to be an excellent choice.
- Durability Meets Reliability
- IP65 Dust & Water Barrier
- 24/7 Lightning Protection
- Installation Made Easy
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
- Item Model Number: SP-HL-P202010-15A
- Number of Inputs: 4
- Number of Outputs: 1
- Rated Operating Voltage: DC 500V
- Fuse Holder Specification: DC 15A/500V
- Rated Current of Fuse: DC 15A
- Specification of Main Circuit Breaker: 63A 2P DC500V
- Surge Protector: 40KA 2P DC500V
- Protection Rating: IP65
- Door Opening Method: Latch Opening
- Mounting Plate: Detachable Mounting Plate(Material: ABS Mesh Plastic Base)
- Sealing Strip: PU Polyurethane Foam Material(Black)
- Main Material: ABS Plastic Material+RAL7035 Grey-White Finish
- Net Weight (including all accessories): 4.1 lbs / 1.86 kg
- Overall Product External Dimensions (L x W x H): 7.87 x 7.87 x 3.94 in / 200 x 200 x 100 mm
- 4 x MCB Female Connectors with Red Wire (2.5 mm²)
- 4 x MCB Male Connectors with Blue Wire (2.5 mm²)
- 2 x PG13.5 Plastic Waterproof Glands
- 1 x PG9 Plastic Waterproof Gland
- 1 x MC4 Tool
- 4 x Cold Rolled Steel Wall Mounting Brackets
- 4 x Screws
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
- Durability Meets Reliability
- IP65 Dust & Water Barrier
- 24/7 Lightning Protection
- Installation Made Easy
- 4 x MCB Female Connectors with Red Wire (2.5 mm²)
- 4 x MCB Male Connectors with Blue Wire (2.5 mm²)
- 2 x PG13.5 Plastic Waterproof Glands
- 1 x PG9 Plastic Waterproof Gland
- 1 x MC4 Tool
- 4 x Cold Rolled Steel Wall Mounting Brackets
- 4 x Screws
- Item Model Number: SP-HL-P202010-15A
- Number of Inputs: 4
- Number of Outputs: 1
- Rated Operating Voltage: DC 500V
- Fuse Holder Specification: DC 15A/500V
- Rated Current of Fuse: DC 15A
- Specification of Main Circuit Breaker: 63A 2P DC500V
- Surge Protector: 40KA 2P DC500V
- Protection Rating: IP65
- Door Opening Method: Latch Opening
- Mounting Plate: Detachable Mounting Plate(Material: ABS Mesh Plastic Base)
- Sealing Strip: PU Polyurethane Foam Material(Black)
- Main Material: ABS Plastic Material+RAL7035 Grey-White Finish
- Net Weight (including all accessories): 4.1 lbs / 1.86 kg
- Overall Product External Dimensions (L x W x H): 7.87 x 7.87 x 3.94 in / 200 x 200 x 100 mm
Questions and Answers (2)
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
Plastic
- Plastic
- Iron Shell
15A
- 15A
- 10A
4 Branches
- 4 Branches
- 6 Branches
