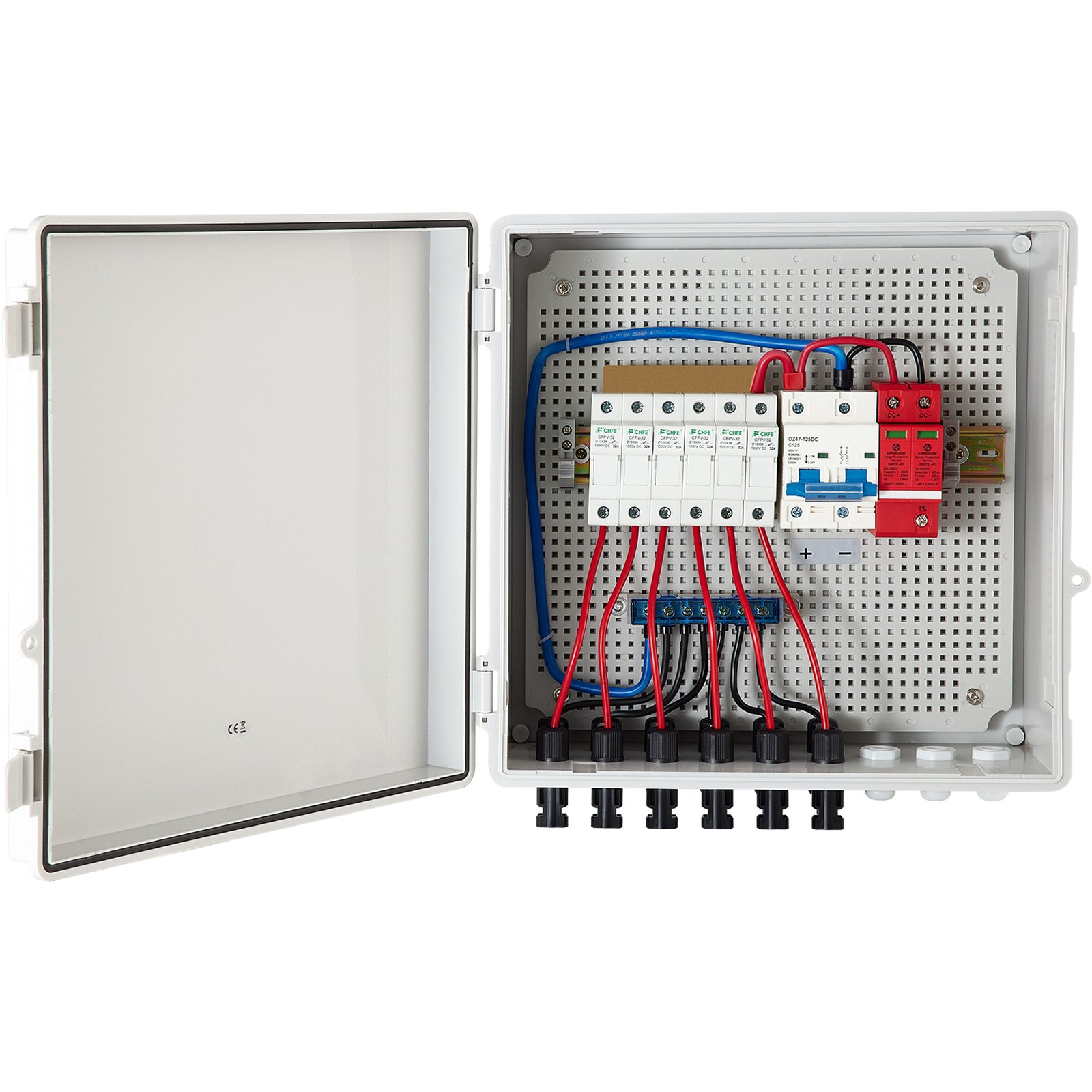

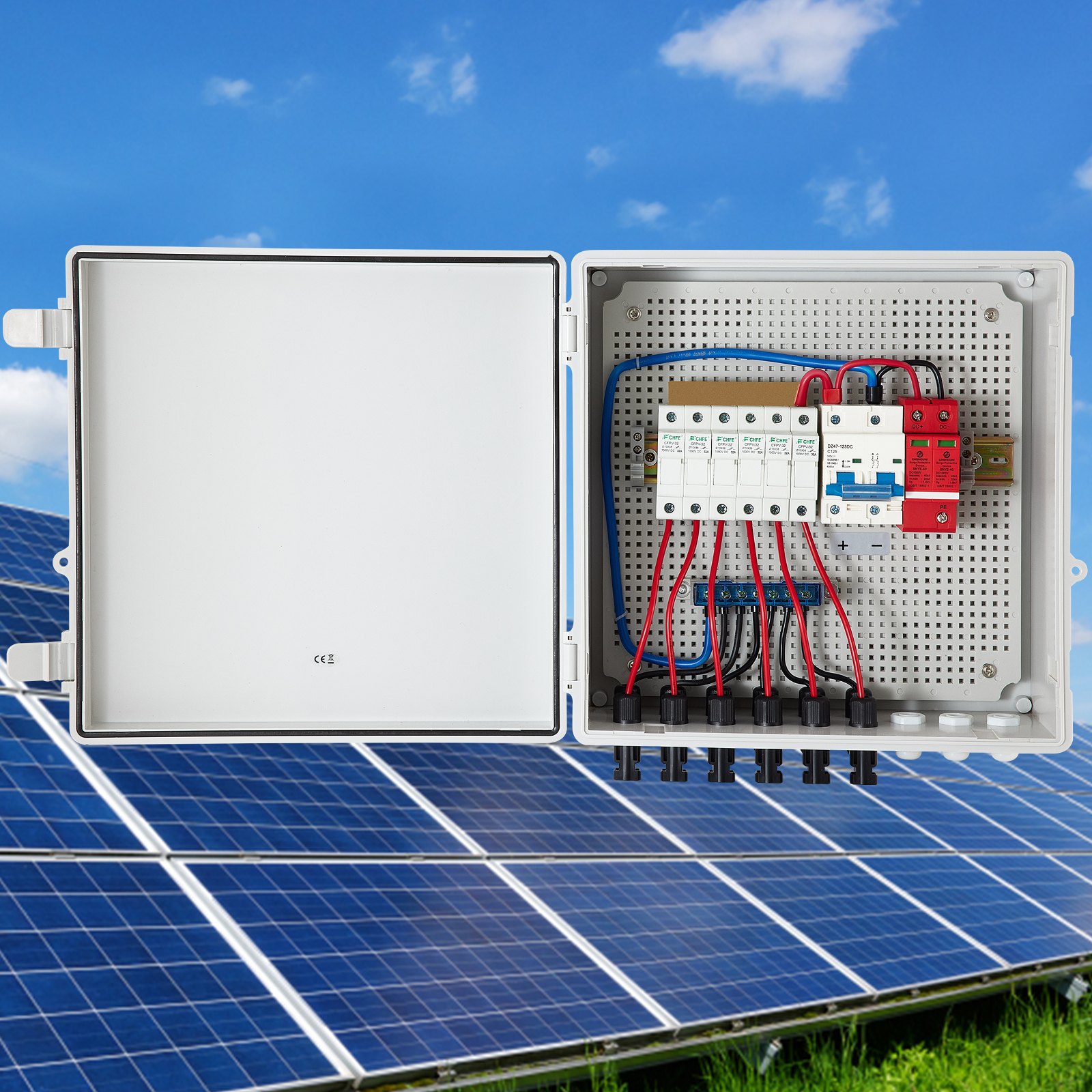

VEVOR pv combiner box with open cover showing circuit breakers and wiring. VEVOR pv combiner box, ideal for pv on/off-grid solar power systems, with internal wiring. VEVOR pv combiner box offering ip65 waterproof and lightning protection. VEVOR pv combiner box detailed design with wiring, lightning protection, and fuses. VEVOR pv combiner box diagram with solar panels, controller, and mounting accessories. VEVOR pv combiner box with sturdy plastic construction for durability and longevity. VEVOR pv combiner box with dimensions and weight specifications.
G2615A63AIP65ZY1RV0

VEVOR PV Combiner Box, 6 String, Solar Combiner Box with 15A Rated Current Fuse, 125A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App.
Download Now
Exclusive 5,00€ off for your first three orders on the App.
Scan the QR code to download

Plastic

  • Plastic
  • Iron Shell

15A

  • 15A
  • 10A

6 Circuits

  • 4 Circuits
  • 6 Circuits

About this item

  • Professional PV Combiner Box: PV combiner box tidied up connection and confluence of photovoltaic modules. It is used to reduce the connection of the photovoltaic array to the inverter and optimize the system structure. Make it easy to cut off the circuit in maintenance and reduce the scope of the power outage when the photovoltaic system fails. It will make the photovoltaic system at its best and increase output power.
  • Secure & Reliable Protection: The solar PV combiner box is equipped with 6 pcs 15A DC fuses, a high-voltage lightning arrester, and a 500V 125A air circuit breaker. It has short circuit/lightning surge/over-voltage/over-current protection/grounding protection to avoid damage to photovoltaic panels and inverters when fault occurs.
  • IP65 Waterproof & ABS Shell: The IP65 design of the solar PV combiner shell is waterproof and dustproof, ensuring that frequent replacement is not needed. The sturdy shell is made of high-quality ABS plastic material, insulating, moisture-proof, and has no dripping. In addition, it has impact resistance and high break resistance, keeping your equipment well protected in harsh environments.
  • Easy Installation & Wiring: A plug & play and pre-connected cable offers an easy solution for solar panel connection, saving at least 1-2 hours of wiring by hand. The box PV combiner can be mounted on any regular surface with provided mounting buckles, and no key is needed to open and close the box. Built-in with a ground wire connector, ground wire installation is also available. Compatible with any brand of solar panels with solar connectors.
  • Extensive Application: The combiner box is a perfect device for outdoor installation and use. Suitable for photovoltaic on-grid/off-grid solar power generation systems, solar panel systems, PV array, RV solar power, home solar panel systems. It can support solar panel systems up to 1080W in 12V system, 2160W in 24V system, 4320W in 48V system.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR PV Combiner Box, 6 String, Solar Combiner Box with 15A Rated Current Fuse, 125A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
Plastic 15A 6 Circuits
VEVOR pv combiner box for solar panel system, ip65 waterproof, lightning protection

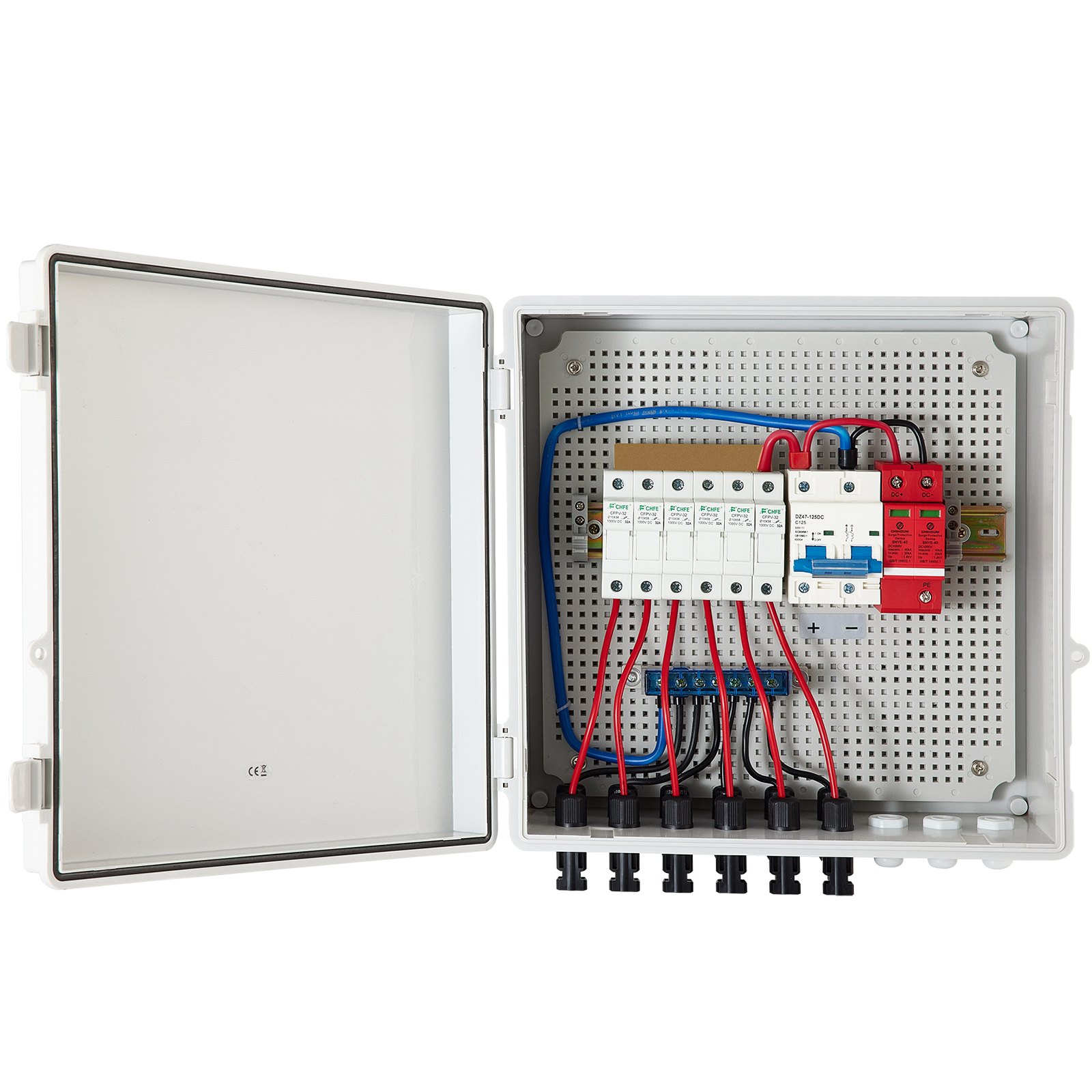

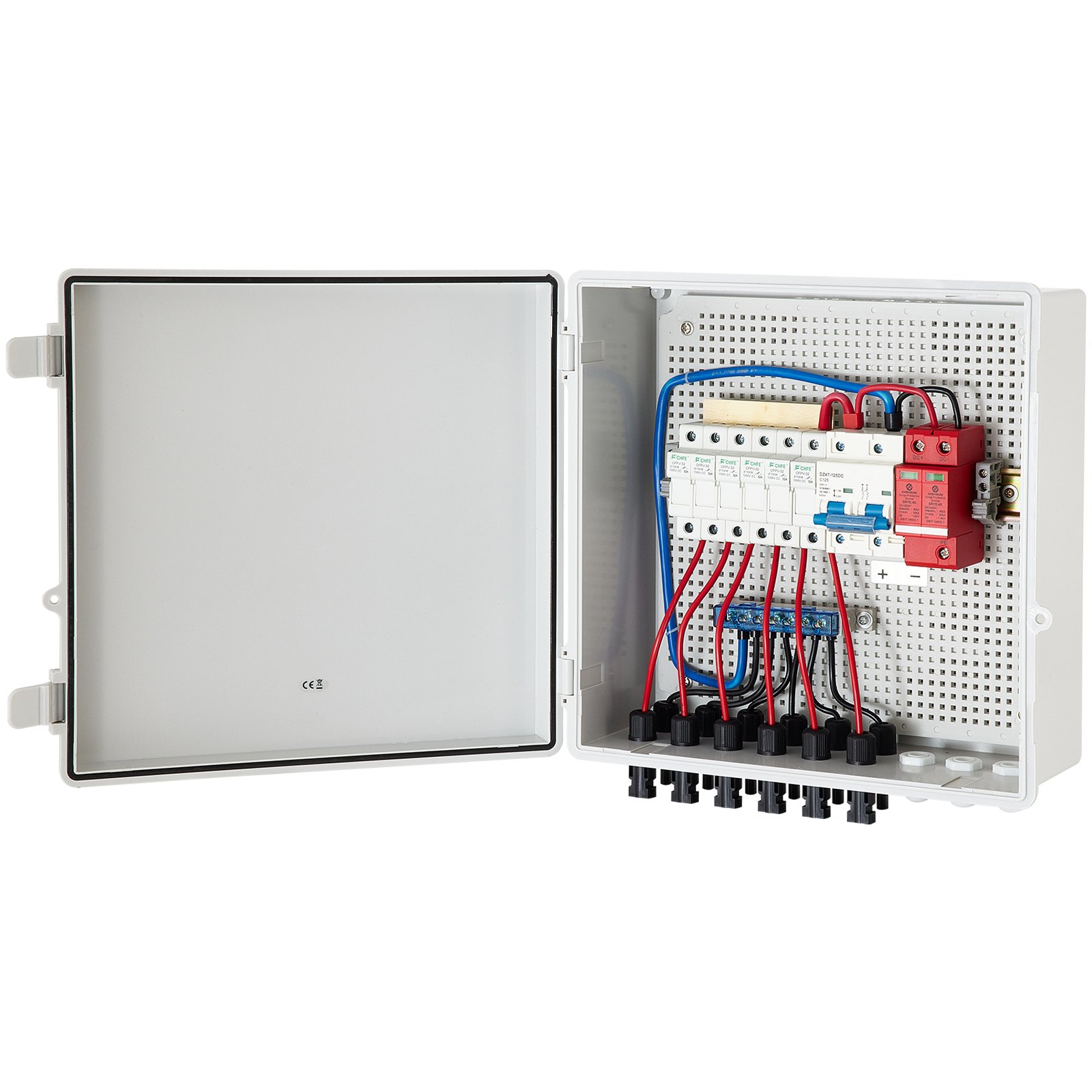

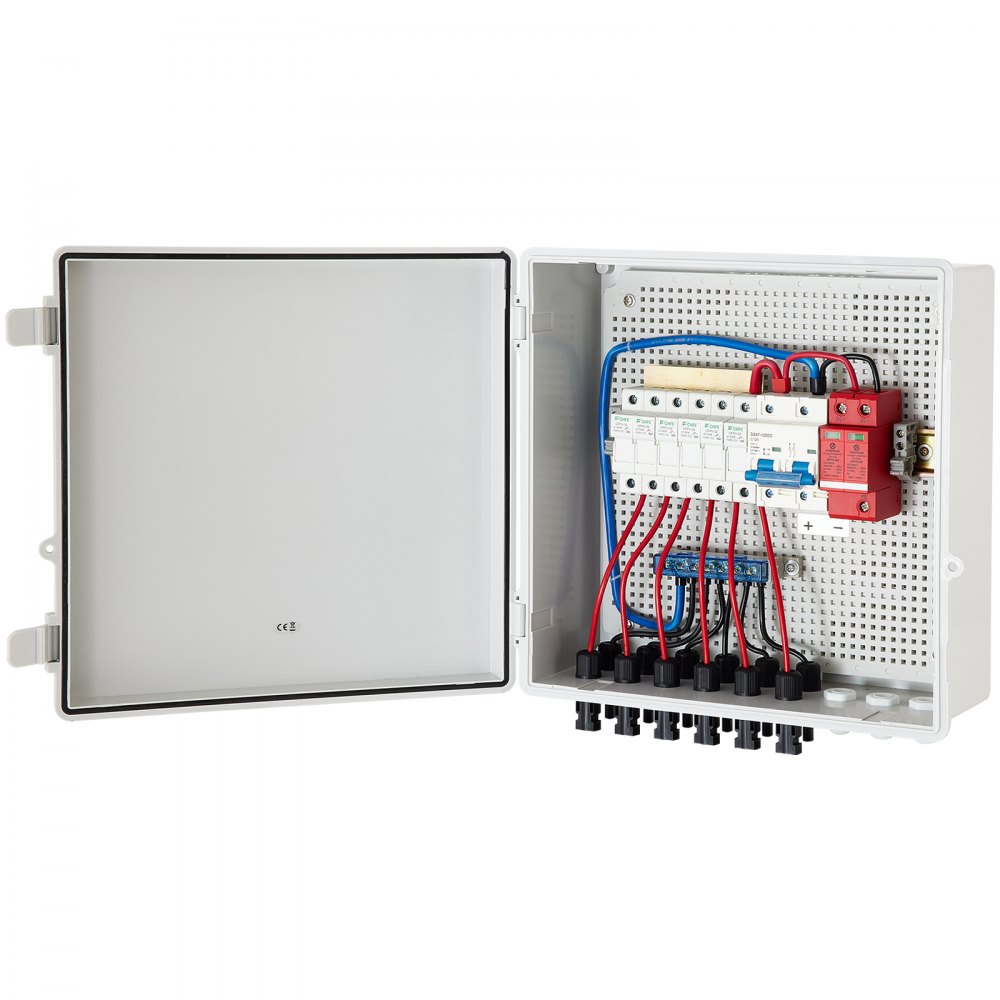

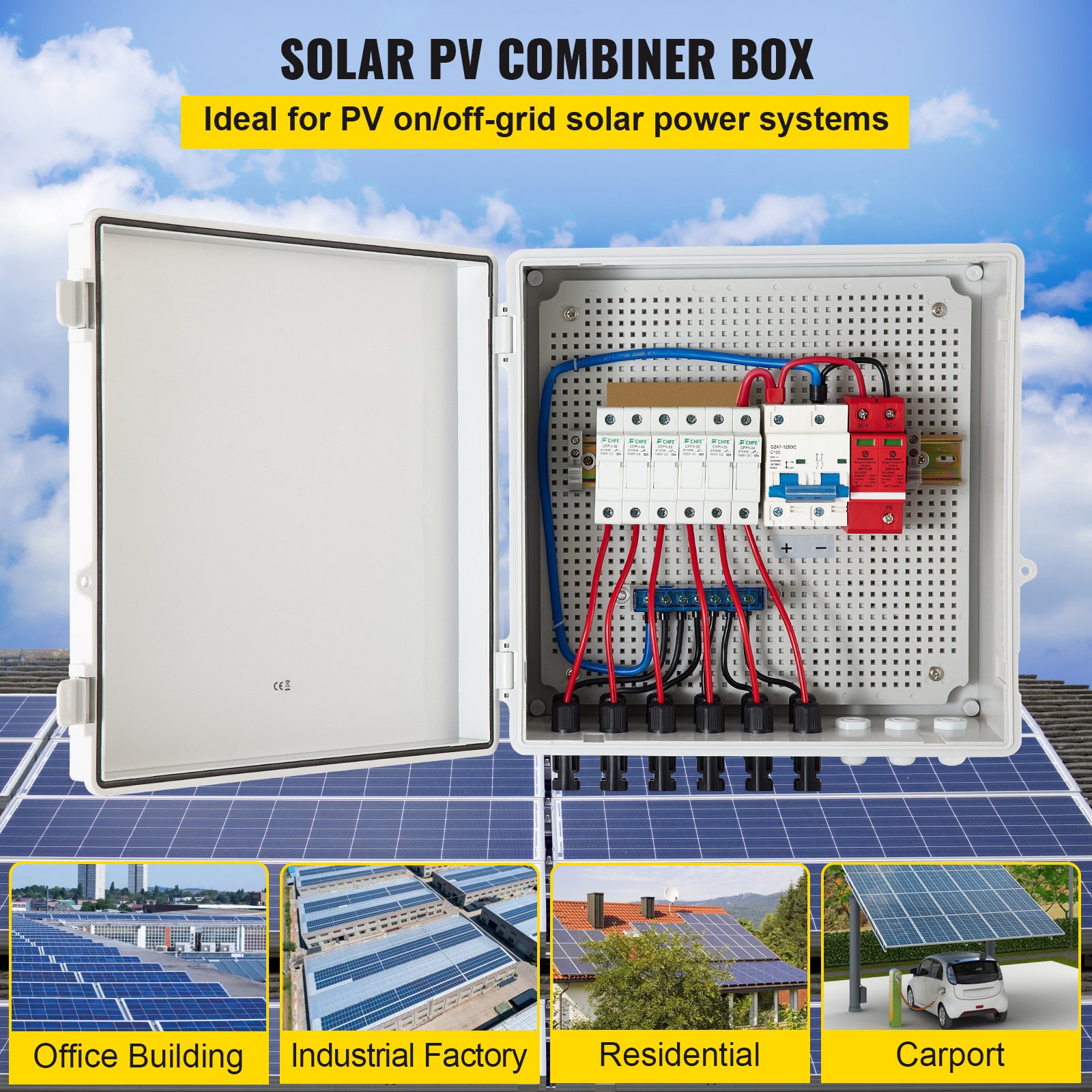

VEVOR pv combiner box with wiring and circuit breakers in an open gray case.
6 String Solar PV Combiner Box
IP65 Protection Grade & Lightning Protection & Premium ABS Material
Our PV Combiner Box is a perfect device designed to reduce the connection line between PV modules and inverters, facilitate maintenance and improve reliability. Equipped with high-voltage lightning arresters, 15A DC fuses, and circuit breakers to play a role in circuit protection and lightning protection. It supports photovoltaic On-Grid/Off-Grid solar power generation systems, solar panel systems, up to 1080W in 12V system, 2160W in 24V system, 4320W in 48V system.
  • Professional PV Combiner Box
  • Secure & Reliable Protection
  • IP65 Waterproof & ABS Shell
  • Easy Installation & Wiring
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR pv combiner box with lightning protection against high voltage lightning arrester.
High Voltage Lightning Arrester
The combiner box for solar systems is built with a professional high voltage lightning arrester to provide lightning and rain protection. Both positive and negative with thunder proof protection.

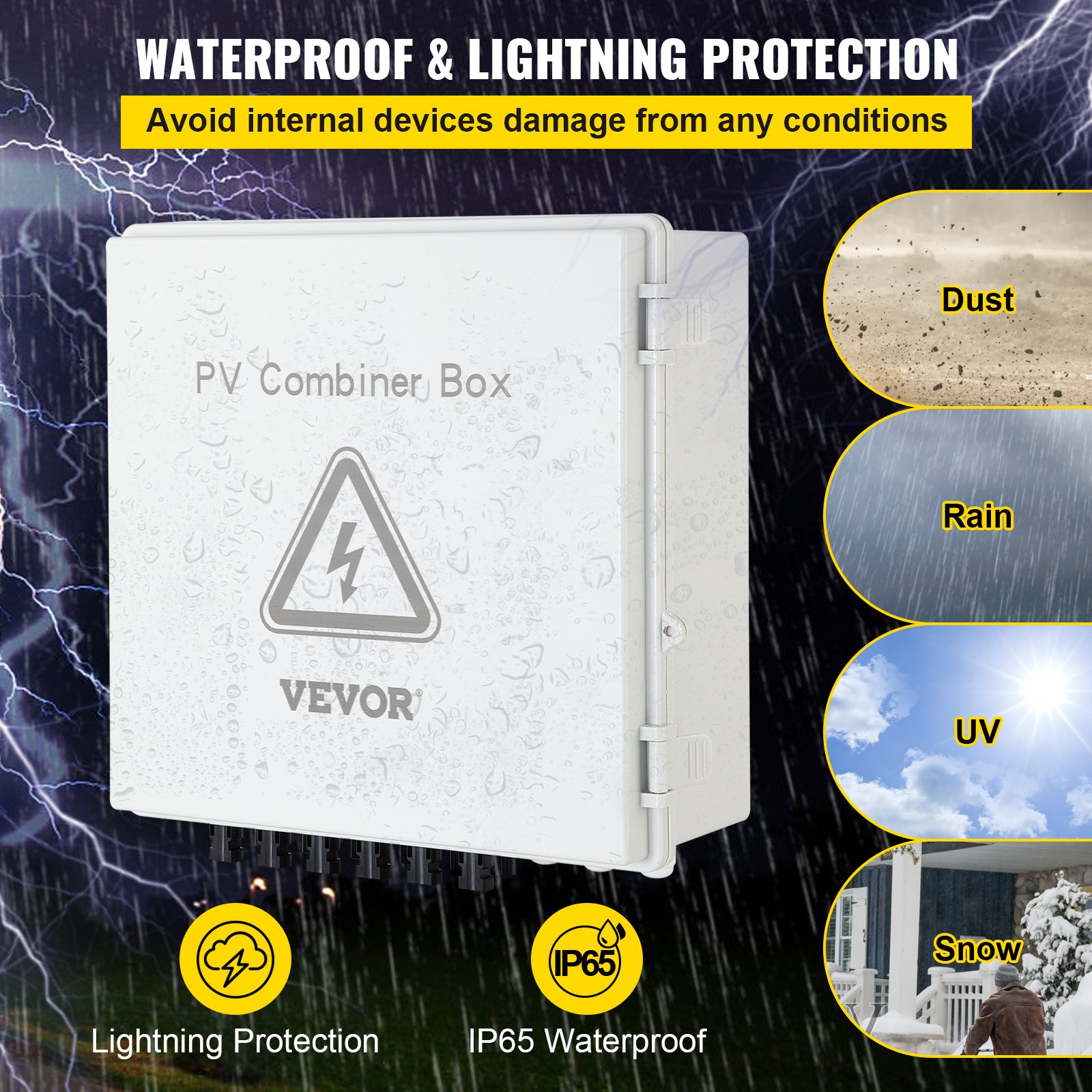

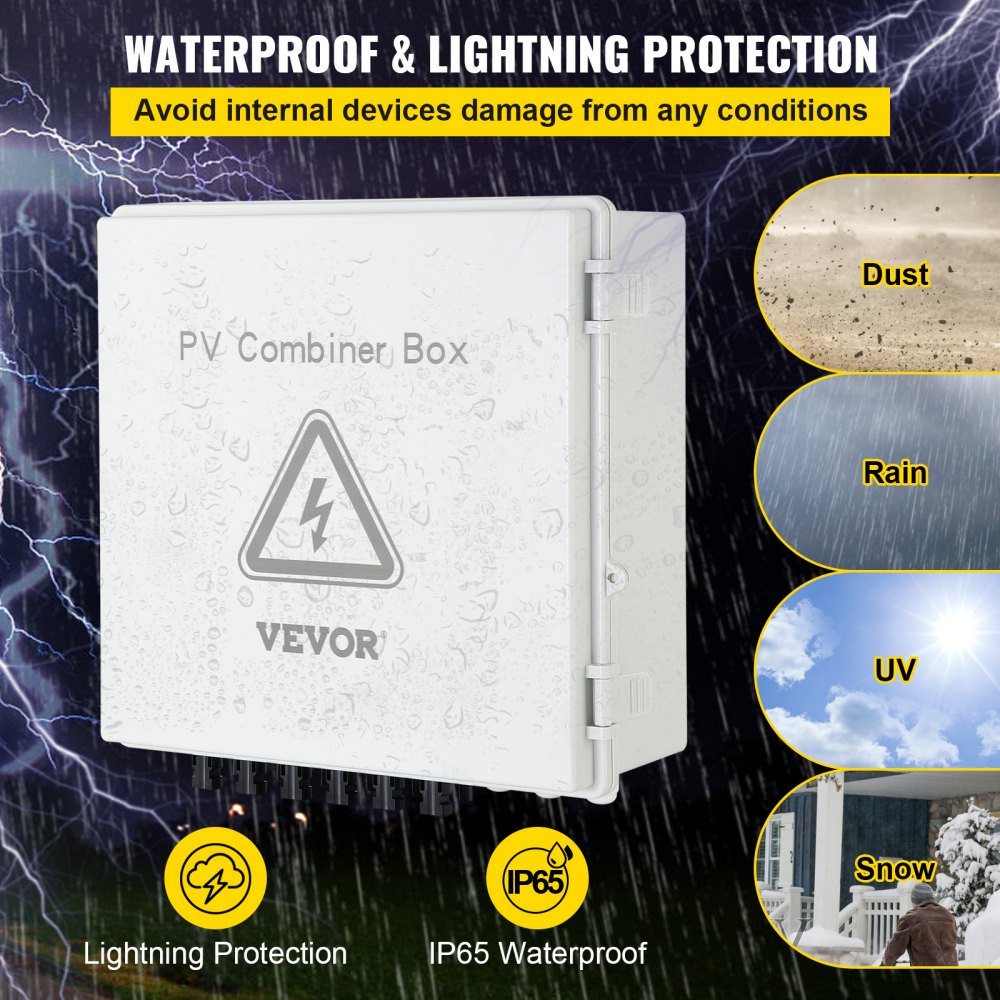

VEVOR pv combiner box with ip65 protection, ideal for outdoor use against elements.
IP65 Protection Level
The IP65 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures even more security on construction sites.

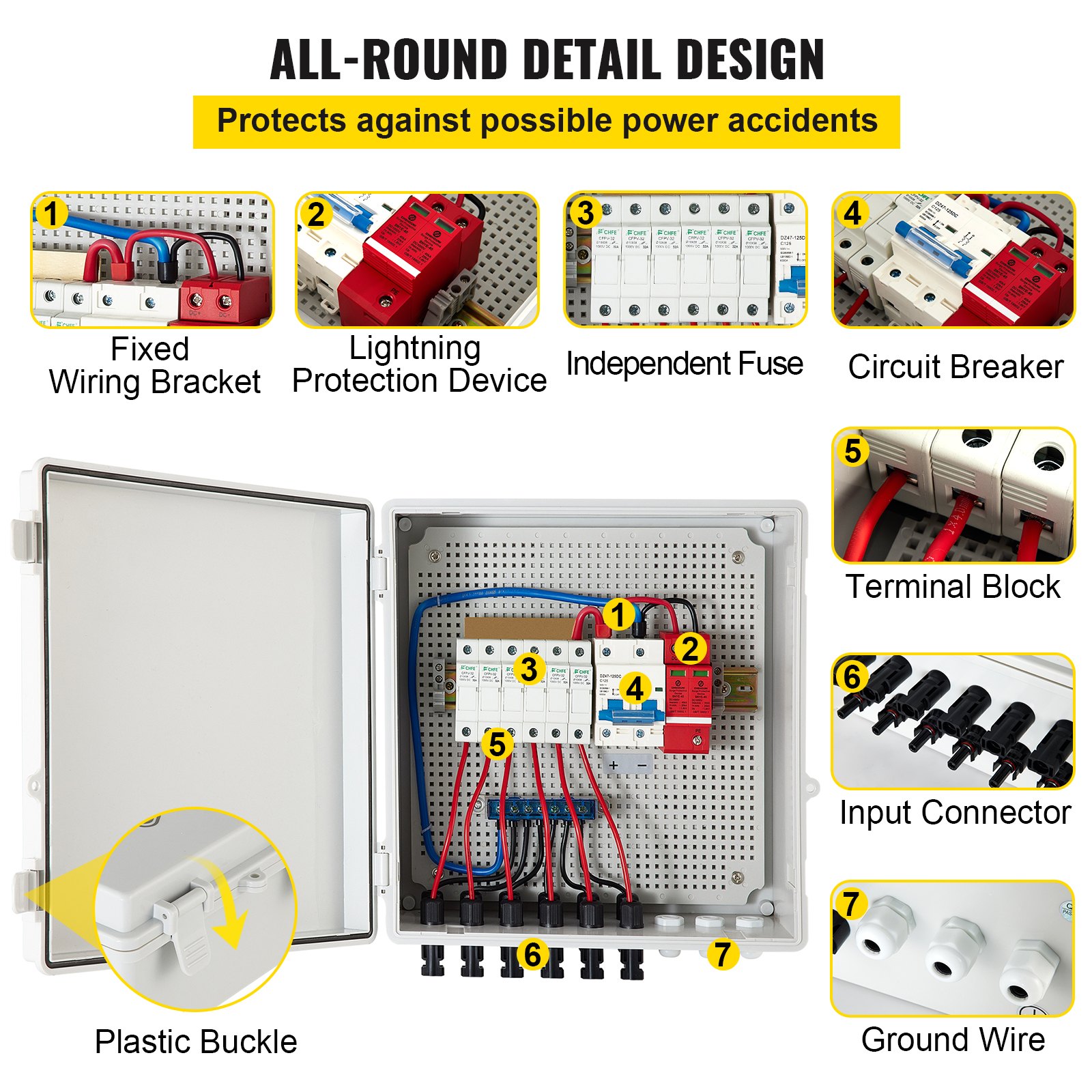

VEVOR pv combiner box features independent fuse, circuit breaker, wiring block, input connector.
Thoughtful Design
The PV combiner features 6 x 15A fuses for good current limiting characteristics and breaking high ability. 125A air circuit breaker can cut off and connect the load circuit, providing short-circuit fault protection.

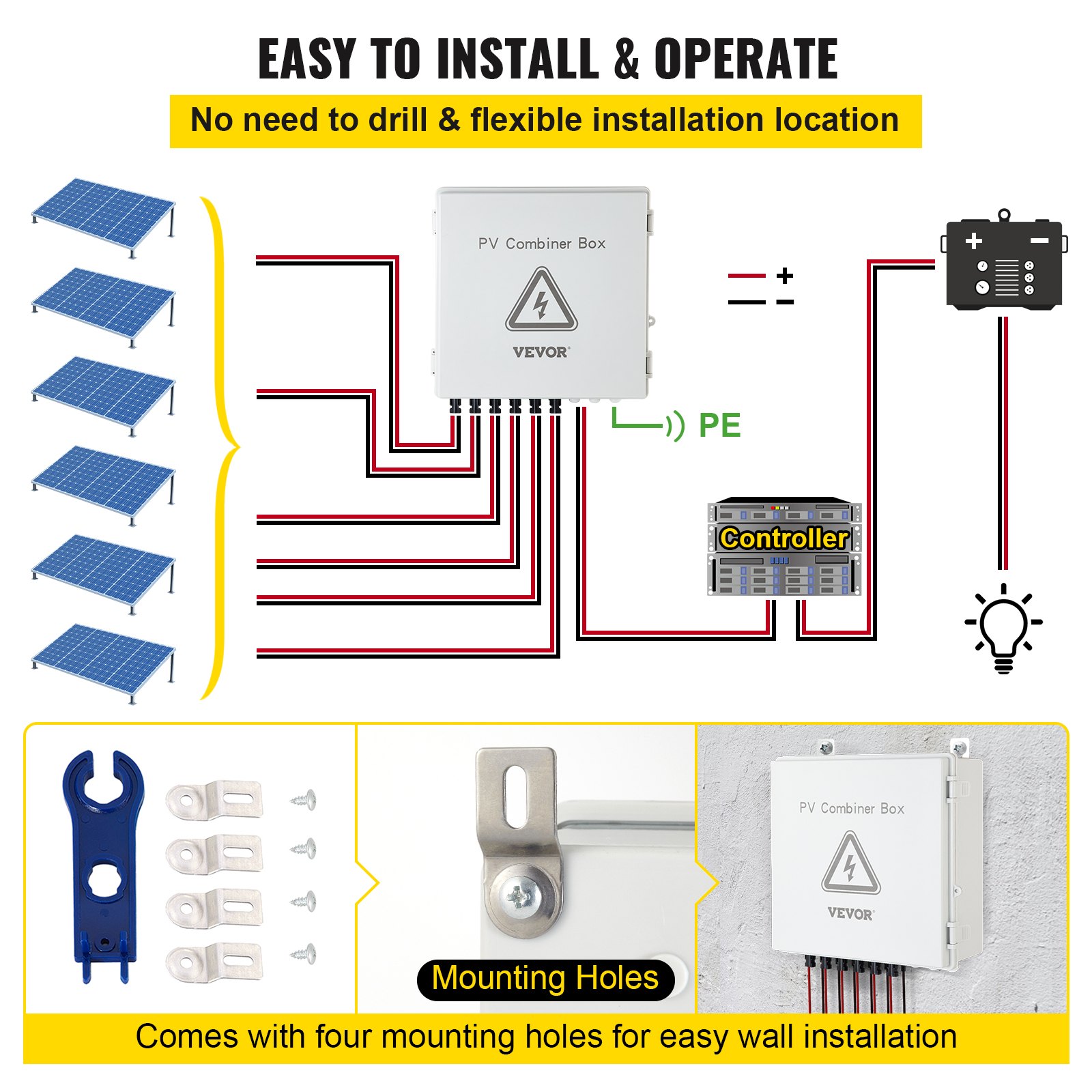

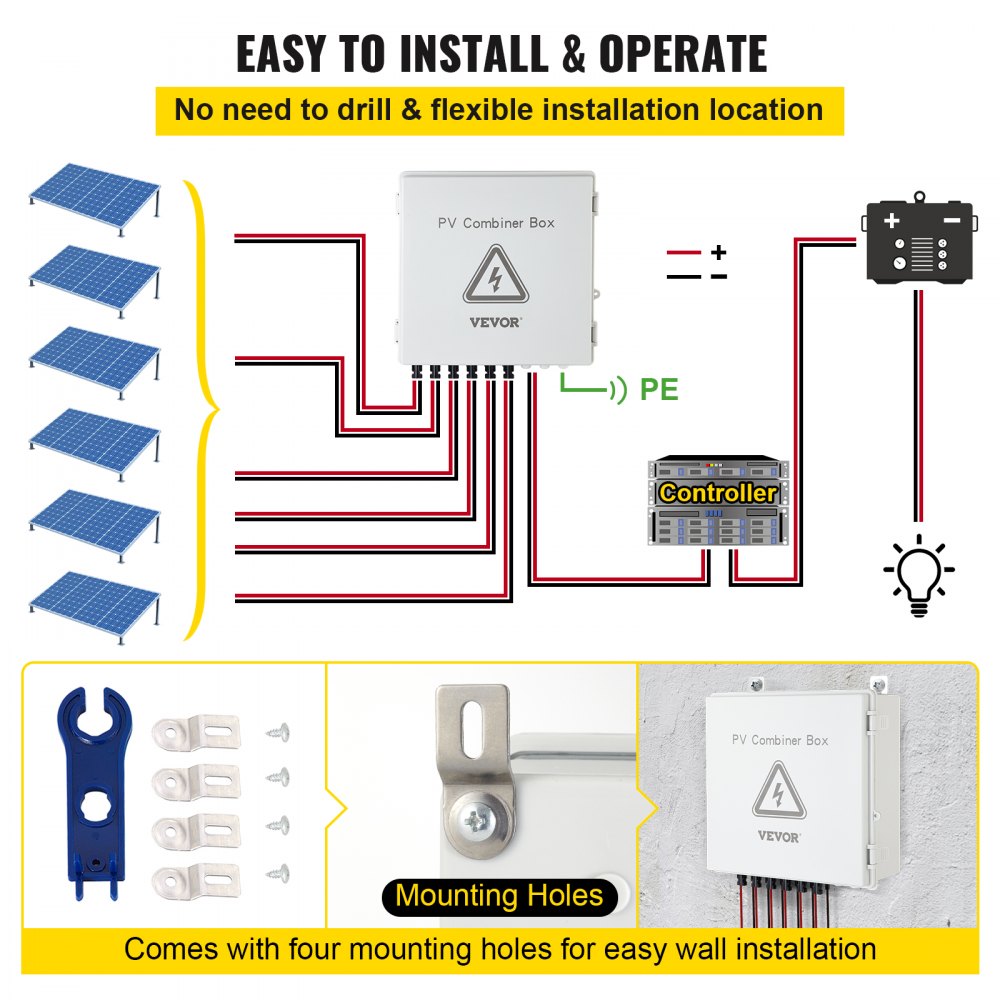

VEVOR pv combiner box with wiring and installation tools. simple connection.
Simple & Straightforward Connection
All wires are pre-wired in the solar breaker combiner box, very sturdy to combine your solar panels, making your solar panel system connection easier. It comes with complete mounting accessories to be installed anywhere.
VEVOR pv combiner box with impact and wearable resistance, effortless to use.
Premium ABS Material
The board wall distributor features ABS material with high impact strength, good weather resistance, and strong wear resistance. In addition, the plastic coating protects against water and dirt.
VEVOR pv combiner box applications: office building, industrial factory, residential, carport.
Extensive Application
The solar breaker combiner box is ideal for photovoltaic grid-connected and off-grid power generation systems. It is mainly used with solar panels in office buildings, industrial factories, residential buildings, carports, etc.

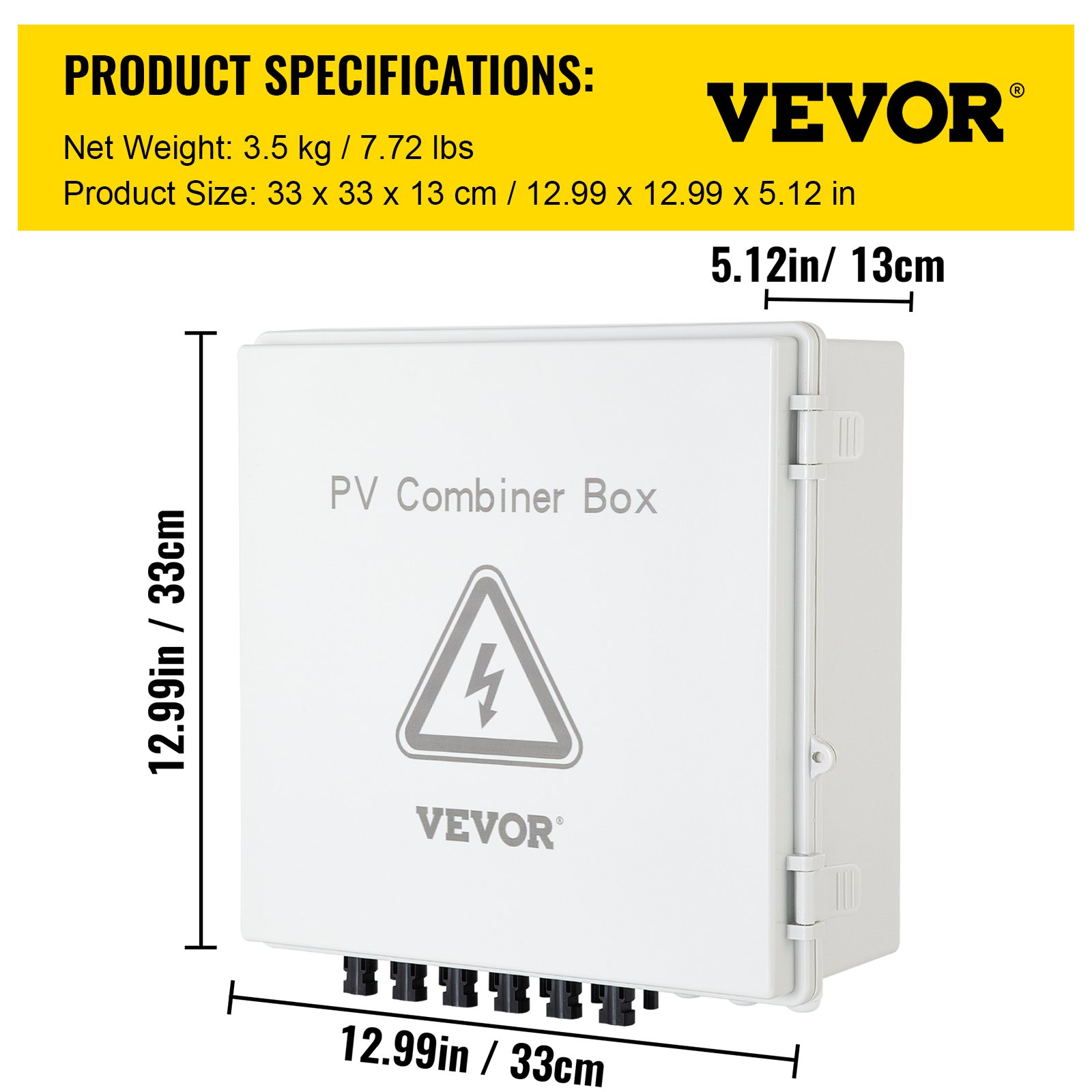

VEVOR pv combiner box with dimensions labeled: 12.99in x 12.99in x 5.12in.
Specifications
  • Model: SWHL-6
  • Number Of Max. Connection PV Array: 6
  • Max. Input Current of Single PV Array: 15A
  • Total Input Current of PV Array: 90A
  • Max Input Voltage of Single PV Array: 500V
  • Max Output Voltage: 500V
  • Protection Grade: IP65
  • Operational Environment Temperature: -30℃ to 70℃ / -22℉ to 158℉
  • Relative Humidity: 0-95%, No Condensation
  • Cooling Method: Natural Cooling
  • Surge Lightning Protection: Yes
  • Surge Protective Device: in: 20kA; Imax: 40kA; Up: 1.8kV
  • SPD Indicate Light Status: Green: Normal; Red: Triggered
  • Air Circuit Breaker Parameter: 500V, 125A; ON/OFF
  • Fuse Parameter: DC1000V, 15A, 10 x 38 mm / 0.39 x 1.5 in
  • Fuse Holder Parameter: DC1000V, 32A
  • RV Solar System: 1080W in 12V System, 2160W in 24V System, 4320W in 48V System
  • Product Dimensions(L x W x H): 33 x 33 x 13 cm / 12.99 x 12.99 x 5.12 in
  • Net Weight: 3.5 kg / 7.72 lbs
VEVOR pv combiner box with wiring, user manual, wrench, and connectors.
Package Content
  • 1 x PV Combiner Box
  • 1 x Solar Connector Tool
  • 4 x Mounting Buckles
  • 4 x Screws
  • 1 x Product Manual
VEVOR pv combiner box for solar panel system, ip65 waterproof, lightning protection
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR pv combiner box with wiring and circuit breakers in an open gray case.
6 String Solar PV Combiner Box
IP65 Protection Grade & Lightning Protection & Premium ABS Material
Our PV Combiner Box is a perfect device designed to reduce the connection line between PV modules and inverters, facilitate maintenance and improve reliability. Equipped with high-voltage lightning arresters, 15A DC fuses, and circuit breakers to play a role in circuit protection and lightning protection. It supports photovoltaic On-Grid/Off-Grid solar power generation systems, solar panel systems, up to 1080W in 12V system, 2160W in 24V system, 4320W in 48V system.
  • Professional PV Combiner Box
  • Secure & Reliable Protection
  • IP65 Waterproof & ABS Shell
  • Easy Installation & Wiring
VEVOR pv combiner box with lightning protection against high voltage lightning arrester.
High Voltage Lightning Arrester
The combiner box for solar systems is built with a professional high voltage lightning arrester to provide lightning and rain protection. Both positive and negative with thunder proof protection.
VEVOR pv combiner box with ip65 protection, ideal for outdoor use against elements.
IP65 Protection Level
The IP65 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures even more security on construction sites.
VEVOR pv combiner box features independent fuse, circuit breaker, wiring block, input connector.
Thoughtful Design
The PV combiner features 6 x 15A fuses for good current limiting characteristics and breaking high ability. 125A air circuit breaker can cut off and connect the load circuit, providing short-circuit fault protection.
VEVOR pv combiner box with wiring and installation tools. simple connection.
Simple & Straightforward Connection
All wires are pre-wired in the solar breaker combiner box, very sturdy to combine your solar panels, making your solar panel system connection easier. It comes with complete mounting accessories to be installed anywhere.
VEVOR pv combiner box with impact and wearable resistance, effortless to use.
Premium ABS Material
The board wall distributor features ABS material with high impact strength, good weather resistance, and strong wear resistance. In addition, the plastic coating protects against water and dirt.
VEVOR pv combiner box applications: office building, industrial factory, residential, carport.
Extensive Application
The solar breaker combiner box is ideal for photovoltaic grid-connected and off-grid power generation systems. It is mainly used with solar panels in office buildings, industrial factories, residential buildings, carports, etc.
VEVOR pv combiner box with wiring, user manual, wrench, and connectors.
Package Content
  • 1 x PV Combiner Box
  • 1 x Solar Connector Tool
  • 4 x Mounting Buckles
  • 4 x Screws
  • 1 x Product Manual
VEVOR pv combiner box with dimensions labeled: 12.99in x 12.99in x 5.12in.
Specifications
  • Model: SWHL-6
  • Number Of Max. Connection PV Array: 6
  • Max. Input Current of Single PV Array: 15A
  • Total Input Current of PV Array: 90A
  • Max Input Voltage of Single PV Array: 500V
  • Max Output Voltage: 500V
  • Protection Grade: IP65
  • Operational Environment Temperature: -30℃ to 70℃ / -22℉ to 158℉
  • Relative Humidity: 0-95%, No Condensation
  • Cooling Method: Natural Cooling
  • Surge Lightning Protection: Yes
  • Surge Protective Device: in: 20kA; Imax: 40kA; Up: 1.8kV
  • SPD Indicate Light Status: Green: Normal; Red: Triggered
  • Air Circuit Breaker Parameter: 500V, 125A; ON/OFF
  • Fuse Parameter: DC1000V, 15A, 10 x 38 mm / 0.39 x 1.5 in
  • Fuse Holder Parameter: DC1000V, 32A
  • RV Solar System: 1080W in 12V System, 2160W in 24V System, 4320W in 48V System
  • Product Dimensions(L x W x H): 33 x 33 x 13 cm / 12.99 x 12.99 x 5.12 in
  • Net Weight: 3.5 kg / 7.72 lbs

PV Combiner Box with Advanced Lightning Protection and IP65 Waterproofing

The VEVOR PV combiner box is equipped with advanced lightning protection. This feature ensures your solar panels are protected from surges and spikes. The user manual indicates that it comes with a surge protective device. That feature gives you peace of mind in any weather. The IP65 waterproof rating means it's dust-tight and can withstand low-pressure water jets (PTV), making it ideal for outdoor installations. You don't need to worry about rain or dust damaging your equipment. The box is built to last in harsh conditions.


Easy Installation and Maintenance with 15A Rated Current Fuse and 125A Circuit Breaker

This box is pre-wired and ready to install. You just need to mount it and connect the wires. The 15A-rated current fuse ensures each string is protected. The 125A circuit breaker provides overall system protection. This makes maintenance and troubleshooting easy.


Compact and Durable Design with Plenty of Room for Wiring

The VEVOR's PV combiner box has a compact and durable design. It is made from high-quality materials. Despite its compact size, it offers plenty of room for wiring. The internal layout is well thought out. This ensures an orderly and organized installation. The box is sturdy and can withstand outdoor conditions. It is a dependable choice for both on-grid and off-grid systems. The compact design makes mounting and installation easy.


Ideal for DIY Enthusiasts with Plug and Play Features

This PV combiner box is ideal for DIY enthusiasts. It has plug-and-play features. This means you can set it up with minimal effort. All you need to do is connect the wires and mount it. The box is ready to use, so people without professional experience can easily integrate it into their solar setup. It is a great choice for home or small-scale projects. Plug-and-play features ensure the installation is hassle-free.


Enhanced Safety Features with Individual Fuse for Each Array and Master Switch

Safety is the top priority of the VEVOR PV combiner box. Each array has an individual fuse for added protection. This ensures any issues with one array do not affect the others. The master switch allows you to turn the system on or off easily, making it safe to perform maintenance or repairs. These enhanced safety features provide peace of mind. You can trust that your solar system is well protected. The box meets all safety standards and is reliable.


High Quality and Well-Wired Construction for Long-Term Use

The PV combiner box is made from high-quality materials. It is well-wired and organized. All connections are tight and secure, ensuring reliable performance over time. The materials are durable and long-lasting. You can count on this box to work well for years. It is built to withstand the elements and regular use. High-quality, well-wired construction makes it a robust investment, providing a dependable and efficient solar solution.


Versatile 6 String Combiner Box Suitable for Various Solar Panel Systems

It is versatile and adaptable, supporting up to 6 solar arrays. This makes it suitable for various solar panel systems. Whether you have a small or large setup, it can accommodate your needs. The box is compatible with on-grid and off-grid systems, fitting into different solar configurations. This versatility makes it a flexible choice suited for many applications. You can easily integrate it into your existing solar setup, providing flexibility and convenience for different projects.


See More

Specification

Model
SWHL-6
Number Of Max. Connection PV Array
6
Max. Input Current of Single PV Array
15A
Total Input Current of PV Array
90A
Max Input Voltage of Single PV Array
500V
Max Output Voltage
500V
Protection Grade
IP65
Operational Environment Temperature
-30℃ to 70℃ / -22℉ to 158℉
Relative Humidity
0-95%, No Condensation
Cooling Method
Natural Cooling
Surge Lightning Protection
Yes
Surge Protective Device
in
SPD Indicate Light Status
Green
Air Circuit Breaker Parameter
500V, 125A; ON/OFF
Fuse Parameter
DC1000V, 15A, 10 x 38 mm / 0.39 x 1.5 in
Fuse Holder Parameter
DC1000V, 32A
RV Solar System
1080W in 12V System, 2160W in 24V System, 4320W in 48V System
Product Dimensions(L x W x H)
33 x 33 x 13 cm / 12.99 x 12.99 x 5.12 in
Net Weight
3.5 kg / 7.72 lbs
