【PREMIUM QUALITY】 - The stereo microscope features 3.5X-90X image magnification capability, including 0.5X and 2.0X lenses and WF10x/20 eyepieces. Full optical glass lenses create sharp and clear stereo images with excellent contrast and vibrant colors.
【DIVERSE ADJUSTMENT】 - This digital microscope has a 45-degree inclined and 360-degree swiveling head with adjustable interpupillary distance and diopter. The subtle and coarse focus adjusting knobs are adapted to suit different needs.
【TRINOCULAR PORT】 - Our trinocular stereo zoom microscope comes with a top expansion port designed to connect the camera or display. It allows you to watch the specimen image or live video on a larger screen with more people together.
【DUAL ARM BOOM】 - The trinocular stereo zoom microscope is designed with the dual-arm boom, allowing a working distance up to 20 cm/7.87". It is easy to adjust forward/backward and up/down for covering a large working area.
【WIDE APPLICATION】 - This stereo zoom microscope is widely used to observe insects, plants, rocks, stamps, jewelry, soldered pieces, microelectronic components, etc. It is an ideal tool for watchmaker, jeweler, engraver, dies-maker, philatelist, and students.
Although this is undoubtedly one more Chinese microscope, equal to many others under different brands,
for the price it is sufficiently good .
Delivery item was well protected inside its delivery package and it was about 5 days (Germany - Portugal) .
Rui Pereira
Reviewed on Mar 04,2025
I am very happy with this microscope. It is an excellent product with very good quality. The price is as expected for the high quality offered. This was the tool I needed for electronic repairs. Thank you Vevor and Klarna for such good oppotunity. I strongly recommend this shop for those who need good tools with low price.
good be better
Reviewed on Jan 19,2025
difficult to handle the narrow view, I change the 10x to 5x eyelenses (extra cost), to reduce magnification for normal electronic parts. Itried also to change 0.5x to 0.3x (also extra cost) but 0.3x has a working distance 267mm and need to put a longer axis
Tom
Reviewed on Nov 27,2024
Very good and better than expected. Was looking at amscope this is the same but less expensive. Used for soldering and smd assembly which I could not do without a scope. Make sure you get a light it would be very dark without.
Orolo
Reviewed on Nov 23,2024
I am totally satisfied with my purchase. Pre-Sales process (inquiry regarding the Simul Focal feature) was answered very quick and knowledgeable. Very fast delivery, the Microscope was suitably packed and all items survived shipping. The assembly was a walk in the park although the instructions could benefit from some additions regarding assembly of the optics. But as stated before, anyone with basic mechanical skills and some common sense is able to assemble the Microscope.
Handling of the Microscope is good, quality of the optics is absolutely ok, especially regarding the price of the item. I'm using it for SMD work and the stereoscopic view makes all the difference. If you plan to purchase this Microscope, do yourself a favour and order a 144 LED ringlight.
All in all, a very affordable good quality Microscope.
Tomas
Reviewed on Nov 02,2024
Good quality item with outstanding value. Fast delivery, package comes in mint condition. Overall pleasant experience. Thx
Eprom
Reviewed on Oct 11,2024
I am happy with the product everything works as described and I received everything as stated. The box in which it was packed came damaged, but the styrofoam in which the microscope was placed protected the product so there was no damage. I'm very satisfied, it wouldn't be bad if it comes with LED lighting right away.
bn
Reviewed on Oct 07,2024
Good quality, good product, fast delivery, I can recommend this product and this website to others.Good quality, good product, fast delivery, I can recommend this product and this website to others.Good quality, good product, fast delivery, I can recommend this product and this website to others.Good quality, good product, fast delivery, I can recommend this product and this website to others.Good quality, good product, fast delivery, I can recommend this product and this website to others.Good quality, good product, fast delivery, I can recommend this product and this website to others.Good quality, good product, fast delivery, I can recommend this product and this website to others.Good quality, good product, fast delivery, I can recommend this product and this website to others.Good quality, good product, fast delivery, I can recommend this product and this website to others.Good quality, good product, fast delivery, I can recommend this product and this website to others.Good quality, good product, fast delivery, I can recommend this product and this website to others.Good quality, good product, fast delivery, I can recommend this product and this website to others.Good quality, good product, fast delivery, I can recommend this product and this website to others.Good quality, good product, fast delivery, I can recommend this product and this website to others.Good quality, good product, fast delivery, I can recommend this product and this website to others.Good quality, good product, fast delivery, I can recommend this product and this website to others.Good quality, good product, fast delivery, I can recommend this product and this website to others.Good quality, good product, fast delivery, I can recommend this product and this website to others.Good quality, good product, fast delivery, I can recommend this product and this website to others.Good quality, good product, fast delivery, I can recommend this product and this website to others.Good quality, good product, fast delivery, I can recommend this product and this website to others.
Kari
Reviewed on Jul 31,2024
Very good. The microscope is simulfocal, contrary to the user guide. The image is sharp. The only slight problem was the protective lens which had bad thread. I had to repair the thread in order to install the lens. This is why only 4 stars for the quality. Otherwise, the quality seems to be good.
Gabriel
Reviewed on Jul 30,2024
I purchased the microscope two weeks ago and I use it for about 2 hours a day. The delivery was made in 8 calendar days. Regarding the quality of the assembly, I give it a 4/5 because although it is solid and quite well put together, some parts do not behave exactly as you would like, for example, the screws that hold the optical part in place need to be tightened well. As for the image quality, I give it a 5/5; it looks impeccable and once adjusted and focused, the image is very, very good. Regarding focusing, at first, I would give it a 2/5 because it is difficult to adjust, but as you get used to the device, it becomes a 4/5 in terms of ease of adjusting the focus. Overall, for the money, the microscope is very good and I recommend it with confidence. Mine arrived with some minor defects (which I believe were remedied by the manufacturer) and the zoom wheel squeaks a little. But these minor inconveniences did not make me want to return it. I am satisfied with the product and hope to use it as much as possible without losing its current qualities. It also comes with some quite useful accessories. Very easy to assemble even if you don't understand much from the manual. I have attached a reference picture with a nail, but it is not quite eloquent for the clarity and quality of the image. Final score: a 4/5; it definitely deserves the purchase.
About this item
Product specification
Material
Al-Zn Steel + Optical Lenses
Trinocular Head
360-Degree Rotatable + 45-Degree Inclined
Ocular Port Diameter
30 mm/1.18"
Eyepieces
WF10X/20 mm
Magnification Range
3.5X-90X
Objective
0.7X-4.5X
Lens
0.5X and 2.0X
Zoom Range
26
Diopter Adjustment
±5dp
Interpupillary Distance
55-75 mm/2.17"-2.95"
Field of View
2.5-65 mm/0.1"-2.56"
Working Distance
20 cm/7.87" (Adjustable)
Weight
24.5 kg/54.01 lb
Description

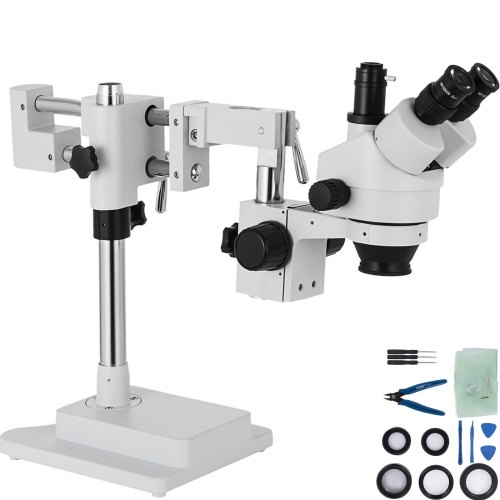

3.5X-90X Trinocular Stereo Microscope
This product is a professional trinocular stereo microscope designed to meet the demand of microscopy needs. It has a 3.5X-90X zoom range when used with 0.5X and 2.0X lenses (included). The digital microscope is adjustable in working distance, interpupillary distance, and diopter. It is widely used for PCB soldering repair, insect observation, jewelry identification, etc.
Premium Quality
Diverse Adjustment
Trinocular Port
Dual Arm Boom
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Al-Zn Alloy & Optical Lenses
The stereo microscope is made of sturdy Al-Zn alloy with high strength and premium optical glass lenses to provide a high-resolution image.
Binocular Stereo Imaging
This microscope is designed with binocular stereo imaging technology, supporting 3.5X-90X continuous zoom and interpupillary distance adjustment.
Wide Aperture Objective Lenses
The objective lenses are built with pure copper material and coated with anti-reflecting films, featuring a wide aperture and bright vision field.
Support Camera Connection
There is an expansion interface on the top to connect the camera, computer, or LCD screen for a larger display and close observation.
Adjustable Boom Stand
The stand is height adjustable with a working distance of 20 cm/7.87", and the boom can move forward/backward to cover a large work area.
Extensively Used
This digital microscope kit is widely used for the electric industry, insect observation, scientific research, jewelry identification, and textile industry.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
3.5X-90X Trinocular Stereo Microscope
This product is a professional trinocular stereo microscope designed to meet the demand of microscopy needs. It has a 3.5X-90X zoom range when used with 0.5X and 2.0X lenses (included). The digital microscope is adjustable in working distance, interpupillary distance, and diopter. It is widely used for PCB soldering repair, insect observation, jewelry identification, etc.
Premium Quality
Diverse Adjustment
Trinocular Port
Dual Arm Boom
Al-Zn Alloy & Optical Lenses
The stereo microscope is made of sturdy Al-Zn alloy with high strength and premium optical glass lenses to provide a high-resolution image.
Binocular Stereo Imaging
This microscope is designed with binocular stereo imaging technology, supporting 3.5X-90X continuous zoom and interpupillary distance adjustment.
Wide Aperture Objective Lenses
The objective lenses are built with pure copper material and coated with anti-reflecting films, featuring a wide aperture and bright vision field.
Support Camera Connection
There is an expansion interface on the top to connect the camera, computer, or LCD screen for a larger display and close observation.
Adjustable Boom Stand
The stand is height adjustable with a working distance of 20 cm/7.87", and the boom can move forward/backward to cover a large work area.
Extensively Used
This digital microscope kit is widely used for the electric industry, insect observation, scientific research, jewelry identification, and textile industry.
Can this microscope be fitted with a Barlow lens? Does Vevor have a Barlow lens available for this as separate item? If not what diameter would the fitting be for third party lenses?
Answer This Question
The product is equipped with Barlow lenses, both 0.5X and 2X lenses are available.
