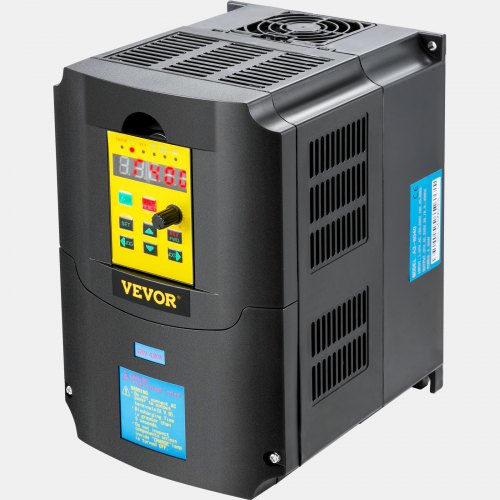

VEVOR variable frequency drive with yellow control panel and digital display. VEVOR variable frequency drive for woodworking, textile, and pharmaceutical equipment. VEVOR variable frequency drive with high accuracy and multiple speed modes selection VEVOR variable frequency drive with multiple safeguards and flame retardant case. VEVOR variable frequency drive with independent cooling air duct and high air volume fan. VEVOR variable frequency drive with simple wiring and remote operation. VEVOR variable frequency drive with dimensions and weight specifications.
BPQDXN4KW220V8MZPV7

VEVOR Variable Frequency Drive, AC 220V Input 4KW Variable Frequency CNC Drive Inverter Converter, VFD 5.5HP 1 or 3 Phase Input, 3 Phase Output, CNC Motor Inverter Converter for Motor Speed Control

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App.
Download Now
Exclusive 5,00€ off for your first three orders on the App.
Scan the QR code to download

About this item

  • Powerful Function: This variable frequency drive has a 1 or 3 phase input and 3 phase output. Control mode: V/F control and vector control. Frequency setting mode: digital setting, analog setting, serial communication setting, PID setting (advanced calculus PID closed-loop arithmetic, quick responding speed, and high suitability), etc. Various control techniques by both synchronization and non-synchronization dynamically realize fast starting without changing brakes. Heavy load high torque, 1Hz up to full torque.
  • Low-Noise Operation: The phase converter features low noise and low electromagnetic interference through the optimization of PWM control technology and electromagnetic compatibility of the overall design. There is enough space for heat dissipation between electronic components, and the shell adopts porous heat dissipation, which has a longer service life.
  • Smart Digital Display: The VFD adopts a user-friendly keyboard design & reasonable layout, easy to operate; digital display, intuitive and clear. The detachable design is convenient for remote control.
  • Multiple Protection: We adopt various protection ways to ensure the stable and reliable operation of the CNC variable frequency drive inverter. Such as overload protection, fuse protection, over-voltage (DC voltage>400V), or under-voltage (DC voltage<200V) protection, restart protection, stall protection, short-circuit protection, and over-heat protection.
  • Versatile Use: The main application area involves a spindle motor, CNC engraving machine, CNC milling machine, CNC machine tool, milling machine, drilling machine, trimming machine, mixer, extruder, slitting machine, rewinder, compressor, ventilator, pump, grinder, conveyor. Speed regulators such as elevators (cannot be used for passenger elevators), centrifuges, etc.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Variable Frequency Drive, AC 220V Input 4KW Variable Frequency CNC Drive Inverter Converter, VFD 5.5HP 1 or 3 Phase Input, 3 Phase Output, CNC Motor Inverter Converter for Motor Speed Control
VEVOR variable frequency drive, 4kw power, 220v input, 17a rated current on a workshop table.
VEVOR variable frequency drive with control panel and ventilated casing.
4 KW Variable Frequency Drive
Stable Performance & Digital Display & Mute Operation
This VFD converter can be used for constant torque loads (such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc.). In addition, it can be used as a motor speed control and a phase converter. The input for this VFD is 1 or 3 phase, and the output is 3 phase. You can control the different speeds you like when you use this VFD. This item uses Sine wave PWN(SVPWM) for the control system and performance excellently. It also has passed CE certification.
  • Note: This product is delivered randomly in black and white.
  • Powerful Function
  • Low-Noise Operation
  • Smart Digital Display
  • Multiple Protection
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR variable frequency drive with unique control method and high precision.
Unique Control Method
This VFD uses a unique control method to achieve the high moment of force, high precision, and wide speed regulating range driving. It can realize functions like up to 8/16-segment speed control, a program running, 4-segment acceleration/deceleration switching, etc.
VEVOR variable frequency drive with high-impact abs case and long service life.
High-Quality Material
The case of CNC VFD is made of ABS flame retardant material which features strong crash-proof capabilities, good flame retardancy with a non-corrosive coating. In addition, it has good tripping prevent performance and the ability to adapt to rough power, temperature, humidity, and dust interference, greatly improved stability. The capacitor can withstand temperatures up to 105℃, higher than ordinary ones (80℃).
VEVOR variable frequency drive with detachable fan and built-in radiator, high air volume.
High Air Volume
The VFD drive is equipped with fan cooling and a built-in radiator. It has an efficient heat dissipation ability, ensuring a suitable temperature inside the VFD. In addition, the independent air duct is designed for electrical and contaminant isolation, allowing the product to be used in harsh environments.
VEVOR variable frequency drive with smart digital display and intuitive led screen.
Smart Digital Display
After the panel is disassembled, it can be connected to the corresponding interface to achieve remote control. Reasonable layout and intuitive & clear digital display increase the convenience of daily use.
VEVOR variable frequency drive with multiple protection features: overload, fuse, voltage.
Multiple Protection
Many protection ways are adopted to ensure the stable and reliable operation of the CNC variable frequency drive inverter, like overload protection, fuse protection, over-voltage or under-voltage protection, etc.
wide application of VEVOR variable frequency drive in cnc, general, construction, and pharmaceutical machinery
Wide Application
The variable frequency drives are applied in machinery winding machines, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, elevator, and other speed control machines.
VEVOR variable frequency drive with dimensions 8.66"x5.82"x4.64".
Specifications
  • Model: H100-4S2-1B
  • Power: 4 kW
  • Input Voltage: 220V
  • Output Voltage: 0-220V
  • Input Current: 0-17A
  • Output Current: 0-17A
  • Input Phase: 1 or 3 Phase
  • Output Phase: 3 Phase
  • Input Frequency: 50/60 Hz
  • Output Frequency: 0-1000 Hz
  • Horsepower: 5.5 HP
  • Working Temperature: 23~104℉/-5 ~ 40 ℃
  • Humidity: 0-90% Relative Humidity (without dew)
  • Vibration: Below 0.5 G
  • Net Weight: 5.73 lbs / 2.6 kg
  • Product Size: 8.7 x 4.6 x 5.8 in / 220 x 118 x 148 mm
VEVOR variable frequency drive with yellow control panel and black casing.
Package Content
  • 1 x 4 KW Variable Frequency Drive Inverter
  • 1 x English Manual
  • 1 x Extension Wire
VEVOR variable frequency drive, 4kw power, 220v input, 17a rated current on a workshop table.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR variable frequency drive with control panel and ventilated casing.
4 KW Variable Frequency Drive
Stable Performance & Digital Display & Mute Operation
This VFD converter can be used for constant torque loads (such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc.). In addition, it can be used as a motor speed control and a phase converter. The input for this VFD is 1 or 3 phase, and the output is 3 phase. You can control the different speeds you like when you use this VFD. This item uses Sine wave PWN(SVPWM) for the control system and performance excellently. It also has passed CE certification.
  • Note: This product is delivered randomly in black and white.
  • Powerful Function
  • Low-Noise Operation
  • Smart Digital Display
  • Multiple Protection
VEVOR variable frequency drive with unique control method and high precision.
Unique Control Method
This VFD uses a unique control method to achieve the high moment of force, high precision, and wide speed regulating range driving. It can realize functions like up to 8/16-segment speed control, a program running, 4-segment acceleration/deceleration switching, etc.
VEVOR variable frequency drive with high-impact abs case and long service life.
High-Quality Material
The case of CNC VFD is made of ABS flame retardant material which features strong crash-proof capabilities, good flame retardancy with a non-corrosive coating. In addition, it has good tripping prevent performance and the ability to adapt to rough power, temperature, humidity, and dust interference, greatly improved stability. The capacitor can withstand temperatures up to 105℃, higher than ordinary ones (80℃).
VEVOR variable frequency drive with detachable fan and built-in radiator, high air volume.
High Air Volume
The VFD drive is equipped with fan cooling and a built-in radiator. It has an efficient heat dissipation ability, ensuring a suitable temperature inside the VFD. In addition, the independent air duct is designed for electrical and contaminant isolation, allowing the product to be used in harsh environments.
VEVOR variable frequency drive with smart digital display and intuitive led screen.
Smart Digital Display
After the panel is disassembled, it can be connected to the corresponding interface to achieve remote control. Reasonable layout and intuitive & clear digital display increase the convenience of daily use.
VEVOR variable frequency drive with multiple protection features: overload, fuse, voltage.
Multiple Protection
Many protection ways are adopted to ensure the stable and reliable operation of the CNC variable frequency drive inverter, like overload protection, fuse protection, over-voltage or under-voltage protection, etc.
wide application of VEVOR variable frequency drive in cnc, general, construction, and pharmaceutical machinery
Wide Application
The variable frequency drives are applied in machinery winding machines, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, elevator, and other speed control machines.
VEVOR variable frequency drive with yellow control panel and black casing.
Package Content
  • 1 x 4 KW Variable Frequency Drive Inverter
  • 1 x English Manual
  • 1 x Extension Wire
VEVOR variable frequency drive with dimensions 8.66"x5.82"x4.64".
Specifications
  • Model: H100-4S2-1B
  • Power: 4 kW
  • Input Voltage: 220V
  • Output Voltage: 0-220V
  • Input Current: 0-17A
  • Output Current: 0-17A
  • Input Phase: 1 or 3 Phase
  • Output Phase: 3 Phase
  • Input Frequency: 50/60 Hz
  • Output Frequency: 0-1000 Hz
  • Horsepower: 5.5 HP
  • Working Temperature: 23~104℉/-5 ~ 40 ℃
  • Humidity: 0-90% Relative Humidity (without dew)
  • Vibration: Below 0.5 G
  • Net Weight: 5.73 lbs / 2.6 kg
  • Product Size: 8.7 x 4.6 x 5.8 in / 220 x 118 x 148 mm

Optimize Motor Performance — Reliable Variable Frequency Drive

This variable frequency drive is easy to install and set up. The manual comes with clear instructions. You can get it running quickly with minimal effort. This is especially beneficial for those new to VFDs. The setup can be completed in just a few simple steps. So you can connect it to your motor without any trouble. The drive works perfectly with various motor setups. It can serve many applications. The straightforward installation process saves you time and effort, too. This drive is based on a practical solution for motor speed control needs. We have designed it specifically to meet your tasks and improve efficiency.


AC 220V Input Drive Ensures Fast and Reliable Performance

It provides fast and reliable performance. It powers your motor efficiently and consistently. This drive is reliable for daily use in various environments. You can count on it to provide stable power to your vehicle. It supports a variety of motor speeds, offering precise control. The performance is smooth and responsive. It helps maintain the motor's optimal speed for your tasks. This reliability makes it suitable for both home and commercial use. AC 220V input ensures that your car runs uninterruptedly. It is a dependable solution for controlling motor speed.


CNC Drive Inverter Converter with Extensive Features for Advanced Control

This AC 220V input drive offers extensive features for advanced control. It comes with multiple settings to customize your motor's performance. Features include adjustable speed and frequency settings. You can fine-tune the motor speed to suit your needs. The protection features like overcurrent and overheat protection ensure safety and longevity. The advanced control options make it suitable for complex tasks. It is perfect for detailed and precise operations. The extensive functions give you more control over your engine. Hence, it is a versatile tool for various applications.


Motor Speed Control Inverter Ideal for Both Home and Commercial Use

This drive is ideal for both home and commercial use. It has a user-friendly design that meets the needs of different environments. Whether you are working in a workshop or a commercial setting, this drive is suitable. This drive supports varying motor speeds so you can work on various tasks, from simple to complex. The compact design makes it easy to install in different setups. You can use it for everything from basic to advanced. It is a reliable tool for controlling motor speed in many applications, providing flexibility across multiple settings. So, it’s able to serve both your home users and professional users.


3 Phase Output Drive Delivers Smooth and Precise Motor Control

This variable frequency drive ensures that your motor runs smoothly and efficiently. It provides stable power, reducing any fluctuations. The 3 phase output improves the motor's performance. It helps maintain a consistent speed for your tasks with smooth and precise control. This makes it suitable for demanding applications. This drive is designed to provide reliable and efficient motor control. It is a valuable tool for achieving accurate motor speed control.


Cost-effective Solution Compared to Purchasing Used VFDs

Compared to buying used VFDs, this CNC drive is cost-effective. It offers a new, reliable product at an affordable price. You get the benefits of advanced features without breaking the bank. Cost-effectiveness makes it attractive for budget-conscious users. Its cost-effectiveness makes it a great value. This means you can enjoy reliable performance without sacrificing quality, making it a great value for money. This drive is designed to meet your needs while being budget-friendly. While not inherently economical, it is a rational investment for motor speed control. This cost-effective solution ensures that you get the best value for your money.


Excellent Support and Fast Delivery

The company provides quick answers to any questions or issues. This ensures that you get the help you need quickly. The fast delivery means you can start using your drive sooner. It improves your overall experience with the product. Reliable support and fast delivery are additional benefits of choosing drive. They guarantee a smooth and hassle-free experience. The firm's commitment to customer satisfaction is evident in these services. So, this makes frequency drive a dependable choice for your motor speed control needs.


See More

Specification

Model
H100-4S2-1B
Power
4 kW
Input Voltage
220V
Output Voltage
0-220V
Input Current
0-17A
Output Current
0-17A
Input Phase
1 or 3 Phase
Output Phase
3 Phase
Input Frequency
50/60 Hz
Output Frequency
0-1000 Hz
Horsepower
5.5 HP
Working Temperature
23~104℉/-5 ~ 40 ℃
Humidity
0-90% Relative Humidity (without dew)
Vibration
Below 0.5 G
Net Weight
5.73 lbs / 2.6 kg
Product Size
8.7 x 4.6 x 5.8 in / 220 x 118 x 148 mm
Questions and Answers
4 Questions
How do i set over current limit? What is Torque Compensation (Pn 13)?
The supercurrent setting does not need to be set, currently, this option is not allowed, and the setting is fixed. Torque compensation means that the running torque of the motor is not enough at low speeds, and this parameter can be used to compensate. If you are single-phase 220v, please connect to R and T, and S does not need to be connected when it is empty. If you are three-phase 220v, then connect to RST. The three wires of the motor are connected to U, V, and W.
By vevor
Is it possible to use this unit to drive a single phase fan motor? There seems to be no Neutral terminal output? Do I have to set specific paramters to do it?
No, single-phase motors cannot be driven by this inverter, it can only drive three-phase asynchronous motors with a voltage level of 220 volts.
By vevor
Hi, may I use RS485 protocol to control the driver?
No, it can only be controlled via external terminals.
By vevor
Dear Sirs, good morning, We need to know if your speed variator, VEVOR A2-3040, can be controlled by a pressure switch installed in a pipe. The idea is that the variator will control a pump, and should start it when the preesure in the pipe is too low and should stop when the pressure is higher than a defined value. If can be controlled by pressure, needs a specific type of pressure switch?
Yes, you can start and stop through the pressure switch, but please note that it is a pressure switch, not a pressure transmitter. Your current function uses the external operation function of our frequency converter. The model you just sent is 380, with 380 input and 380 output, but the SKU in the link you looked at is 220 input and three-phase 220 output. You should pay attention to which model you need.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.6
  • 4.6
  • 4.7
  • See More See Less
23 Review(s)
Clear filters
Levi Levi
electric engineer
Between the 3 phases it only allows to get maximum 220V so it is a device for 3x110-120V. It is NOT meant for real 3x220V (380V) or 3x230V (400V). It do NOT match with the European voltage standards, despite the customer support statement. After the confirmation of the customer support, I have tried to connect that to 3x230V and it exploded. Overvoltage protection reach for only +15%.
Radu V Radu V
Foarte bun
L-am conectat la o pompa submersibila (20m adancime) monofazata de 220V si 1.1 kW. Am conectat pompa la iesirile U si W pastrand condensatorul. Pornirea si oprirea pompei se face prin presostat (3bar start, 4 bar stop) conectat la X1/X3 iar reglajul PID a presiunii printr-un traductor de presiune 0-10 bar, 4-20mA conectat la AI2 (parametrii au fost configurati conform exemplului din manualul de operare). S-a configurat domeniul de lucru al pompei intre 35-50Hz (35Hz fiind o turatie suficienta a pompei astfel incat atunci cand se inchid toti consumatorii pompa sa poata ridica presiunea pana la conditia de stop 4 bar). Concluzii: convertizorul suporta motoare monofozate de 220Vac (prin setarea unui parametru), pornirea si oprirea pompei nu se mai face cu socuri mecanice si nici nu se mai sting becurile in casa la pornire (soft start). Regulatorul PID functioneaza precis, in functie de setari. N-am observat anomalii pe parcursul a cca 2 saptamani. Optiunile pe care le are, usurinta in al parametriza il ridica peste nivelul unor convertizoare din gama entry level al majoriratii brandurilor industriale (raportat si la pret). Daca se va dovedi si fiabil in timp atunci e un best buy. Nota 10 si pt furnizor, l-am primit in 3 zile.
Cândido Cândido
eng
Para um variador de 4CV cuja cablagem será no mínimo 4mm2 os bornes não suportam esta secção de cabos
gogo gogo
Greats
nothing to complain about, it works as it should, the quality/price ratio - great Delivery speed - great I am satisfied. I recommend to all
cnc cnc
hobycnc
Am primit produsul , arata bine estetic nota 10 . l-am probat este silentios .I-mi place cum functioneaza , este OK.
Peter Steinrueck Peter Steinrueck
Technology and Strategy Advisor
although the product is of good quality and leaves now wish open with respect of useful and required features the product is not very useful in countries with 230/400 V grid. The inverter only can be operated in single phase 230V mode which is not useful for 7,5 kW drives. Connected to 3 phase 400 V the capacitors explode. Also 3 phase 230 V inductance motors are not available in Europe. Vevor supoort and reaction to my respective complaint was very professional, fast and satisfactory.
Dixon Chan Dixon Chan
After sales service is perfect
Their after-sales service is very considerate, and the problem is solved quickly.
Roy Parsons Roy Parsons
like it very much. Great
We use it a lot and the quality is as good as ever.
Hills Catherine Hills Catherine
Logistics is really fast
The service of the courier is very good and considerate.
Dubay Grace Dubay Grace
The product is very durable
We have used it many times, the product is not damaged at all, perfect quality.
