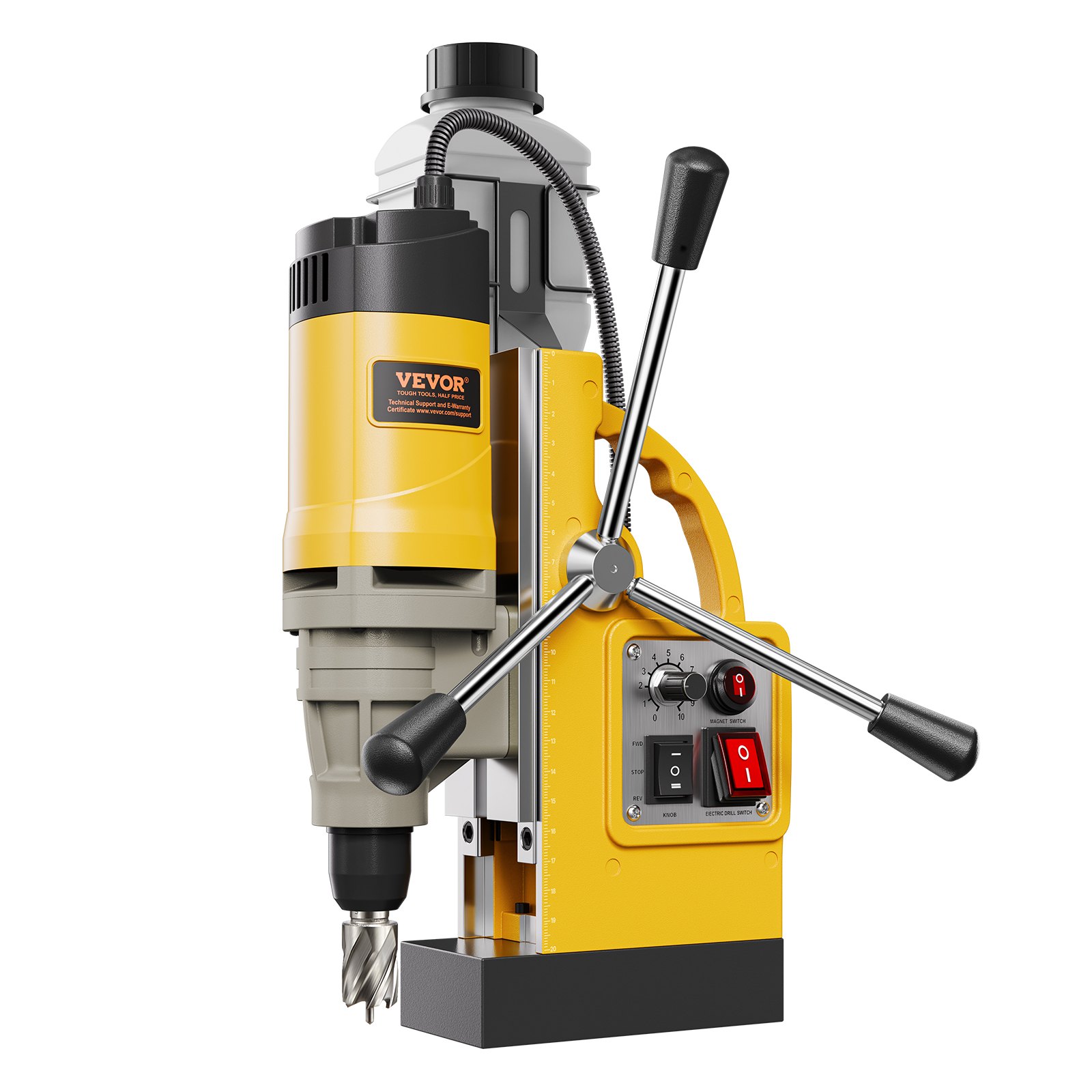

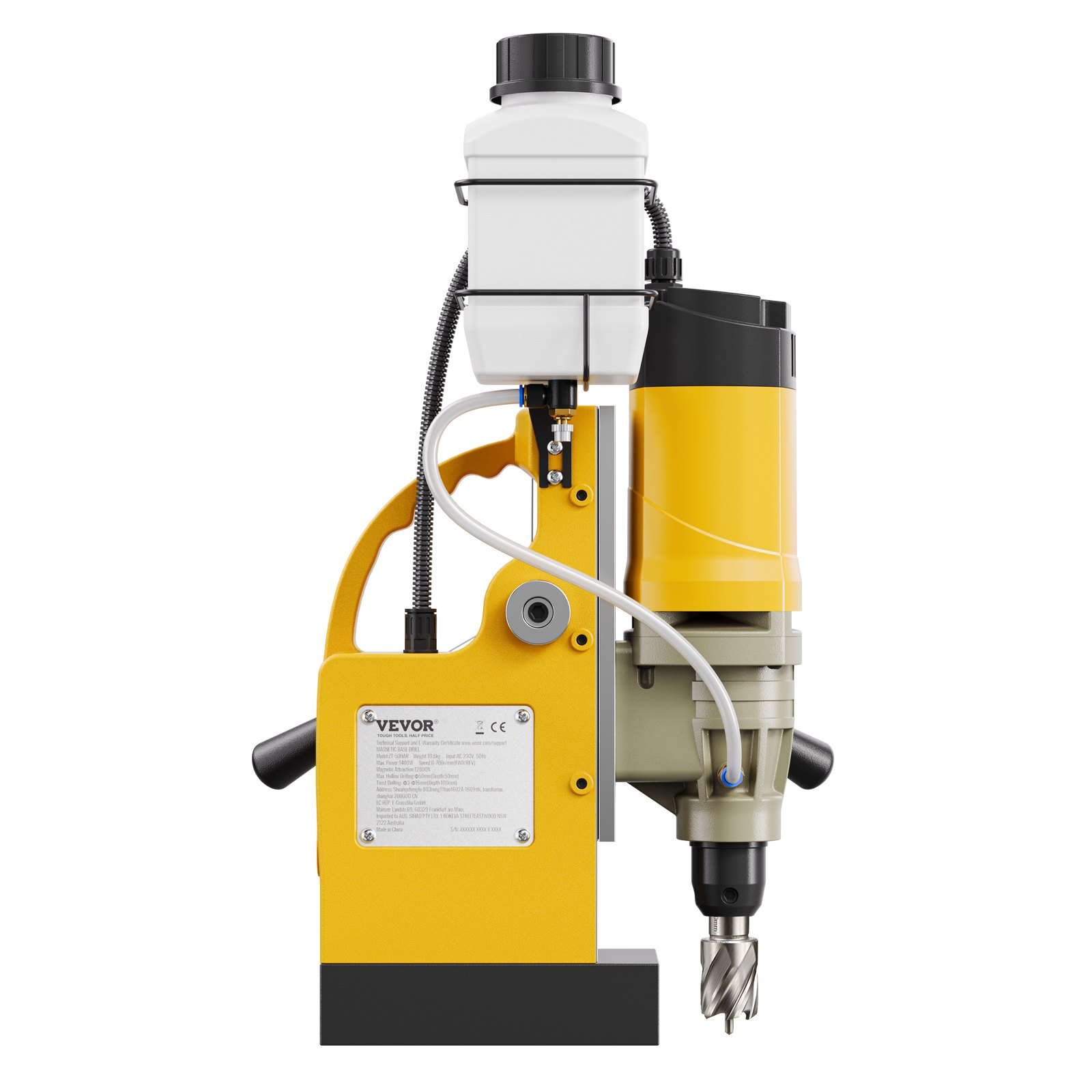

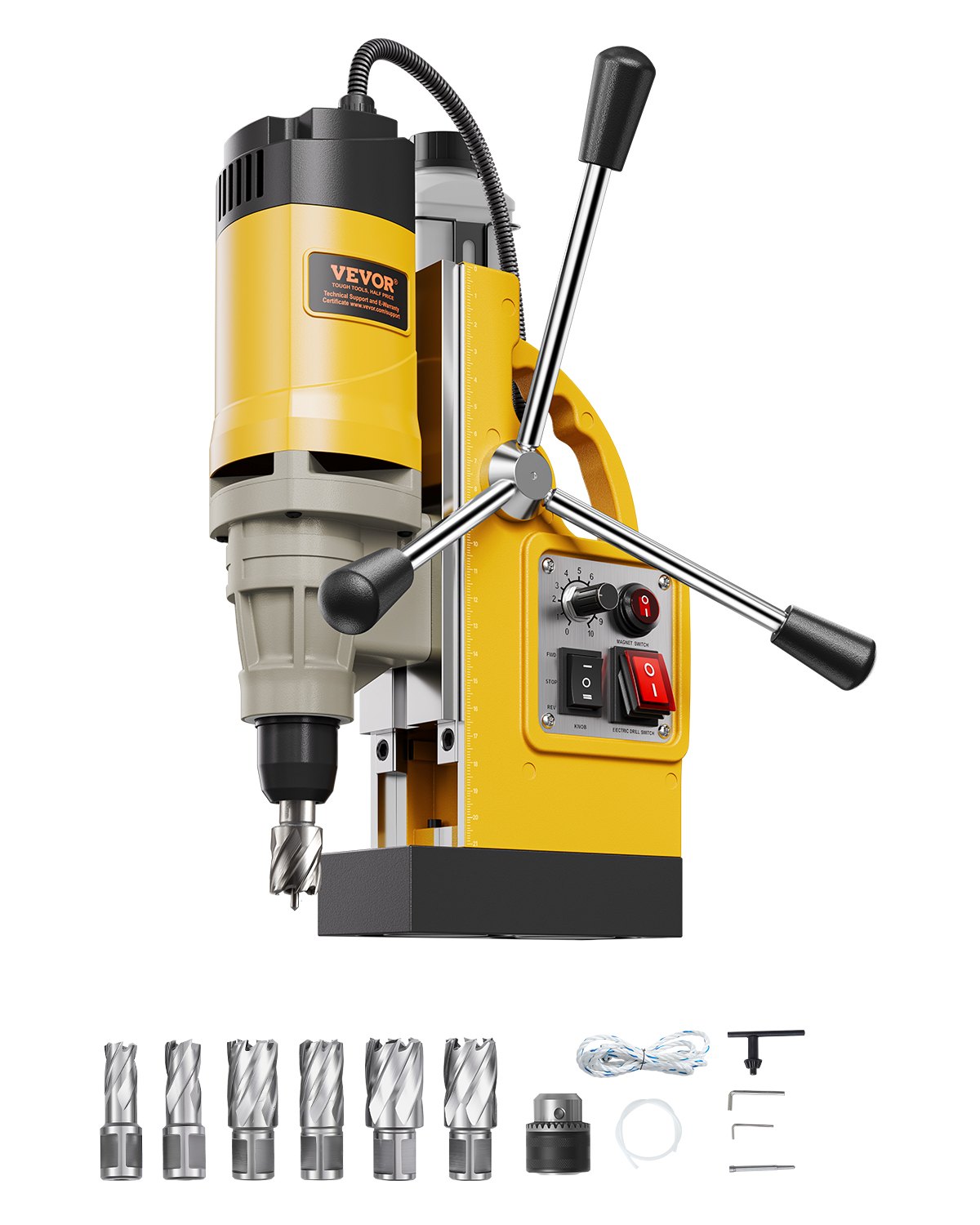

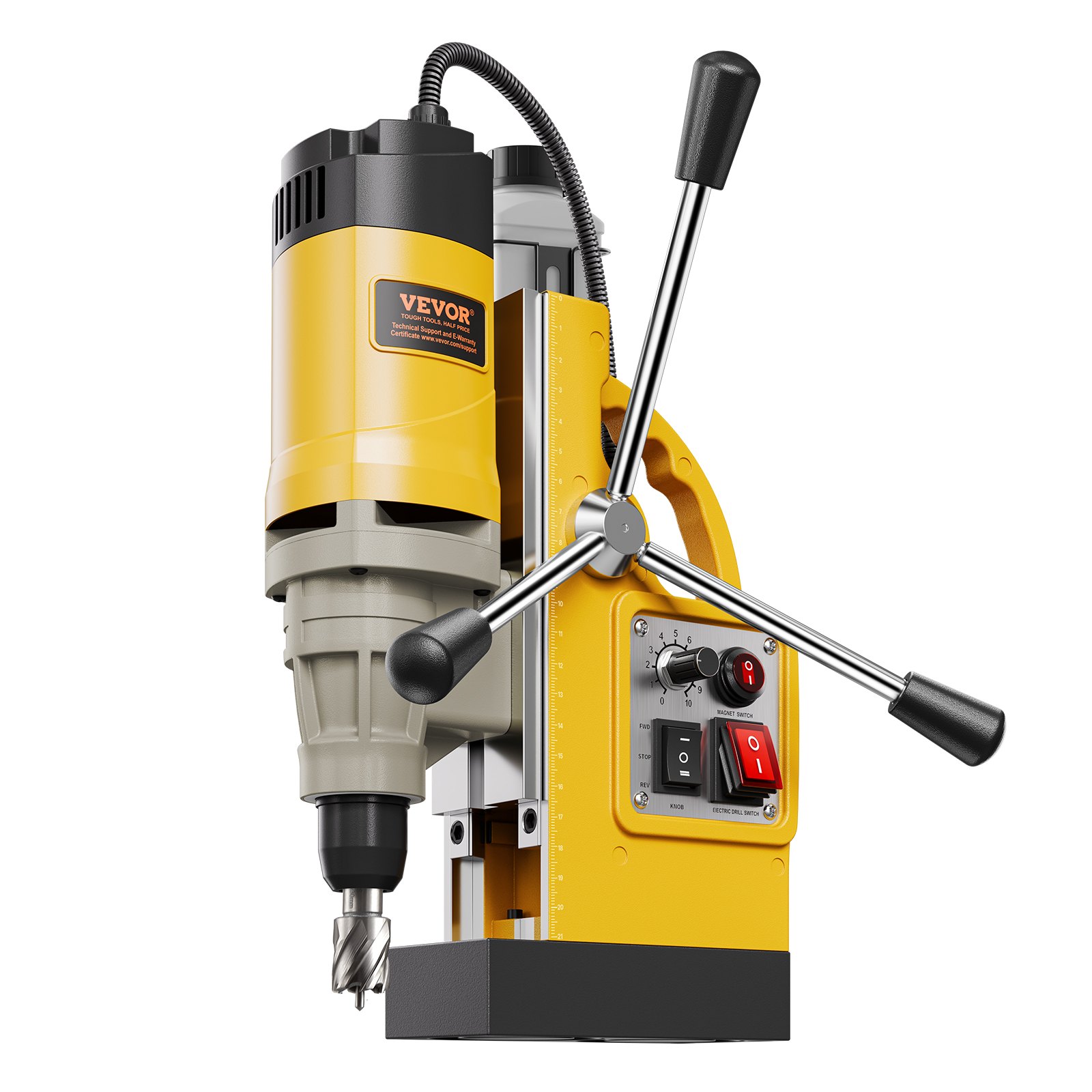

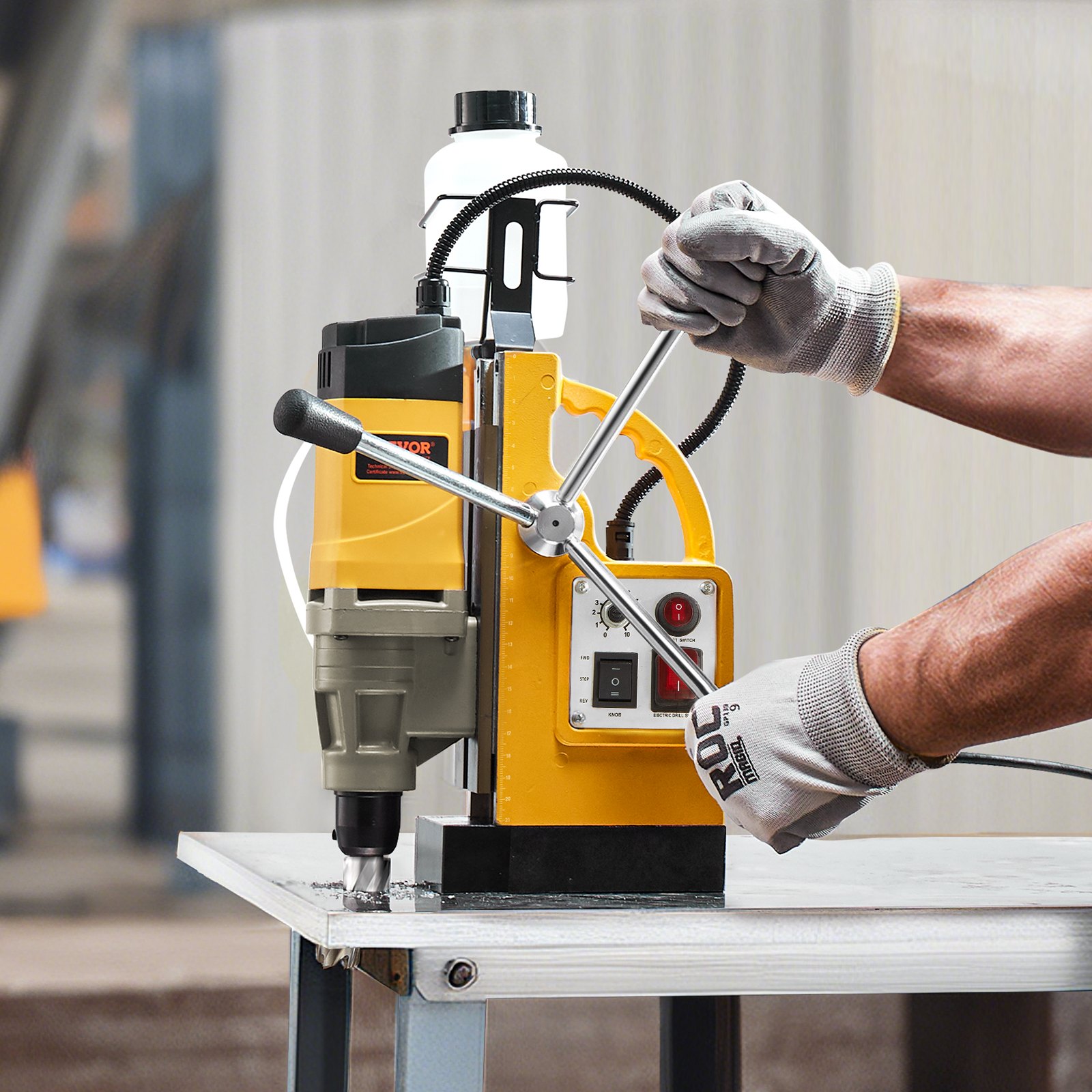

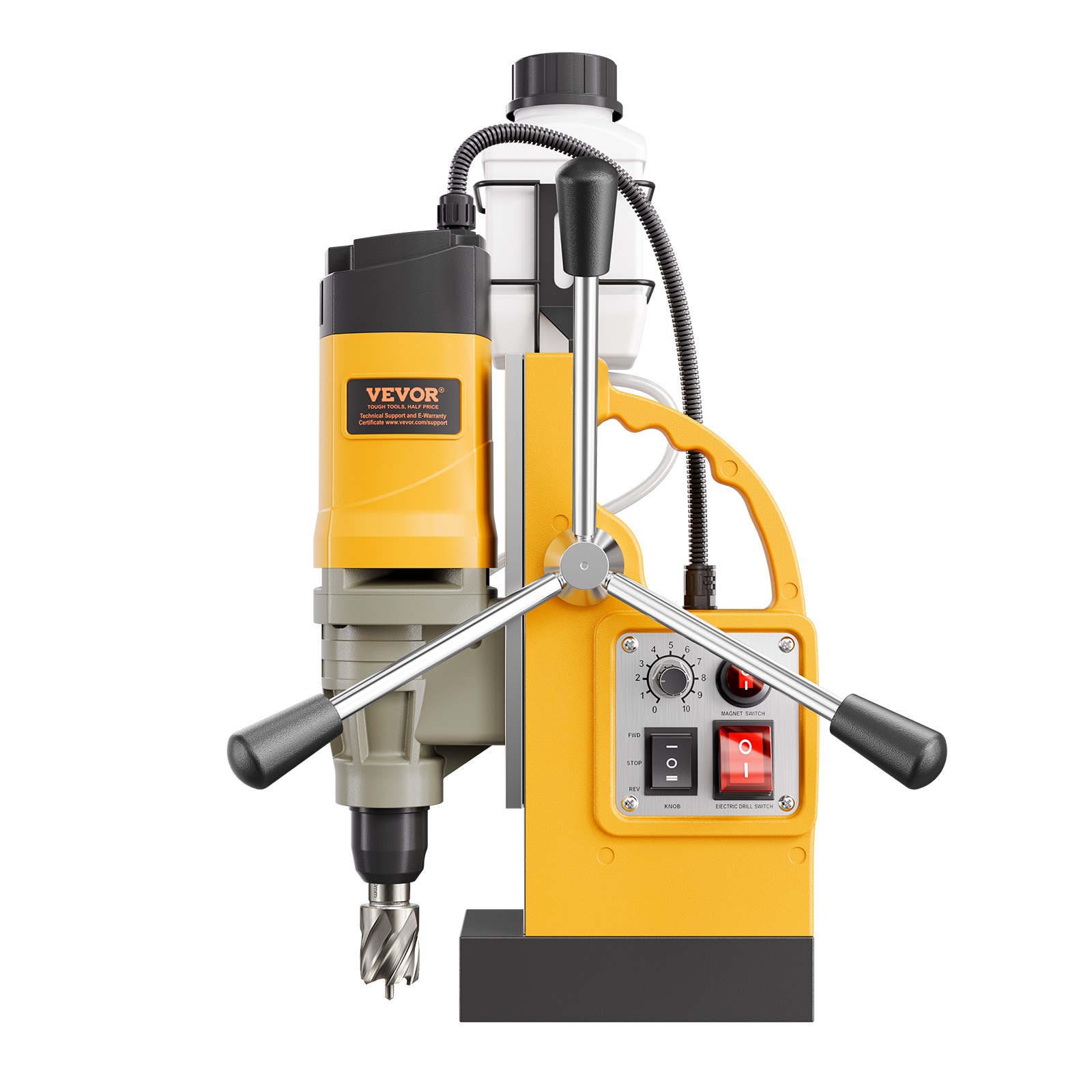

VEVOR Magnetic Drill, 1400W Motor 2 in Boring Diameter, 2878 lbf Electric Mag Drill Press, with 6 Coring Bits, Variable Speed, Drilling Machine for Metal Surface, Home Improvement Industry, Yellow

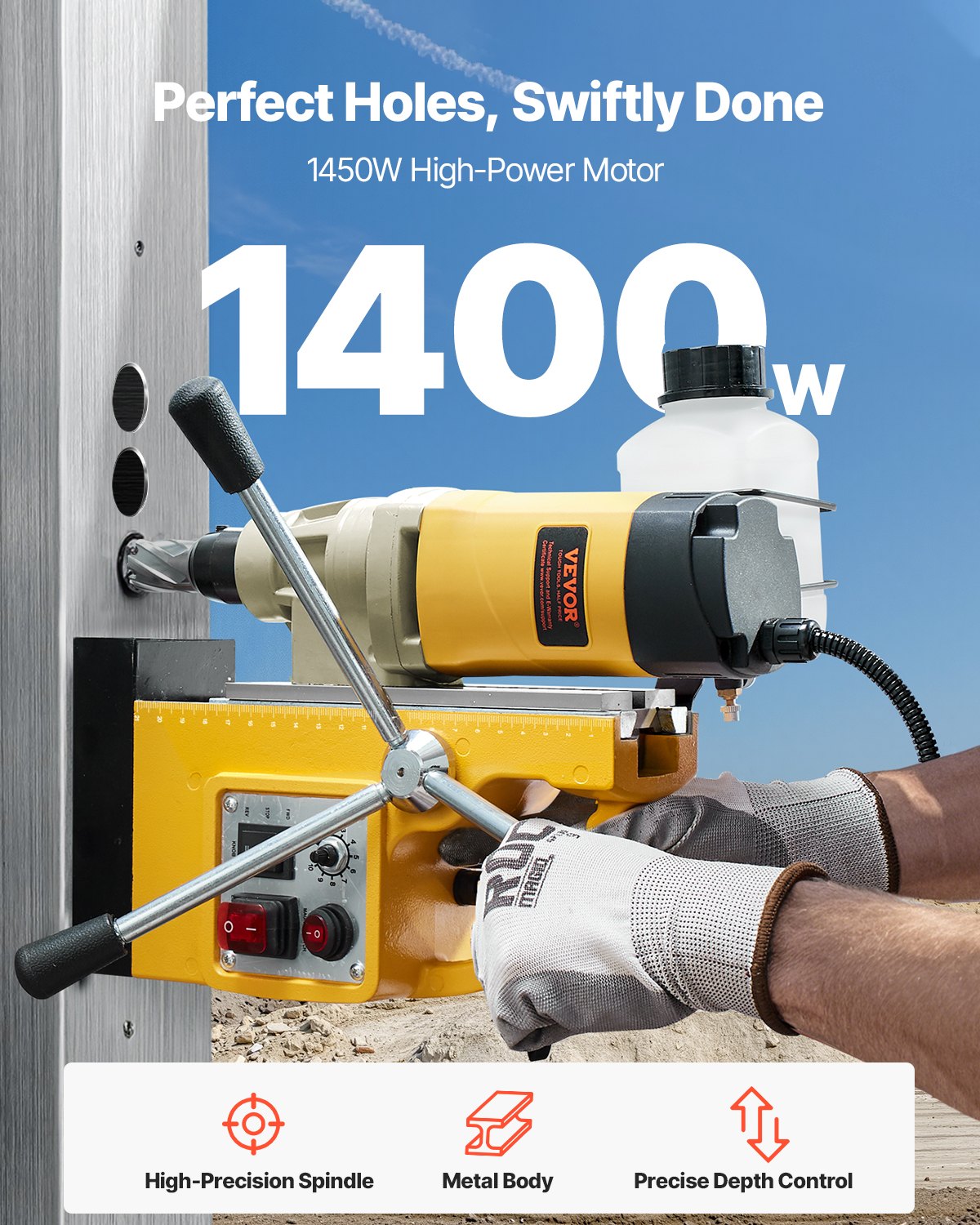

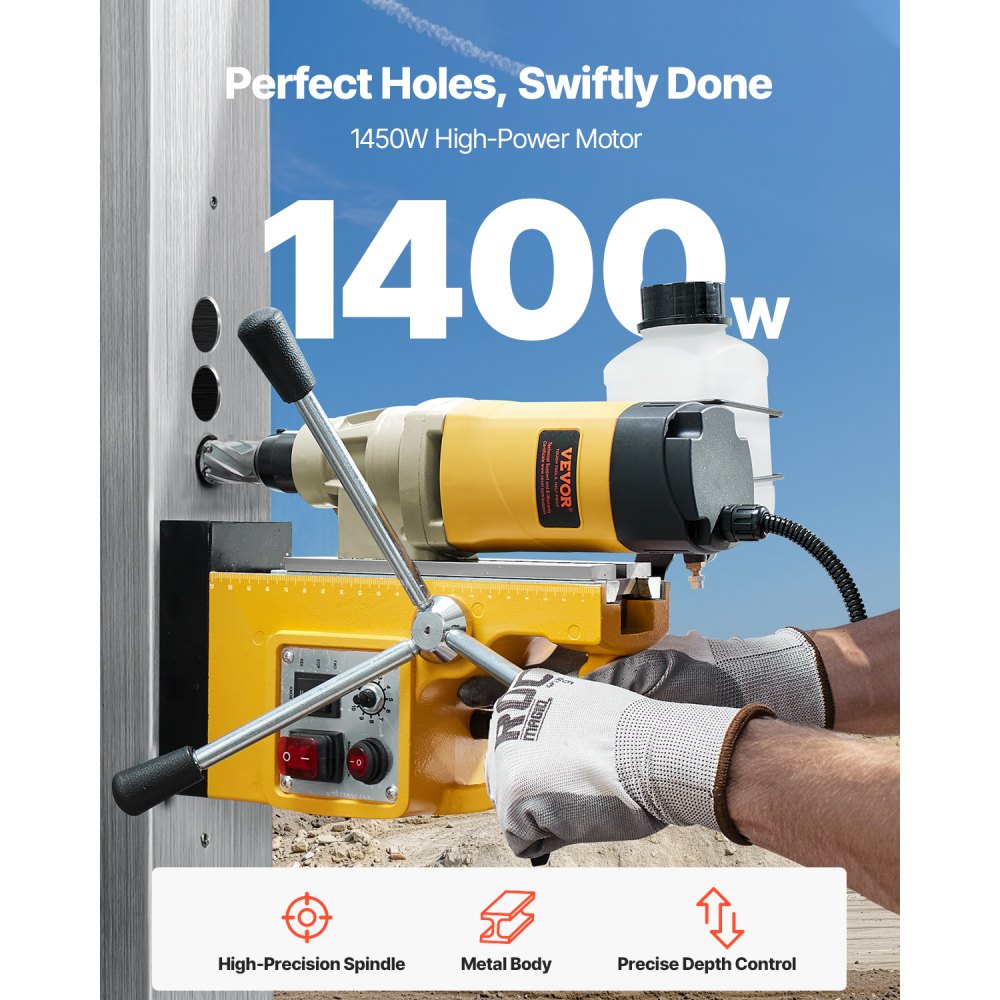

1450W Copper Motor in the Electric Mag Drill for Continuous High-Torque Boring

This electric mag drill features a 1450W (US) / 1400W (EU/AU) copper-wound motor designed to maintain torque in thick structural steel without thermal rollback or speed drop. Copper windings are better at dissipating heat than aluminum versions, allowing the motor to run longer on the job site, where a stop for a cool-down costs real time and money. It is the performance that counts when you are running multiple sequential holes through I-beams, column flanges, or plate steel for a fabrication run.

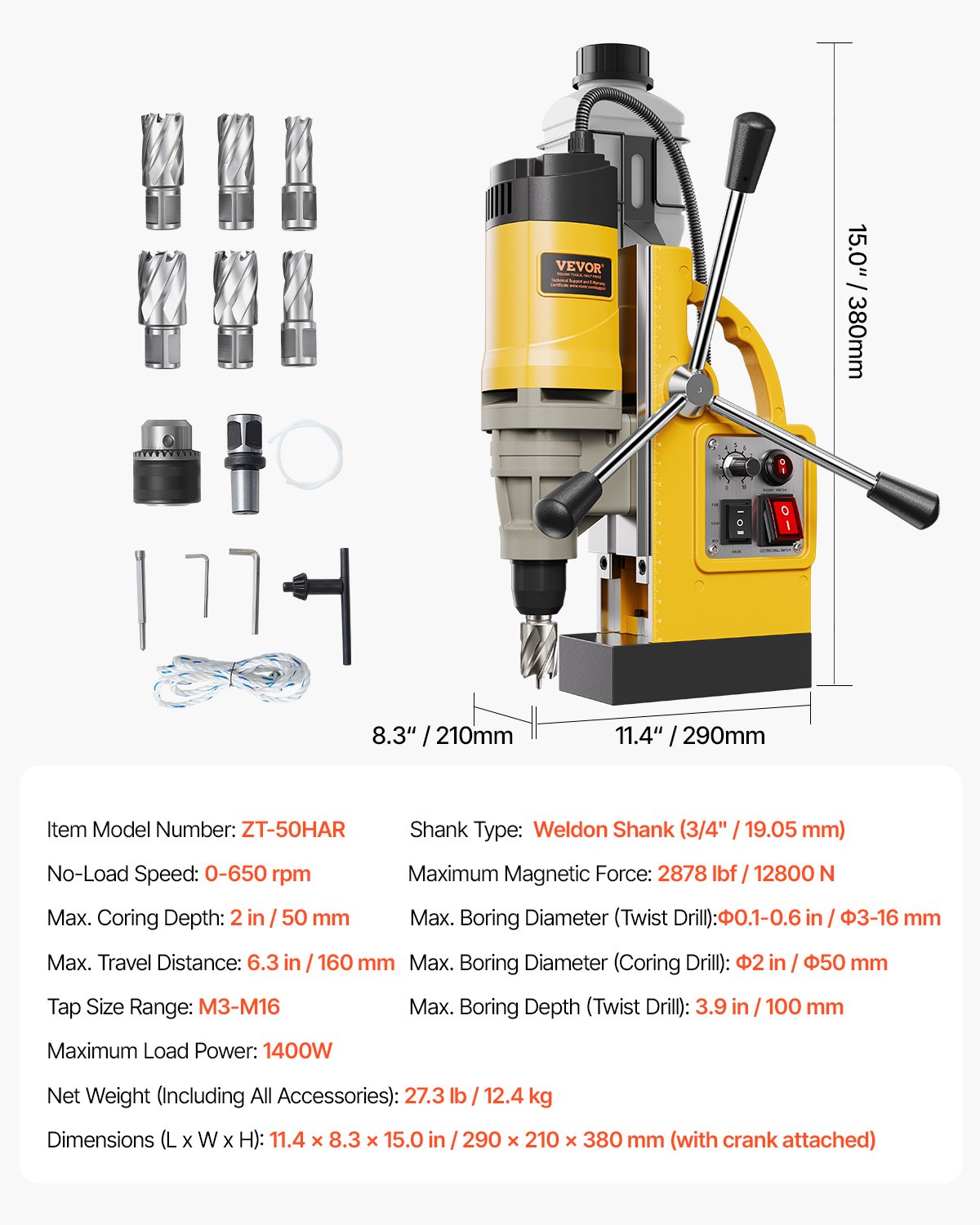

The motor drives coring up to 2 in./50 mm diameter and 2 in./50 mm depth—a much larger bore capacity than entry-level mag drills, which max out at 1.5 in. For twist drilling, the spindle accepts bits with a drill depth of 3.9 in / 100 mm up to 16 mm in diameter. This combination allows this unit to perform large-diameter coring and standard twist drilling from the same platform, reducing tool swaps during complex fabrication tasks.

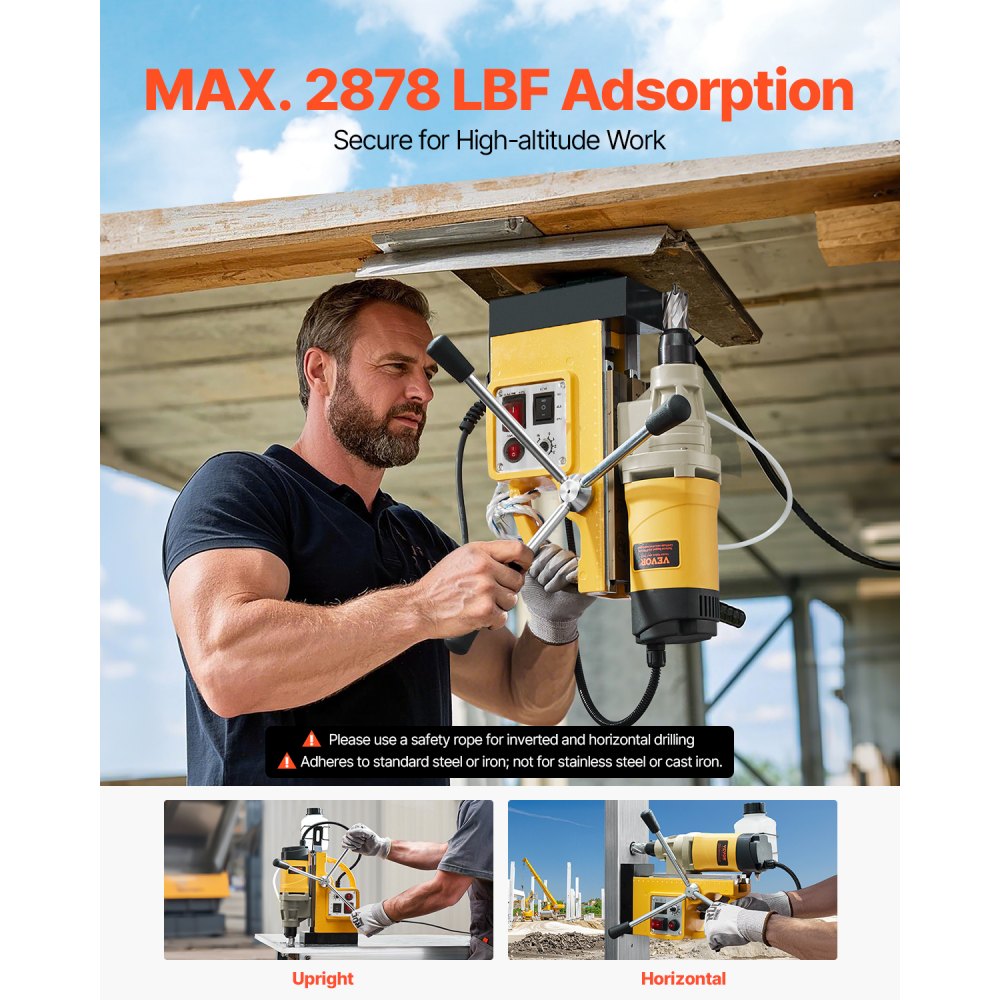

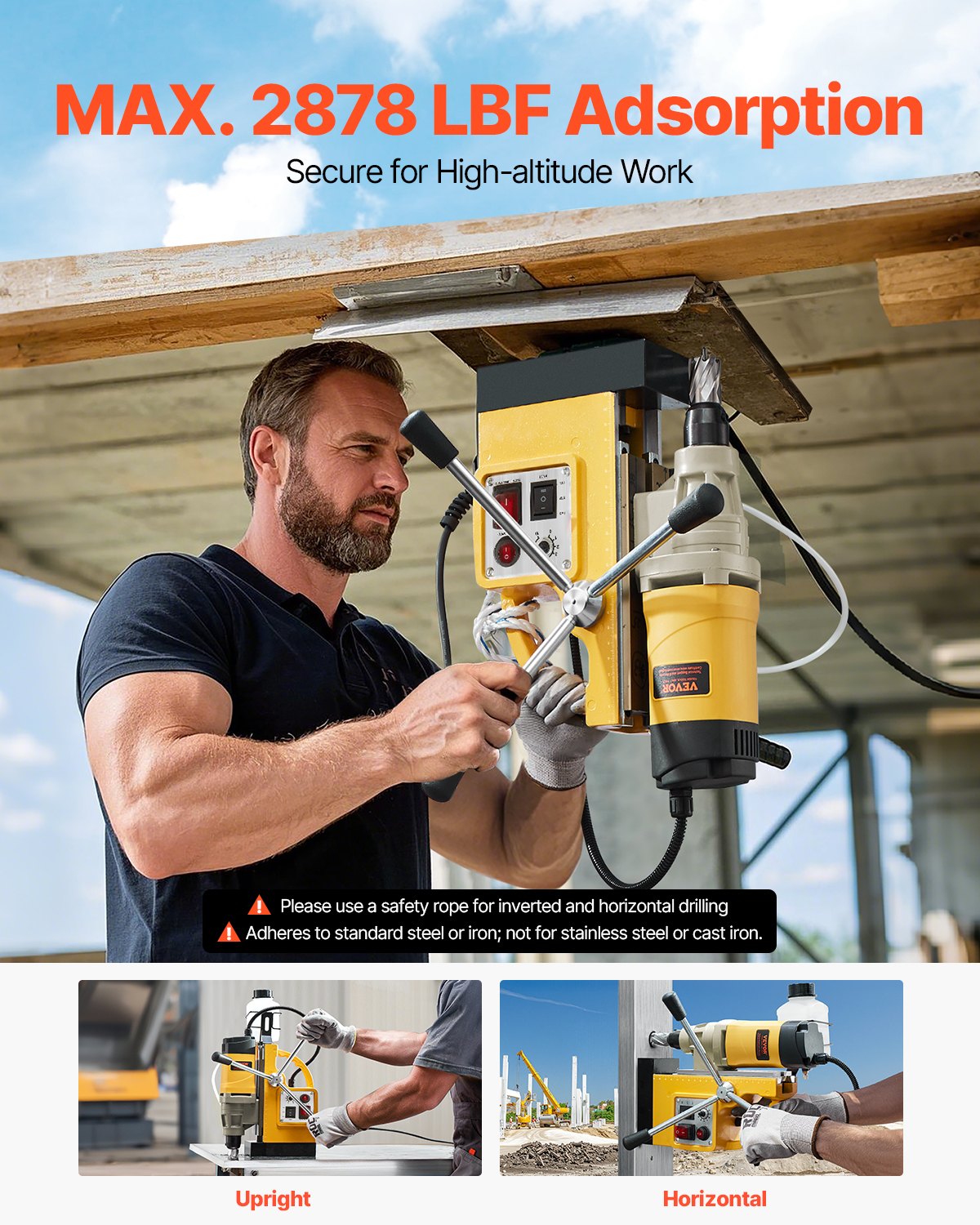

2878 lbf Electromagnetic Base for Stable Multi-Angle Clamping on Steel Surfaces

The electromagnetic base produces 2,878 lbf (12,800 N) of holding force. The base has a thickened pure-iron core, which produces a dense magnetic field across the contact face. That clamping strength holds the unit in place in horizontal, inverted, and angled drilling positions. In these high-risk positions, a loose base translates directly into a damaged bore, a ruined workpiece, or an operator injury. Steel bridge construction, shipyard work, and railway fabrication all involve routine drilling in these positions and environments, and a weak magnetic base is the first point of failure.

For full magnetic saturation and rated holding force, the base must be at least a 0.39-in (10-mm) thick steel plate. Users should check the surface material before turning the magnet on, as stainless steel and cast iron are not suitable due to their low magnetic permeability. For inverted and horizontal drilling applications, VEVOR recommends the electromagnetic clamp with the included safety rope as a secondary restraint. That two-tier approach – magnetic clamping plus mechanical backup – is the right safety practice for overhead and lateral work.

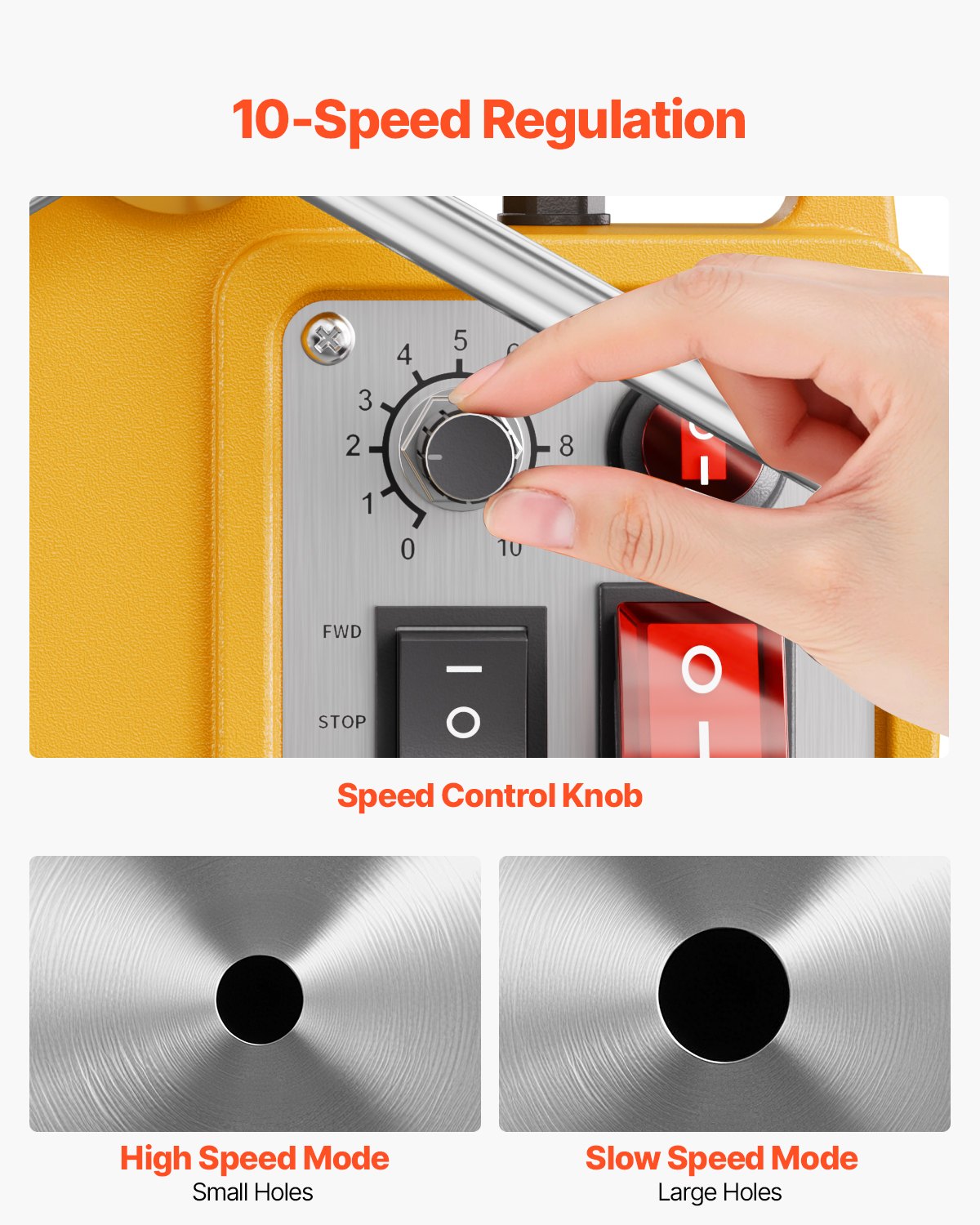

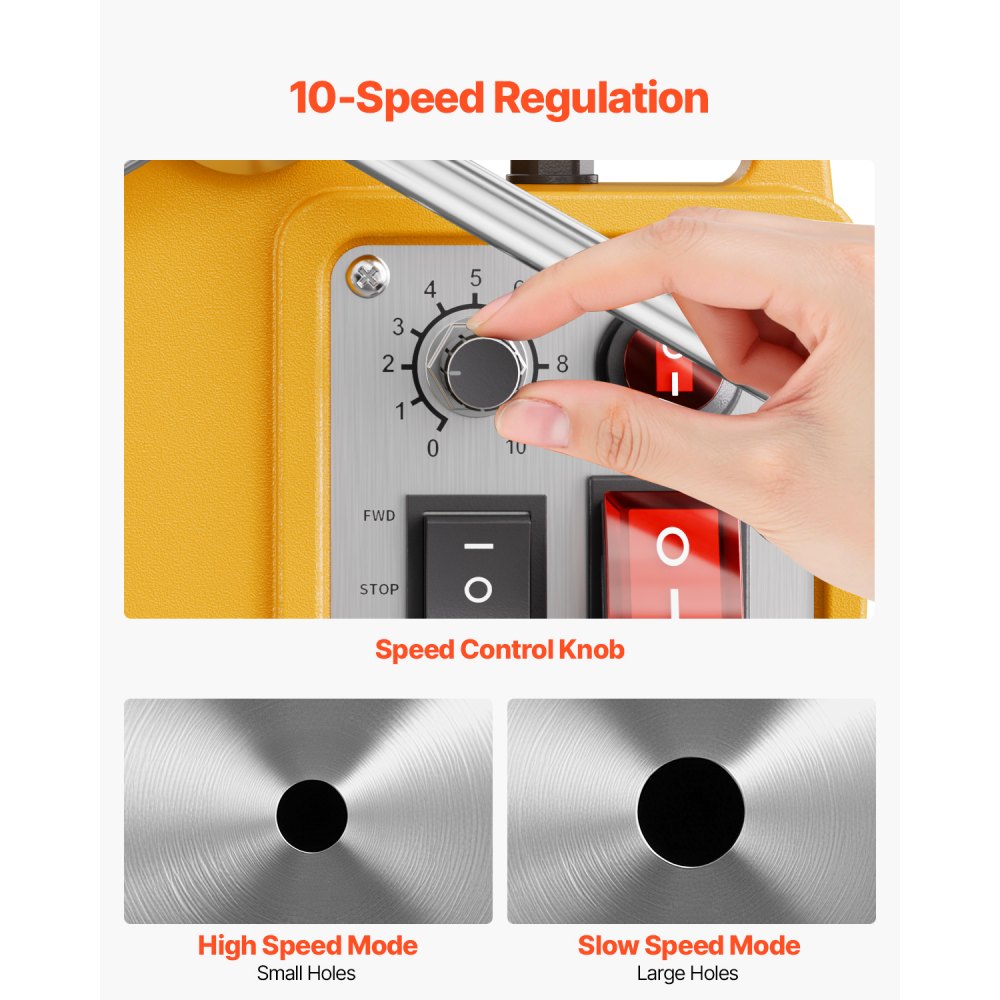

10-Speed Variable Control for Precision Drilling Across Different Bore Diameters

This electric mag drill has 10 different speed steps from 0 to 650 RPM, whereas a fixed-speed mag drill allows the operator to use only one RPM for every task. Coring bits of larger diameter require slower surface speeds to keep the cutting edge temperature within safe limits and prevent premature bit wear. Smaller-diameter twist drills work better at higher RPM to clear chips effectively and avoid work hardening the bore wall. The 10-step system allows the operator to match spindle speed to bit size and material hardness, rather than settling for a single setting.

This range of variable speeds also supports the unit’s tapping capacity, which covers M3–M16 thread sizes. You need accurate low-speed control when tapping to avoid breaking the tap in the hole. A fixed-speed machine can't do that. The variable range of 0 to 650 RPM provides the operator with the fine control necessary to cut threads cleanly into structural steel without breaking the tap, eliminating a time-consuming and often costly extraction procedure. It is the threading capability that makes this machine different from single-mode drill units and adds real value for equipment installation work.

Electric Mag Drill with Titanium Magnesium Alloy Rail for Corrosion and Wear Resistance

The guide rail of this electric mag drill is made of titanium magnesium alloy. It is better than normal steel rails in corrosion resistance and surface hardness after repeated sliding into contact. Salt air, moisture, and cutting fluids are encountered daily at shipyards, offshore platforms, and outdoor construction sites. A rail that corrodes or wears unevenly causes play in the carriage travel, leading to bore path deviation, vibration during cutting, and inconsistent hole geometry that requires rework to correct.

Dimensional stability in the guide rail is not a secondary performance factor, but a direct determinant of whether the bit tracks true from entry to exit. Any slop in the carriage causes lateral forces on the cutting edge, increasing bit wear and reducing hole quality. Its titanium-magnesium alloy construction keeps the carriage fit tight over thousands of drilling cycles and in corrosive environments where lesser materials would degrade within months. 6.3 in / 160 mm travel distance gives the carriage full stroke for complete coring passes without moving the base mid-hole.

Integrated Millimeter Scale and Three-Crank Handle for Accurate, Fatigue-Free Operation

The depth scale machined into the machine frame provides the operator with a direct readout in millimeters of the distance between the bit tip and the work surface, without the use of a separate depth gauge or manual measurement between holes. That built-in reference saves a measurement step in each cycle and keeps the workflow consistent in structural fabrication, where dozens of bolt holes must all meet the same depth specification. Operators who have drilled without a scale mounted on the frame know how much time and error the guesswork adds to a full shift.

The three-spoke crank and ergonomically profiled handle distribute manual feed force over a greater arc, decreasing peak wrist load and allowing the operator to maintain even feed pressure during each stroke. Uneven manual feed is the most common cause of chatter and bore wander, especially when the bit is taking its first bite and establishing the center line of the hole. The longer crank length also gives you more mechanical advantage, so you can control the rate of penetration through hard spots in material without forcing it.

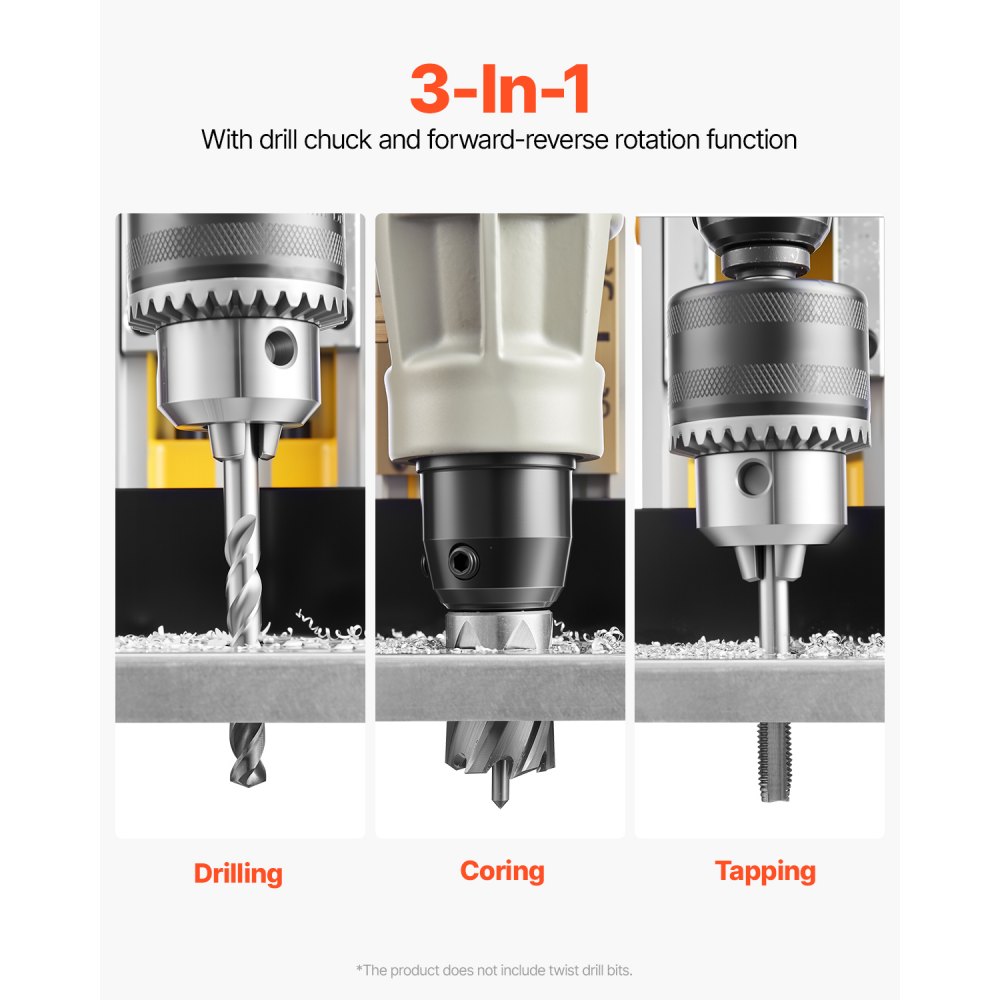

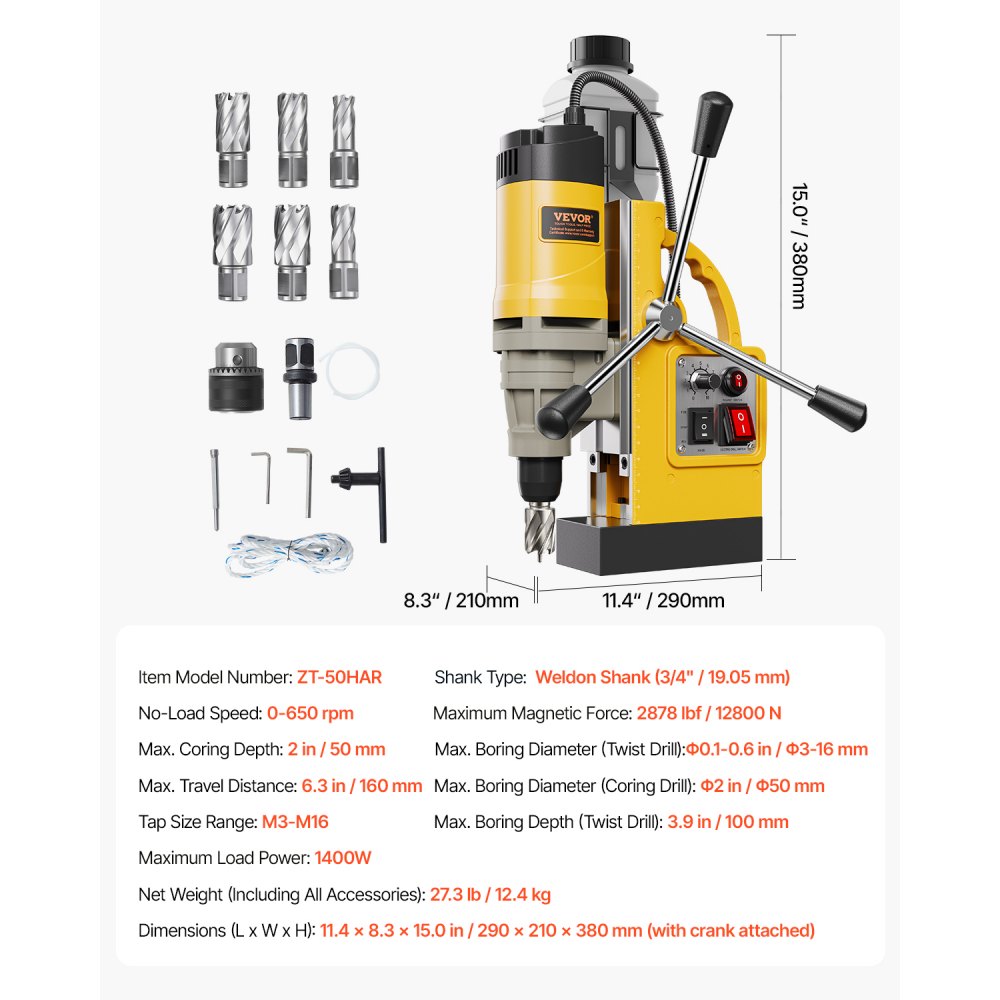

Full-Range Weldon Shank Compatibility with Tapping, Coring, and Twist Drill Modes

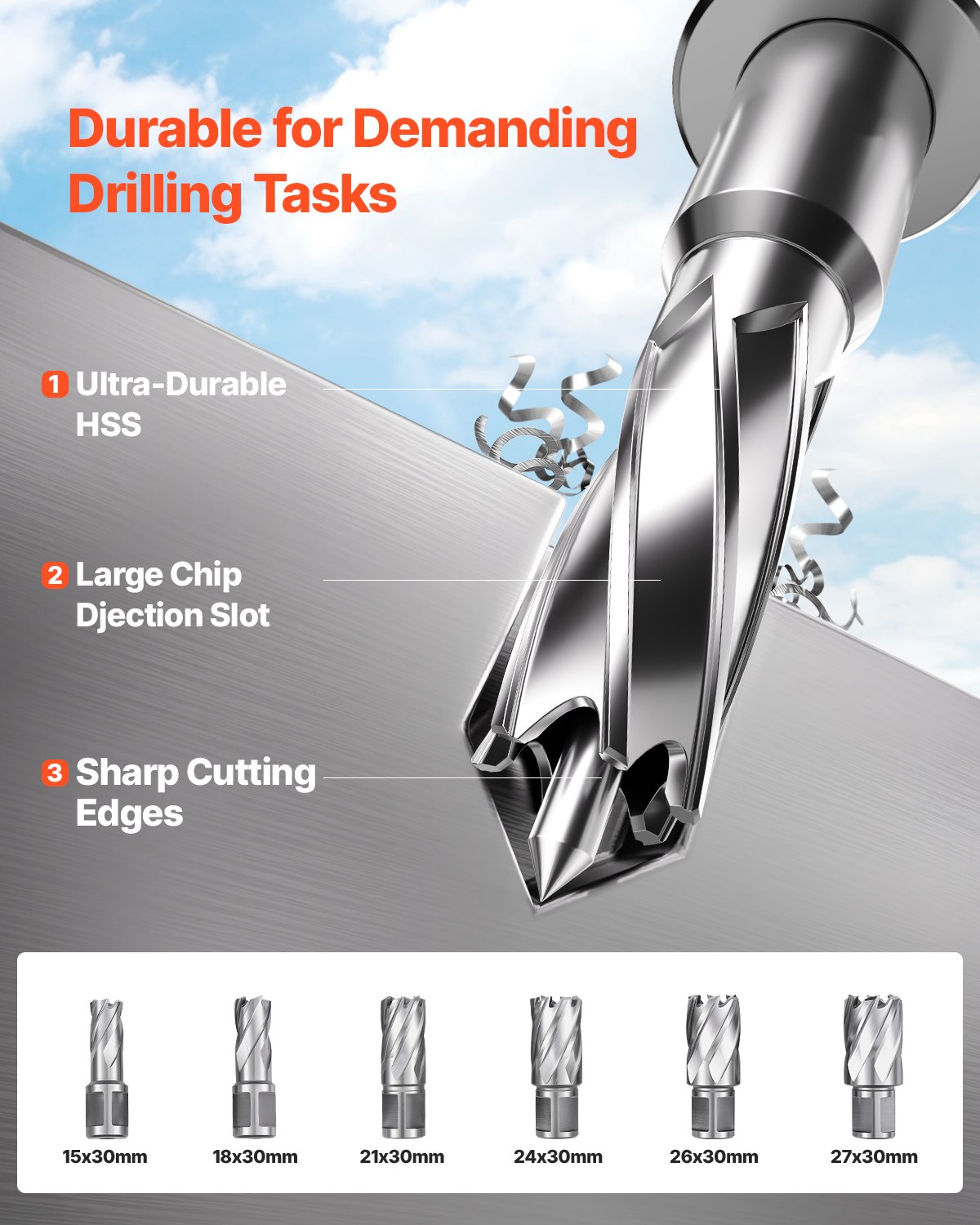

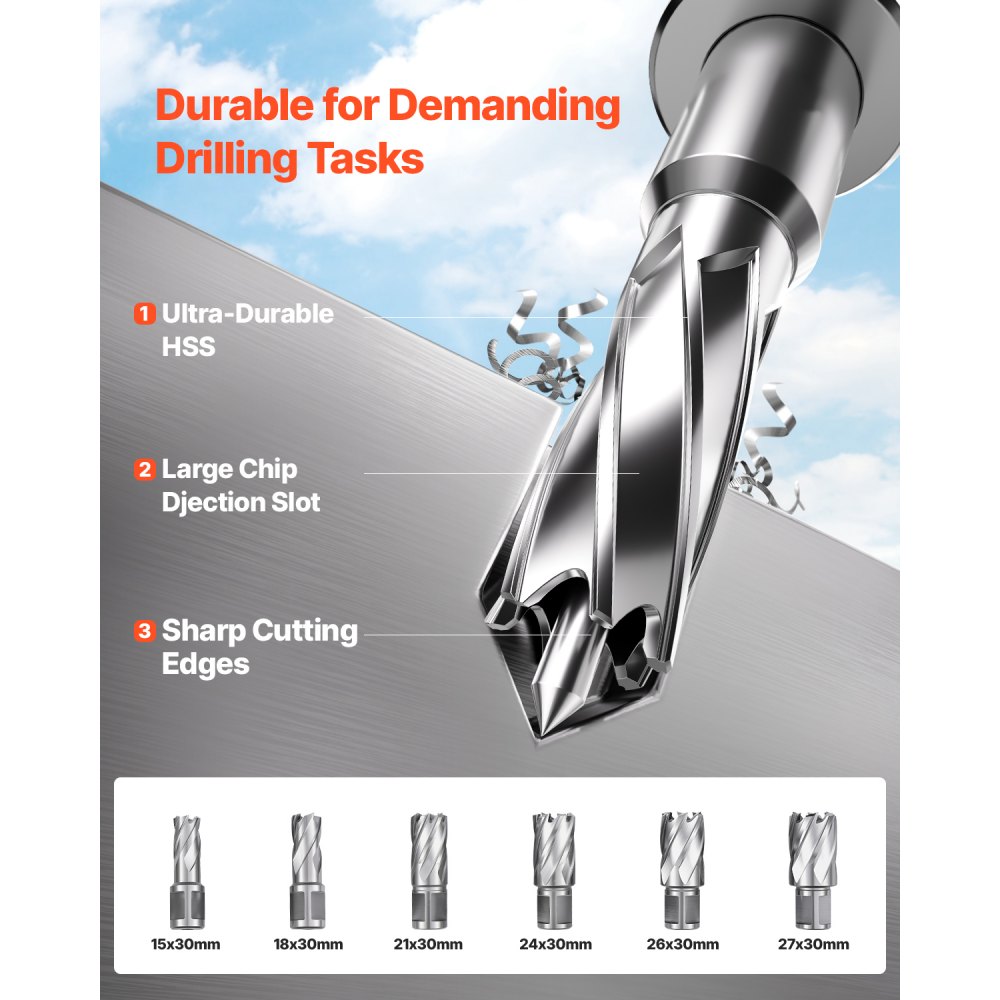

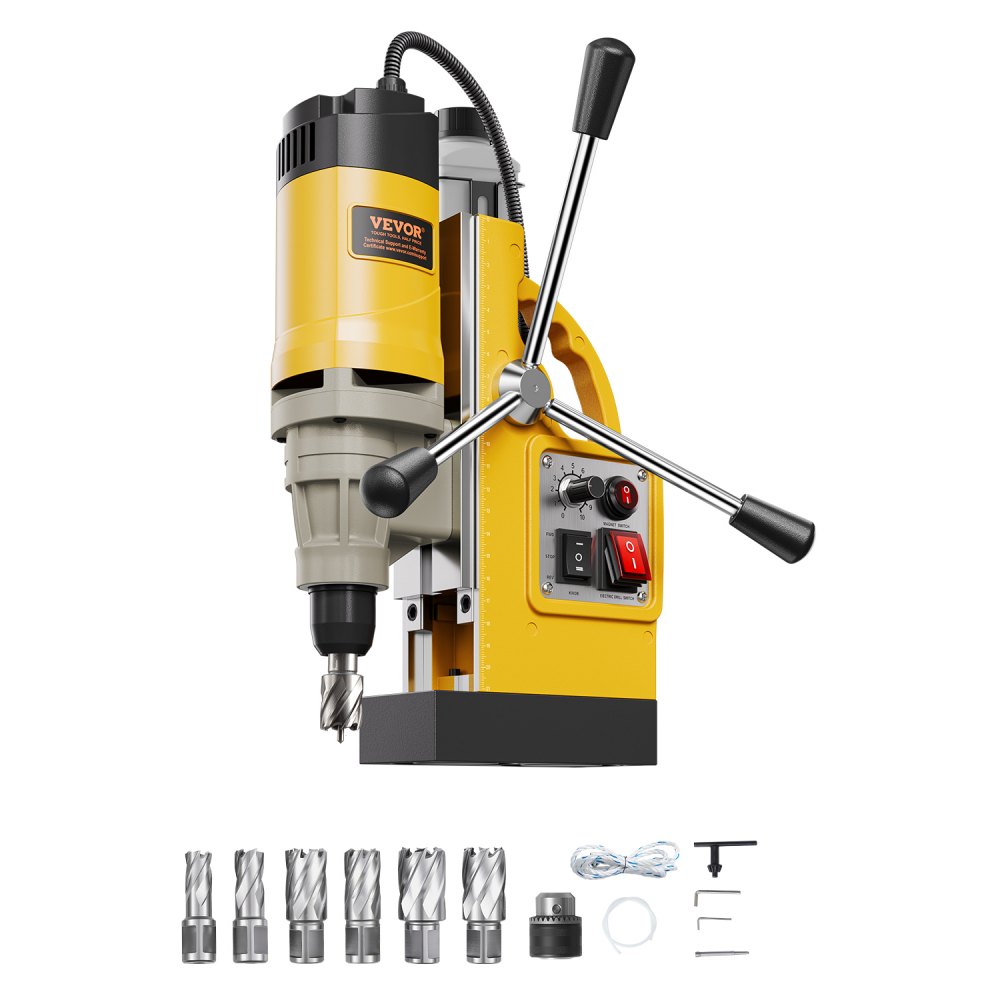

The 3/4 in / 19.05 mm Weldon shank interface positively locks the cutting tool against the drive to prevent rotational slip during the torque spikes when the bit hits hardened material or exits the far side of a plate. It accommodates all six supplied coring bits and provides a practical size range for the most common structural hole diameters encountered in fabrication, erection, and construction work.

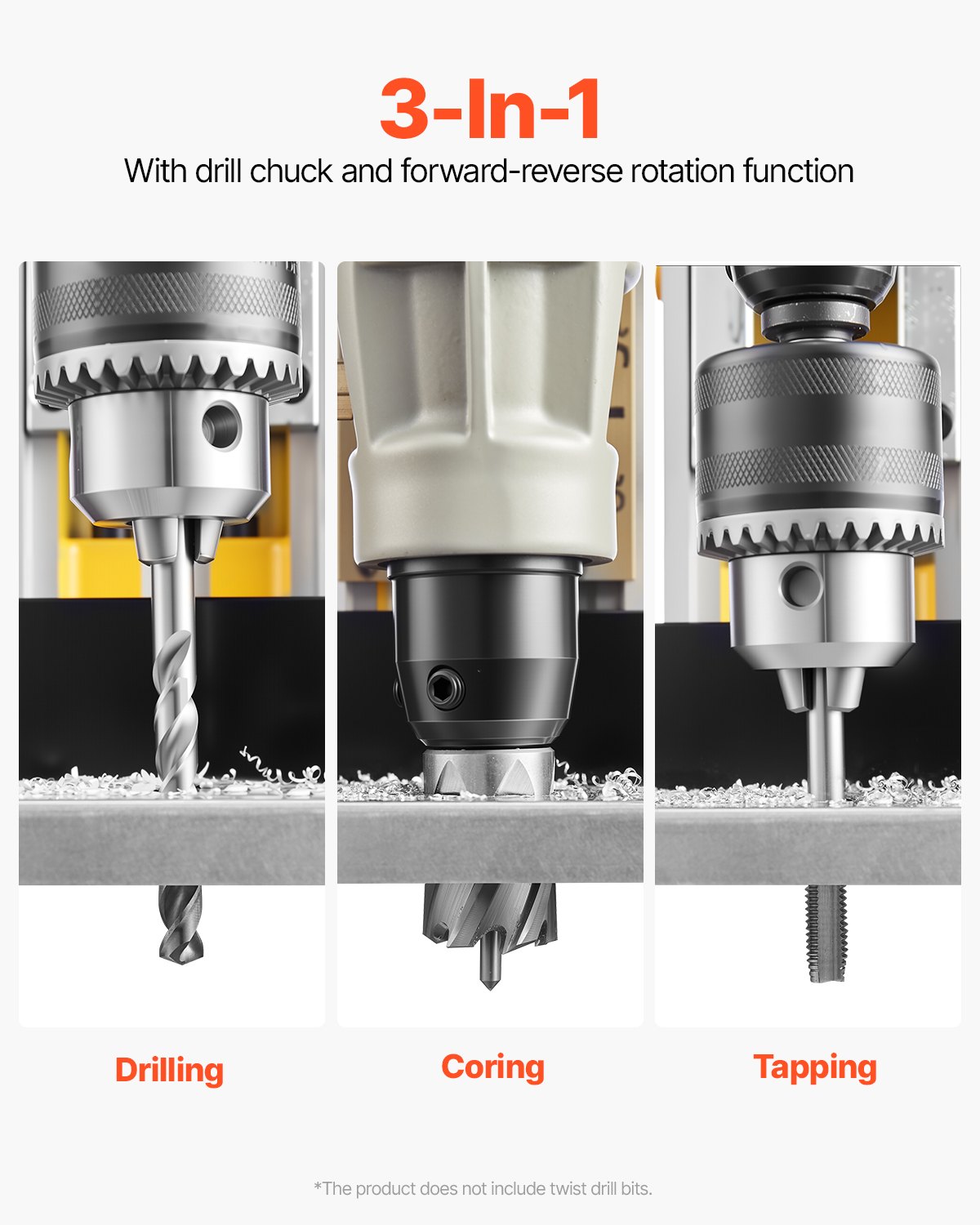

In addition to coring, the spindle will accept twist drill bits and taps within the stated ranges. It provides three separate operating modes from a single base unit. That versatility is useful on work sites where it’s impractical to haul multiple machines, such as railway construction, windmill installation, and power plant maintenance, where various hole types are needed during a single work session. The unit, complete with all accessories, weighs 27.3 lb (12.4 kg).
