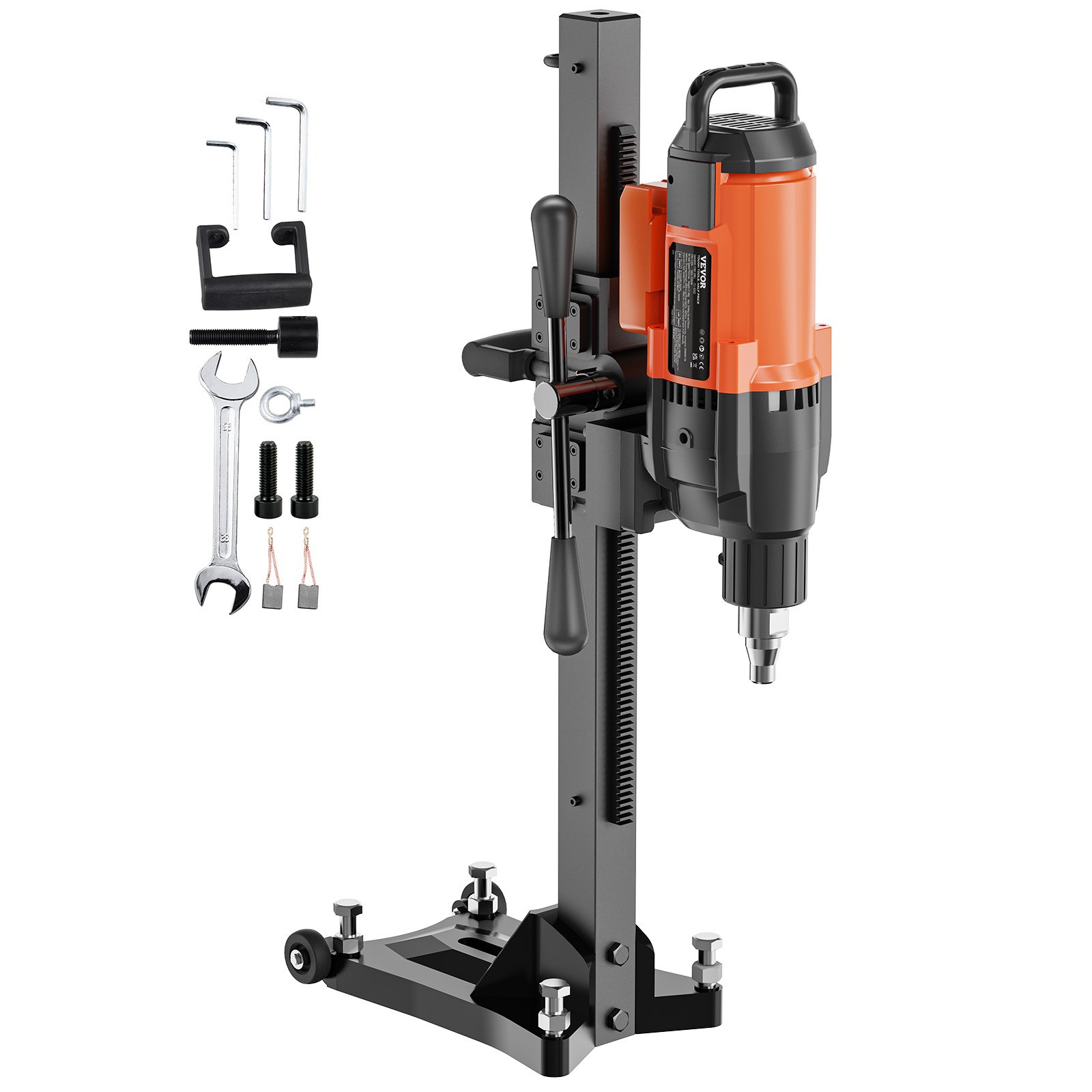

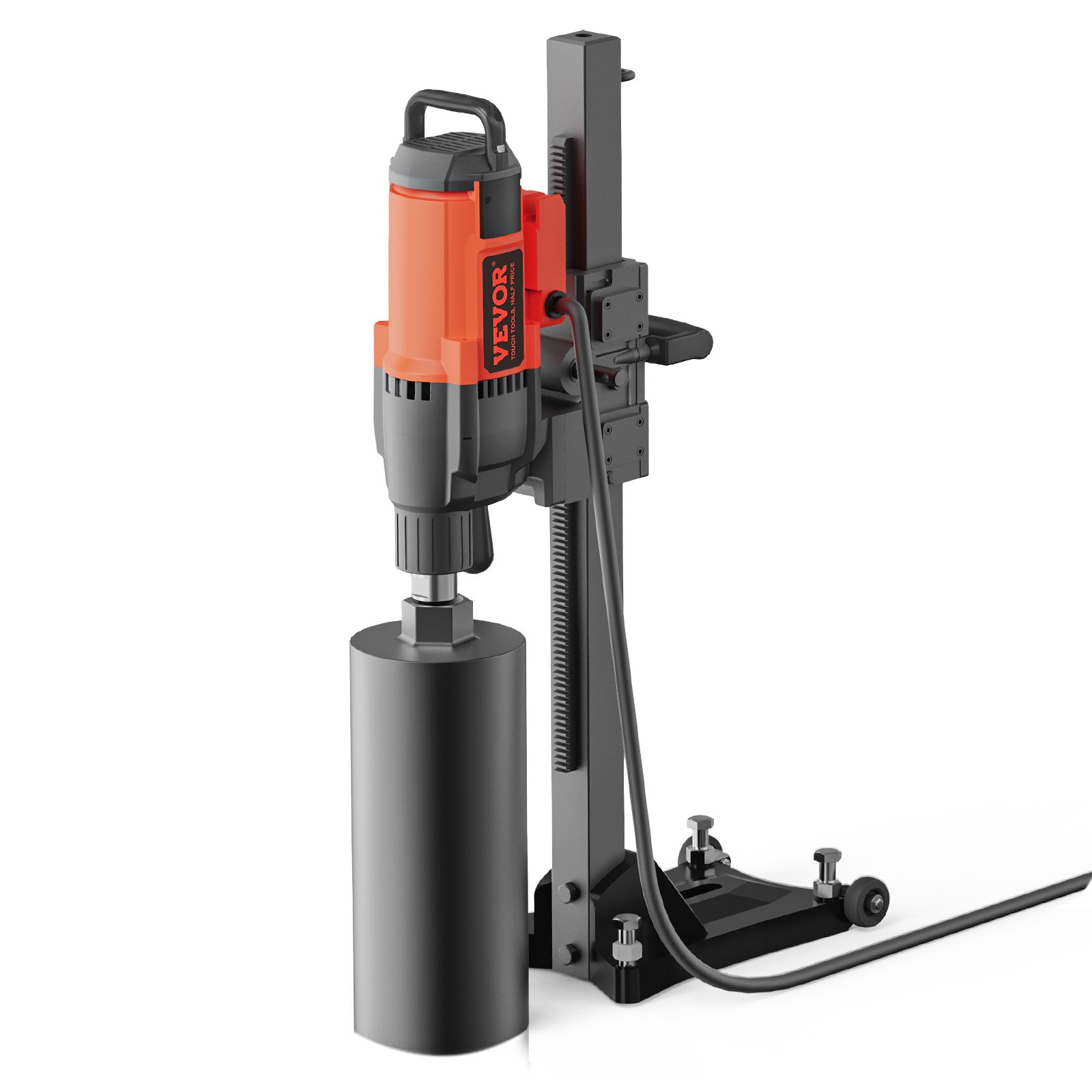

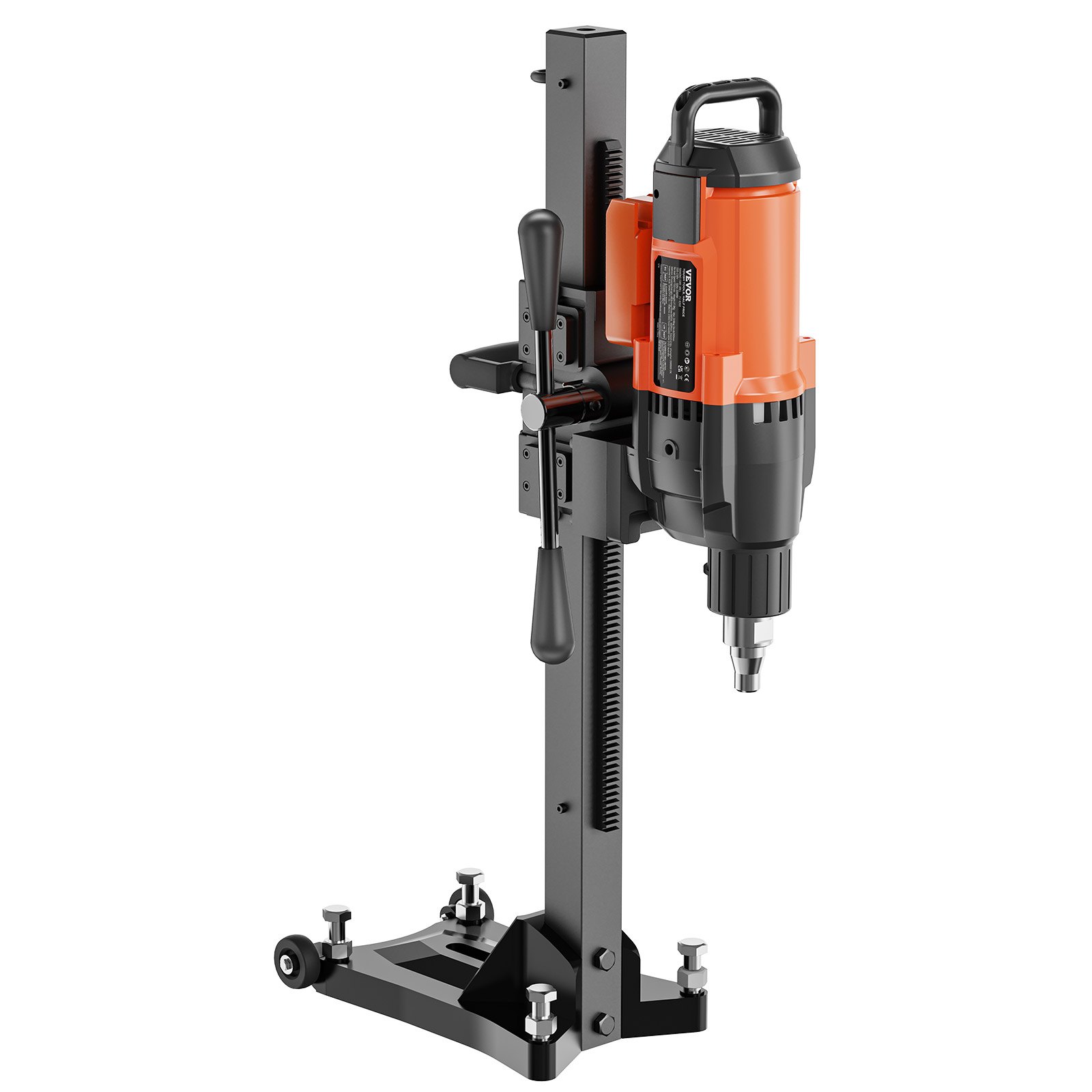

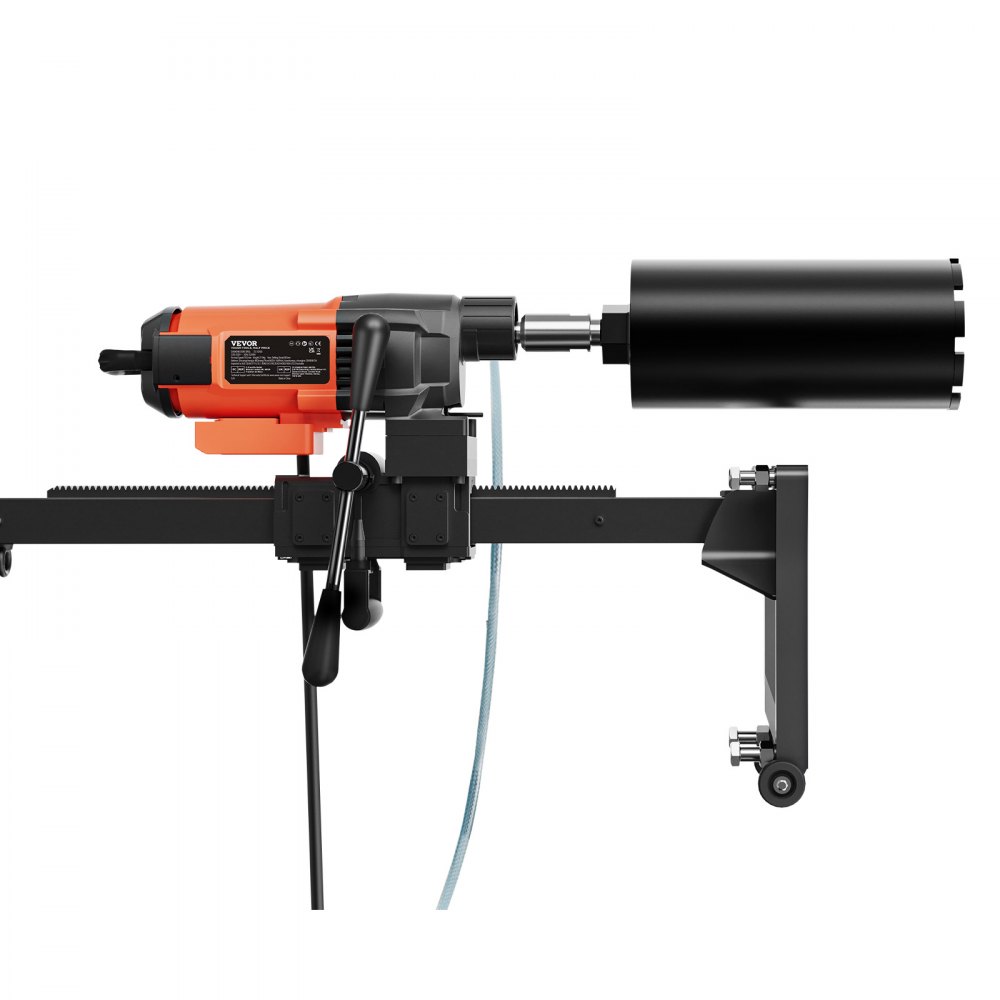

VEVOR Diamond Core Drill Machine Concrete Core Drill Rig Casters 3200W 750RPM

Diamond Core Drilling Machine with 3200W Motor and 750RPM Gearbox for Heavy-Duty Output

The 3200W-rated motor and 750RPM high-speed gearbox of this diamond core drilling machine deliver steady power for intense drilling sessions. The motor is designed for long runs through dense materials without thermal shutdown, preventing work from being cut off mid-hole. The operator can adjust the speed via the gearbox based on the material being drilled.

Reinforced concrete is not marble or red brick and having that adjustability built into the drivetrain means one machine handles the full range without compromise Rated power at 3200W, no-load power draw of 1630W, you can see how much headroom there is when resistance increases mid-drill The motor doesn’t bog down at rated load; it has reserve capacity to hold RPM when the bit hits harder aggregate or rebar embedded in the slab.

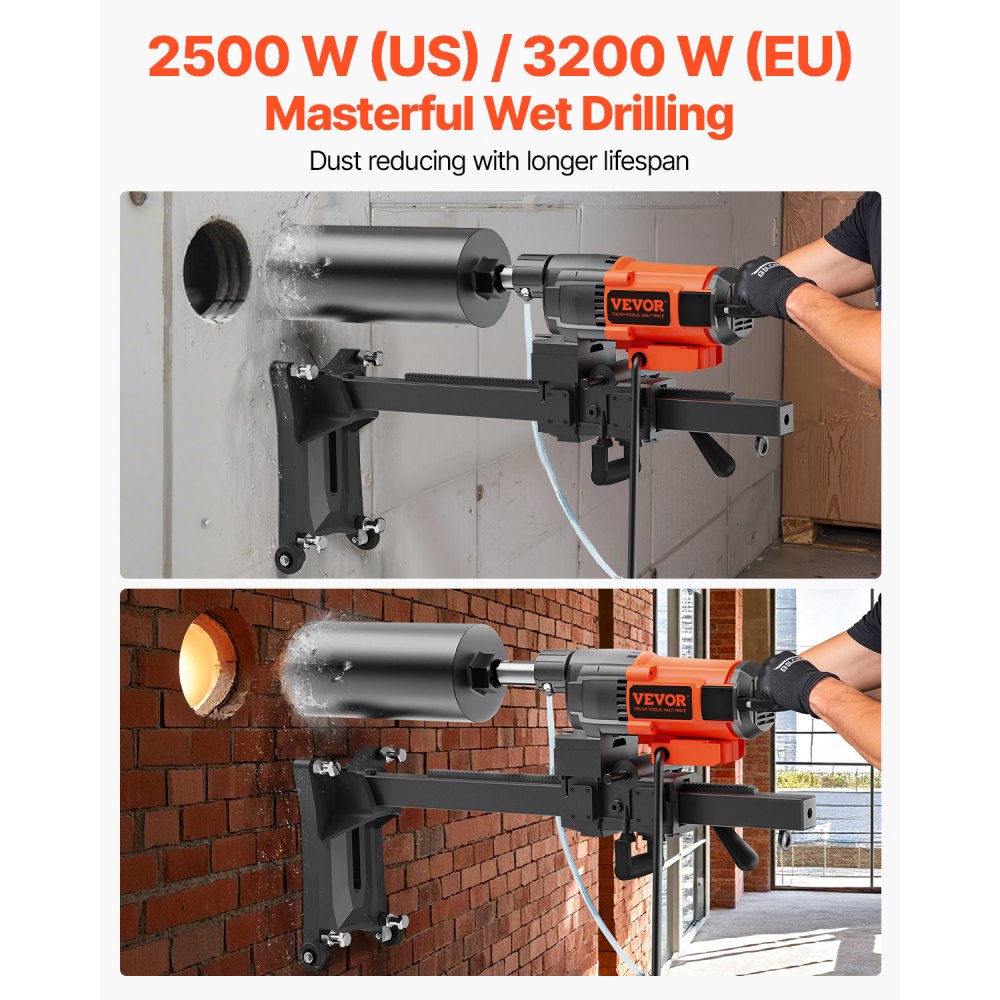

10-Inch Wet Drilling Capacity for Precise, Large-Diameter Holes

The drill rig is capable of drilling holes up to 10 inches (26 cm) in diameter, which covers the size range required for HVAC penetrations, kitchen pipe routing, stair railing anchors, and highway repair work. That capacity can serve residential and professional site needs alike without the need to upgrade to a larger machine. Here, the method used is wet drilling, which cools the bit as it works and flushes debris from the hole as drilling continues.

Dry drilling at this diameter produces heat that destroys the bit and leaves dust in the bore, making accurate sizing difficult. The wet method results in a cleaner hole, longer bit life, and a consistent diameter from entry to exit. The improved one-touch water pipe connector provides a quick, secure water supply connection, eliminating the slow drip connections that lose pressure during operation and degrade flush rate when it is most needed.

Clutch System and Overload Protection for Safer Drilling Operation

The integrated clutch is directly connected to an overload protection device that monitors the bit's resistance while drilling. When the bit gets stuck, runs into rebar, a hard pocket of aggregate, or a sudden change in material, the system trips automatically before torque is returned through the rig to the operator. Without that protection, a bit that suddenly stops rotating while the motor keeps driving transmits the full rotational force to the drill frame and handle.

On a machine this size, that reaction is strong enough to cause serious injury. The automatic trip cuts what it has to transfer before it builds. It also protects the motor and gearbox from sudden load spikes that can cause internal damage and shorten the machine's working life. The clutch and overload system is one safety measure, not two separate features. The clutch enables automatic protection at the torque levels this motor produces.

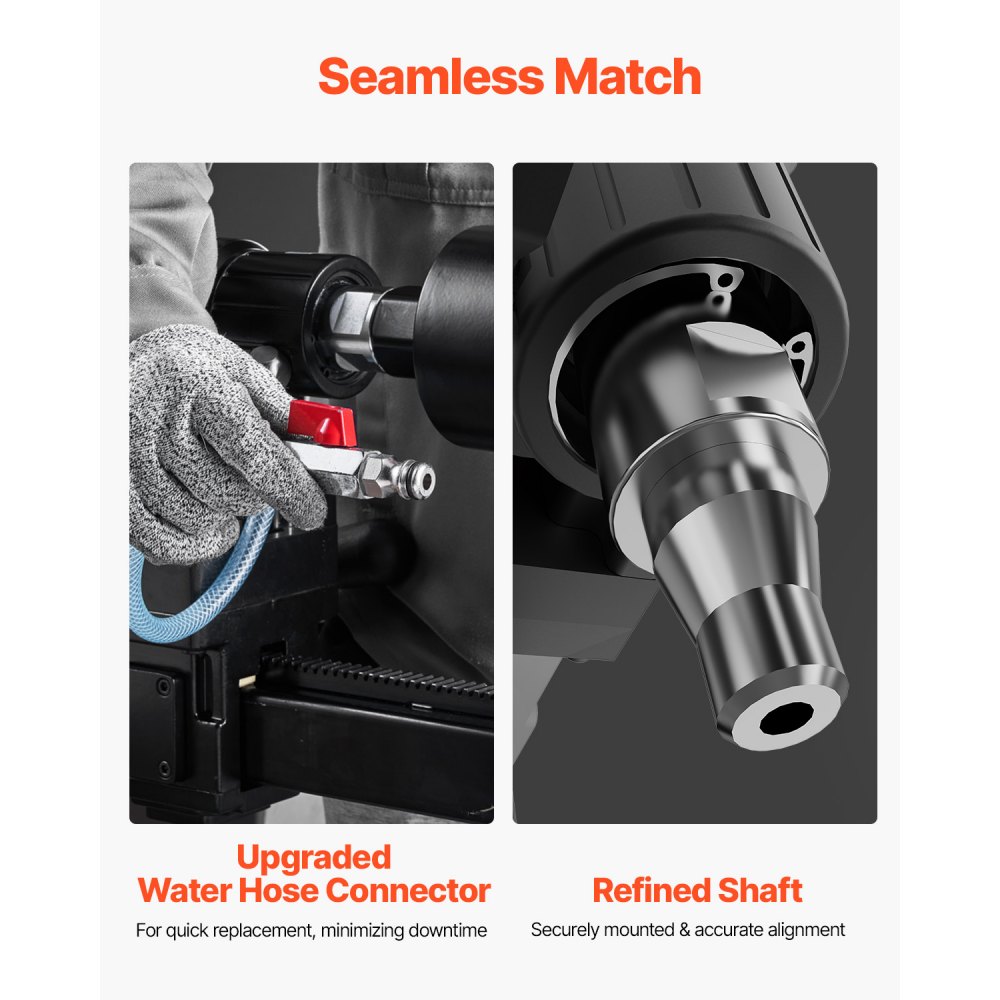

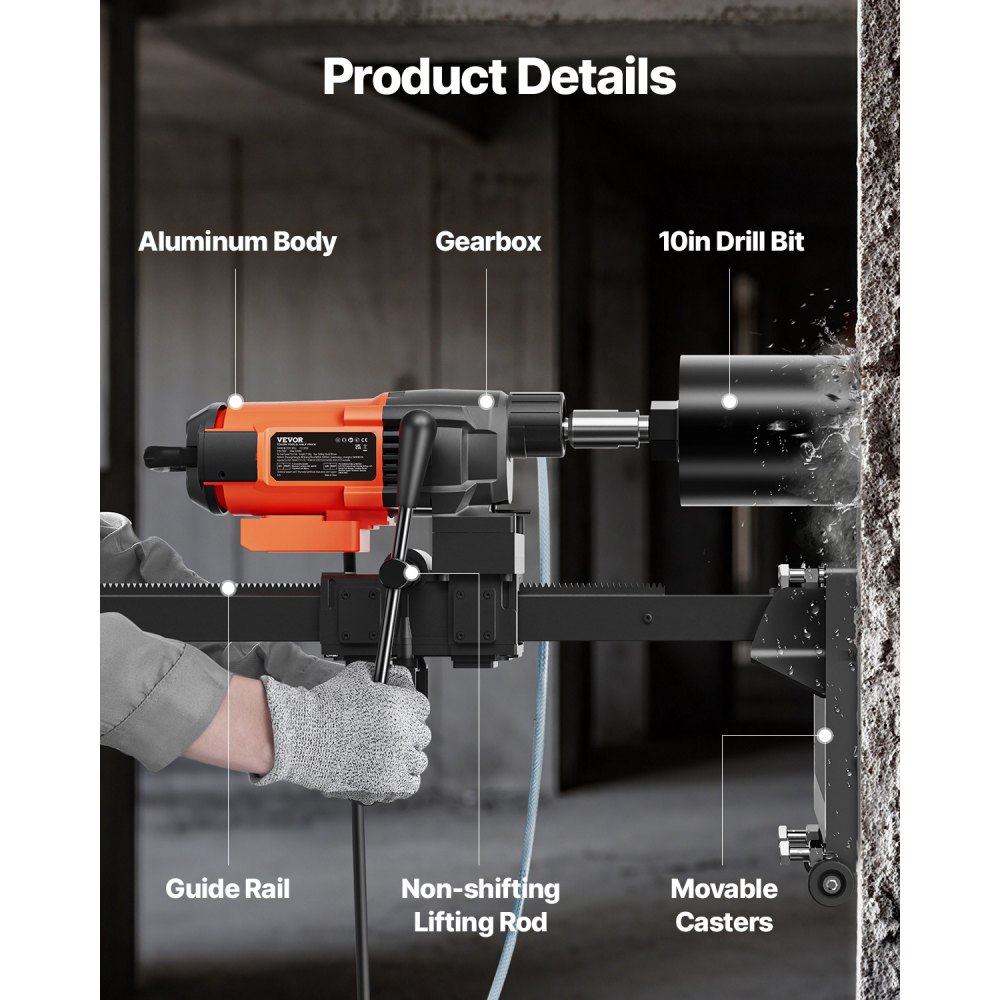

Diamond Core Drilling Machine with Rustproof Output Shaft and One-Touch Water Connector

This diamond core drilling machine features a rustproof steel output shaft, designed to withstand the continuous axial and radial forces imposed by core drilling on the drivetrain. Runout can be caused by a corroded or weakened shaft, which increases the bore diameter and reduces hole accuracy on jobs where tight tolerances matter.

The one-touch water pipe connector provides easy installation and a stable supply line during operation. For a good flush rate, you need to maintain consistent water pressure, and a connector that vibrates loose or requires constant adjustment breaks the rhythm of drilling during long sessions. The rustproof shaft and the reliable water connection are the two contact points that have the greatest influence on the hole quality.

23.62 in Drilling Depth and 1-1/4" Arbor for Versatile Material Compatibility

The maximum drilling depth is 23.62 inches (60 cm) for wall and slab thicknesses common in residential and commercial construction. The 1-1/4" thread arbor size is a common professional standard and will work with many third-party core bits of different diameters and segment types.

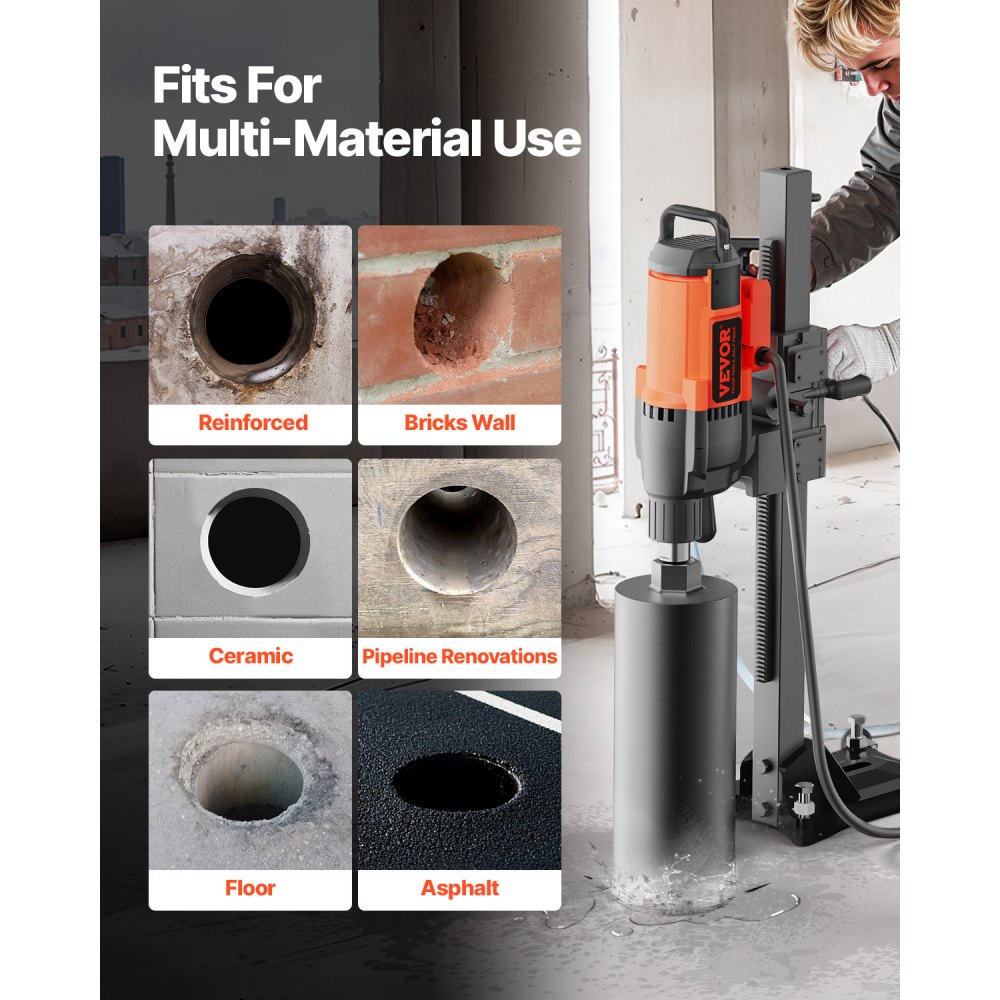

The diamond core drilling machine drills through reinforced concrete, red brick, marble, and other dense materials at this depth without requiring multiple setups or mid-hole rig repositioning. The most critical factors are the depth capacity of exterior wall penetrations and their thickness. Structural slabs, where shallow-capacity machines must make multiple passes from opposite sides to finish the bore.

Caster Wheels and Compact Frame for Easy On-Site Mobility

Two caster wheels allow you to roll the rig across the work surface and reposition it between drill locations without lifting the full 61.5 lb frame. For sites with multiple penetration points, running pipe through multiple walls, or installing multiple AC units on the same floor, that mobility significantly reduces setup time between holes.

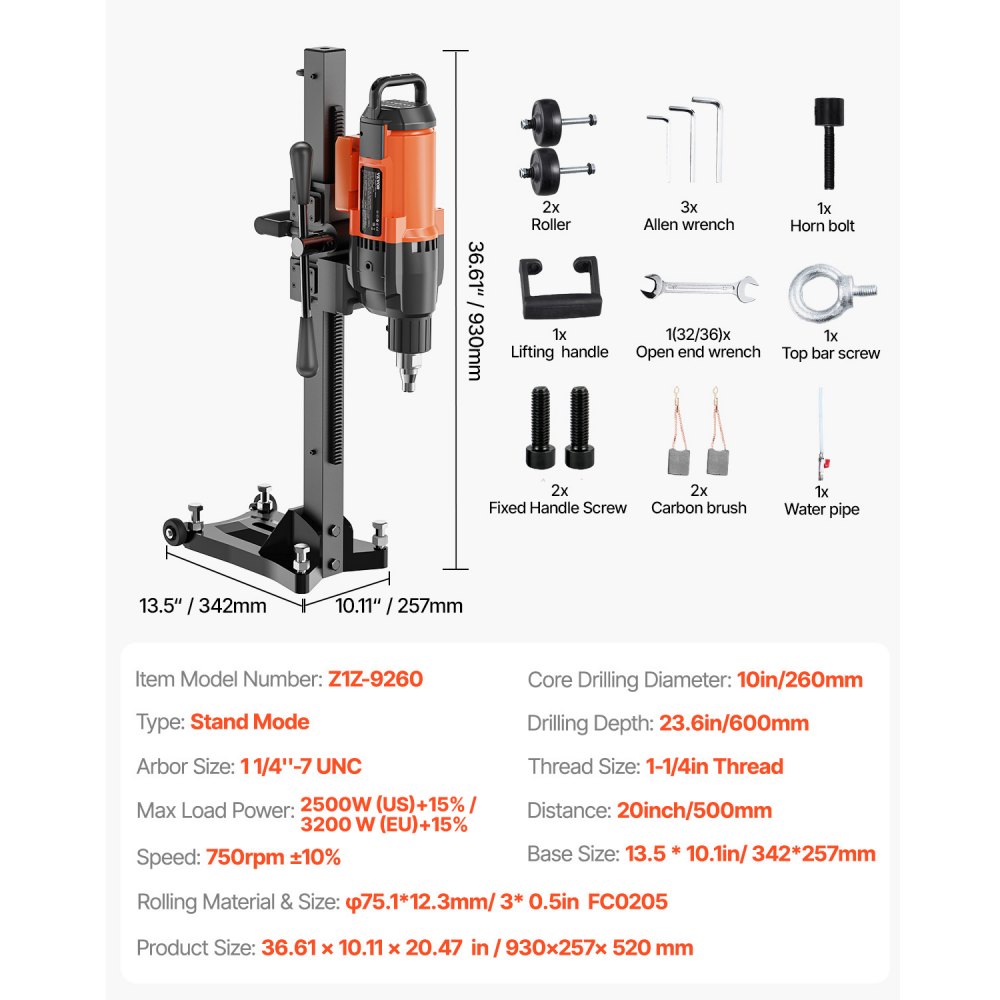

The overall frame dimensions of 36.61 x 10.11 x 20.47 inches keep the footprint manageable in tight interior spaces where larger rigs become difficult to maneuver. The compact size makes it easier to transport from job site to job site. It is a machine you can realistically run on your own for a full day of multi-location drilling without a second person to help reposition it on its wheeled base and frame.
