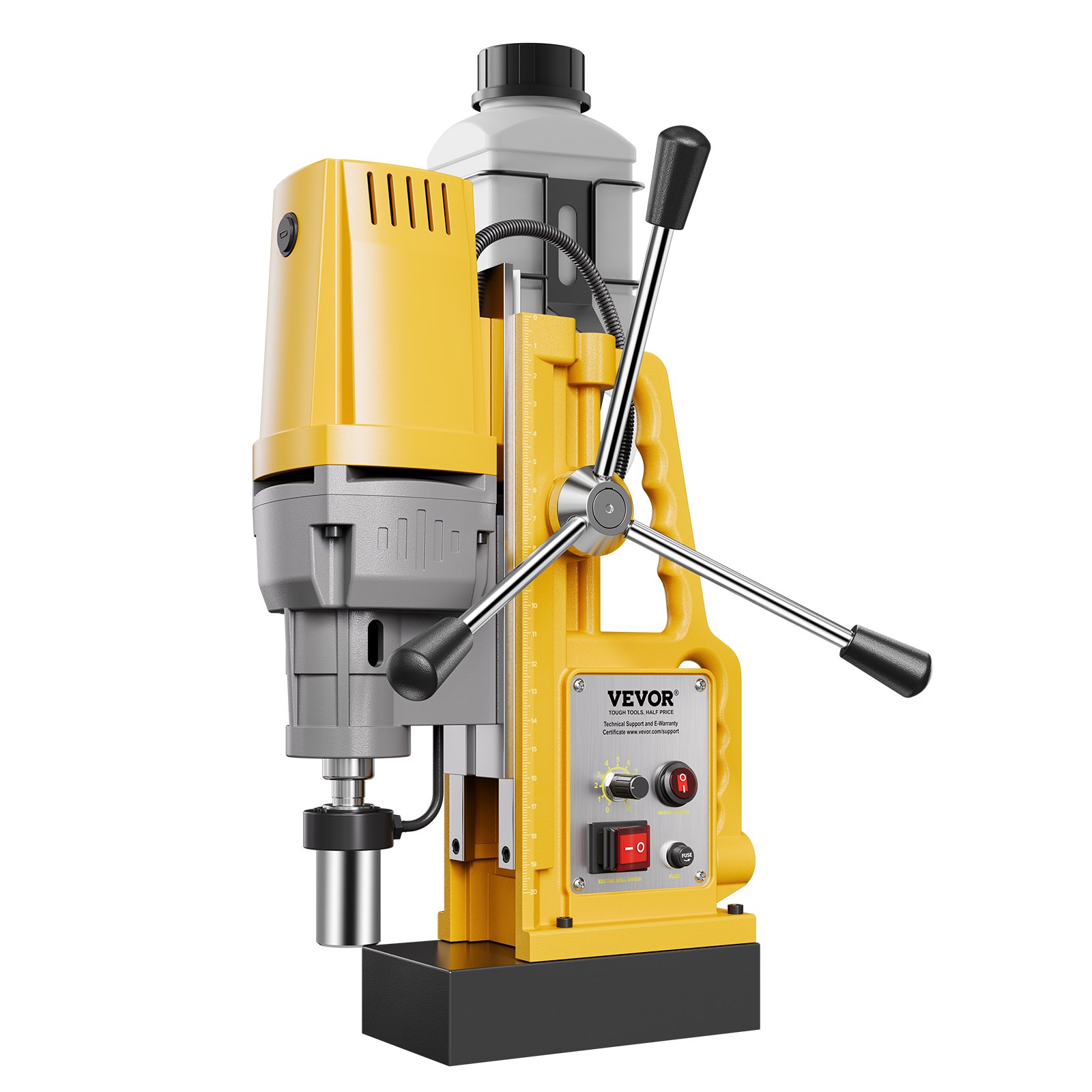

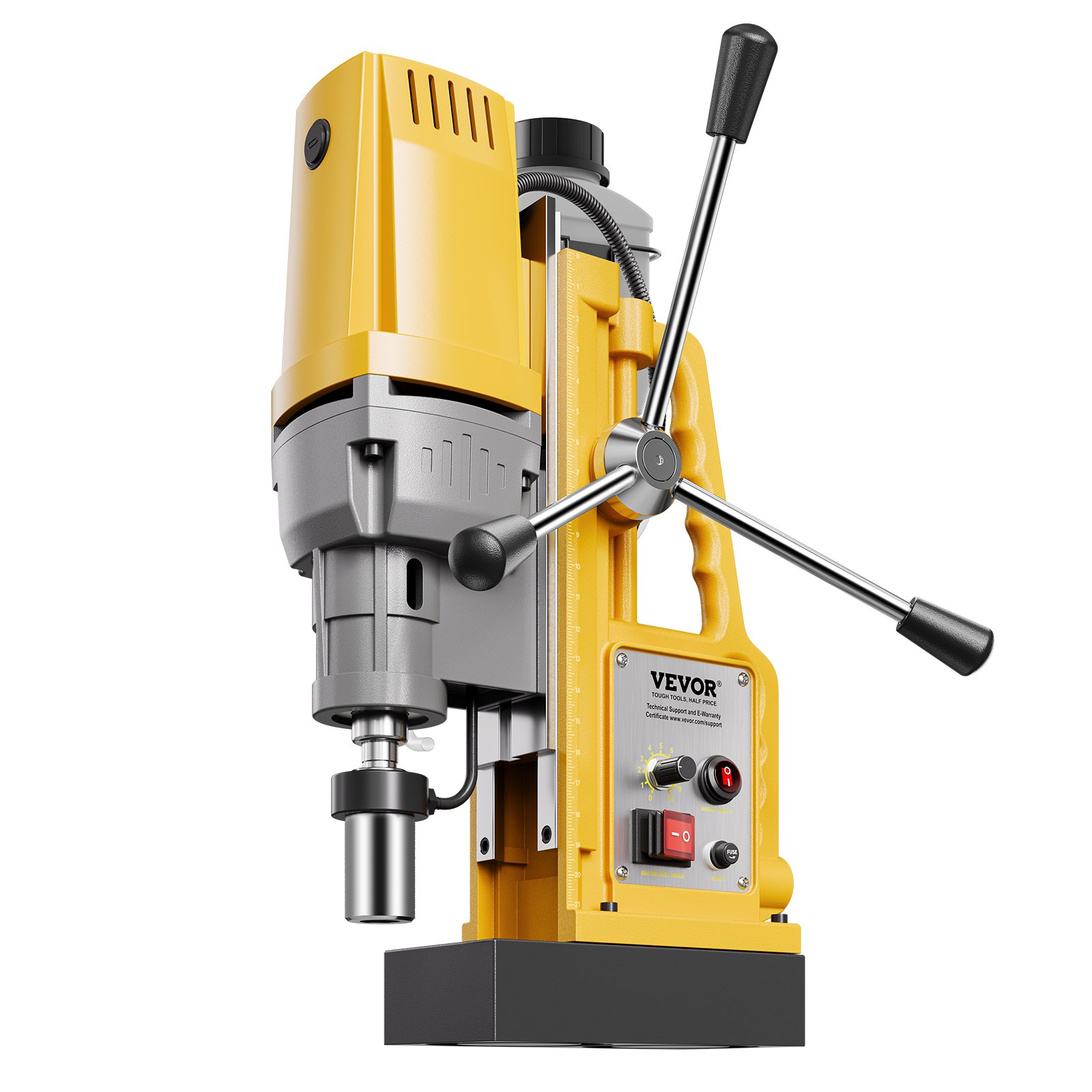

VEVOR Magnetic Drill, 1400W Motor 2 in Boring Diameter, 2922 lbf Portable Electric Mag Drill Press, 0-750 RPM Variable Speed, Drilling Machine for Metal Surface, Industrial and Home Improvement

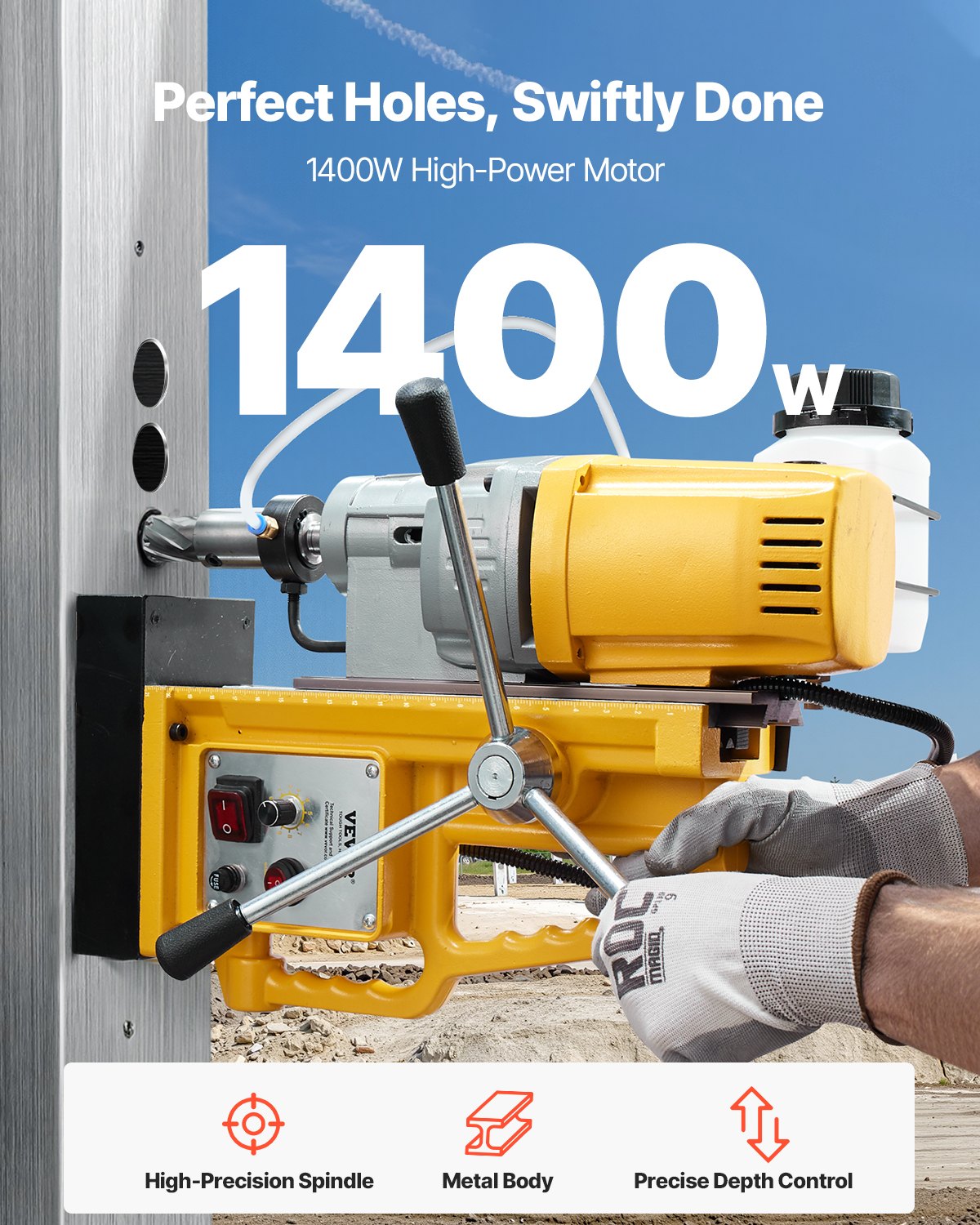

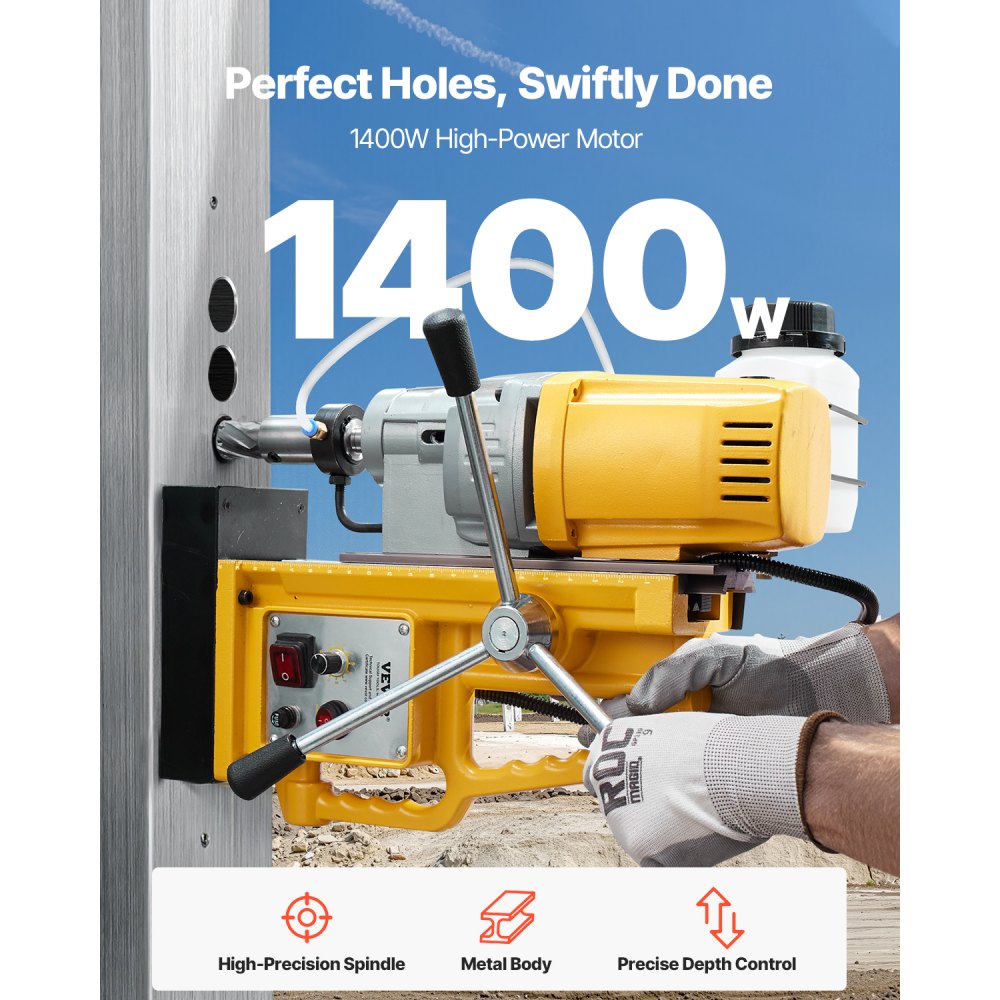

1400W Copper Motor Powers This Portable Mag Drill Through Heavy Steel Plate

The VEVOR portable mag drill is equipped with a 1400W copper-wound motor to deliver full torque during continuous drilling operations on structural steel and fabricated plates. Copper windings are better at handling heat than aluminum when under sustained load. It maintains motor temperature during long work sessions without derating or causing unexpected shutdowns. The last hole of a shift is the same as the first.

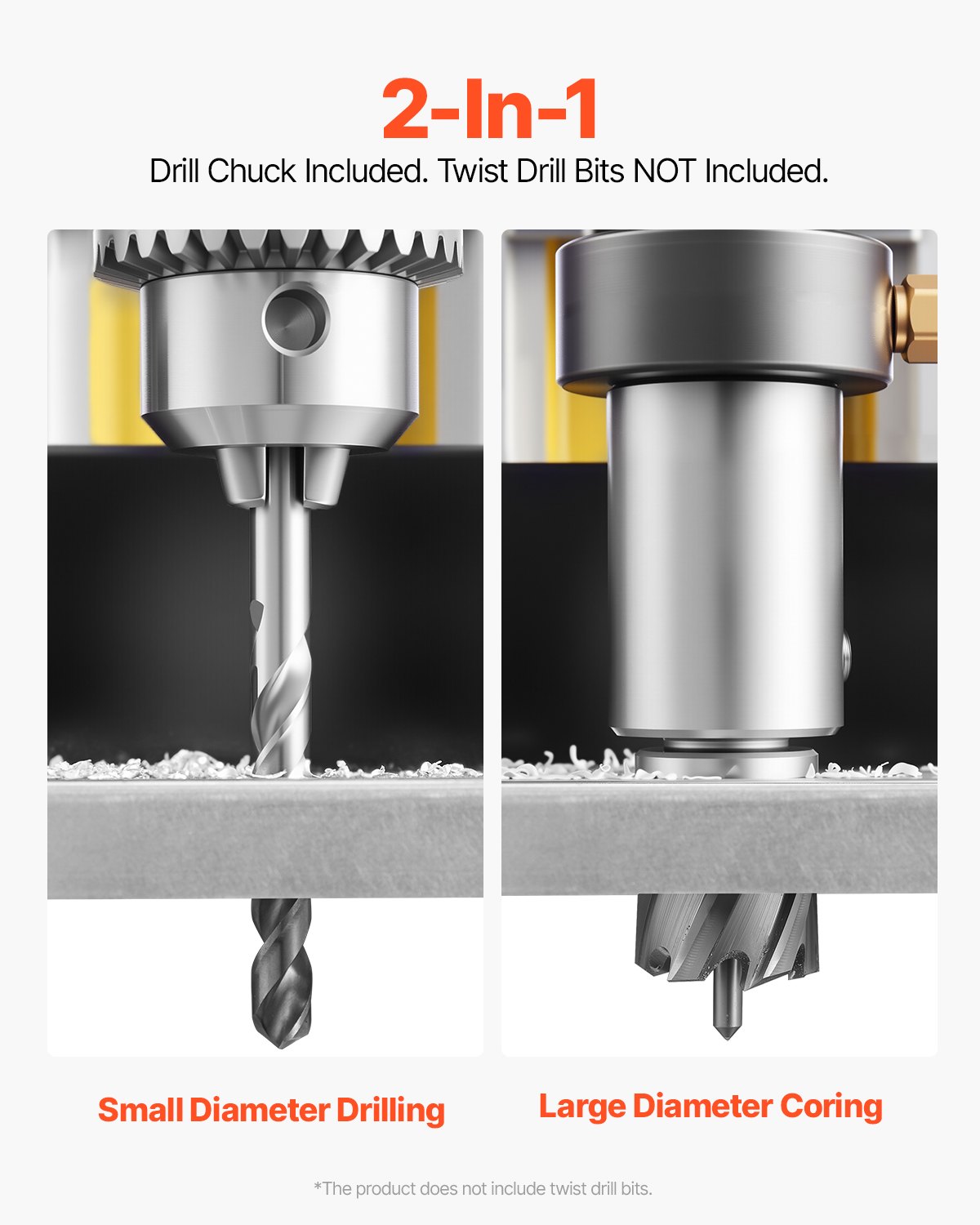

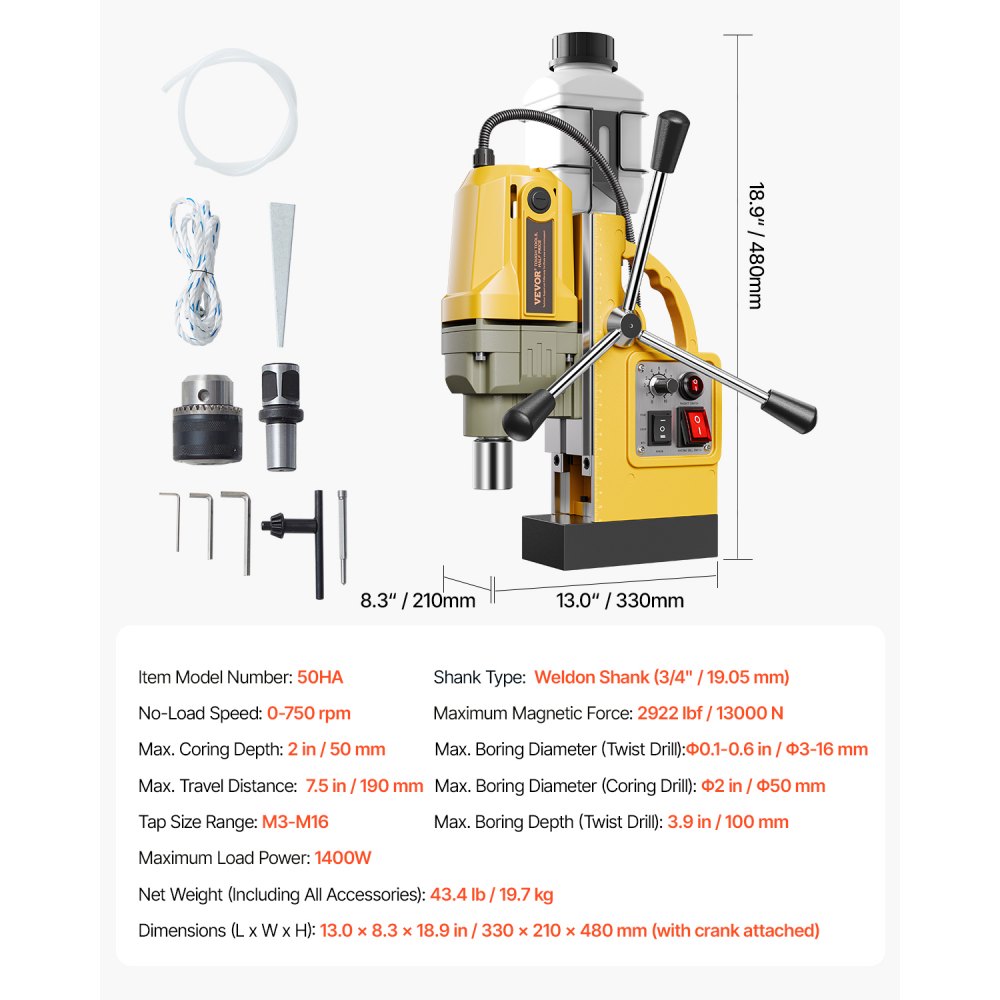

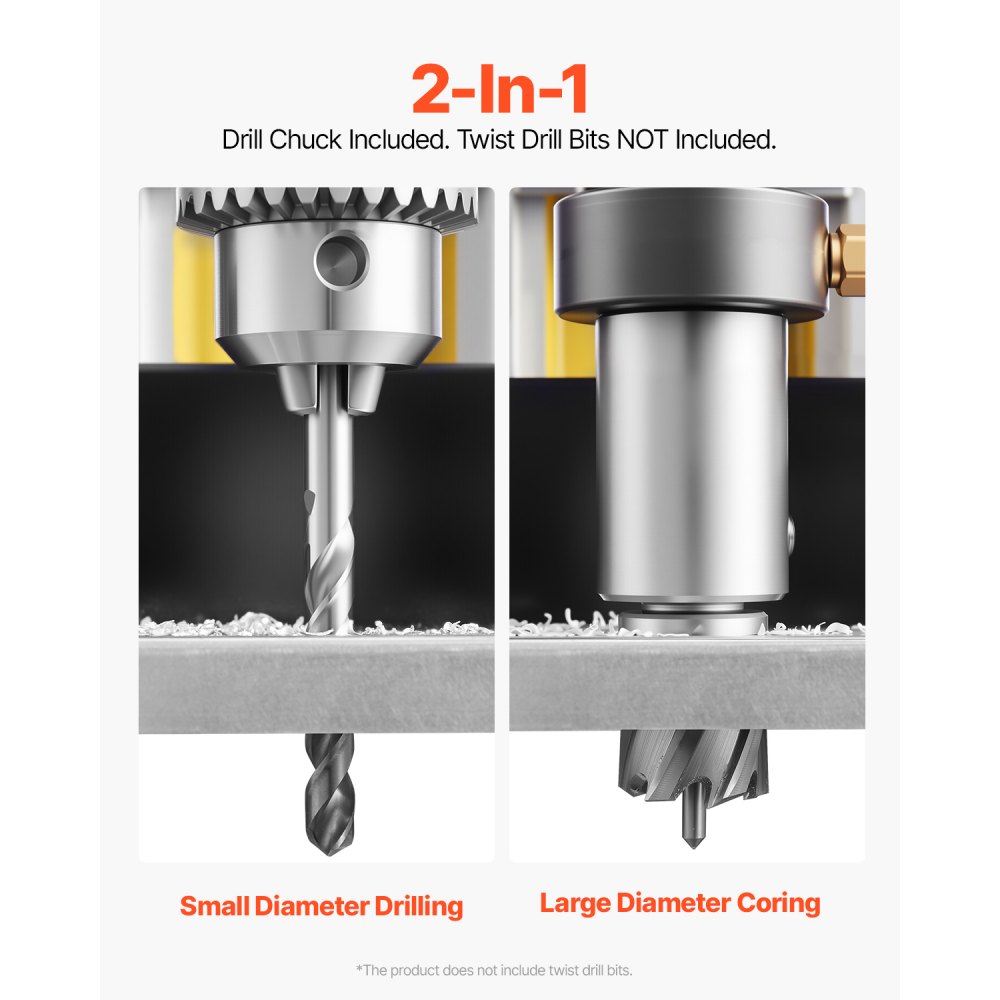

The motor can core up to Φ2 in / Φ50 mm in diameter and 2 in / 50 mm deep, and, with a twist drill, can drill Φ3–16 mm to 3.9 in / 100 mm deep. The dual-mode range allows a single machine to perform both large-bore coring and standard twist drilling. So a fabricator running mixed-hole specs on one job doesn’t have to carry a second tool, and it simplifies what they need to transport to the job site.

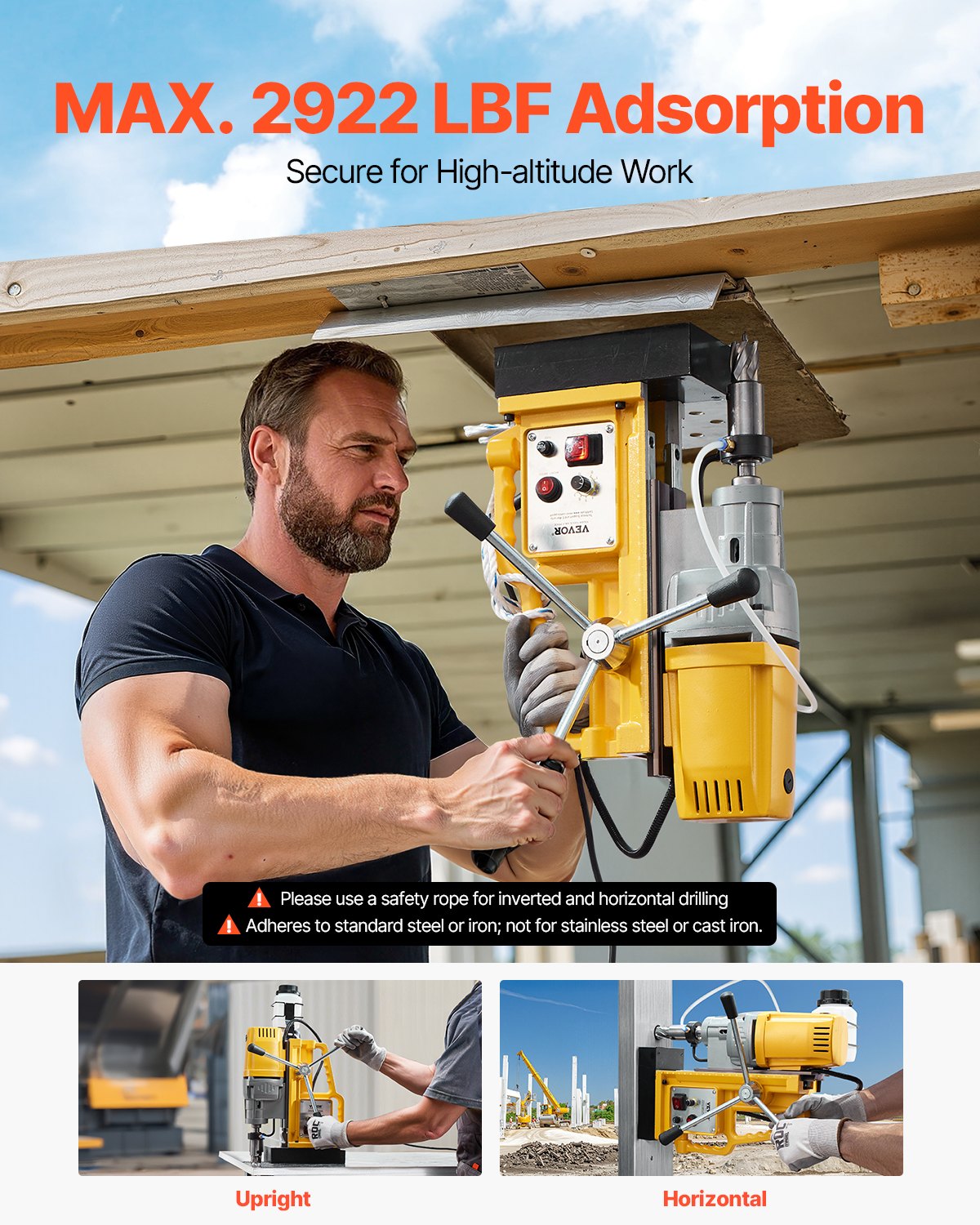

2922 lbf Electromagnetic Base for Locked-In Stability at Any Drilling Angle

This portable mag drill features a thickened pure-iron core that ensures an even distribution of field strength across the base contact face. Magnetic clamping force is 2,922 lbf (13,000 N). Even distribution eliminates micro-movement at the base perimeter - movement that induces vibration into the cutting zone and causes bore drift. A uniform, high-force clamp is applied to every work surface, from entry to breakthrough.

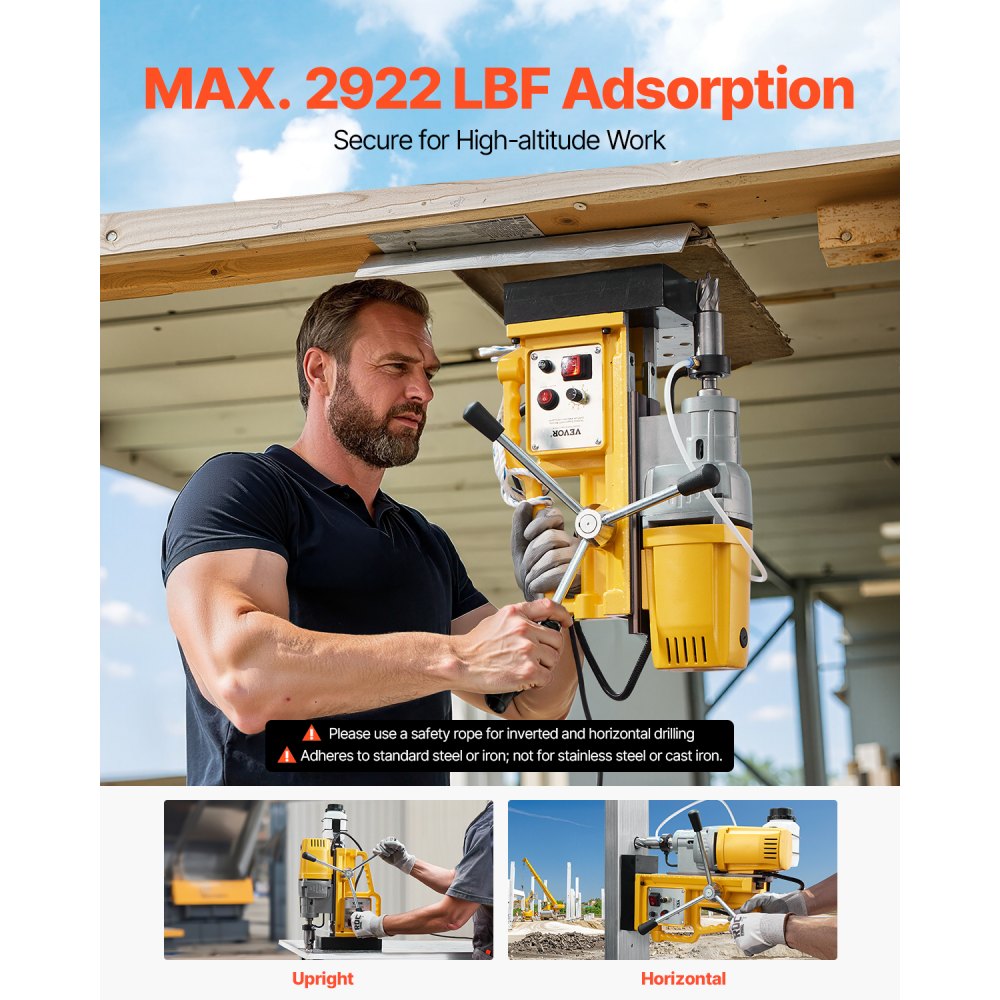

The base is standard for bridge steel, shipbuilding, and structural column work and is stable in horizontal, inverted, and angled positions. The minimum thickness of the workpiece for secure magnetic adhesion is 10 mm (0.39 in). Cast iron is permeable and does not mix with stainless steel. It is a safe two-point approach for any overhead or inverted drilling position. The safety rope must be used as a mechanical backup for overhead and lateral drilling.

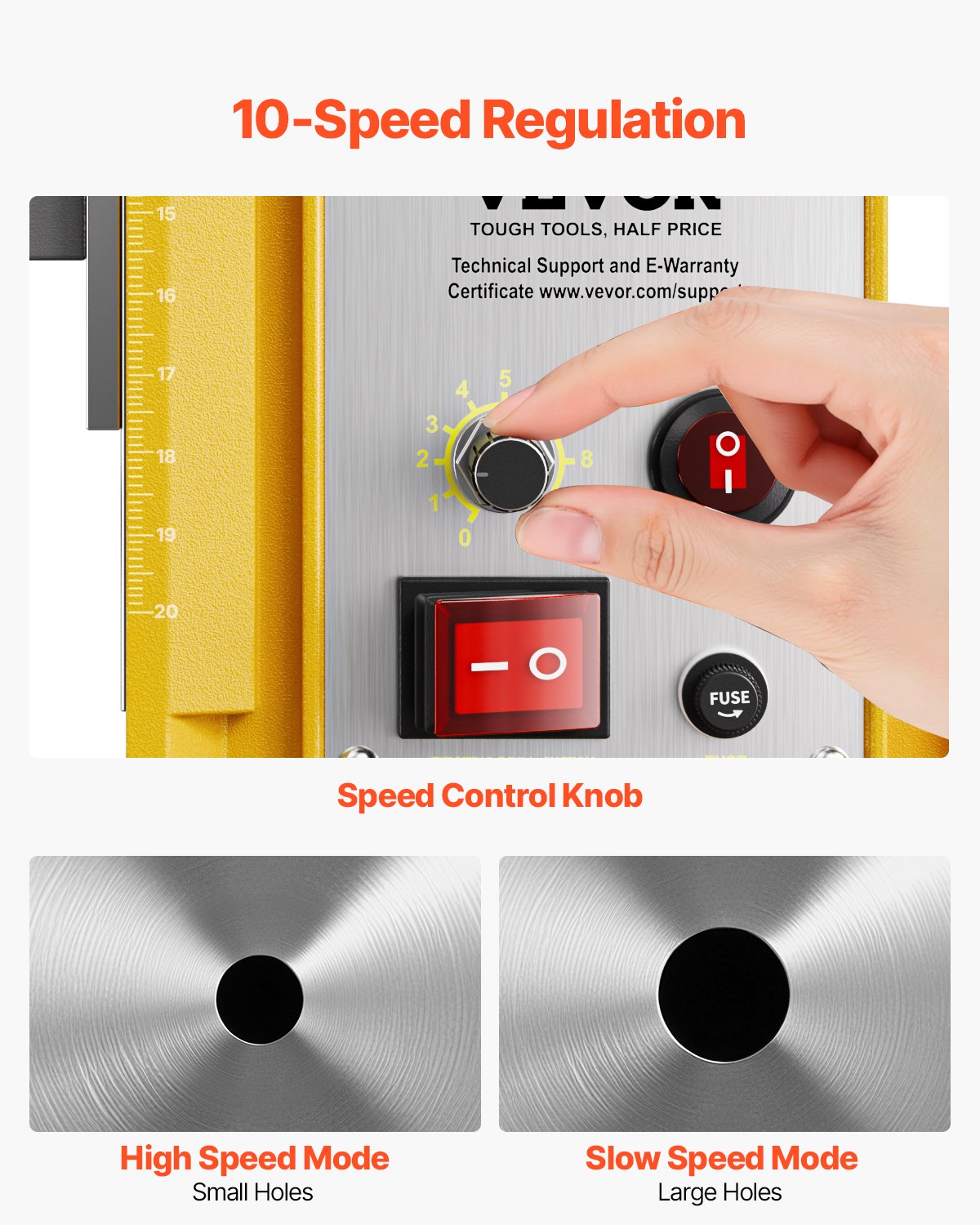

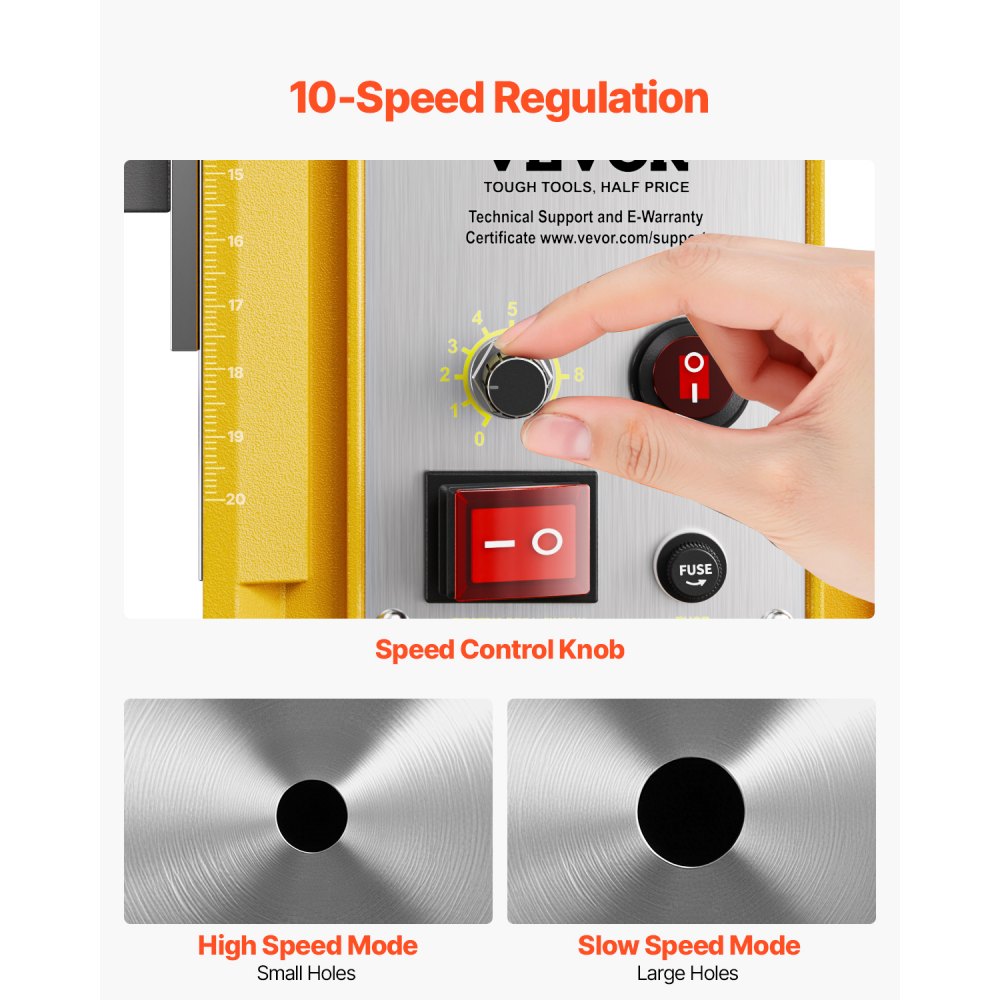

0–750 RPM Variable Speed Across 10 Gear Steps for Controlled Bore Performance

The variable speed range of 0-750 RPM, with 10 discrete gear steps, allows operators to directly control surface cutting speed at the bit tip. The large-diameter coring bits require slow surface speeds to avoid cutting-edge breakdown. Smaller twist drill bits require a higher RPM to clear chips and avoid work-hardening the bore wall. The 10-step system addresses both, with no guesswork. Each step is a defined, repeatable setting, appropriate to a specific bit size and material condition.

The 750 RPM ceiling also aids chip evacuation with smaller-diameter twist bits, as the higher spindle speed keeps the flutes clear down the bore depth. Starting the cut at low RPM allows the cutting edge to find center before the speed increases for the main pass, resulting in cleaner hole entry geometry and less bit walk on smooth or curved steel surfaces.

Portable Mag Drill with Premium Alloy Rail and 7.5 in Extended Travel Stroke

The guide rail is made from a premium alloy and treated to resist corrosion and wear, keeping tight carriage tolerances through thousands of drilling cycles in the field. Rail wear introduces lateral play in carriage travel and is instantly evident as bore drift and chatter marks on the wall of the hole. The alloy construction prevents the two modes of failure throughout the machine's life.

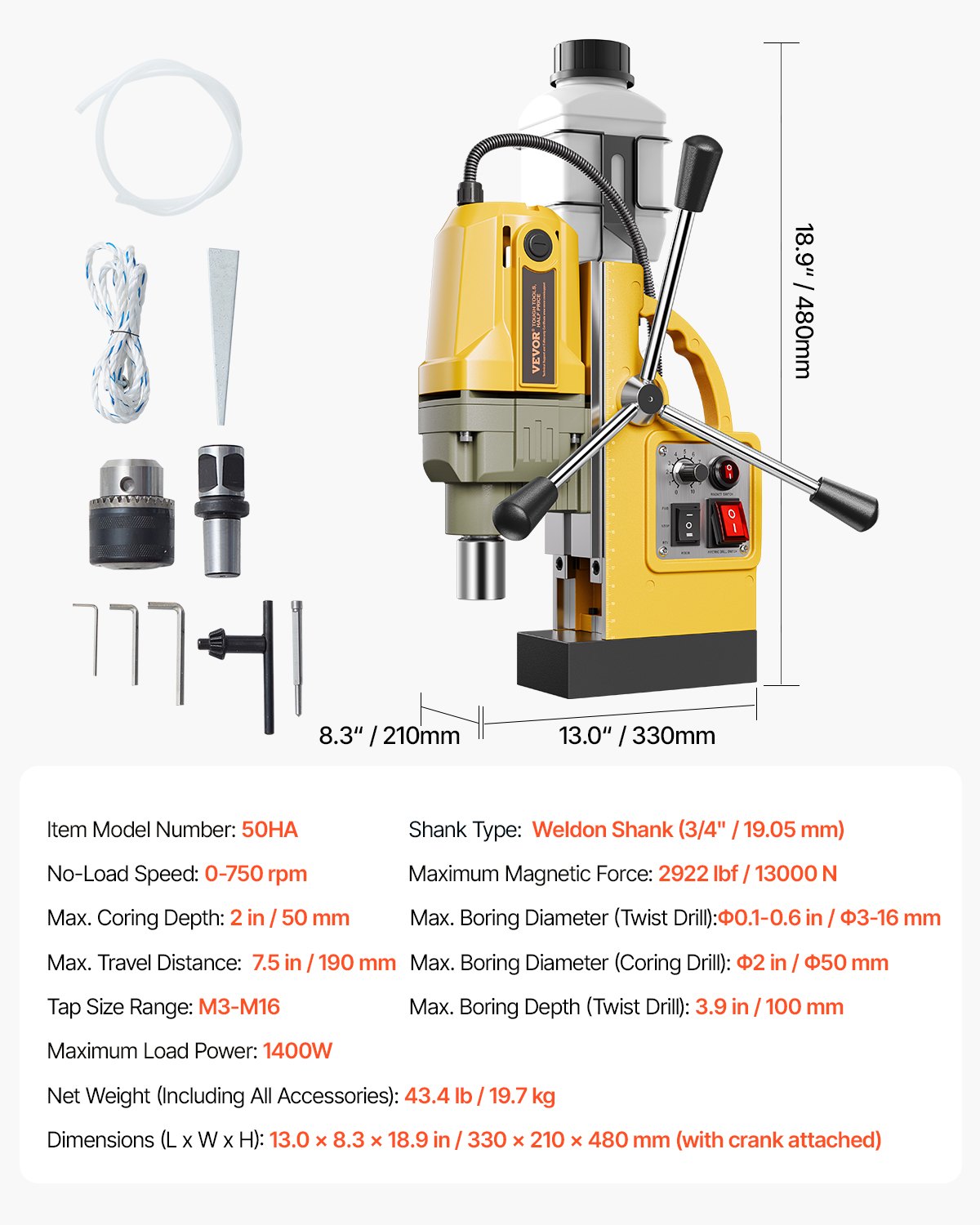

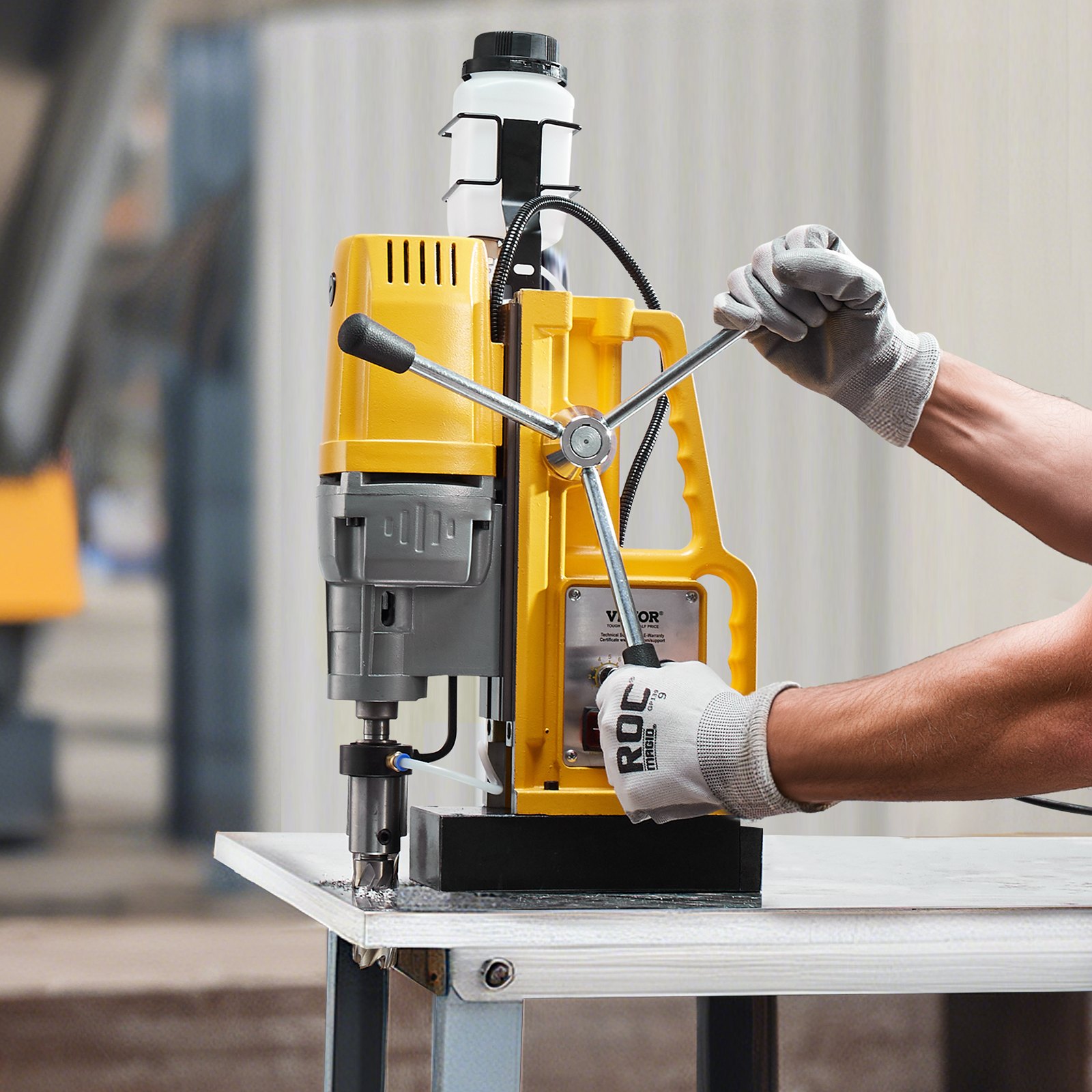

The outstanding mechanical specification of this portable mag drill is its maximum stroke of 7.5 in / 190 mm. That longer stroke means you can take a full-depth coring pass in a single continuous motion without repositioning the base, which is critical when the magnetic clamp is on a hard-to-reach surface in the middle of an operation. This unit is designed for job-site relocation between fixed work positions at 43.4 lb / 19.7 kg and is suitable for structural applications, with its stroke length targeting those applications.

Overload Protection and Active Cooling System for Safe Sustained Operation

The overload protection system senses motor current and cuts power to prevent damage when the bit catches or the feed rate exceeds capacity. Protection is most critical during deep coring passes, when torque demand is highest, and the potential for sudden bit binding is greatest. Once the fault is cleared, the circuit will reset itself automatically, with no need to wait for a manual reset and no workflow disruption.

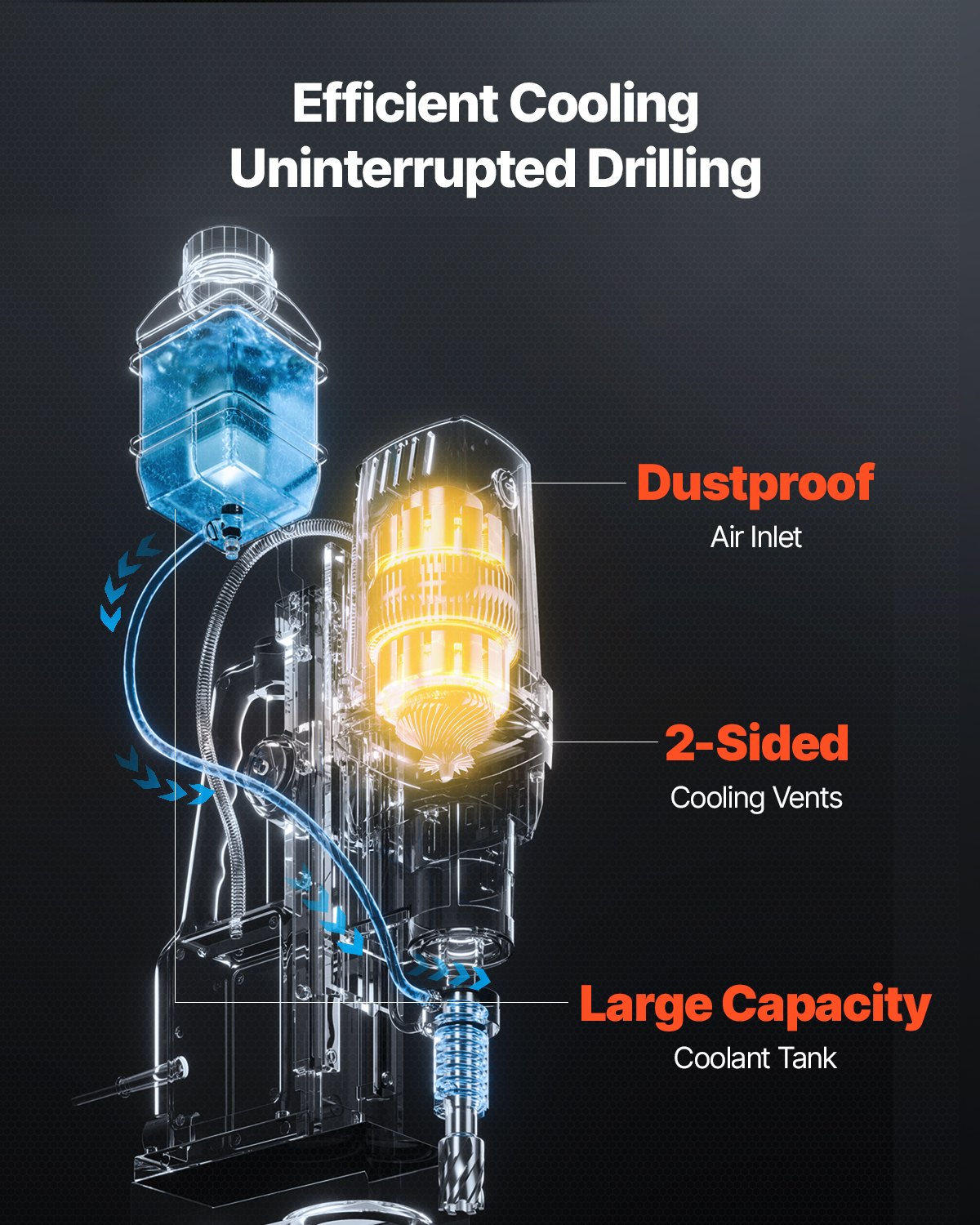

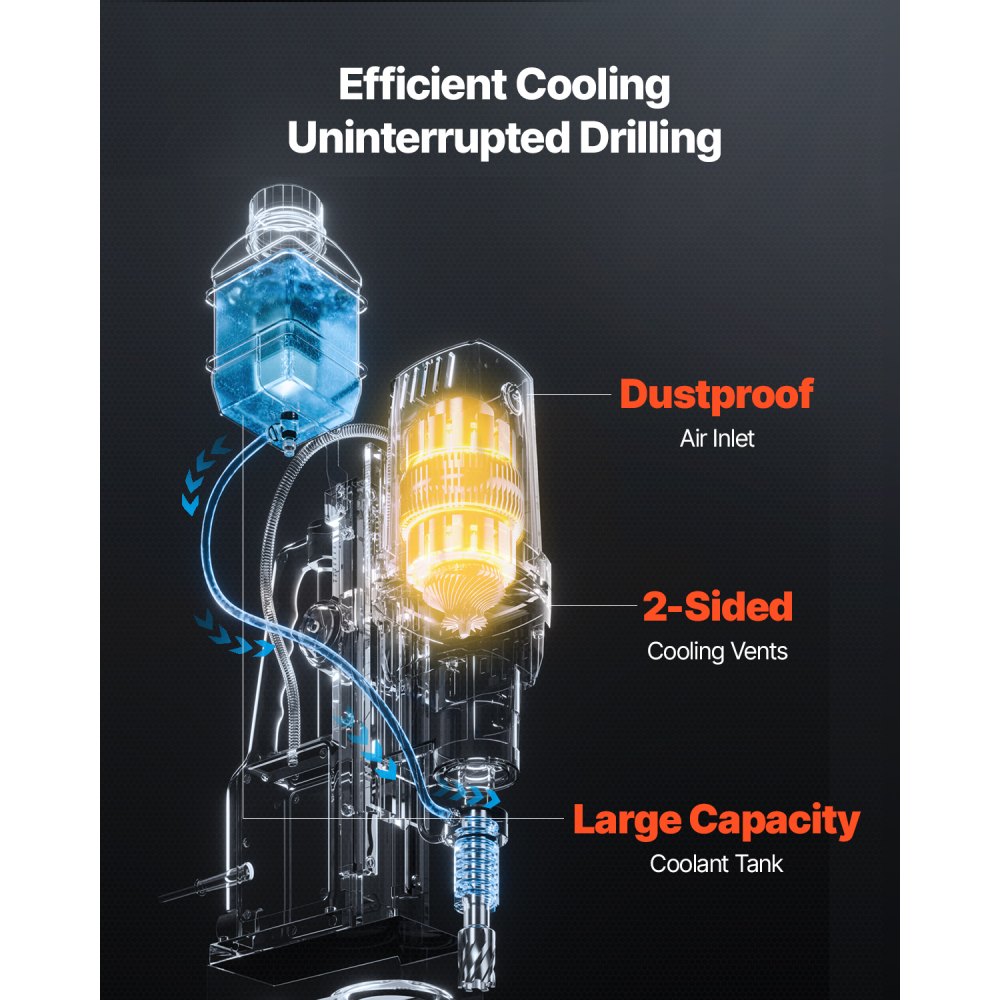

The motor housing has active cooling channels that direct airflow through the housing during operation, preventing surface temperatures from reaching levels high enough to burn the operator during bit changes or repositioning. Passive cooling cannot remove heat fast enough for continuous industrial runs. The active system maintains surface temperatures within acceptable limits and permits normal machine handling between holes without any required cool-down periods.

Weldon Shank Interface and Wide Industrial Application Range

The 3/4 in / 19.05 mm Weldon shank engages cutting tools with a flat-sided geometry, preventing rotational slip and bit spin during torque spikes at entry or breakthrough. It is a standardized industrial interface, so the operator can obtain compatible coring bits and twist drills from several sources without being locked into proprietary tooling. It is a benefit in industrial purchasing where availability can be a scheduling issue.

It is used in home renovation, equipment installation, steel fabrication, ship and bridge construction, railway manufacturing, and windmill and power plant construction. The Weldon shank system accommodates the full range of bit types required for each environment, making the system a single relocatable platform for varied hole specifications across demanding industrial job sites.
