Features & Details

• Vertical & Horizontal Position: Our rotary table with four slots is 5.9'' / 150 mm in diameter, it can be used in horizontal and vertical positions, meeting two functions and also bringing you convenient as well as efficient milling experience.
• Fantastic Material: HT200 Casting is mainly used to cast parts subjected to pressure and vibration on mechanical equipment. Adopted it as the material, our rotary milling table is durable, shock-absorbing, and heat-resistant.
• Excellent Precision: The rotary table for milling machine can be graduated 360 Degrees. Resetting dial and handwheel can be graduated in seconds. The enclosed design prevents the penetration of dirt and chips.
• Convenient to Adjust: The dial of the rotary table for mill is marked with an accurate scale. Just operate the control handle and adjust it to the desired position, which makes it possible to use it easily and conveniently.
• Wide Application: This mill rotary table is popular for its excellent performance, practical design, and high precision. They are widely used for circular cutting work, boring, spot facing, and similar work.

Frequently Bought Together

Videos for this product

About this item

Product specification

Clamping table diameter

150mm / 5.9"

Number of grooves

4

Width of grooves

14mm / 0.43"

Circular Accuracy

0.04

The parallelism of the mounting surface

0.04

Parts accuracy

45"

Transmission of the worm gear

90/1

Basic dimension horizontal

180 x 170mm / 7 x 6.7"

Basic dimension vertical

205 x 80mm / 8 x 3.15"

Height

80mm / 3.15"

Weight without packaging

11.1kg / 24.47lb

Worktable with scale

360 °

Load horiz.

40kg / 88.18lb

Stress vertic.

20kg / 44.09lb

MK

2

Description

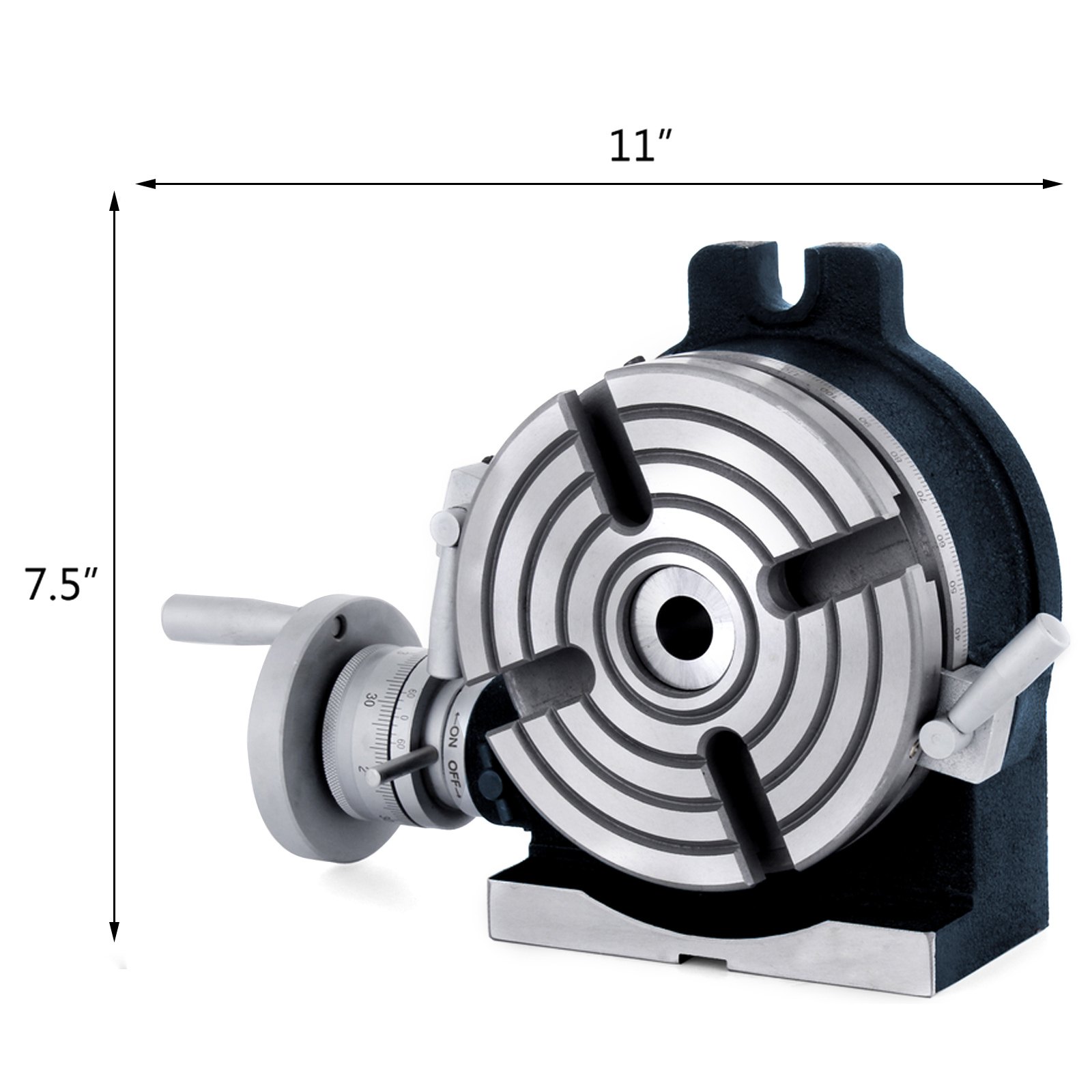

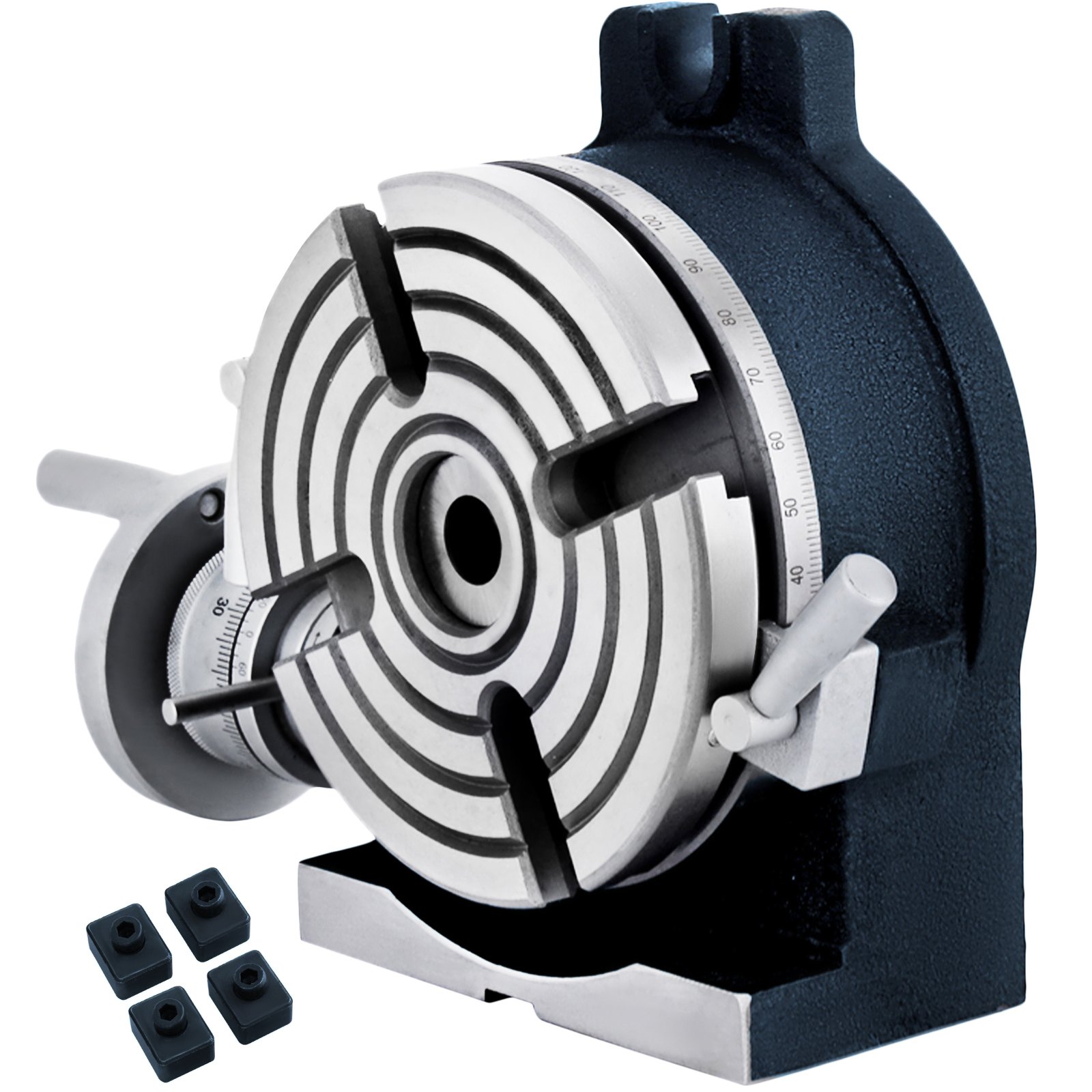

150mm / 5.9" Vertical & Horizontal Rotary Table

The vertical & horizontal rotary table, one of the main accessories of the milling machine, is a precision work positioning device. This machine is widely used in metalworking, enabling the operator to drill or cut work at exact intervals around a fixed axis.

• Vertical & Horizontal Position
• Fantastic Material
• Excellent Precision
• Convenient to Adjust
• Wide Application

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

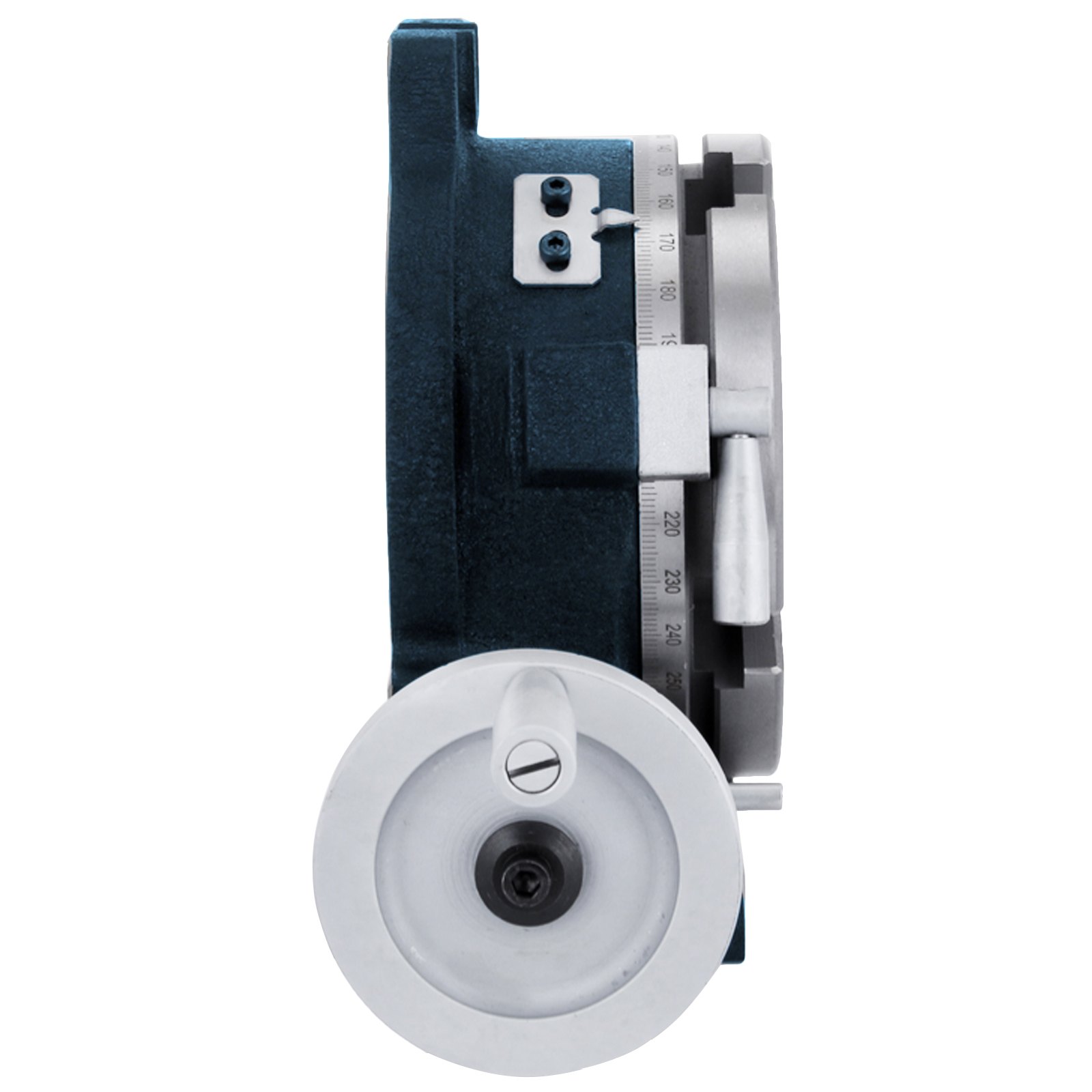

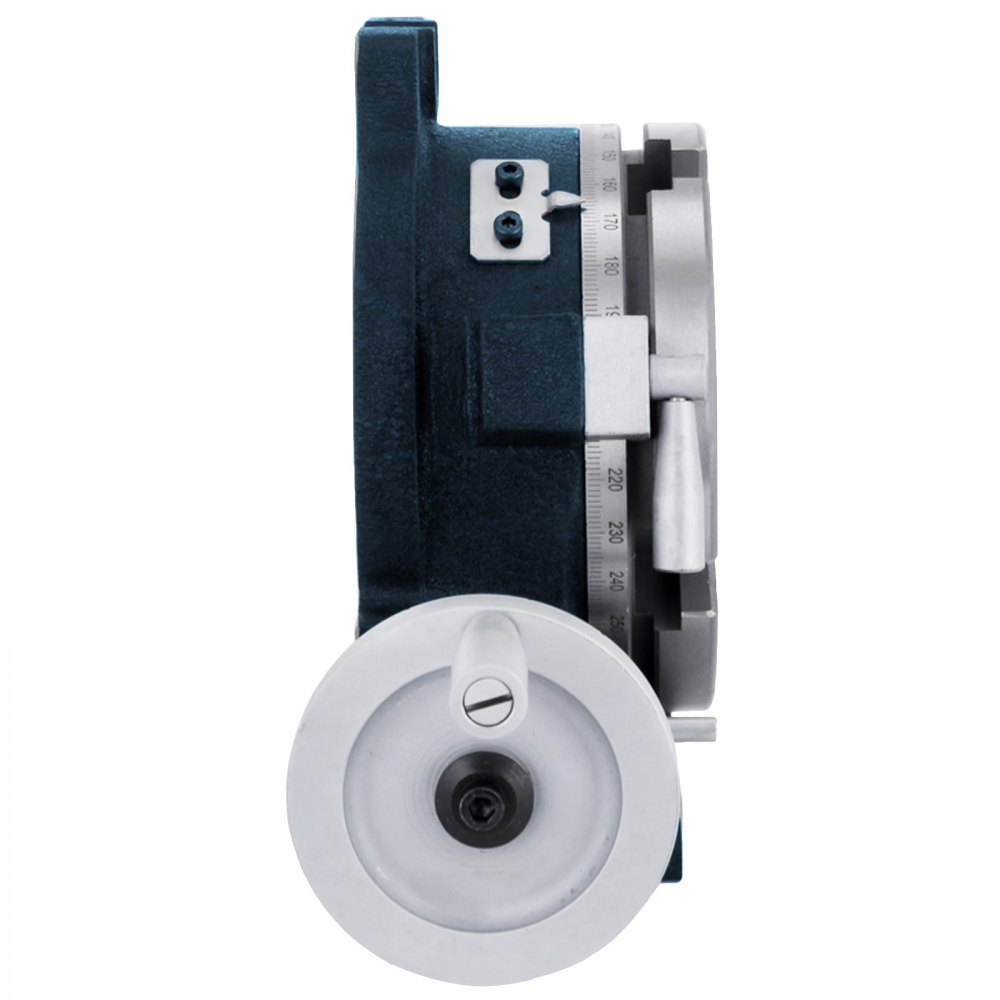

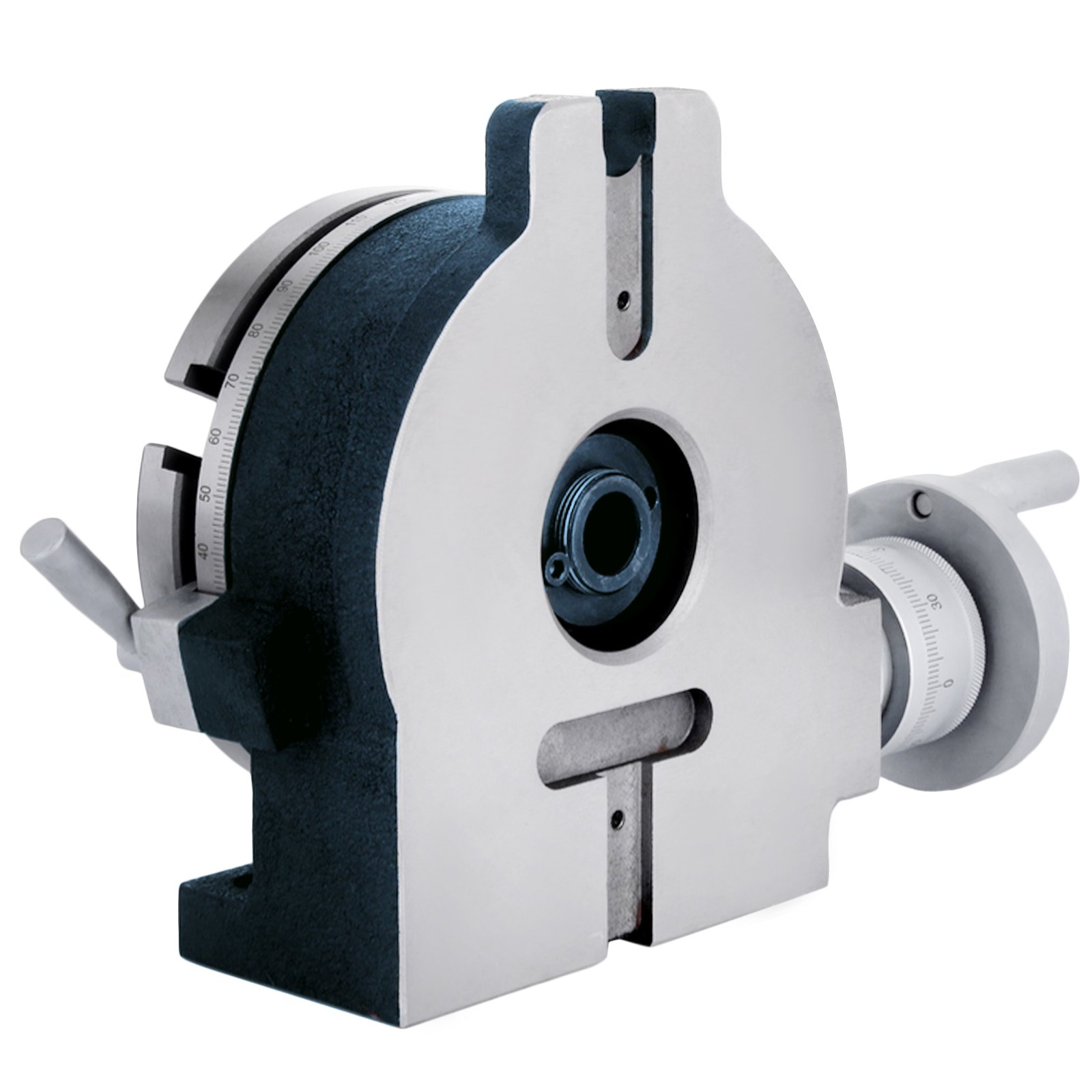

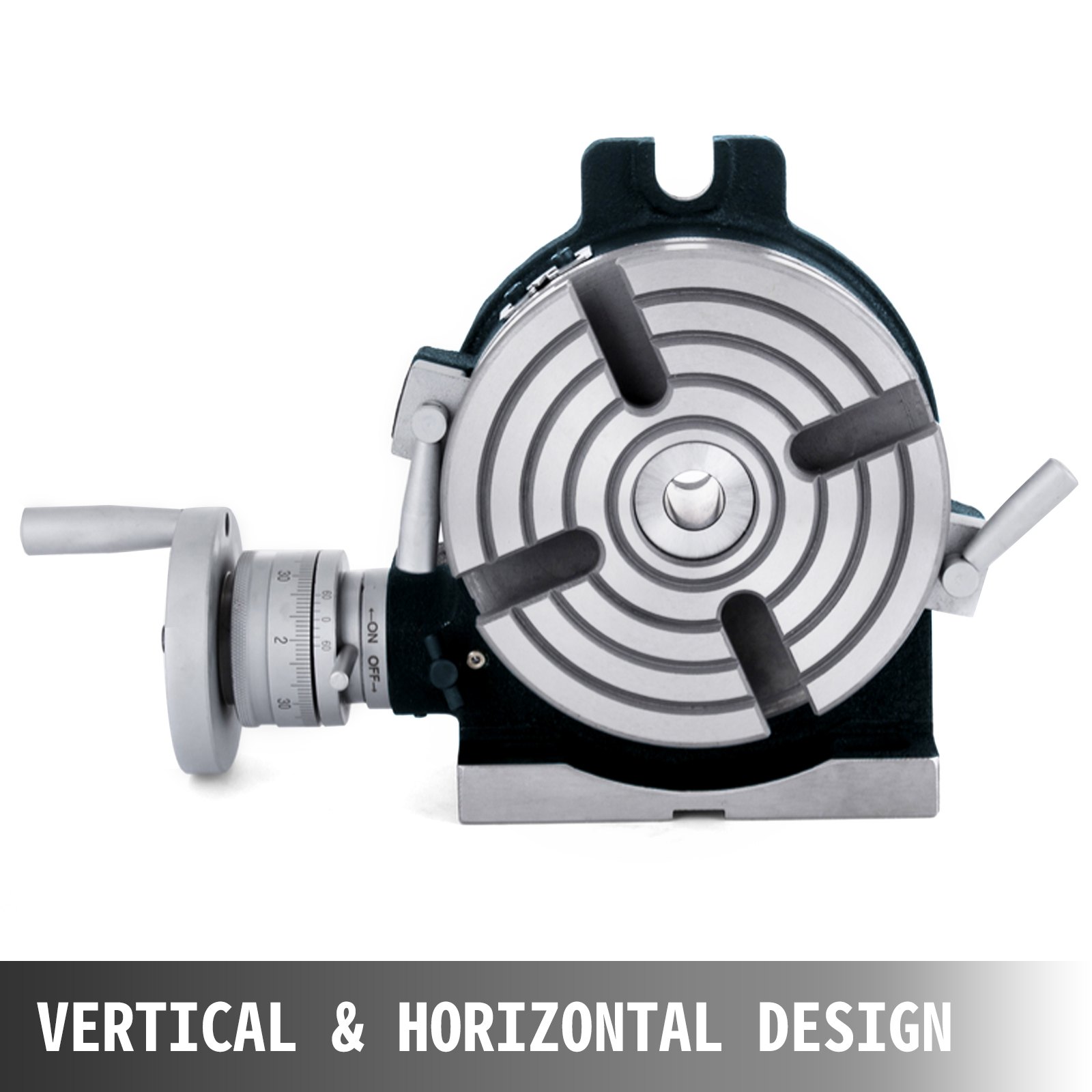

Vertical & Horizontal Design

It can be mounted "flat," with the table rotating around a vertical axis, in the same plane as the cutter of a vertical milling machine. Or, mounted the rotary table on its end (or mount it "flat" on a 90° angle plate) so that it rotates about a horizontal axis. In this configuration, a tail stock can also be used, thus holding the workpiece "between centers."

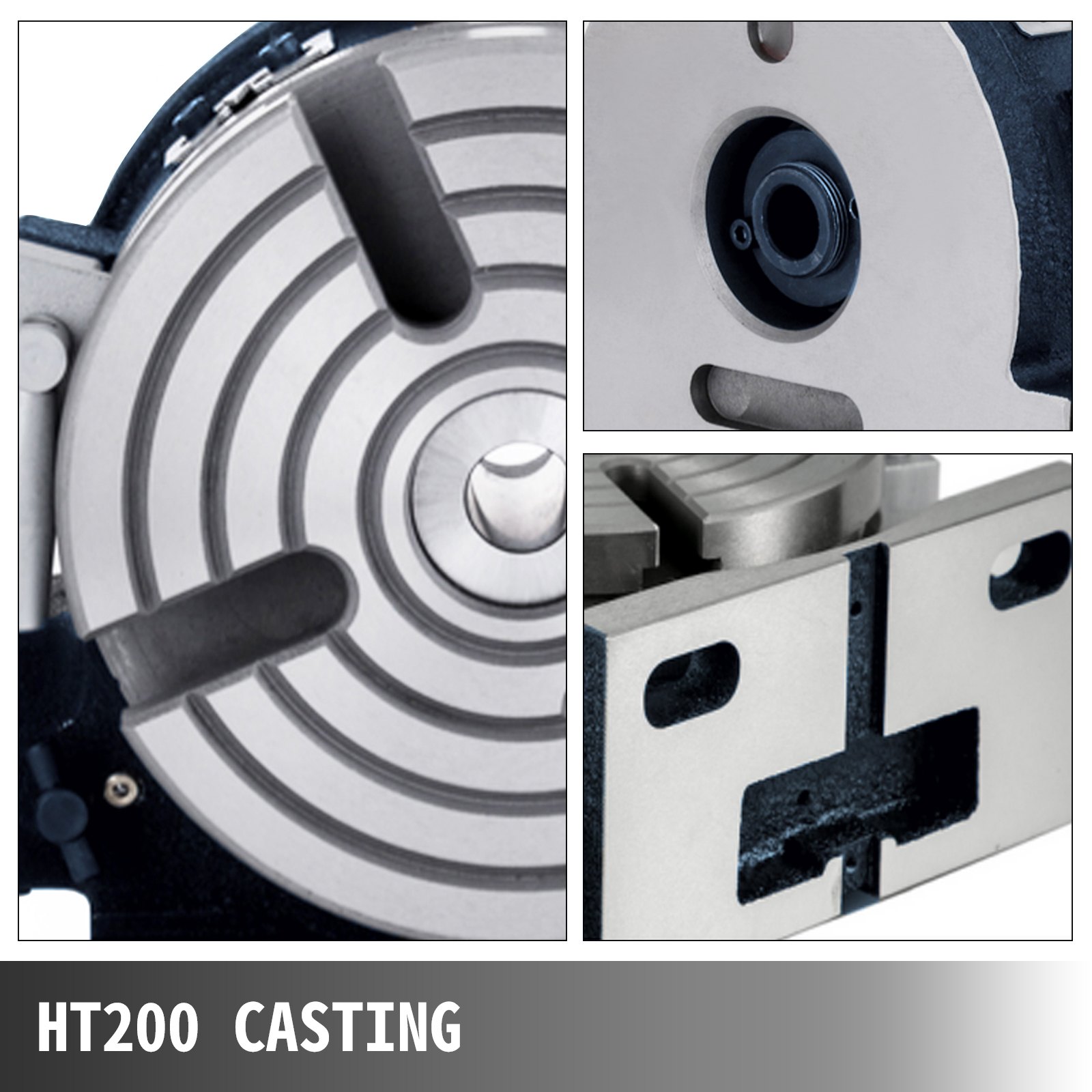

HT200 Casting

HT200 casting has excellent casting performance, shock absorption performance as well as high strength heat resistance. It ensures the superior performance of the machine and provides you a good sense of use.

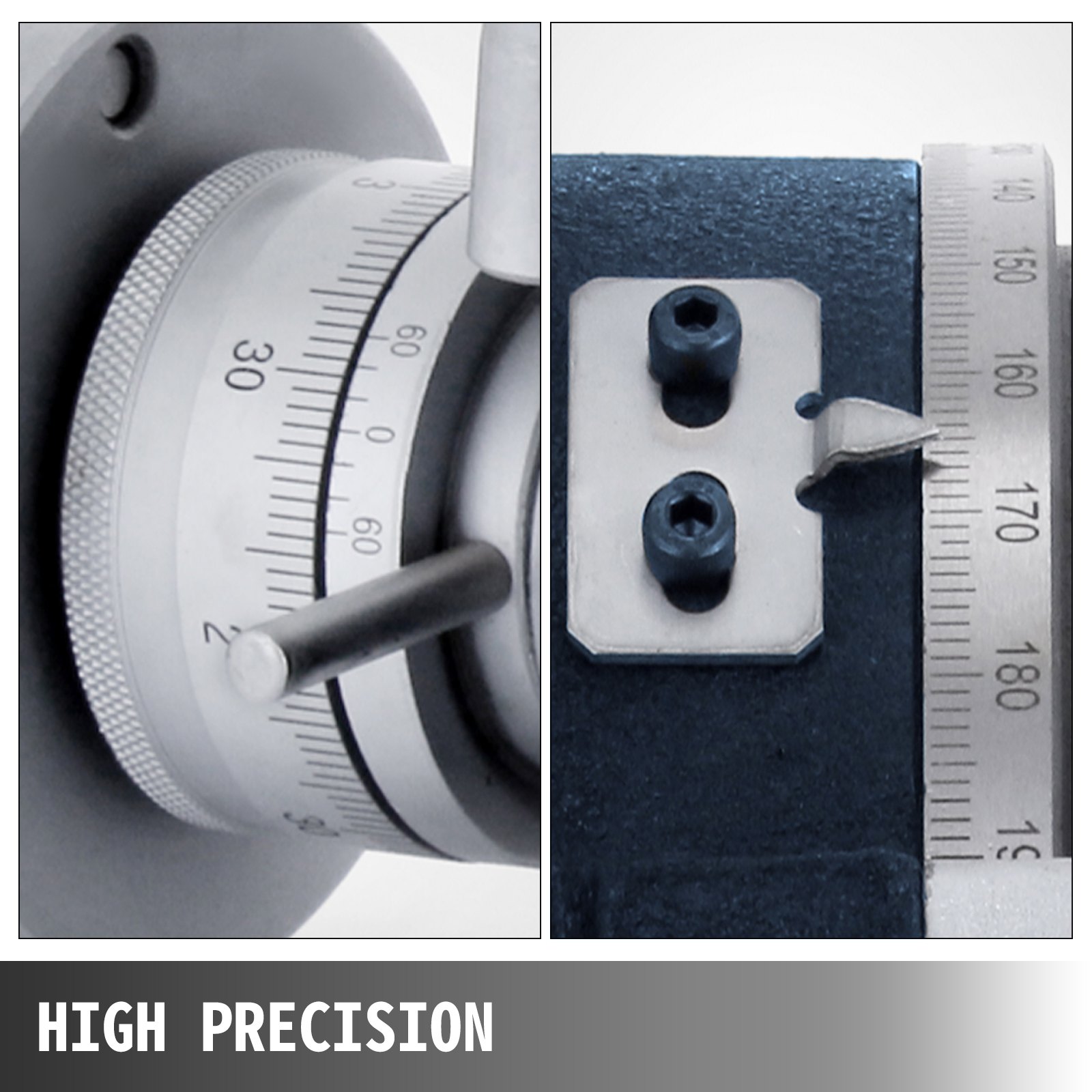

High Precision

The dial is divided into 360 degrees in total. The minimum scale can be accurate to seconds. All of these help you handle more complex and more precise tasks. Spindle end is applied accuracy bearing. Can be assured to keep very steady under load cutting

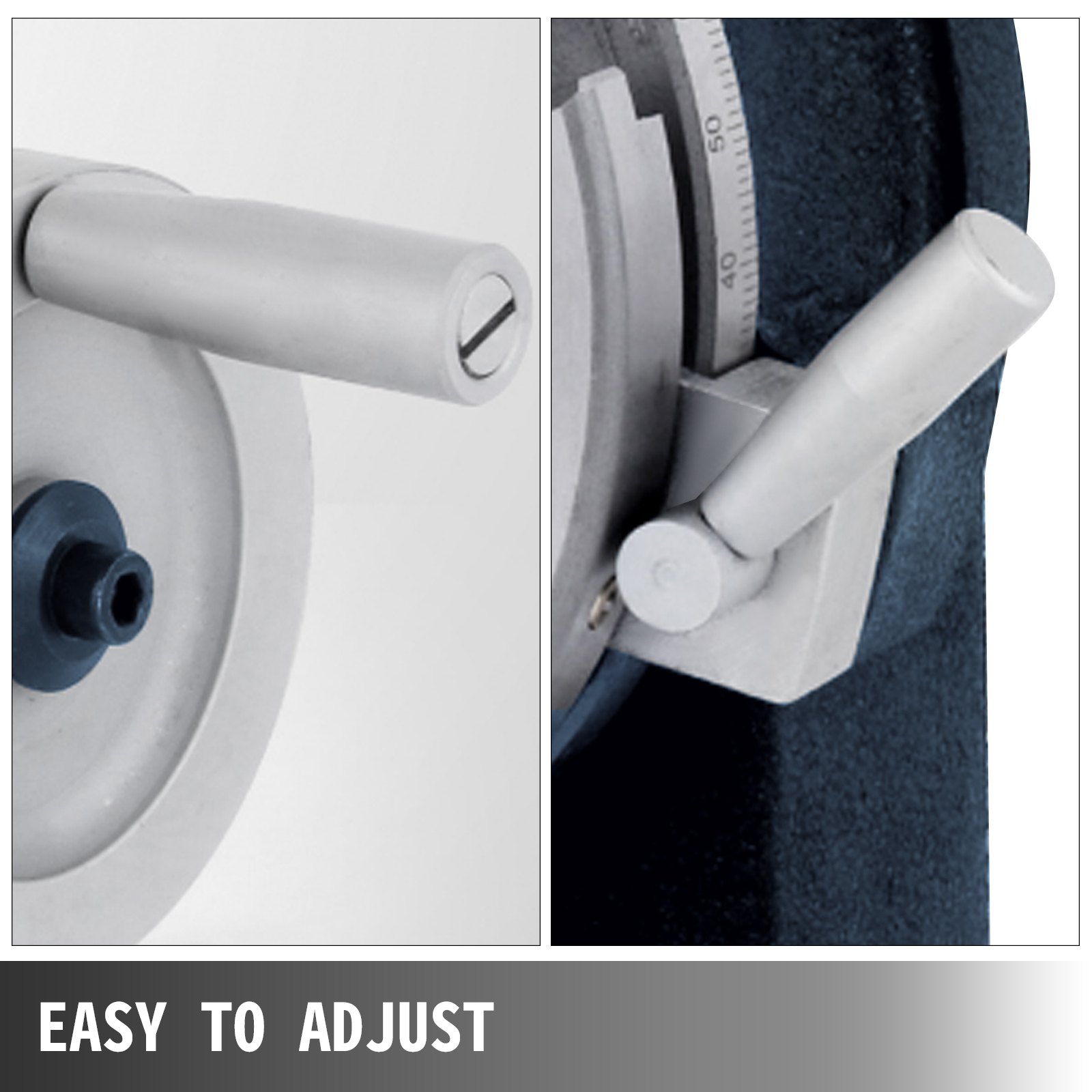

Easy to Adjust

It's not difficult for you to adjust the rotary table milling machine. What you should do is to adjust the handle to the position where you want because the precise scale is marked on the dial.

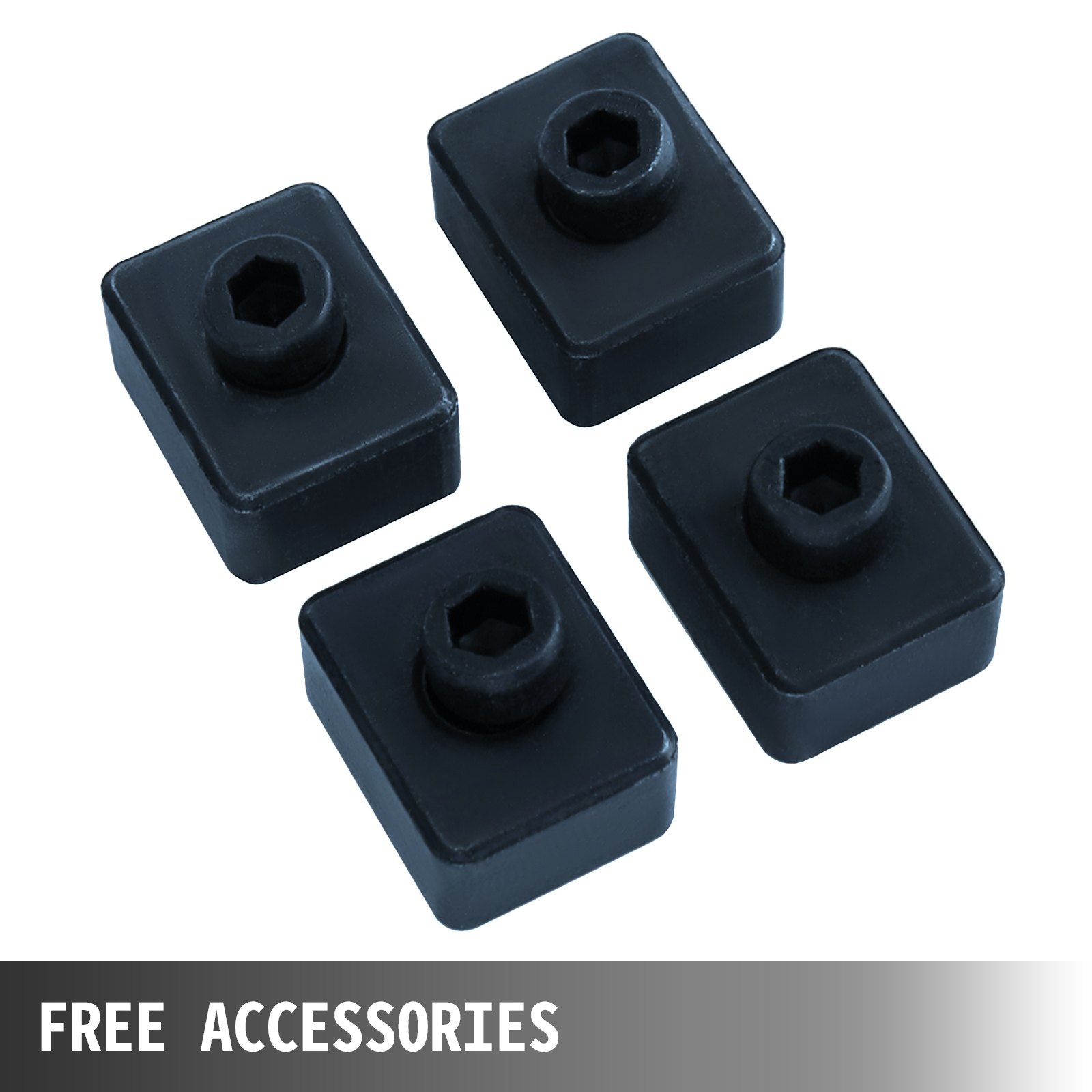

Free Accessories

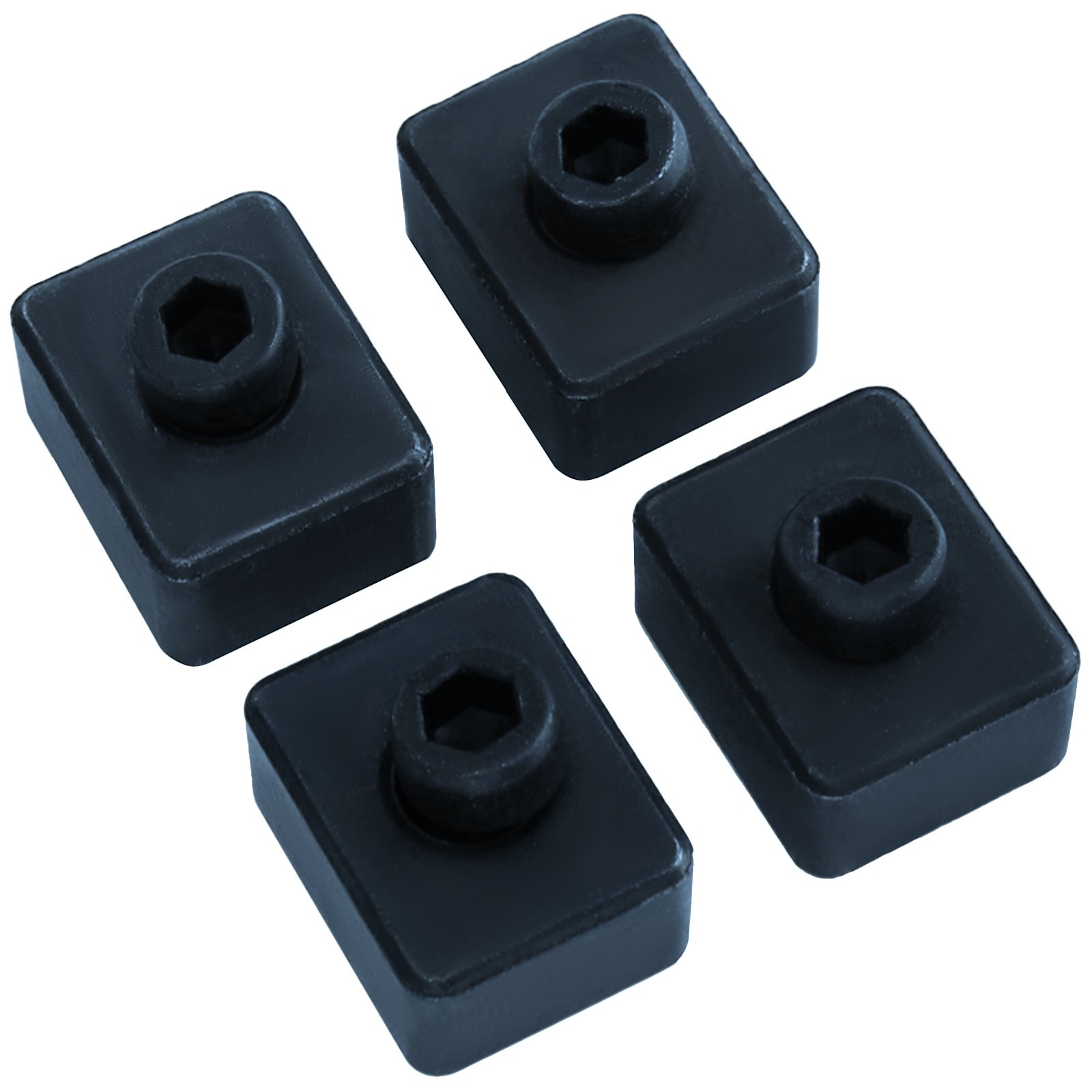

Except for the 5.9''(150 mm) rotary machine table, we also offer you four locating blocks. The center can be corrected quickly and accurately by the Key guide block.

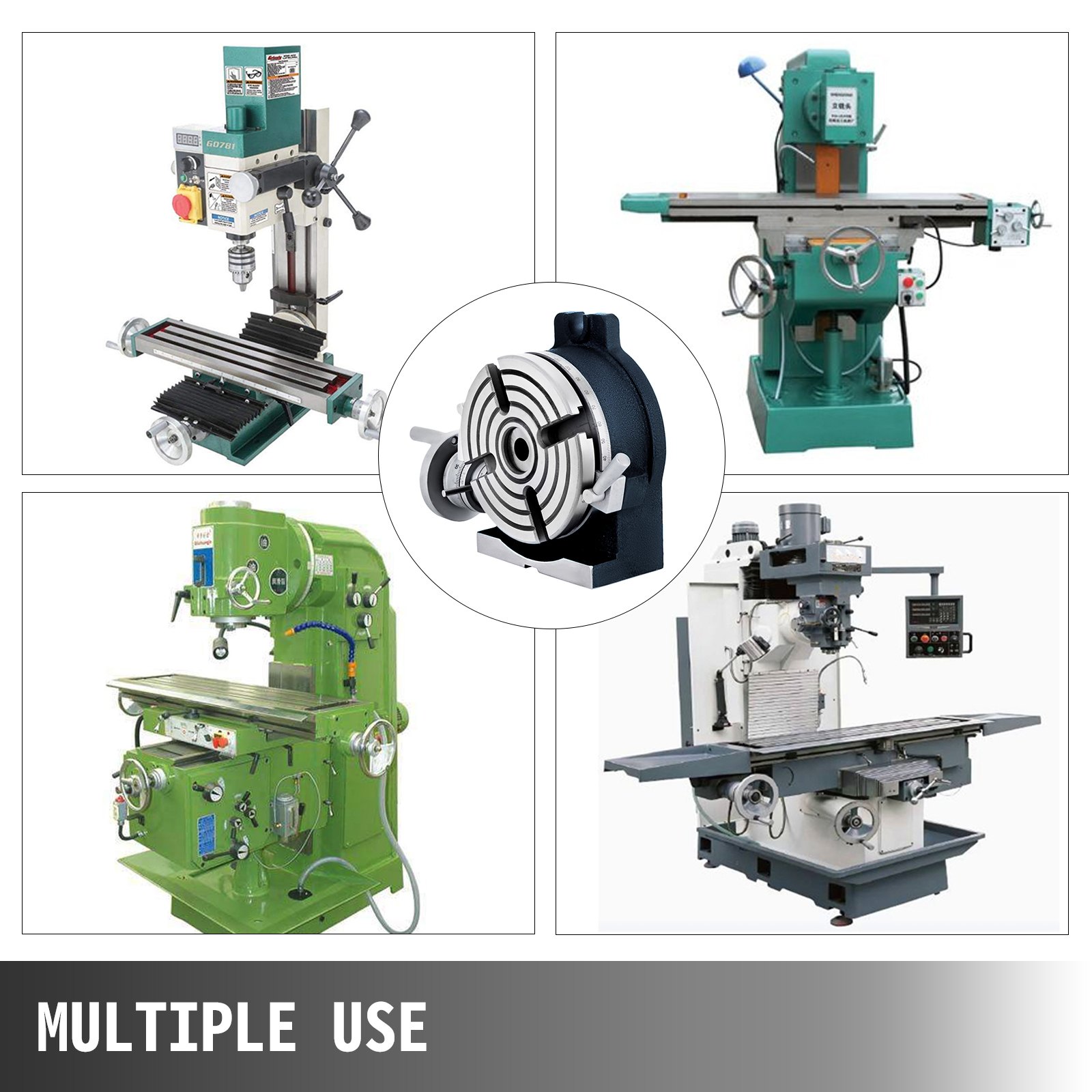

Multiple Use

Widely used in metalworking, enabling the operator to drill or cut work at exact intervals around a fixed axis. Great for circular cutting work, boring, spotfacing, and similar work.

Specifications

• Clamping table diameter: 150 mm / 5.9"
• Number of grooves: 4
• Width of grooves: 11 mm / 0.43"
• Circular Accuracy: 0.04
• The parallelism of the mounting surface: 0.04
• Parts accuracy: 45"
• Transmission of the worm gear: 90/1
• Basic dimension horizontal: 180 x 170 mm / 7 x 6.7"
• Basic dimension vertical: 205 x 80 mm / 8 x 3.15"
• Height: 80 mm / 3.15"
• Weight without packaging: 11.1 kg / 24.47lb
• Worktable with scale: 360 °
• Load horiz.: 40 kg / 88.18lb
• Stress vertic.: 20 kg / 44.09lb
• MK: 2

Package Content

• 1 x Vertical and Horizontal Rotary Working Table

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

150mm / 5.9" Vertical & Horizontal Rotary Table

The vertical & horizontal rotary table, one of the main accessories of the milling machine, is a precision work positioning device. This machine is widely used in metalworking, enabling the operator to drill or cut work at exact intervals around a fixed axis.

• Vertical & Horizontal Position
• Fantastic Material
• Excellent Precision
• Convenient to Adjust
• Wide Application

Vertical & Horizontal Design

It can be mounted "flat," with the table rotating around a vertical axis, in the same plane as the cutter of a vertical milling machine. Or, mounted the rotary table on its end (or mount it "flat" on a 90° angle plate) so that it rotates about a horizontal axis. In this configuration, a tail stock can also be used, thus holding the workpiece "between centers."

HT200 Casting

HT200 casting has excellent casting performance, shock absorption performance as well as high strength heat resistance. It ensures the superior performance of the machine and provides you a good sense of use.

High Precision

The dial is divided into 360 degrees in total. The minimum scale can be accurate to seconds. All of these help you handle more complex and more precise tasks. Spindle end is applied accuracy bearing. Can be assured to keep very steady under load cutting

Easy to Adjust

It's not difficult for you to adjust the rotary table milling machine. What you should do is to adjust the handle to the position where you want because the precise scale is marked on the dial.

Free Accessories

Except for the 5.9''(150 mm) rotary machine table, we also offer you four locating blocks. The center can be corrected quickly and accurately by the Key guide block.

Multiple Use

Widely used in metalworking, enabling the operator to drill or cut work at exact intervals around a fixed axis. Great for circular cutting work, boring, spotfacing, and similar work.

Package Content

• 1 x Vertical and Horizontal Rotary Working Table

Specifications

• Clamping table diameter: 150 mm / 5.9"
• Number of grooves: 4
• Width of grooves: 11 mm / 0.43"
• Circular Accuracy: 0.04
• The parallelism of the mounting surface: 0.04
• Parts accuracy: 45"
• Transmission of the worm gear: 90/1
• Basic dimension horizontal: 180 x 170 mm / 7 x 6.7"
• Basic dimension vertical: 205 x 80 mm / 8 x 3.15"
• Height: 80 mm / 3.15"
• Weight without packaging: 11.1 kg / 24.47lb
• Worktable with scale: 360 °
• Load horiz.: 40 kg / 88.18lb
• Stress vertic.: 20 kg / 44.09lb
• MK: 2
