JSMNCC220X600-001V2

Metal Lathe Mini Lathe 8.7" X 23.6" 1.1kw For Counter Face Turning Driling

Metal Lathe Mini Lathe 8.7" X 23.6" 1.1kw For Counter Face Turning Driling Metal Lathe Mini Lathe 8.7" X 23.6" 1.1kw For Counter Face Turning Driling Metal Lathe Mini Lathe 8.7" X 23.6" 1.1kw For Counter Face Turning Driling Metal Lathe Mini Lathe 8.7" X 23.6" 1.1kw For Counter Face Turning Driling Metal Lathe Mini Lathe 8.7" X 23.6" 1.1kw For Counter Face Turning Driling Metal Lathe Mini Lathe 8.7" X 23.6" 1.1kw For Counter Face Turning Driling Metal Lathe Mini Lathe 8.7" X 23.6" 1.1kw For Counter Face Turning Driling
1199.99€
1199.99

23.6 inch

  • 23.6 inch
  • 29.5 inch

1100W

  • 1100W
  • 750W
  • · Infinitely Variable Speed: The mini metal lathe is driven by brushless motor with Power: 1.1KW. Variable Speed(Rpm): 50-3000±10%. Taper in Spindle Nose: MT5. LED screen shows you the clear and accurate speed for accurate working. Soft start, change-over switch for clockwise or counter-clockwise spindle rotation. Operate either manually or with the adjustable auto feed rate.
  • · 600 mm Large Swing Range: The bench top lathe brings a 3-jaw Chuck with Diameter: 4.9"/125 mm. Swing Over Bed: 8.7"/220 mm and Swing Over Cross Slide: 23.6"/600 mm offers more possibilities for large size or/and heavy workpieces. Taper in Spindle Nose: MT5. Range of Imperial Threads: 8-44 T.P.I.

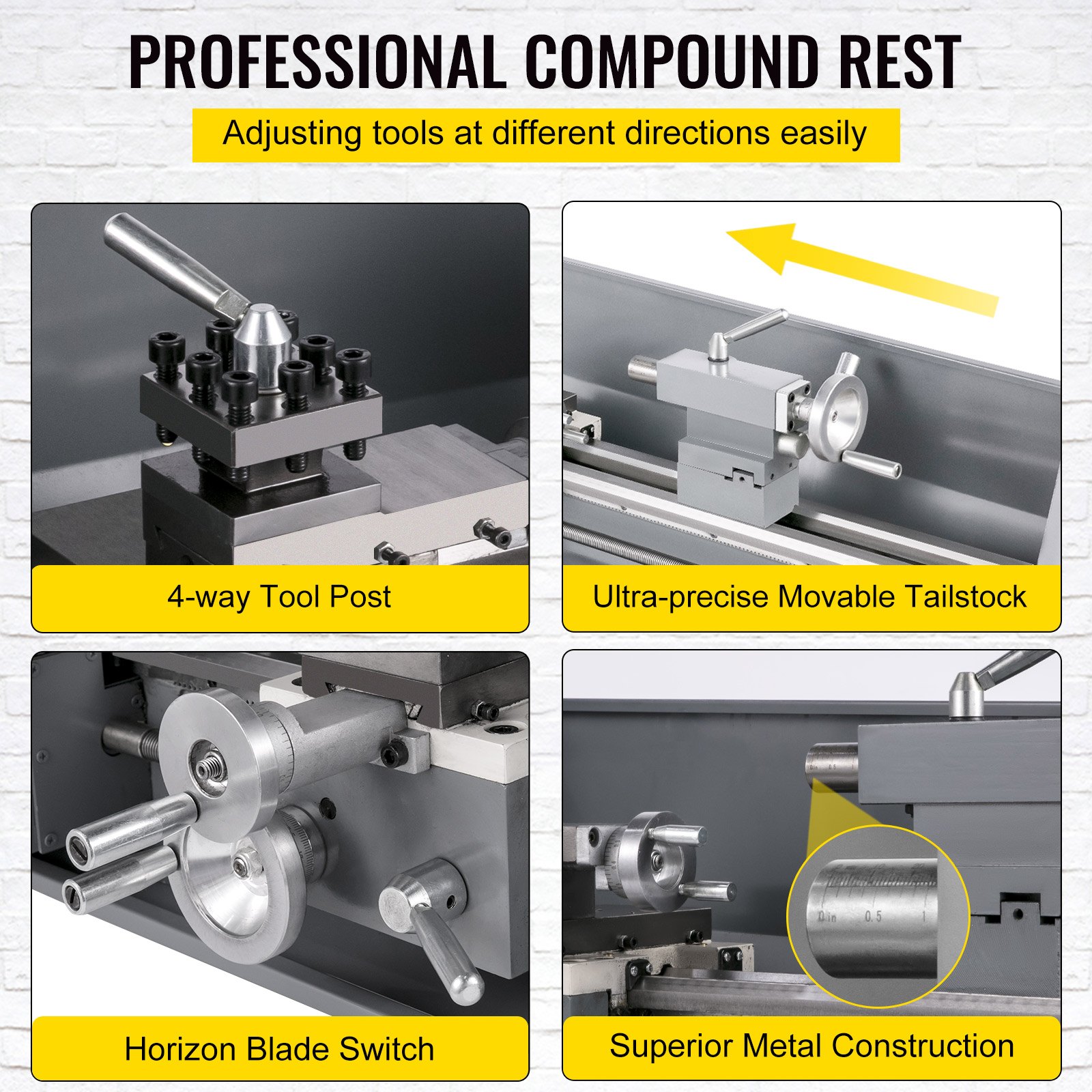

  • · Professional Compound Rest: The mini lathe machine quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest, moving blades freely with feed rod. Heat hardening lead screw can be reversed in three speeds by turning the two handles under the variable speed rotary button.
  • · Supportive & Protective: Steady rest works as an end support, ensuring chatter-free operation. Follow rest is used for turning operations on long, slender workpices. Backsplash guard included. It features a digital screen clearly showing the rotational speed, ensuring precise and smooth operation.
  • · Adjustable Tailstock: Taper in Tailstock Spindle: MT2. Rotate the lever clockwise to lock the spindle, and rotate clockwise to advance the handwheel. To off-set the tailstock for cutting tapers by adjusting the four set screws located on the tailstock base.


Frequently Bought Together

People Who Bought This Item Also Bought

Metal Lathe Mini Lathe 8.7" X 23.6" 1.1kw For Counter Face Turning Driling
23.6 inch 1100W
Metal Lathe Mini Lathe 8.7
Metal Lathe Mini Lathe 8.7
Metal Lathe Mini Lathe 8.7

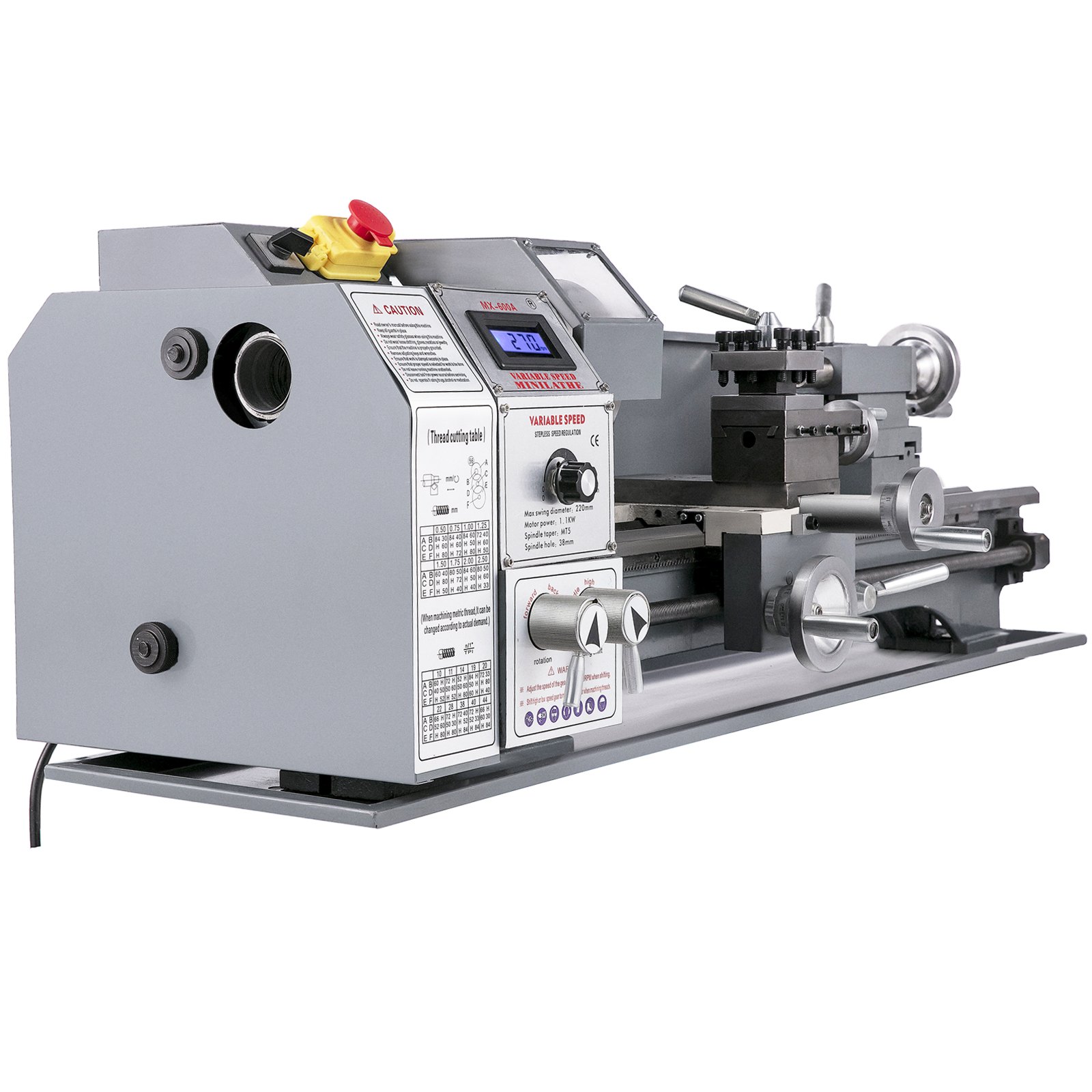

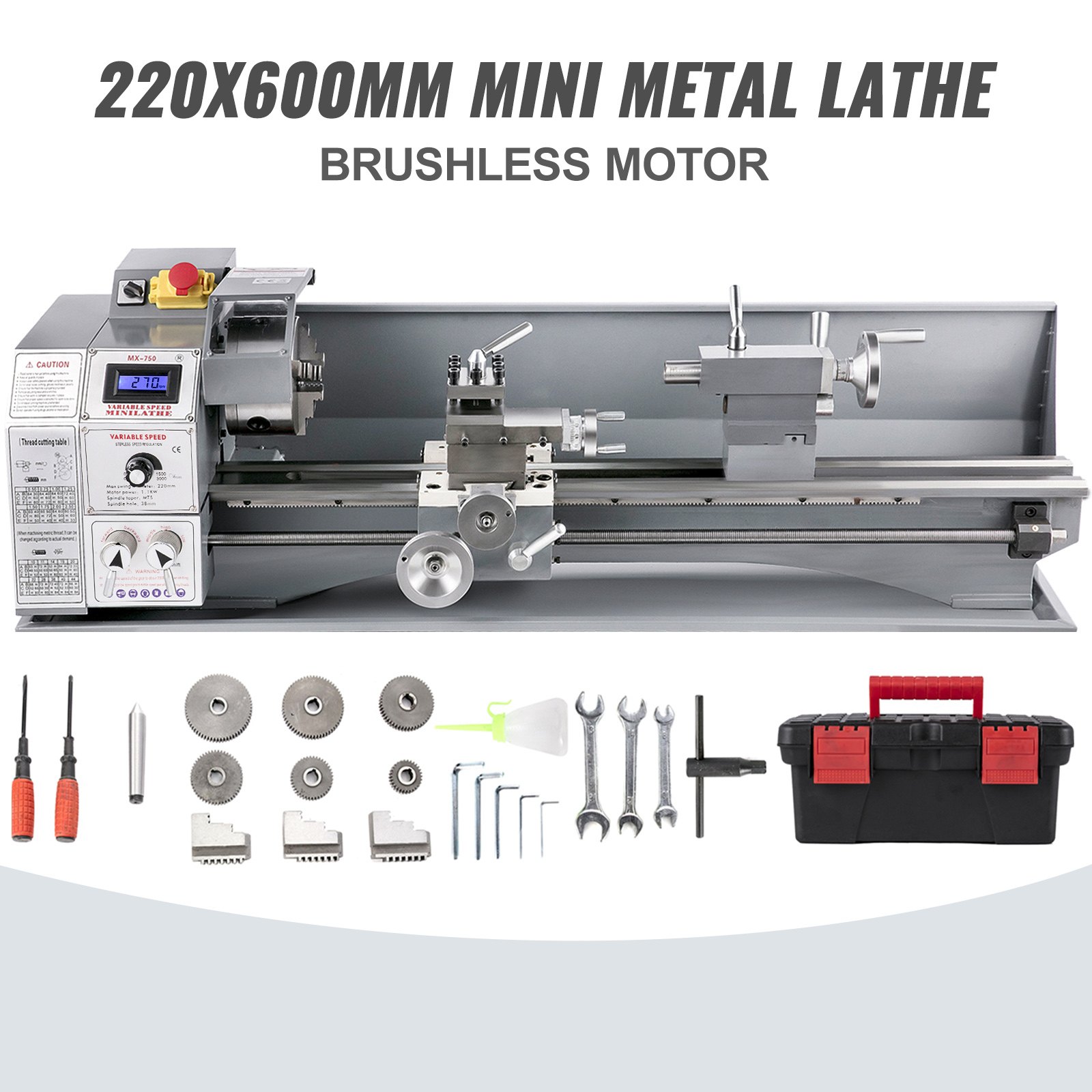

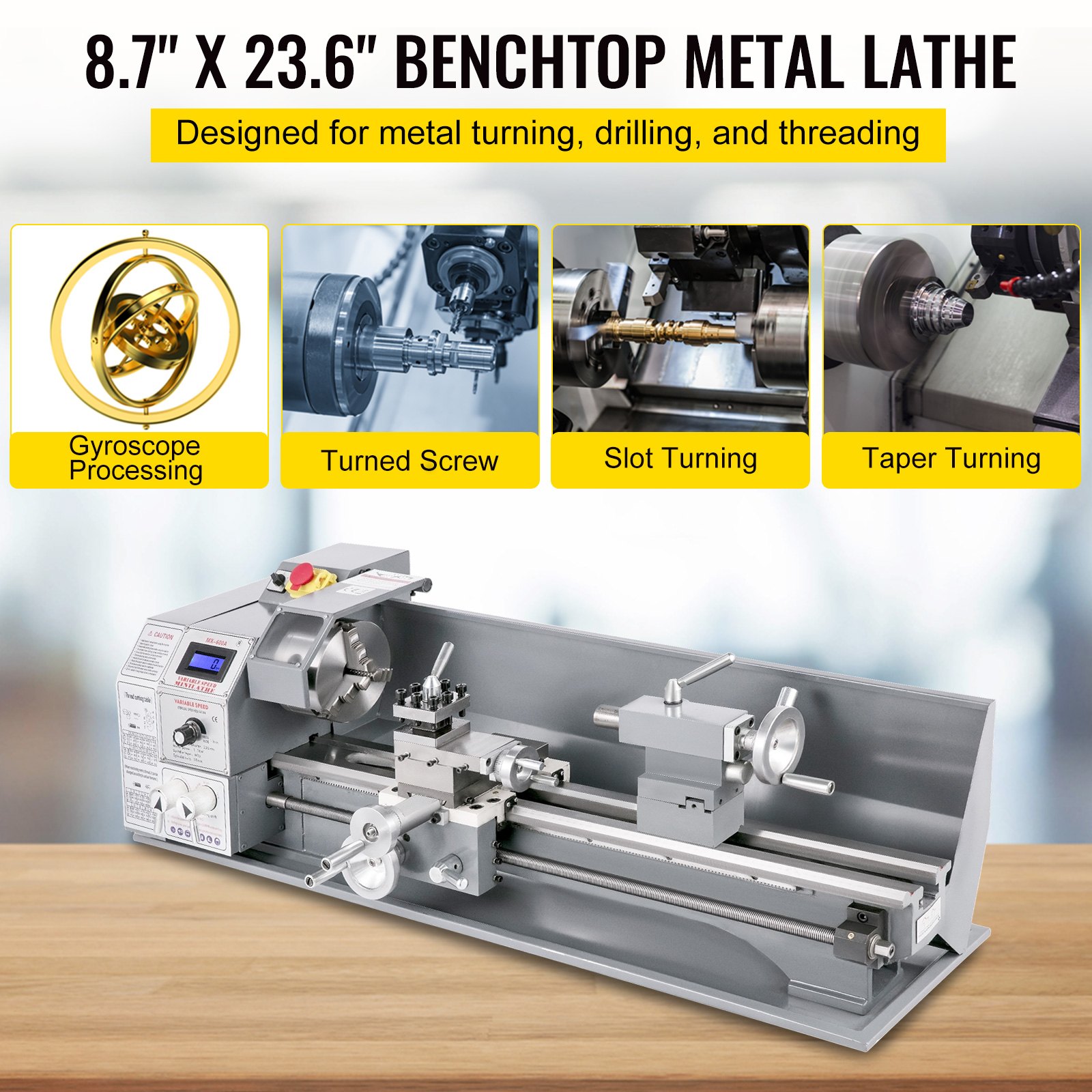

8.7" x 23.6" Metal Lathe Mini Lathe
The 220 x 600 mm precision metal mini lathe features 1.1KW motor, a 3-jaw chuck, a MT5 spindle taper, a MT2 tailstock taper, designed to perform various types of metal turning, simple to operate. Through high-frequency quenching process and precision grinding of high-quality cast iron bed. 500-3000±10% Rpm spindle speed is continuously adjustable. Steady rest and follow rest for large size or/and heavy workpieces.
  • Variable Speed Design
  • 600 mm Large Swing Range
  • Professional Compound Rest
  • Supportive & Protective
  • Accurate Tailstock

Metal Lathe Mini Lathe 8.7
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Metal Lathe Mini Lathe 8.7
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Metal Lathe Mini Lathe 8.7

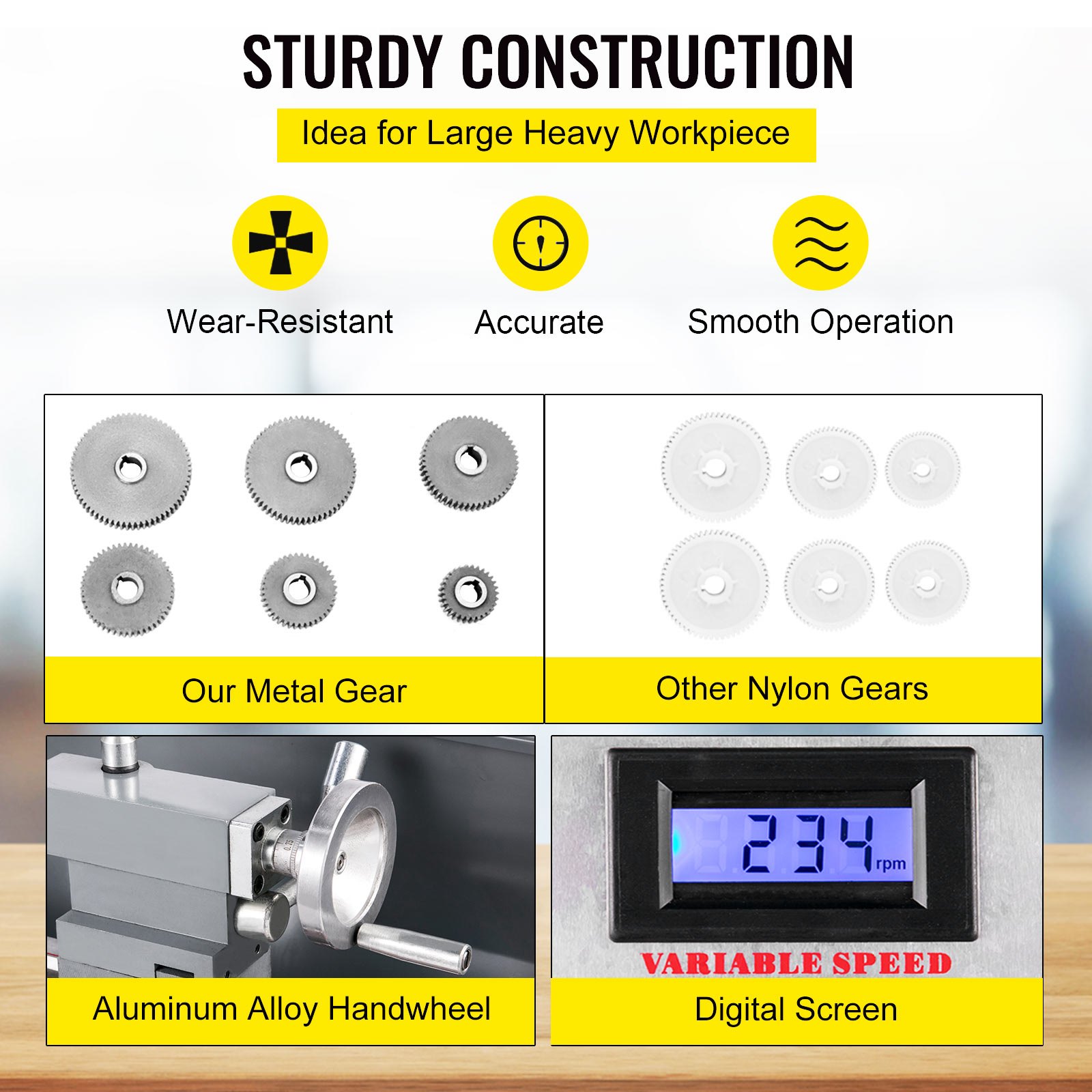

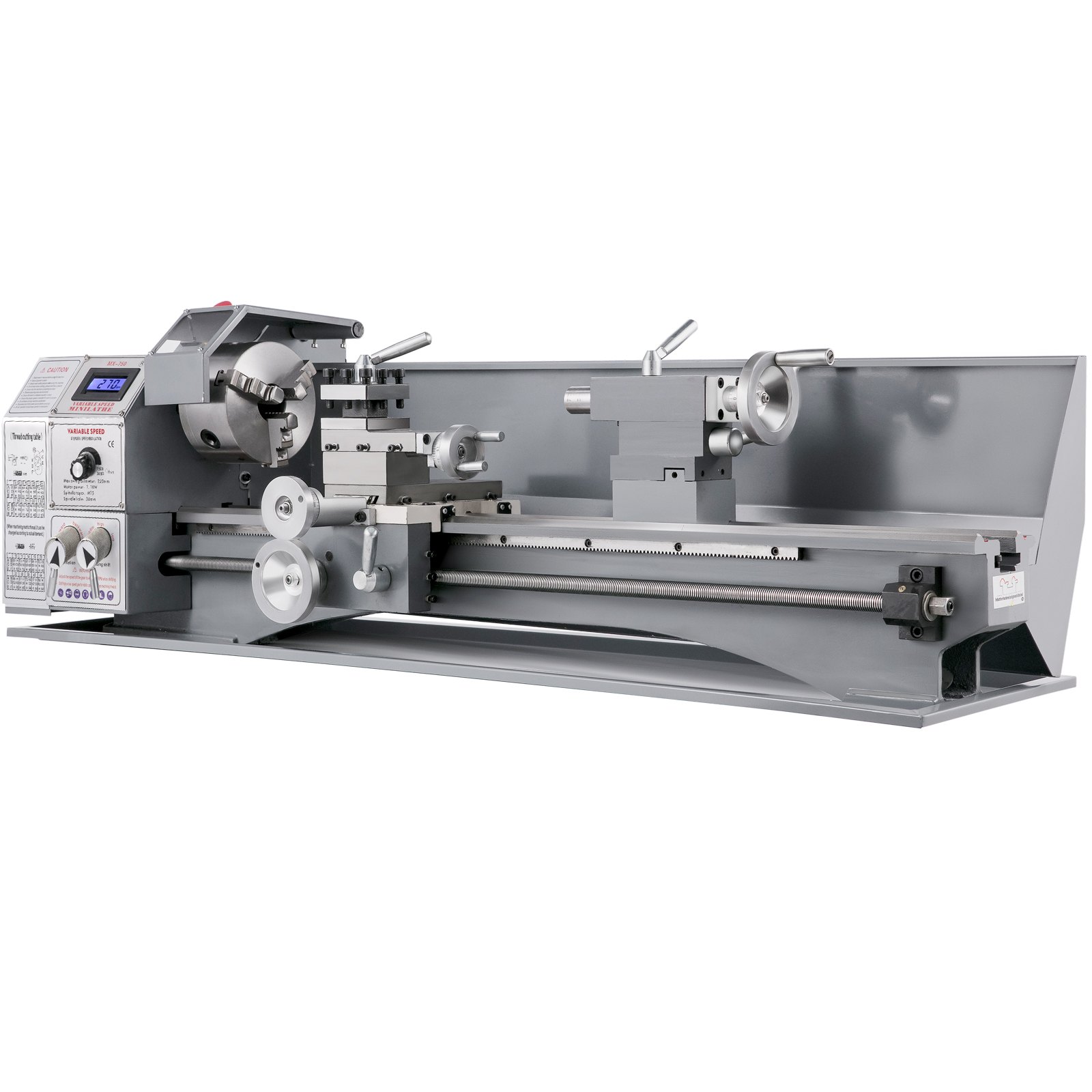

Durable Metal Lathe
The milling machine is made of rugged and wear-resistant cast iron, a tough material that features a long service life.
Metal Lathe Mini Lathe 8.7
variable Speeds
Brushless Motor Power: 1100W, Variable Speed(Rpm): 50-3000±10%. Taper in Spindle Nose: MT5. Easily change the speed by turning the switch. Meanwhile, the indicator beyond notifies you of the ongoing operations.
Metal Lathe Mini Lathe 8.7
Effortless to Use

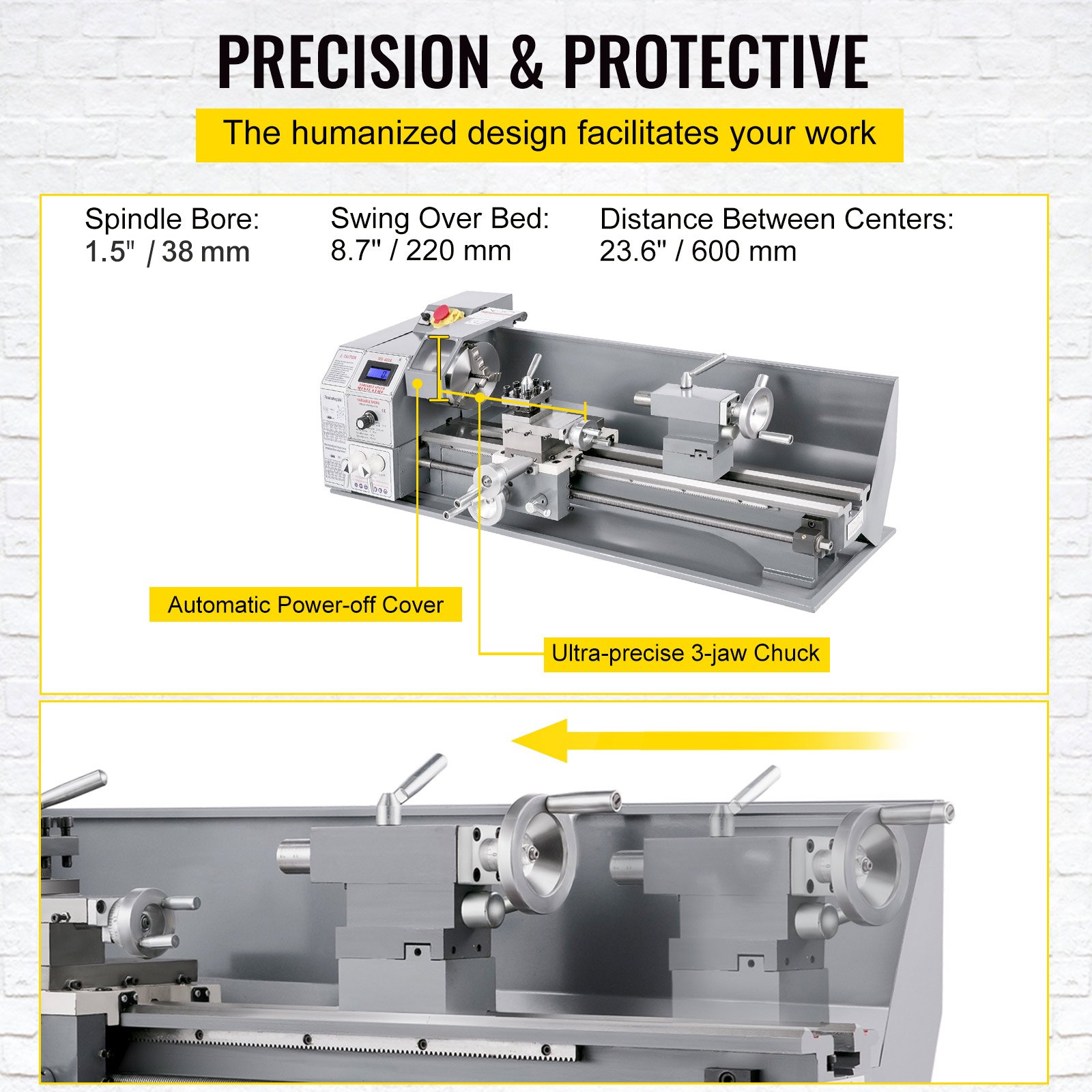

The mini lathe bears a 3-jaw chuck and a 1.5" / 38 mm spindle bore. It is widely used where precise machining is required. The 4-way turret post on the lathe is easy to adjust. And it is convenient to change the cutting tools.
Metal Lathe Mini Lathe 8.7
MT 2 Taper
The lathe machine is equipped with a foot stock which gives support to the longitudinal rotary axis of a workpiece that you are going to process. Make your work safer and more stable.
Metal Lathe Mini Lathe 8.7
Professional Cross Slide
Designed with abrasive resistance, moving blades freely with feed rod. 8-44 T.P.I reversible lead screw. The v-slideways with distance between center: 23.6" / 600 mm. A lamp is for accurate operation in a dark environment.
Metal Lathe Mini Lathe 8.7
Wide Application
Suitable for processing jobs, like counter face turning, drilling, threading and cutting jobs on materials made up of round bar. All accessories are well-packed.
Metal Lathe Mini Lathe 8.7
Specifications
  • Power: 1100W
  • Motor Type: Brushless
  • Volt: 110V 60HZ
  • Phase: Single Phase
  • Swing Over Bed: 8.7" / 220 mm
  • Distance Between Centers: 23.6" / 600 mm
  • 3-Jaw Chuck Diameter: 4.9" / 125 mm
  • Hole Through Spindle: 1.5" / 38 mm
  • Variable Speed(Rpm): 50-3000±10%
  • Taper of Spindle: MT#5
  • Taper of Tailstock: MT#2
  • Spindle Accuracy: 0.01 mm
  • Range of Imperial Threads: 8-44 T.P.I
  • Range of Longitudinal Feed: 0.02" - 0.1" / 0.5 - 3 mm
  • Gear Material: Metal
  • Item Weight: 183 lbs / 83 kg

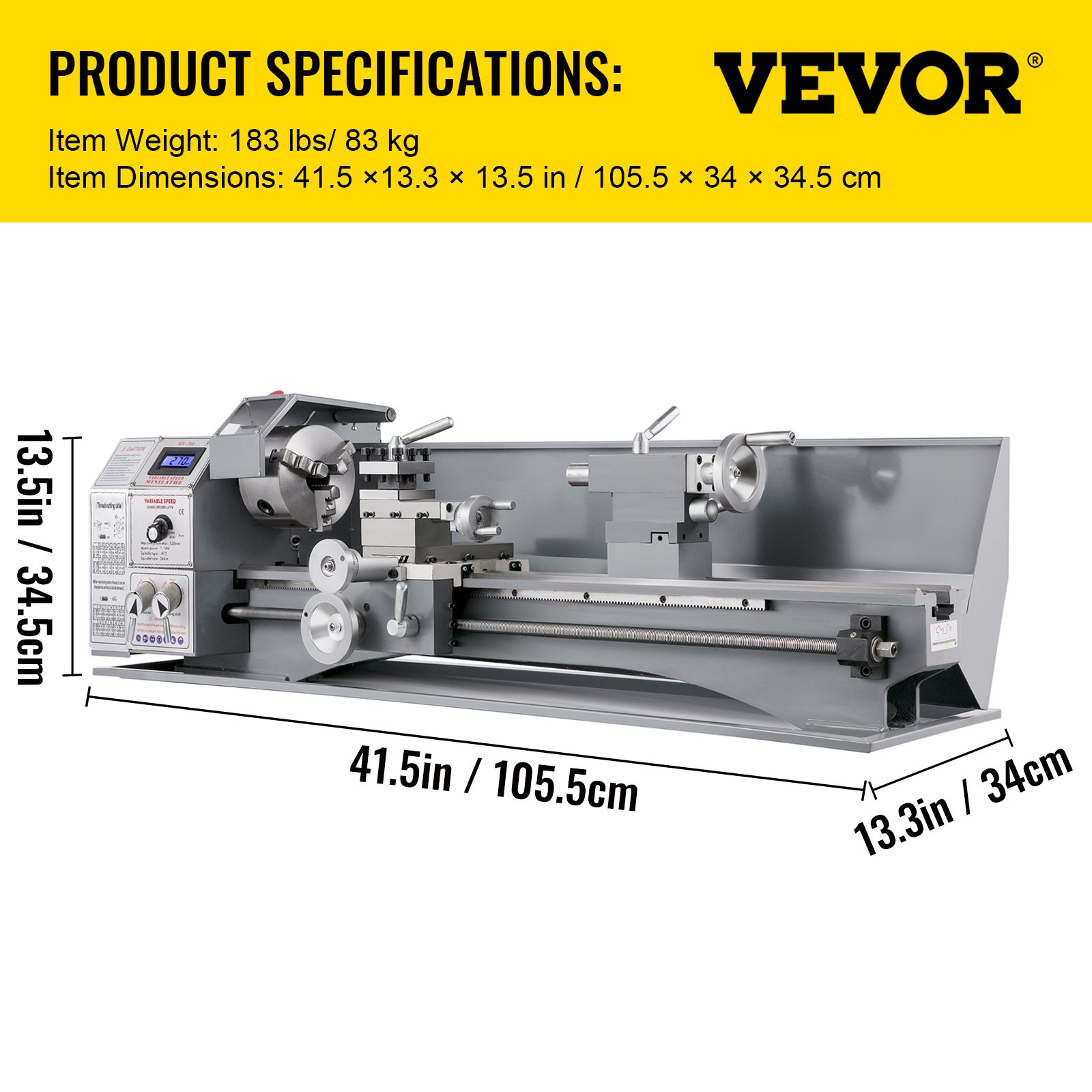

  • Item Dimension: 41.5 × 13.3 × 13.5 in / 105.5 × 34 × 34.5 cm
Metal Lathe Mini Lathe 8.7

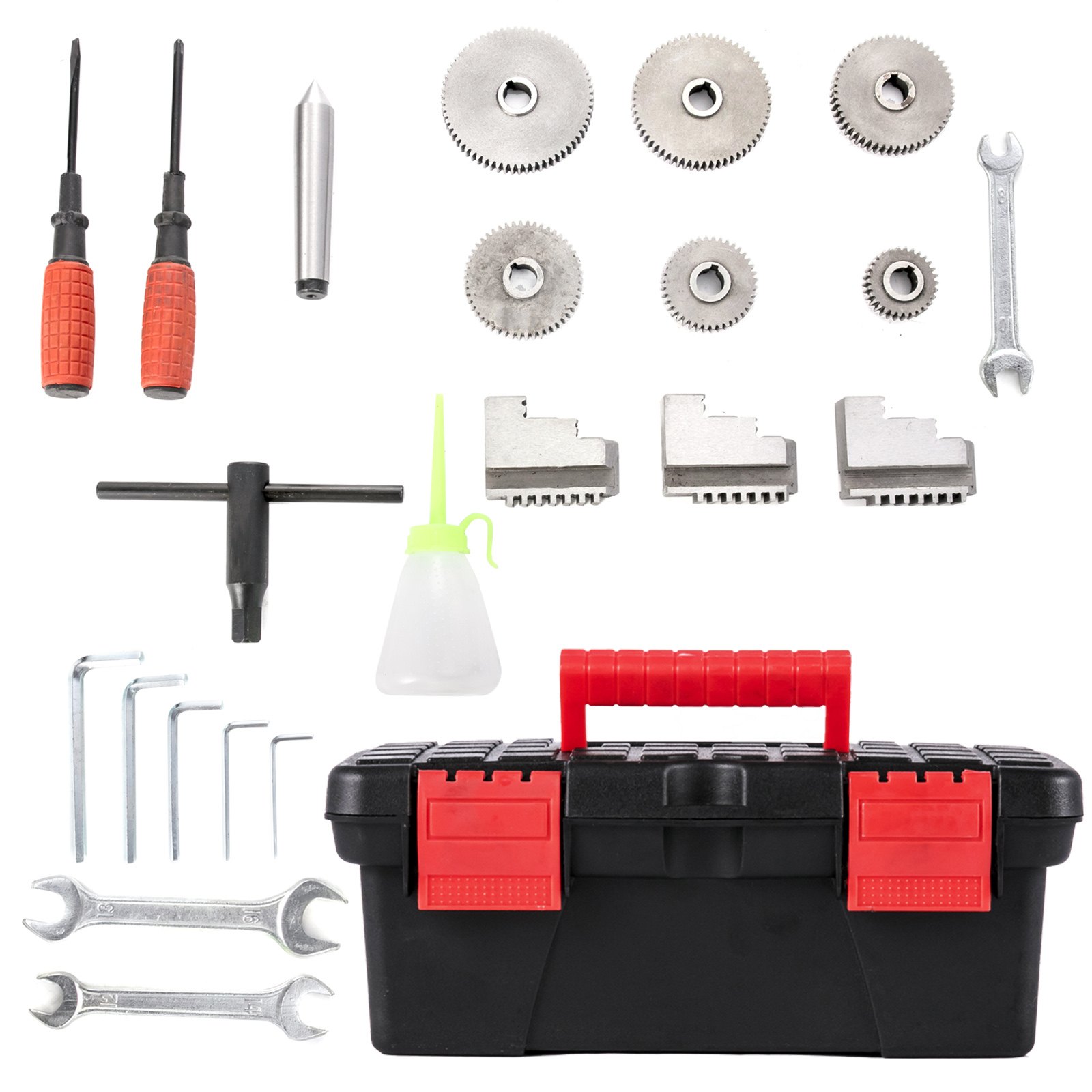

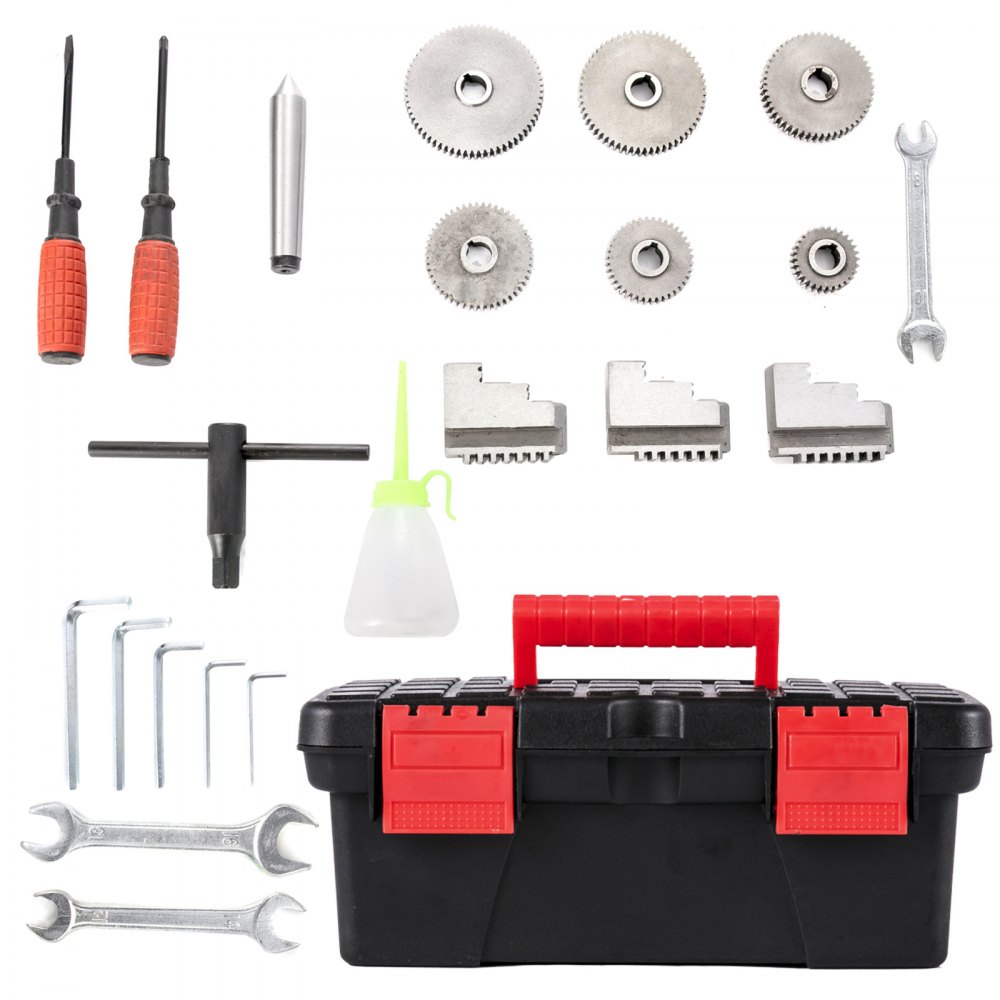

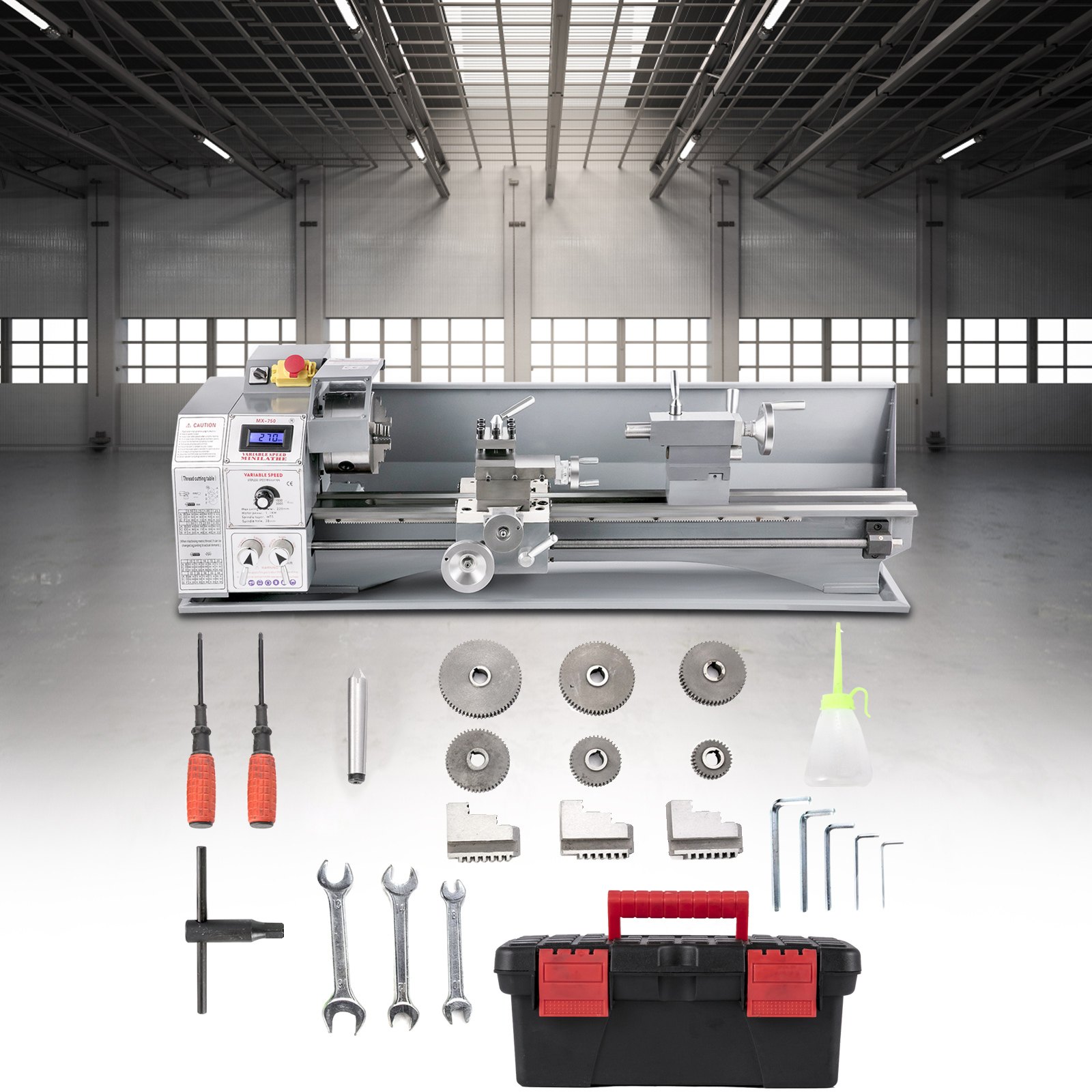

Package Content
  • 1 x Metal Lathe
  • 1 x Center Rest
  • 1 x Tool Rest
  • 5 x Hex Wrench
  • 1 x Dead Center MT2
  • 1 x Oil Gun
  • 3 x Jaw
  • 5 x Gear
  • 1 x Instruction Manual
  • 2 x Screwdriver
  • 1 x Accessory Kit
  • 1 x Chuck Wrench
  • 3 x Wrench
  • 3 x Chuck Jaw
Metal Lathe Mini Lathe 8.7
Metal Lathe Mini Lathe 8.7

Metal Lathe Mini Lathe 8.7
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Metal Lathe Mini Lathe 8.7
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Metal Lathe Mini Lathe 8.7
8.7" x 23.6" Metal Lathe Mini Lathe
The 220 x 600 mm precision metal mini lathe features 1.1KW motor, a 3-jaw chuck, a MT5 spindle taper, a MT2 tailstock taper, designed to perform various types of metal turning, simple to operate. Through high-frequency quenching process and precision grinding of high-quality cast iron bed. 500-3000±10% Rpm spindle speed is continuously adjustable. Steady rest and follow rest for large size or/and heavy workpieces.
  • Variable Speed Design
  • 600 mm Large Swing Range
  • Professional Compound Rest
  • Supportive & Protective
  • Accurate Tailstock
Metal Lathe Mini Lathe 8.7
Durable Metal Lathe
The milling machine is made of rugged and wear-resistant cast iron, a tough material that features a long service life.
Metal Lathe Mini Lathe 8.7
variable Speeds
Brushless Motor Power: 1100W, Variable Speed(Rpm): 50-3000±10%. Taper in Spindle Nose: MT5. Easily change the speed by turning the switch. Meanwhile, the indicator beyond notifies you of the ongoing operations.
Metal Lathe Mini Lathe 8.7
Effortless to Use
The mini lathe bears a 3-jaw chuck and a 1.5" / 38 mm spindle bore. It is widely used where precise machining is required. The 4-way turret post on the lathe is easy to adjust. And it is convenient to change the cutting tools.
Metal Lathe Mini Lathe 8.7
MT 2 Taper
The lathe machine is equipped with a foot stock which gives support to the longitudinal rotary axis of a workpiece that you are going to process. Make your work safer and more stable.
Metal Lathe Mini Lathe 8.7
Professional Cross Slide
Designed with abrasive resistance, moving blades freely with feed rod. 8-44 T.P.I reversible lead screw. The v-slideways with distance between center: 23.6" / 600 mm. A lamp is for accurate operation in a dark environment.
Metal Lathe Mini Lathe 8.7
Wide Application
Suitable for processing jobs, like counter face turning, drilling, threading and cutting jobs on materials made up of round bar. All accessories are well-packed.
Metal Lathe Mini Lathe 8.7
Package Content
  • 1 x Metal Lathe
  • 1 x Center Rest
  • 1 x Tool Rest
  • 5 x Hex Wrench
  • 1 x Dead Center MT2
  • 1 x Oil Gun
  • 3 x Jaw
  • 5 x Gear
  • 1 x Instruction Manual
  • 2 x Screwdriver
  • 1 x Accessory Kit
  • 1 x Chuck Wrench
  • 3 x Wrench
  • 3 x Chuck Jaw
Metal Lathe Mini Lathe 8.7
Specifications
  • Power: 1100W
  • Motor Type: Brushless
  • Volt: 110V 60HZ
  • Phase: Single Phase
  • Swing Over Bed: 8.7" / 220 mm
  • Distance Between Centers: 23.6" / 600 mm
  • 3-Jaw Chuck Diameter: 4.9" / 125 mm
  • Hole Through Spindle: 1.5" / 38 mm
  • Variable Speed(Rpm): 50-3000±10%
  • Taper of Spindle: MT#5
  • Taper of Tailstock: MT#2
  • Spindle Accuracy: 0.01 mm
  • Range of Imperial Threads: 8-44 T.P.I
  • Range of Longitudinal Feed: 0.02" - 0.1" / 0.5 - 3 mm
  • Gear Material: Metal
  • Item Weight: 183 lbs / 83 kg
  • Item Dimension: 41.5 × 13.3 × 13.5 in / 105.5 × 34 × 34.5 cm

Specification

Power
1100W
Motor Type
Brushless
Volt
110V 60HZ
Phase
Single Phase
Swing Over Bed
8.7" / 220 mm
Distance Between Centers
23.6" / 600 mm
3-Jaw Chuck Diameter
4.9" / 125 mm
Hole Through Spindle
1.5" / 38 mm
Variable Speed(Rpm)
50-3000±10%
Taper of Spindle
MT#5
Taper of Tailstock
MT#2
Spindle Accuracy
0.01 mm
Range of Imperial Threads
8-44 T.P.I
Range of Longitudinal Feed
0.02" - 0.1" / 0.5 - 3 mm
Gear Material
Metal
Item Weight
183 lbs / 83 kg
Item Dimension
41.5 × 13.3 × 13.5 in / 105.5 × 34 × 34.5 cm
Questions and Answers
2 Questions
Hi I have question regarding import fee's, im living in the EU. Do you ship within EU or from the outside? Best Regards Magnus
We ship for you from within the EU and you don't have to pay customs duties.
By vevor
Metal Lathe Mini Lathe 8.7 "X 23.6" 1.1kw Do you have this lathe with 220 volt motor?
It is 220V.
By vevor

Customer Reviews

  • 4.7
  • 4.5
  • 4.6
  • 4.7
11 Reviews
Nick Nick
23.6 inch 1100W
Mini lathe machine
I use it few days, is good machine for the money and the accessories is in the package as they says.
0
Bipp Weiler Bipp Weiler
29.5 inch 750W
Out of other mini lathes, this one has solid quality.
I got this and have been cleaning the grease off. For one that really helps you learn your machine.Things I have noticed on this mini lathe versus others on the market and their common issues:1) Spindle bearings are decent from the factory. I hear they die quickly, so I'll have to report back in a few months of use to see how they are. However, the chuck and spindle itself have a runout of +/- 0.0005". That's pretty good all things considered!2) Shipping for this specific product was great! It was bolted down to 2 blocks and had a box built around it with foam padding on either end, wrapped in a bag. Plenty of grease which may leave your ways stained a bit, but its only aesthetic and not dimensional.3) The ways are great! I've only gotten readings of <= +/- 0.0005" maximum at any point using a dial test indicator off the carriage.4) Simple construction. It is easy to disassemble and clean. The back gears and inside the electrical housing area is not covered with grease which saves cleaning in a tight space. All of the components past the headstock are greased/waxed pretty heavily, though.5) Lead screw is firmly mounted and the apron has an adjustable gib strip to move the half nut up and down if you need to modify it. This is great because it will save you from modding the apron or shimming it to avoid lead screw flex. Mine has no flex when engaging properly.6) Tailstock lock has a lever and is very easy to use. Adjustable pre-load for how sensitive you want the lock lever travel to be.7) Graduation dials can be set like a normal lathe.8) Higher RPM than other mini lathes9) All metal change gears, although there are fewer of them. There is a set for $100 more here on Amazon as well for more sizes of gears that I will probably be buying.10) Can run without the gear cover! This is great if you have any modifications that disallow it closing. I plan on eventually 3D printing a gearbox to test with this lathe and eventually machining one from metal on the lathe itsel
1
Georg Seher Georg Seher
29.5 inch 750W
Preis Leistung ist super
Perfekt f_ das kleine HobbyIch habe bei der Maschine einige kleine ?nderungen vornehmen m_sen.Bei den Zustellr?dern ist die Anzeige etwas lasch?Aber wenn Mann das Rad abnimmt und einen Gefetteten O-Ring einsetzt funkt das perfekt und vor dem wieder befestigen unbedingt eine geh?rtete Anlaufscheibe bzw. wenigstens eine Kupferscheibe beilegen.Aber Preis Leistung ist super ??
0
andrea andrea
29.5 inch 750W
Obbistico
Non malvagio, uso obbistico senza grosse pretese
0
Guillermo Guillermo
29.5 inch 750W
Buena relaci_ calidad precio
Buena relaci_ calidad precio , tuve un problema con una correa , me puse en contacto con el vendedor y me solucion el problema con rapidez , muy profesional.El unico problema que tiene es que tienes que repasar todos los tornillos porque algunos vienen flojos o directamente sueltos
1
