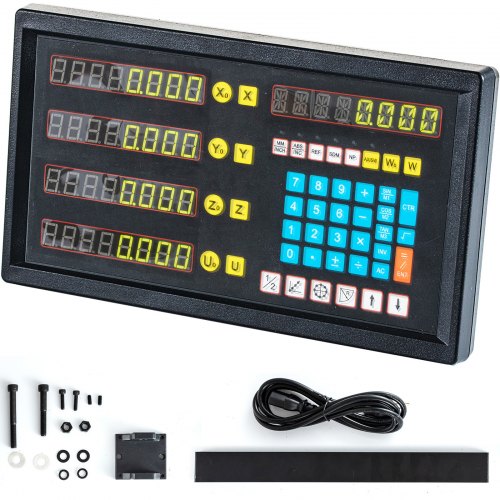

Customer Reviews for 5 Axis Digital Readout Mill, Linear Encoder, Led Screen, Dro For Milling Machine

Det er veldig bra teit og fint

I wood like having more selections for the lentght of scales.My lathe has an ominal 750 mm annd i installed a 1000 mm scale. I was able to accomodate it and the installation went perfect. Accuracy was cheched using Jo blocks to 200mm and was perfect at least to my ability to perform the measurment. Price is very good and i consider installing another set on my mill. ariscats

Már nem először vásárolom, most is mint eddig mindig, tökéletesen működik. Felszerelni egyszerű, 100%-osan pontos és stabil szerkezet.

I'm very pleased. This is easy to assemble and accurate in use. Vevor also has good customer service.

Set unit up was straight forward. Although did has to use some of the linear compensation. To get it bang on

I have bought digital scales plus a readout unit from Vevor and I'm quite happy with the kit so far. The scales (Chinese of course) are affordable, come well packaged and arrived undamaged. The readout unit likewise. Plugged the leads from the scales into the readout, switched the readout on, and everything worked first time. Plug and play. Have been busy trying to mount the scales onto a hobbyijst's drill/milling machine and that seems to work as well. A sensible set of screws, washers, and cable fasteners are included and I only had to drill and tap holes for the M4 scres to mount the scales. So far managed to install two out of three scales and they work. The aluminium tubing that encloses the glass scales has slots on that take the mounting screws. The slot that takes the reading head is covered by a rubber lips that are pushed open by the reading head and close behind it to prevent dirt from entering. It's possible to fine-adjust the position of the scales before you tighten the screws and fix the scales in place. The reading head comes with threaded holes for the mounting screws, so you want to fix the scales first and then mark, drill, and fix the reading head. I haven't been able to verify the accuracy of the scales yet (I'm going to check it with a dial indicator when everything is installed), but I'm confident that it will be ok. I believe that the readout allows for calibration of the scale but I haven't tested it yet. Recommended

Well packed, fast delivery, good comunication. I will try in future days, everything looks good. Top slide is maybe a litle bit weak.

Just what you need for accurate measuring

This seems like a quality product. It installed easily, and works well. I deduct a star for the complete lack of installation instructions (Apart from the label on the sliders, which say 'remove red gasket and use'- but do not say what they are to be used for!). I figured out how to mount the display on its bracket once I realized one of the bolts was the wrong size. Every installation will be different, but some guidance would help. The operating manual is fine, very close to English.At the very reasonable price, I am pleased with this product.

Great accuracy and easy too hook up to MCU. One star missing due to poor documentation and non existing R signal. I recommend using schmitt triggers in noisy environment.
