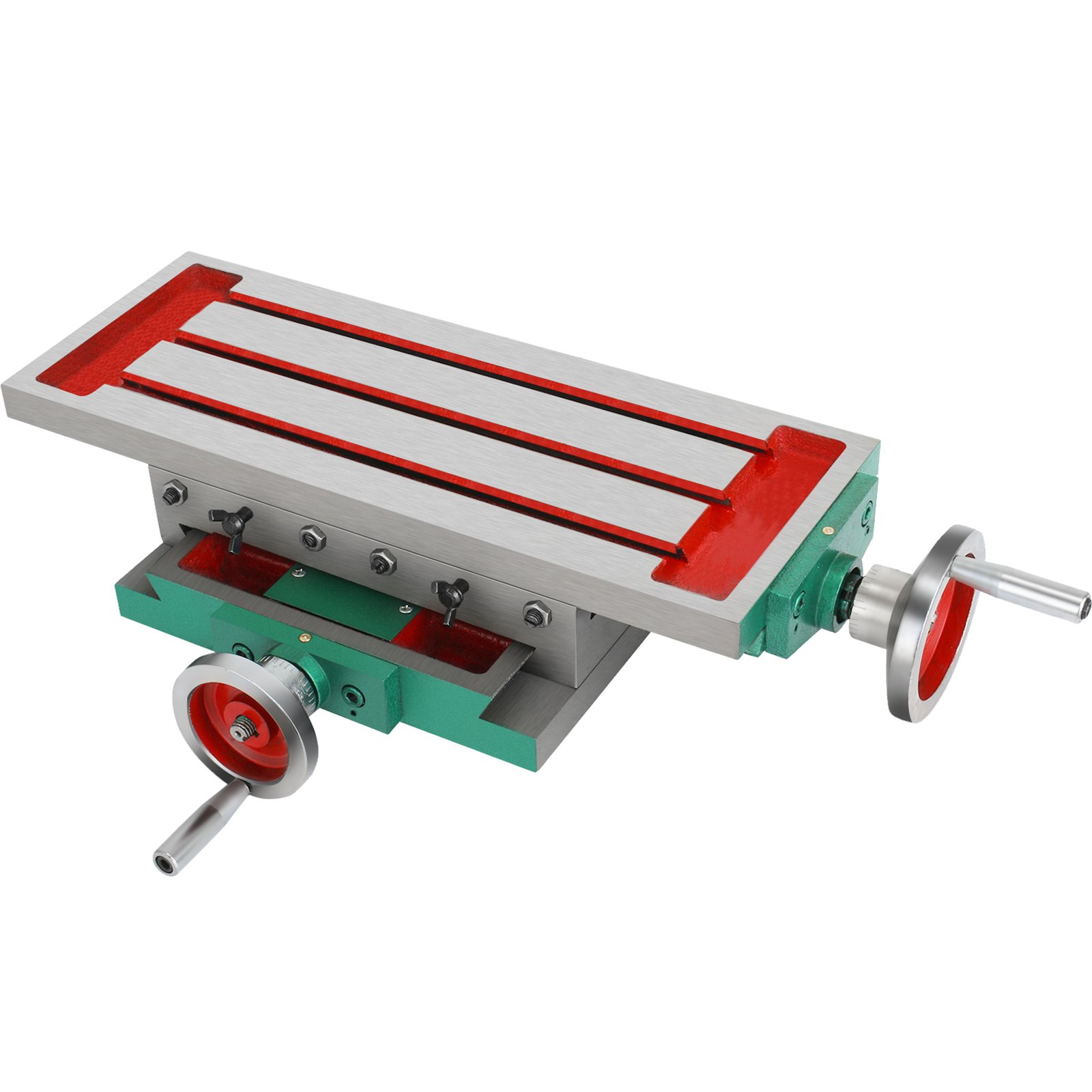

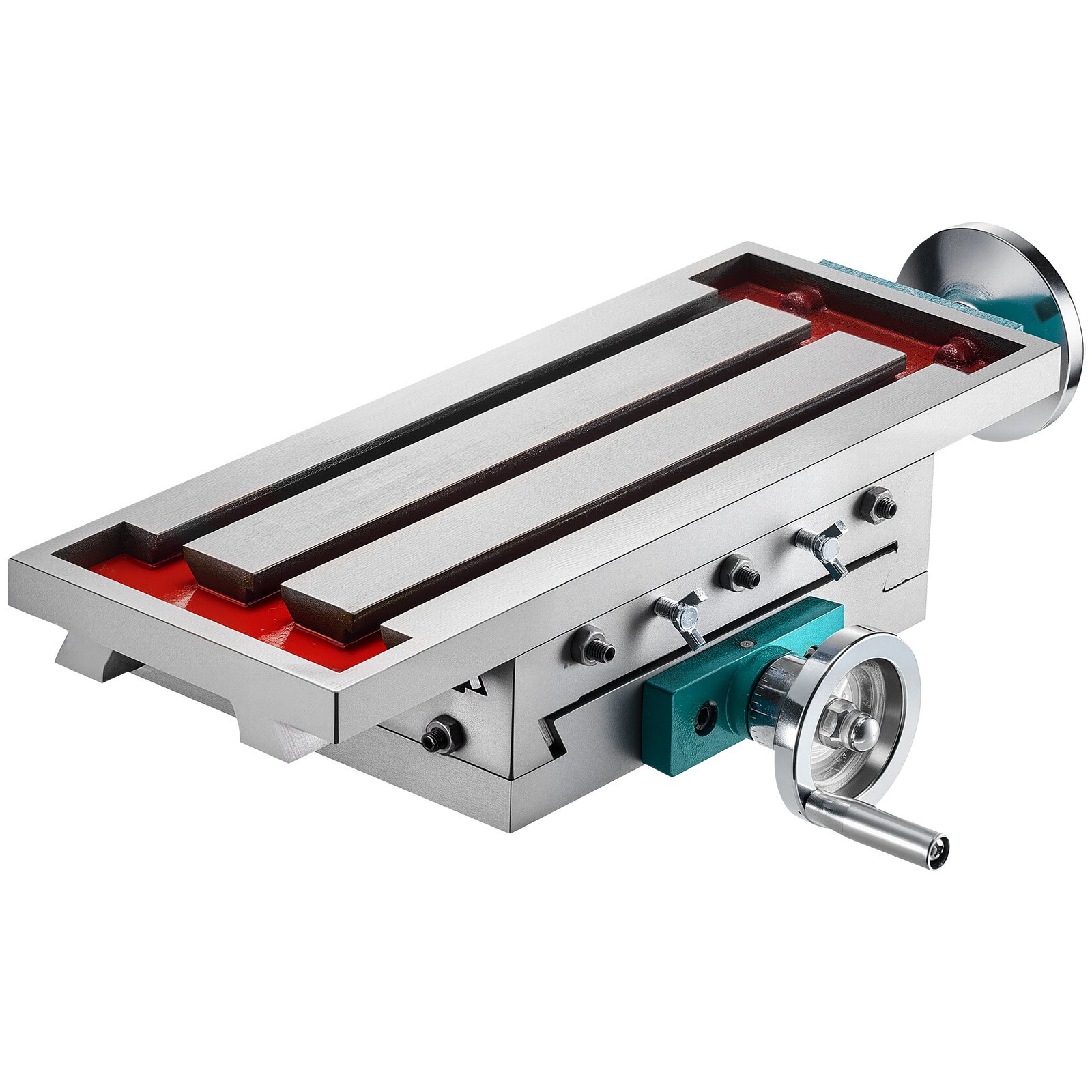

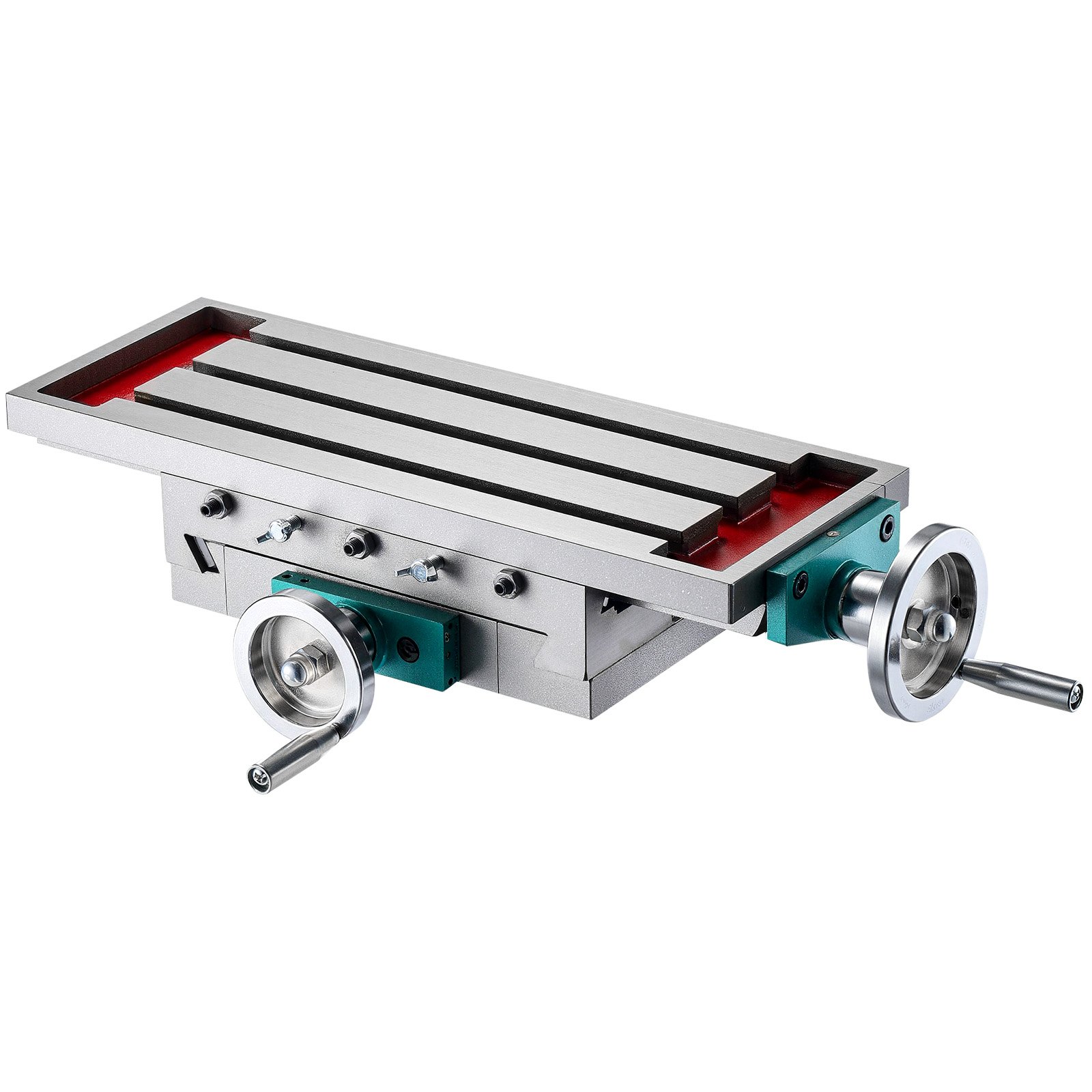

VEVOR milling machine table with precision adjustment knobs and parallel tracks VEVOR milling machine table with screw handles, suitable for bench drills and radial drills. VEVOR milling machine table with ergonomic hand circle and accurate scale. VEVOR milling machine table allows forward, backward, left, and right movement. VEVOR milling machine table with anti-rust surface, cast iron base, and roughening screw rod. VEVOR milling machine table with fixed lock, lock fastener, and oil injection hole. VEVOR milling machine table, 23 x 13 x 5 in, 66 lbs, dimensions labeled.
170GZTM0000000001V0

VEVOR Milling Table 17.7×6.7Inch Compound Slide Milling Table 30KG Multifunction Worktable Cross Milling Machine Compound 2 Axis 4 Ways for All Drill Stands Bench Drilling Milling Machine

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App.
Download Now
Exclusive 5,00€ off for your first three orders on the App.
Scan the QR code to download

450 x 170 mm

  • 450 x 170 mm
  • 185 x 100 mm

About this item

  • Multiple Application: This milling working cross table machine is great for mounting on drilling machines for precise positioning. It can be used for most types of milling and drilling, ideal for all drill stands, drilling, and milling machines. Table Size: 23 x 13 in / 58 x 33 cm
  • Premium Quality Structure: Built by heavy-duty cast iron material, which is anti-corrosion and rust resistance, angle milling table can withstand the tough environment and designed for long service time.
  • Highly Polishing & Stiffness: The compound slide table, with great hardness and stiffness, is high ground and not easy deformation. Three precise T-slots can meet different force requirements.
  • 2 Axis 4 Ways Move: Handles with trapezoidal thread spindles is easy to adjust the directions. X-axis travel: 8.3 in / 210 mm, Y-axis travel: 4.3 in / 110 mm. With a precise scale on it, you can adjust the optimal working position as you need.
  • Tightness Adjustment: Equipped with several quality bolts and nuts, you can easily adjust the tightness of this cross slide table. Convenient for your use.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Milling Table 17.7×6.7Inch Compound Slide Milling Table 30KG Multifunction Worktable Cross Milling Machine Compound 2 Axis 4 Ways for All Drill Stands Bench Drilling Milling Machine
450 x 170 mm
VEVOR milling machine table with adjustable x & y axis and regulate ruler.

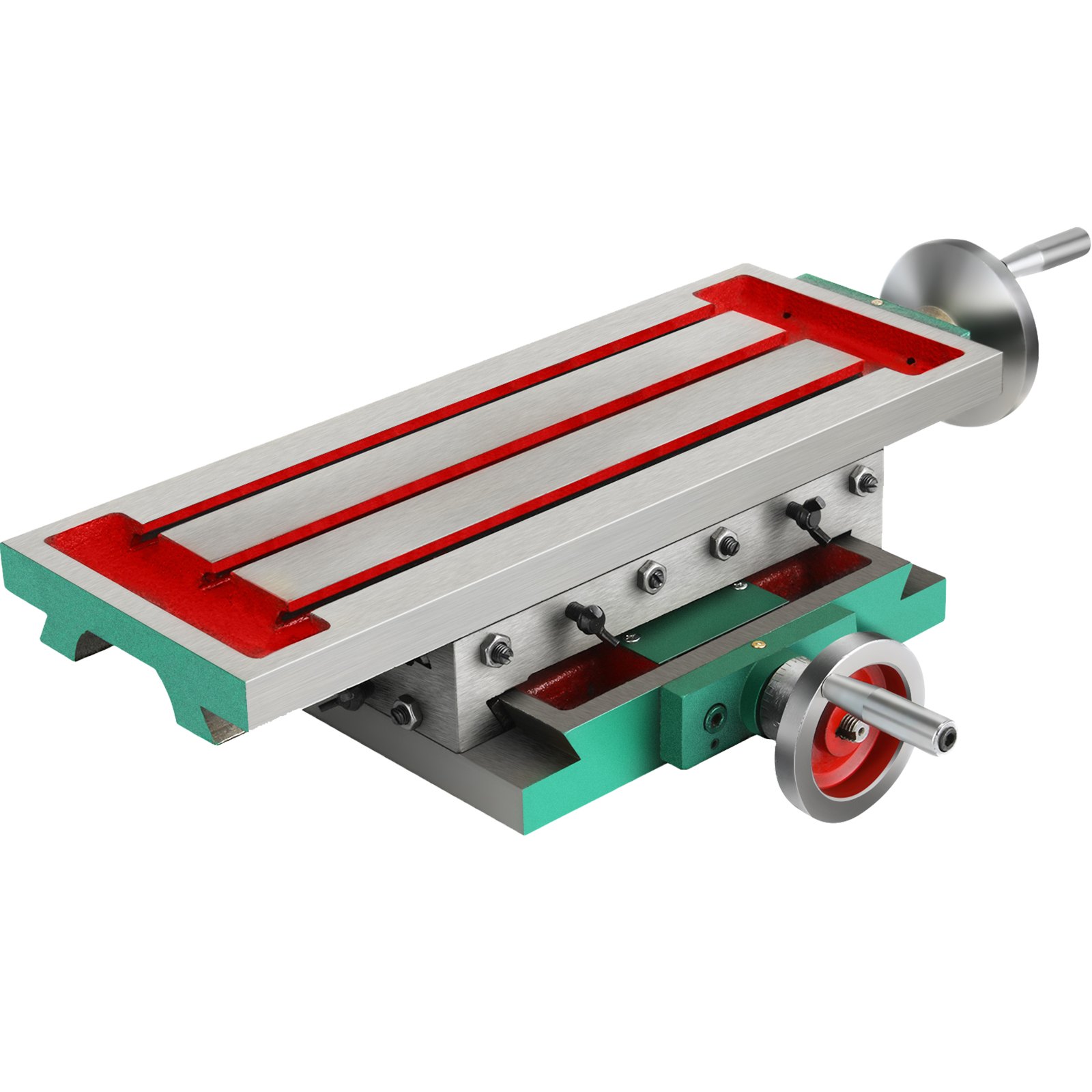

VEVOR milling machine table with green base and adjustment handles.
6.7 in / 170 mm Milling Machine Worktable
Large Worktable & Flexible Movement & High Precision
The two-axis workbench surface has three T-slots and provides dual-axis (lateral and cross) positioning via two handwheels for precise adjustments. Perfect for drilling grinding and milling operations
  • Premium Quality Structure
  • Highly Polishing & Stiffness
  • Adjustment in XY Direction
  • Tightness Adjustment
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

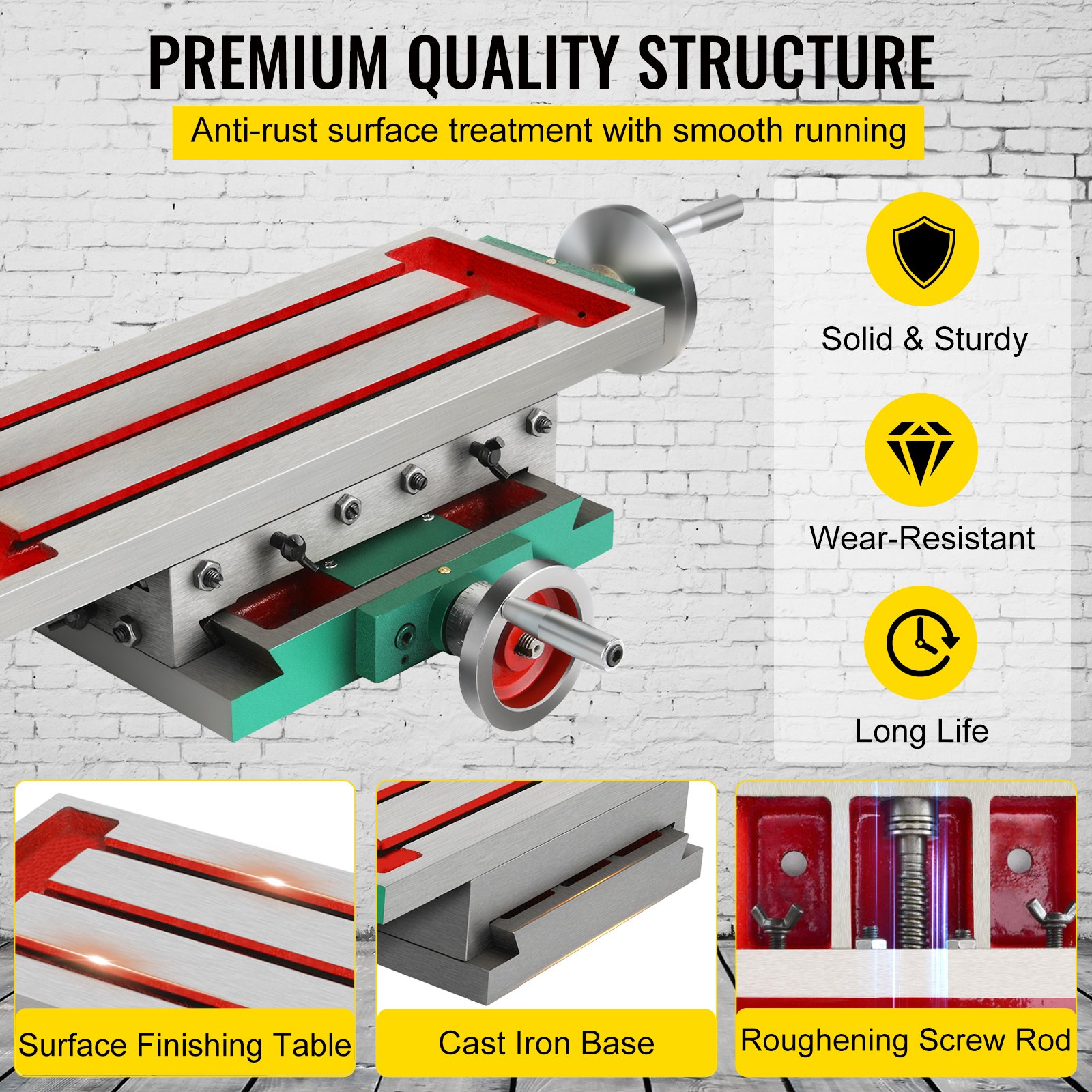

VEVOR milling machine table, heavy-duty cast iron, wear-resistant construction.
Heavy-duty Cast Iron
The cross table is made of quality cast iron, which is anti-corrosion and rust resistance, more durable and ensures long service time.

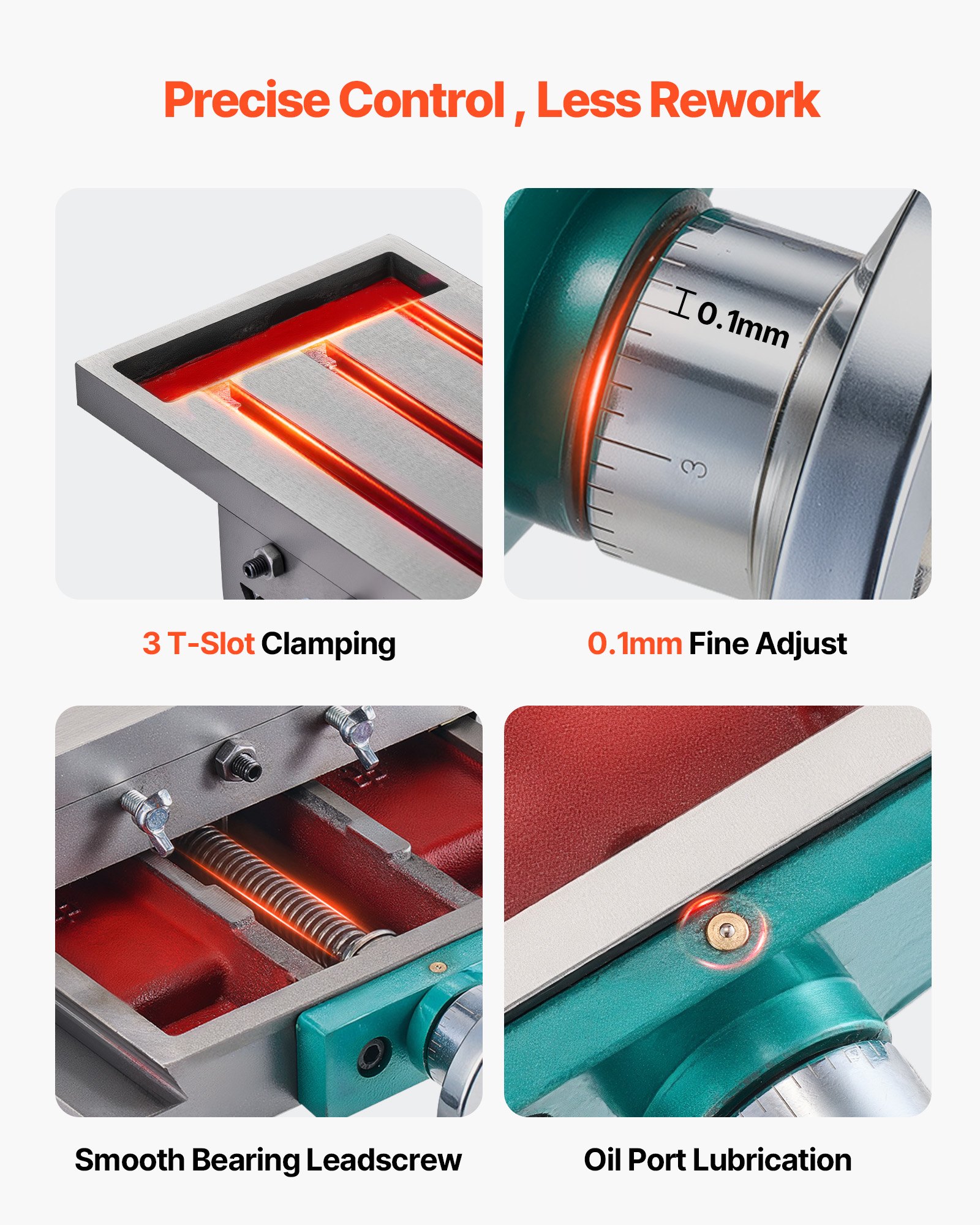

VEVOR milling machine table with t groove fixing design in metallic finish.
T Groove Fixing Design
The compound table, with great hardness and stiffness, is high ground and not easy deformation. Three T-slots design can meet different force requirements.

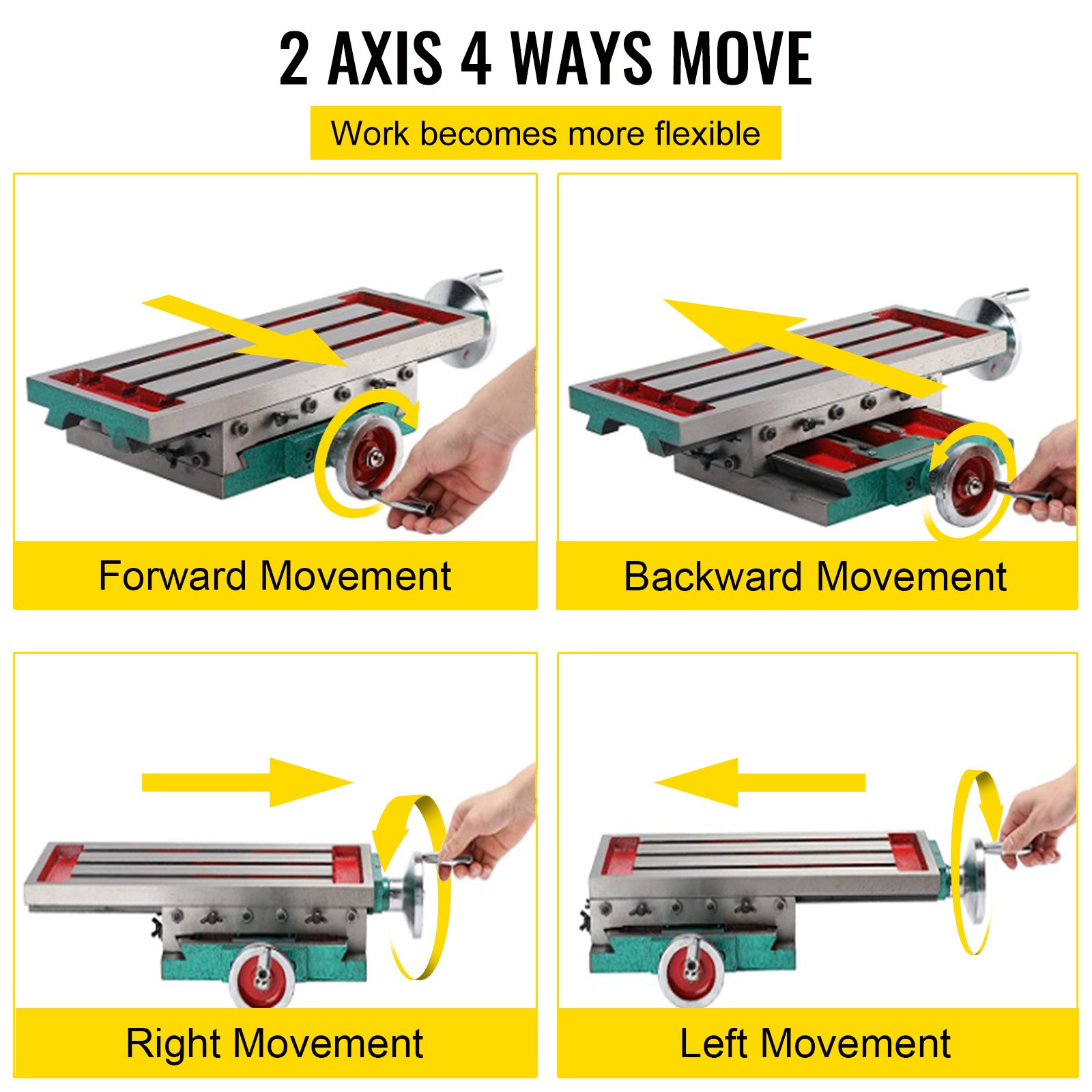

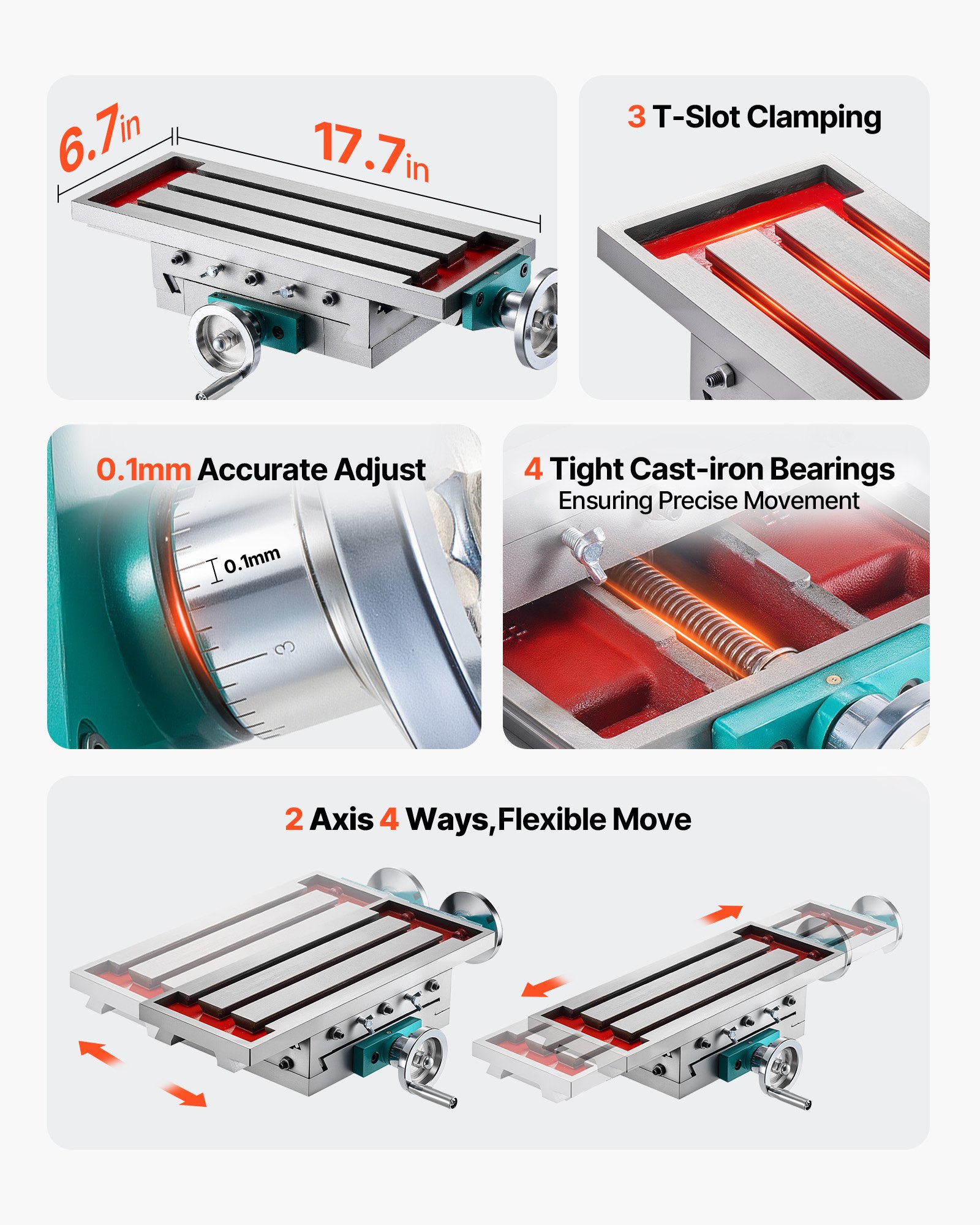

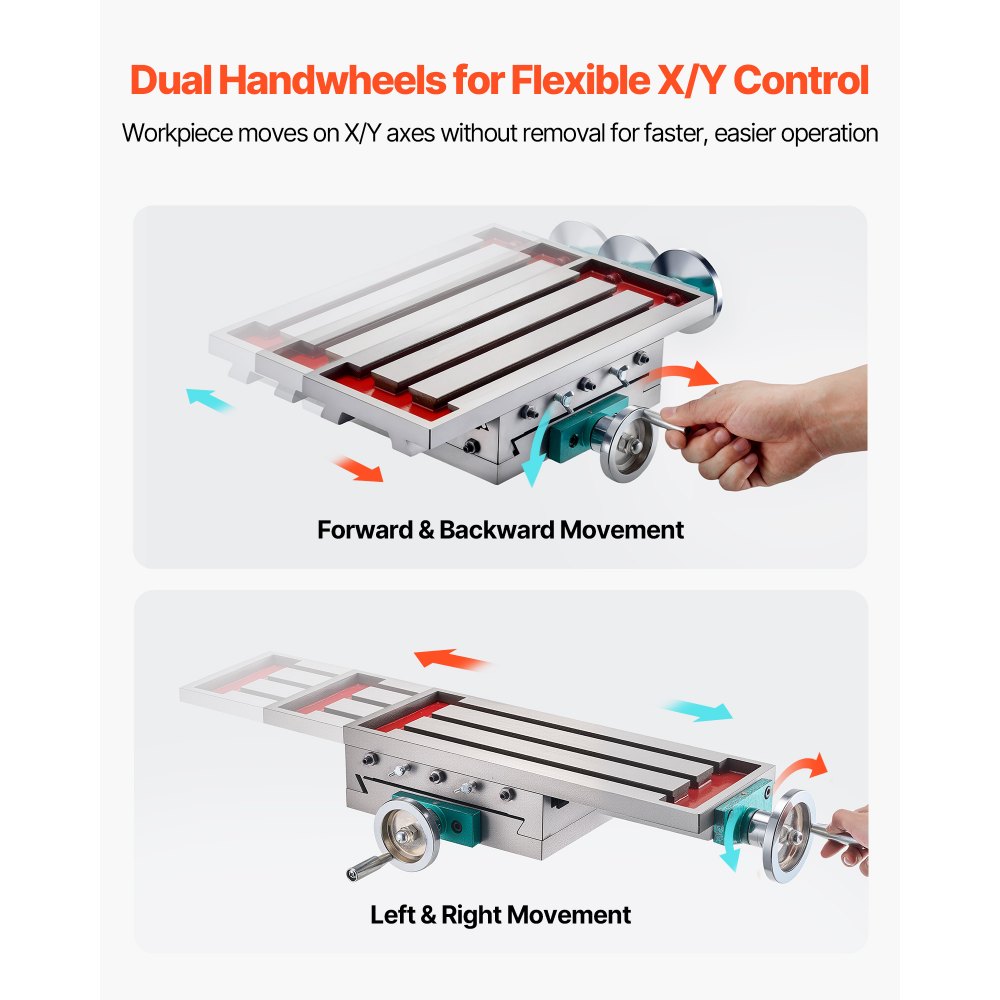

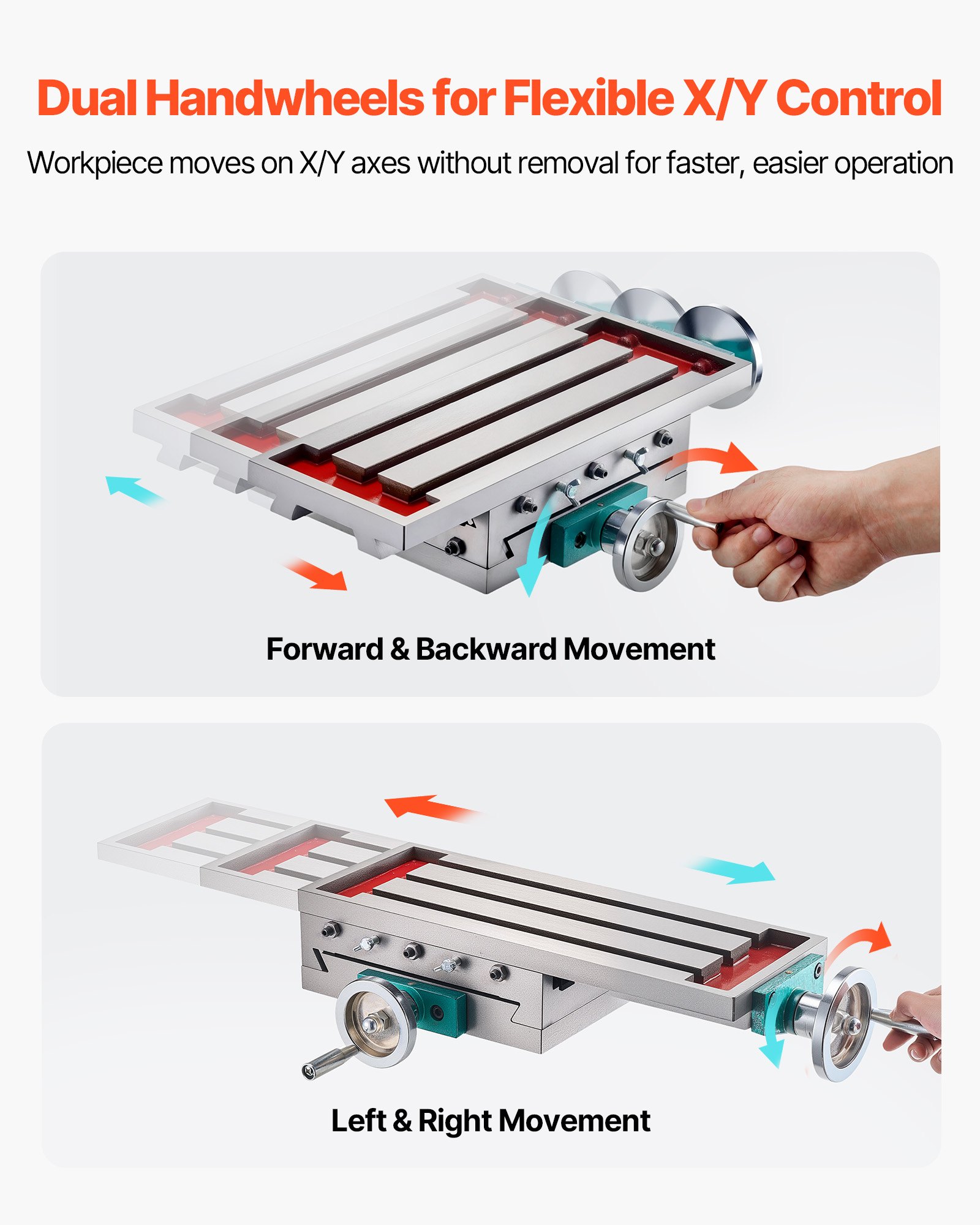

VEVOR milling machine table showcasing forward, backward, right, and left 2-axis movement.
2 Axis Movement
X-axis travel: 210 mm, Y-axis travel: 110 mm. You can adjust the optimal working position as you need.

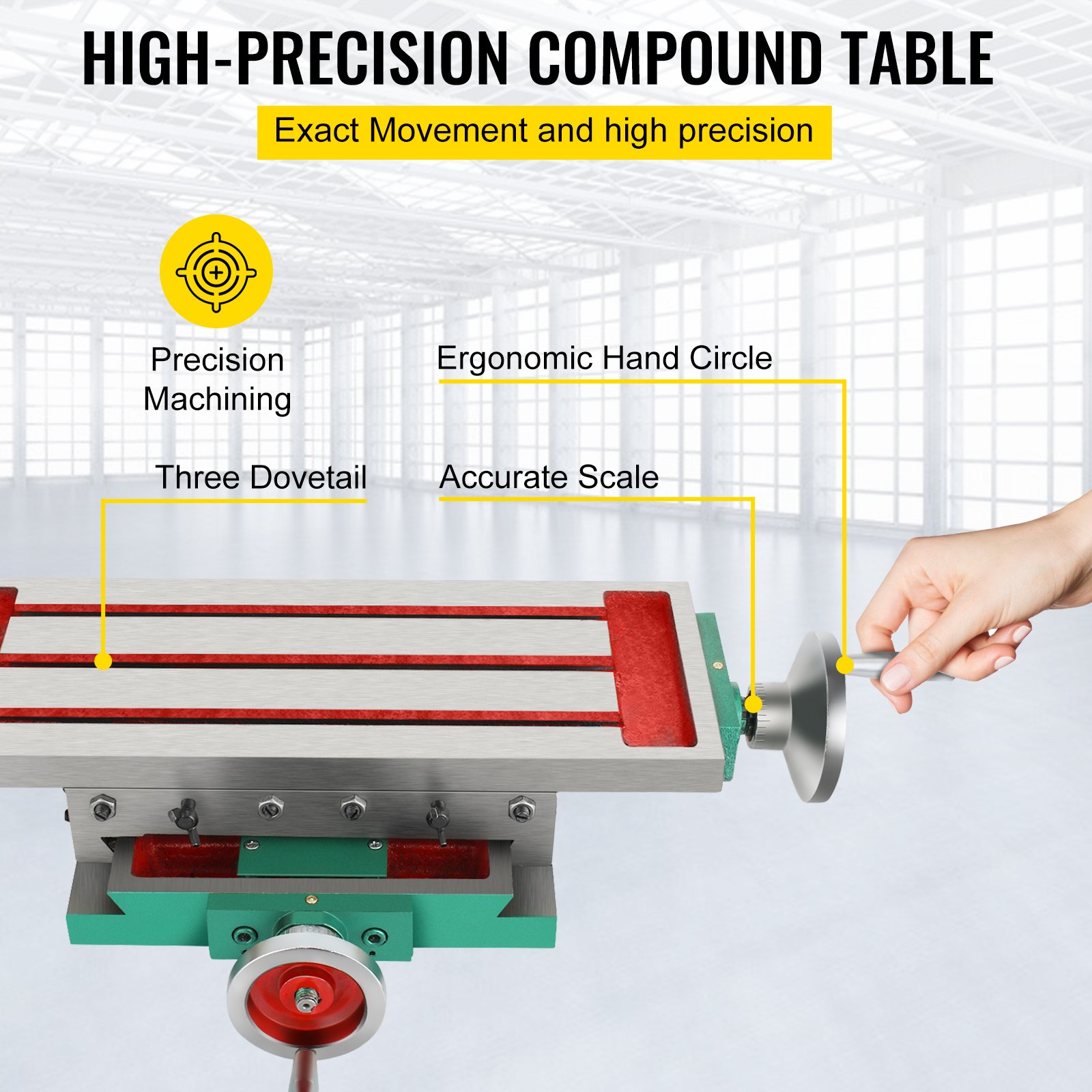

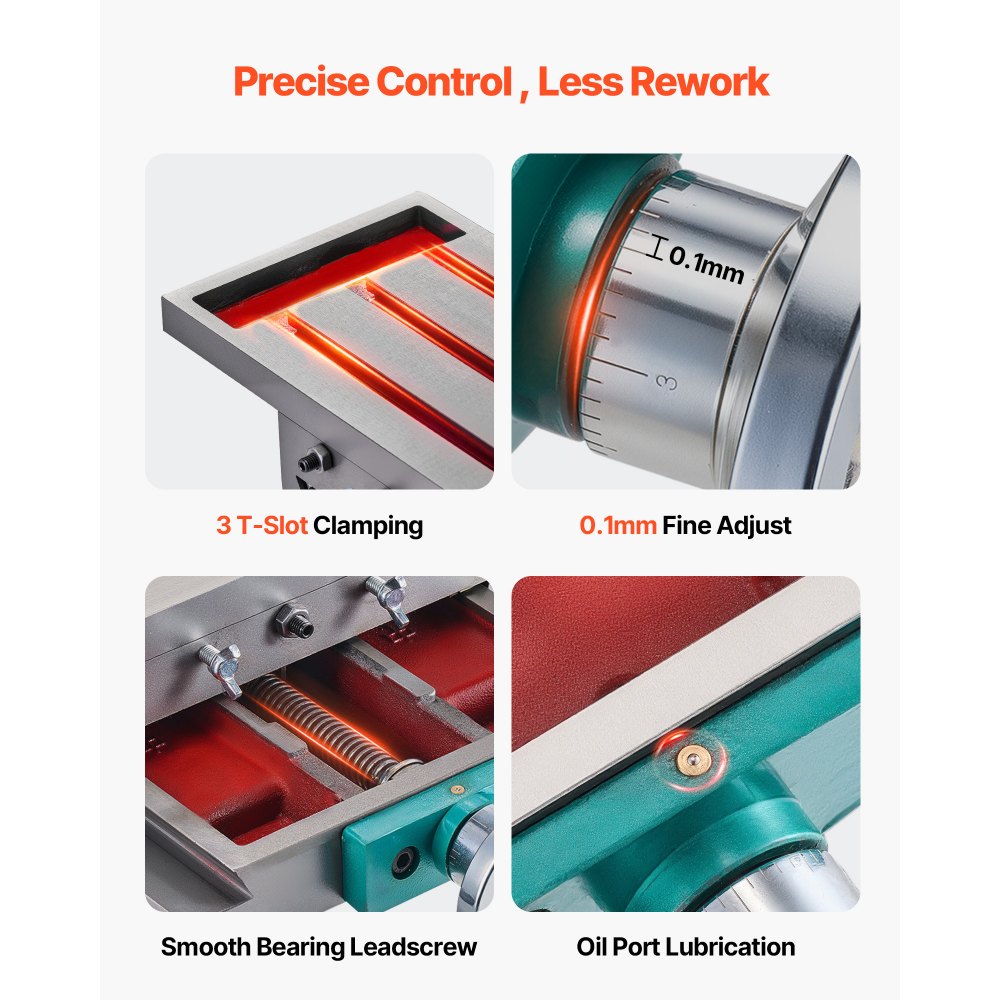

VEVOR milling machine table with adjustable dials, accurate scale, and precision machining.
Adjustable Handle
A metal handle with good texture is easy to adjust the directions. With a clear scale on it, it will be more accurate when in use.

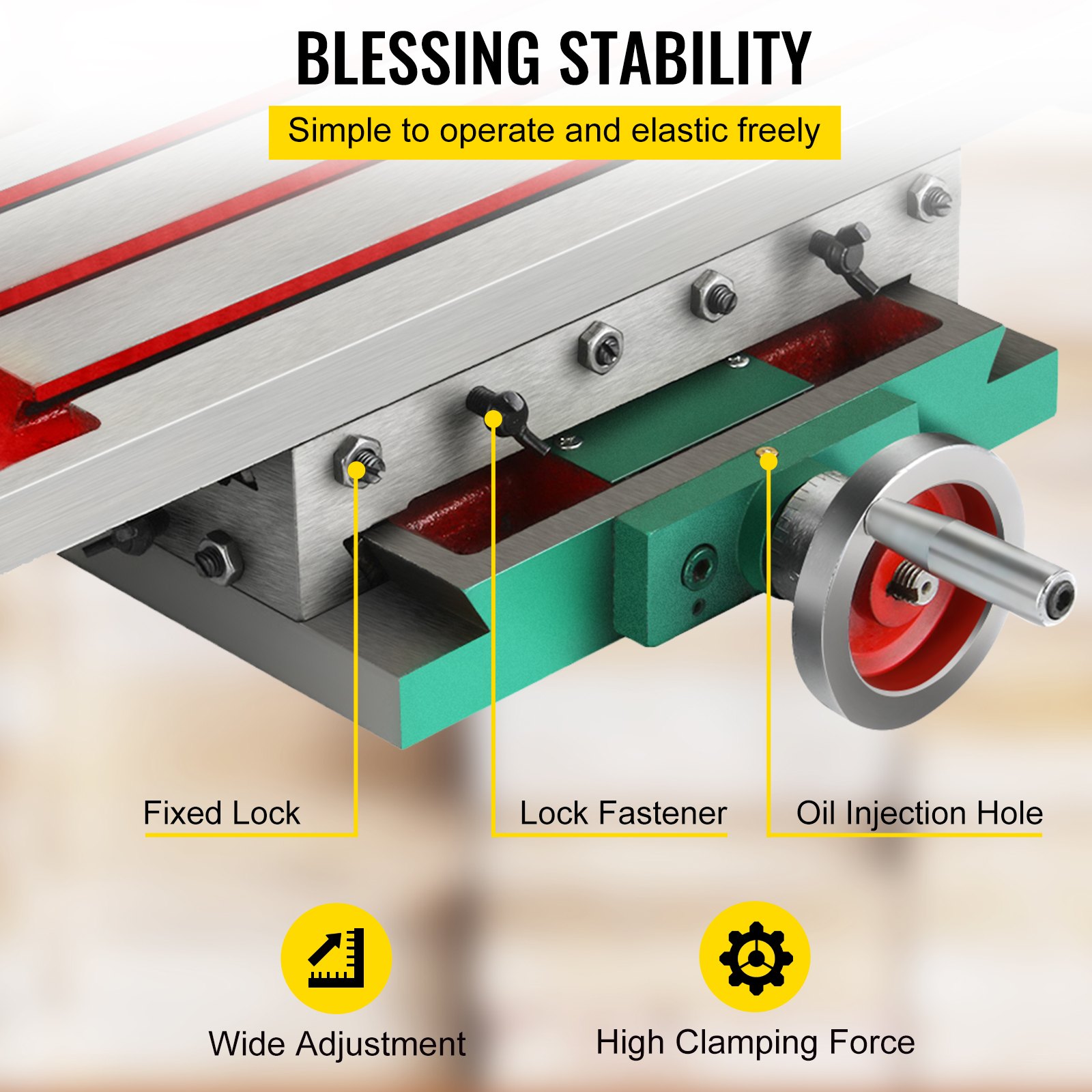

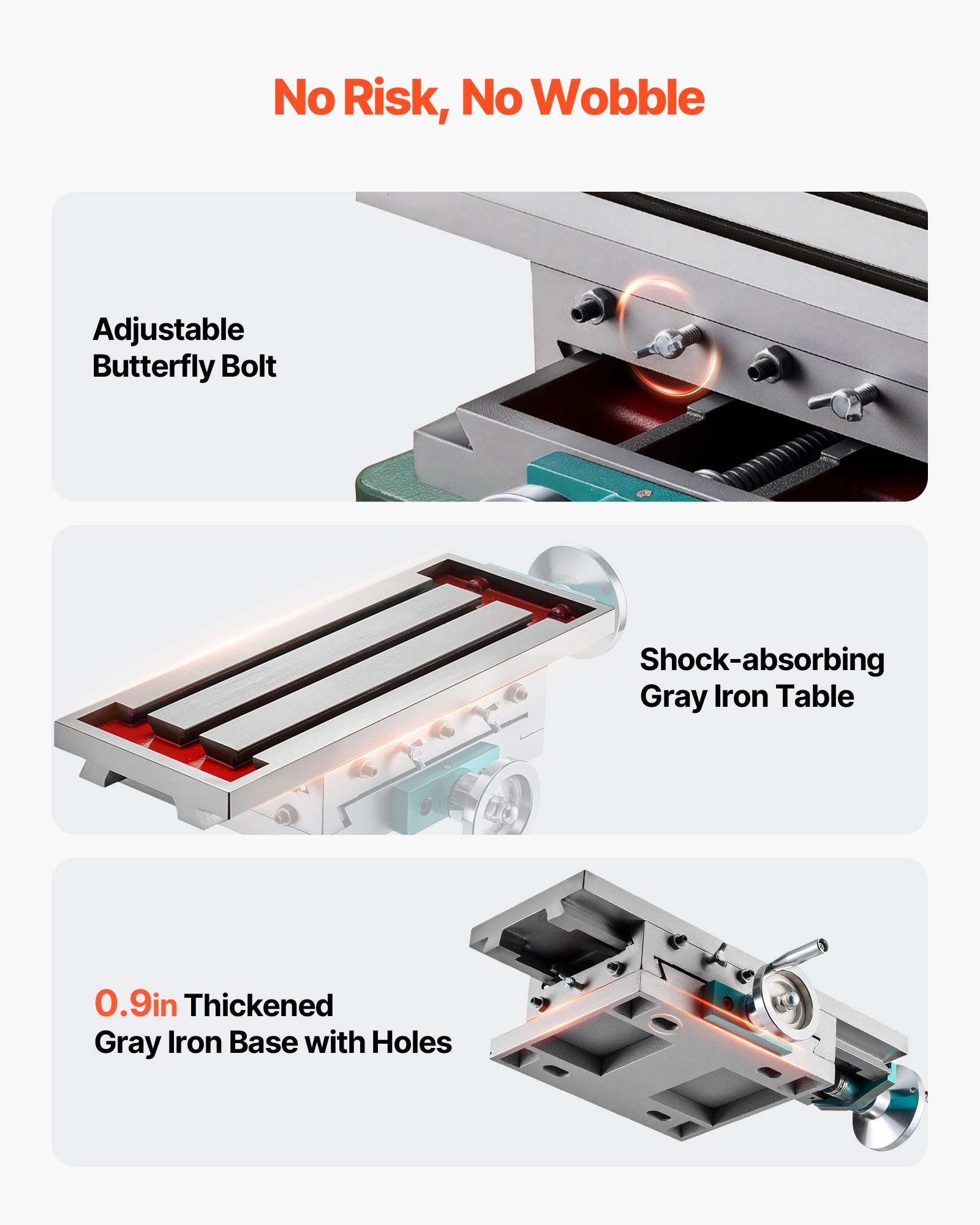

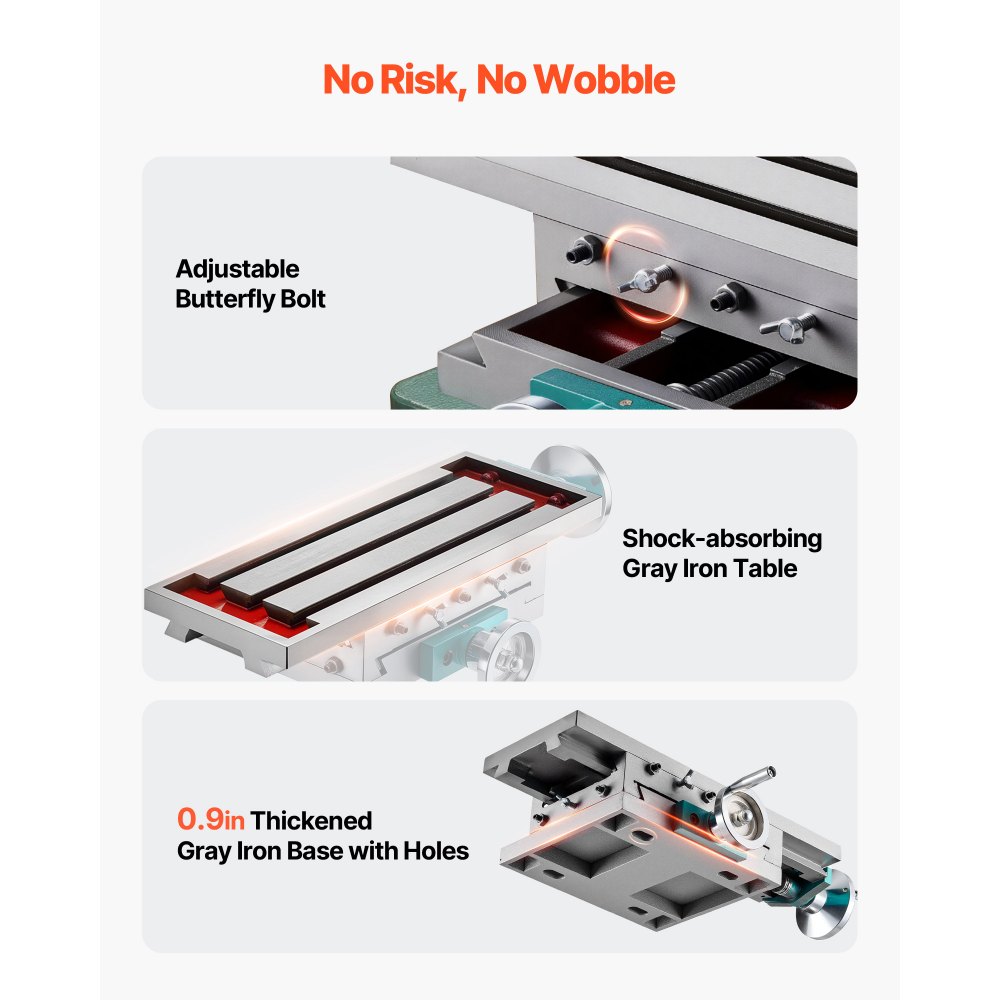

VEVOR milling machine table with quality bolts, nuts, and roughening screw rod.
Quality Bolts & Nuts
The drill press table will be more convenient to adjust the tightness of the worktable with a number of bolts and nuts.

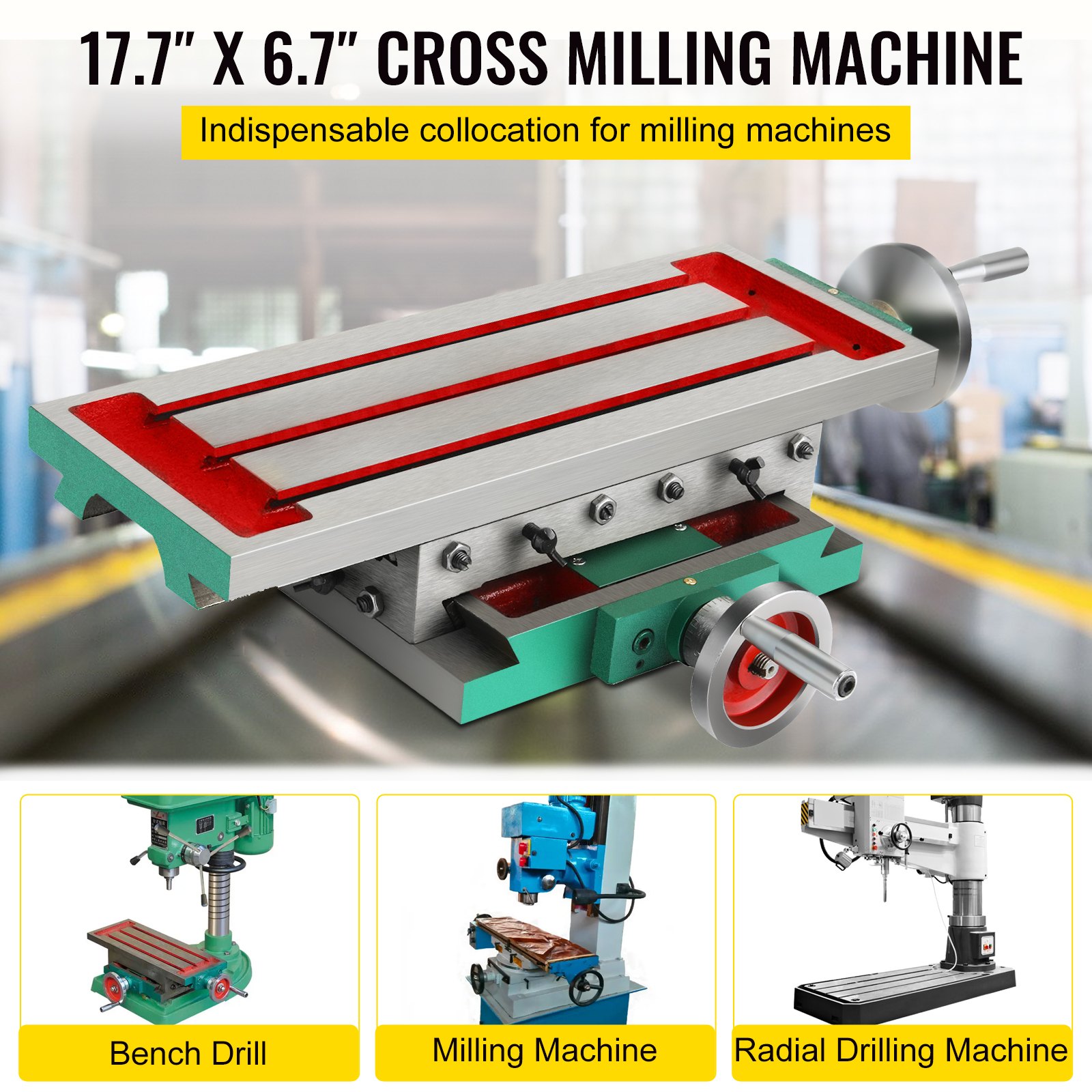

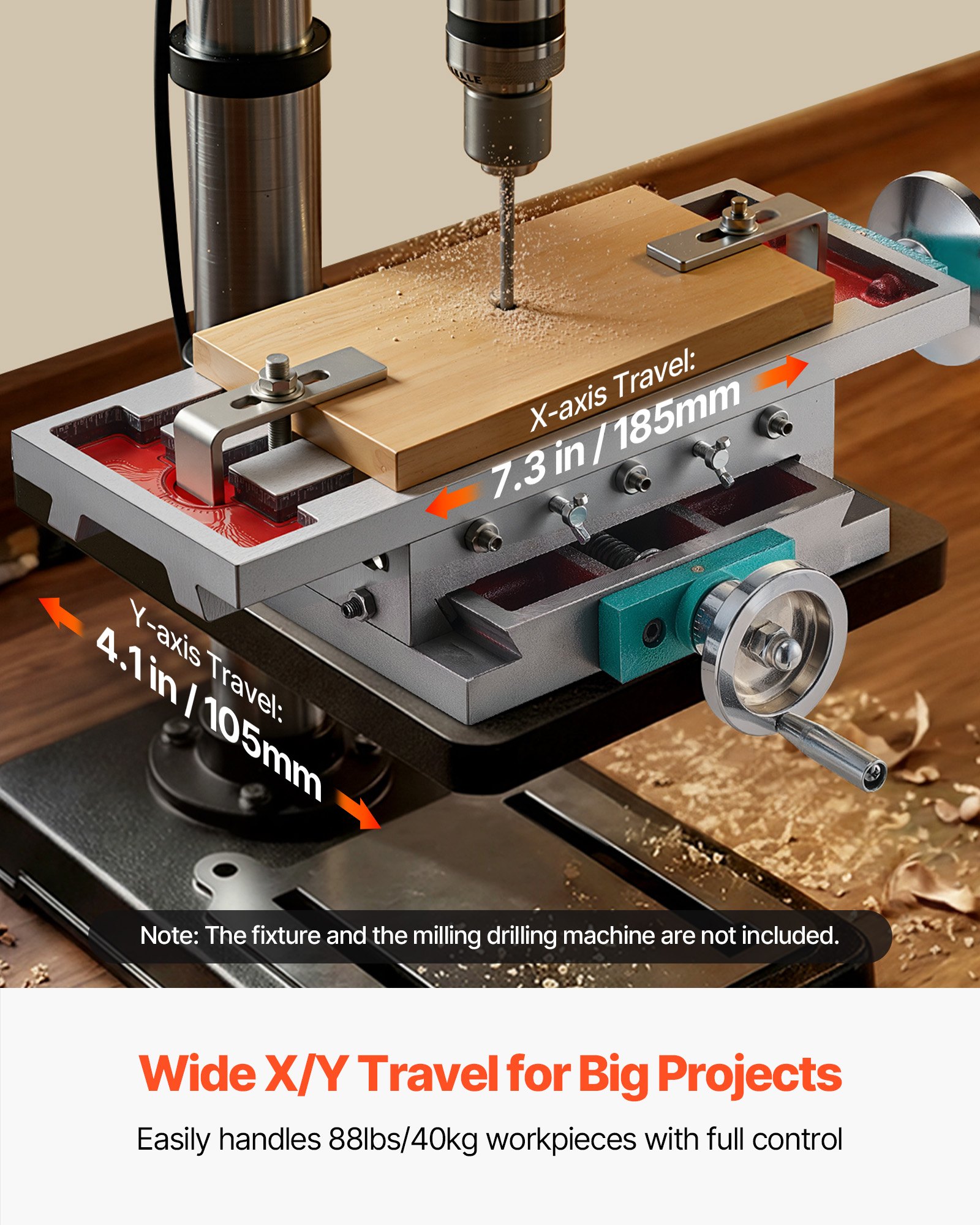

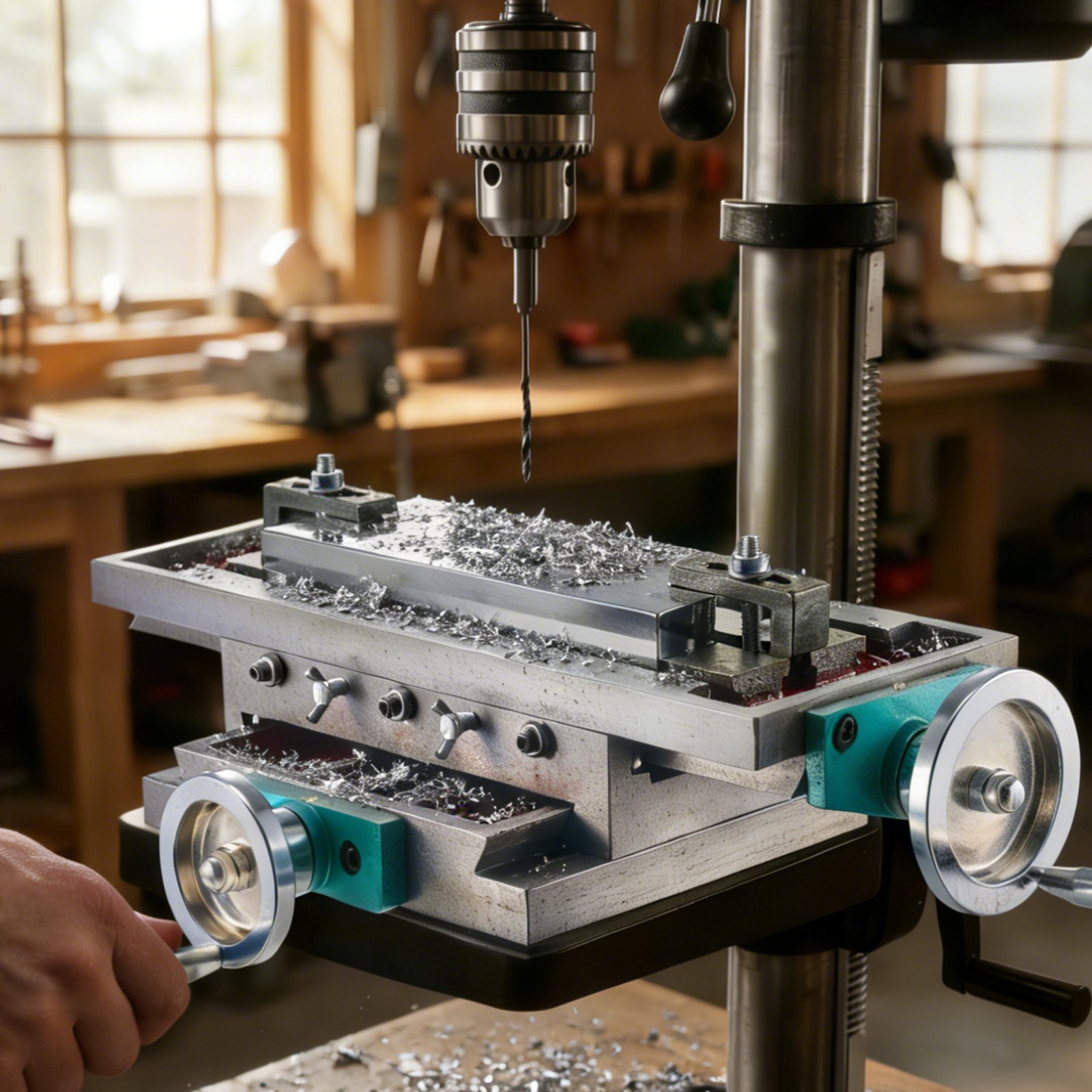

extensive application showcasing rocker milling machine, drilling and boring machine, small grinder, and machine tools.
Wide Application
This milling working table can be used for most types of milling, drilling, and staging, ideal for all drill stands, drilling, and milling machines.

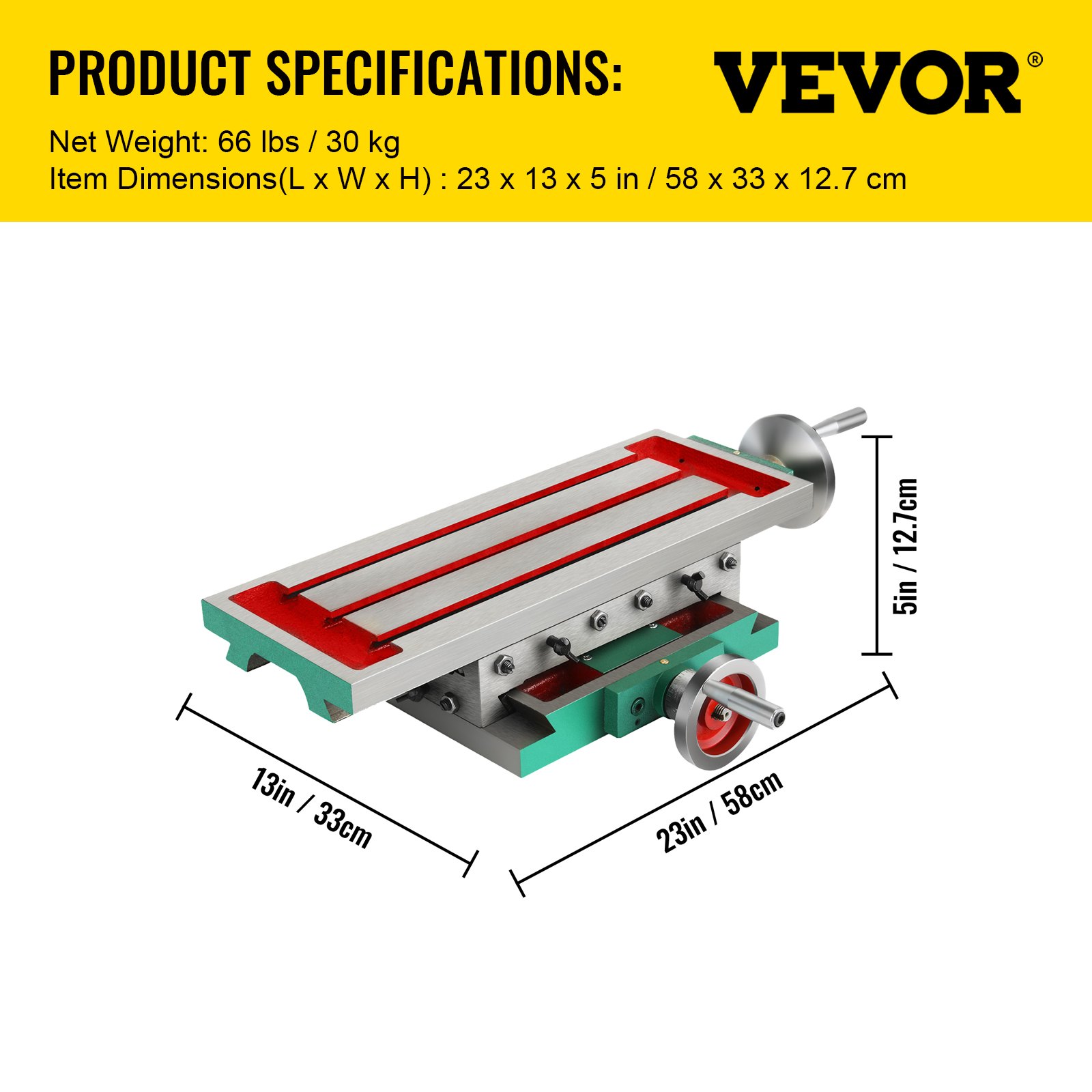

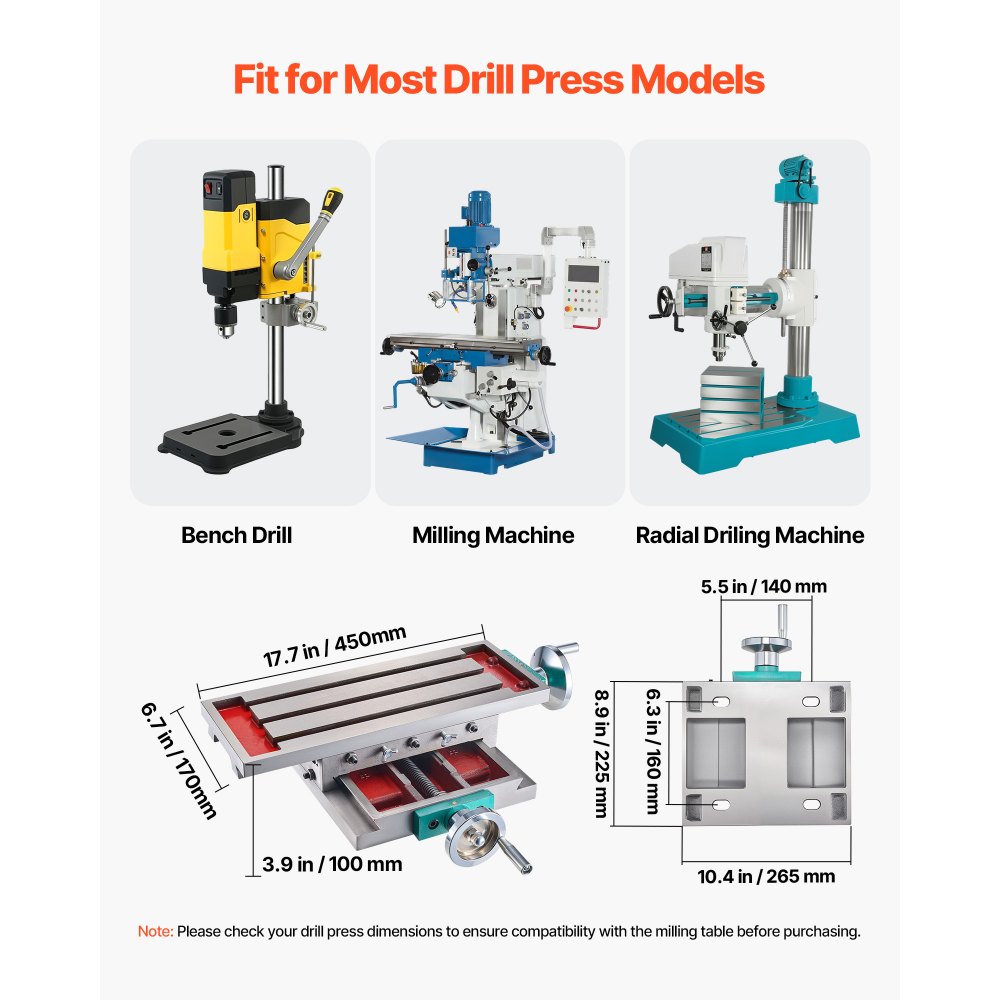

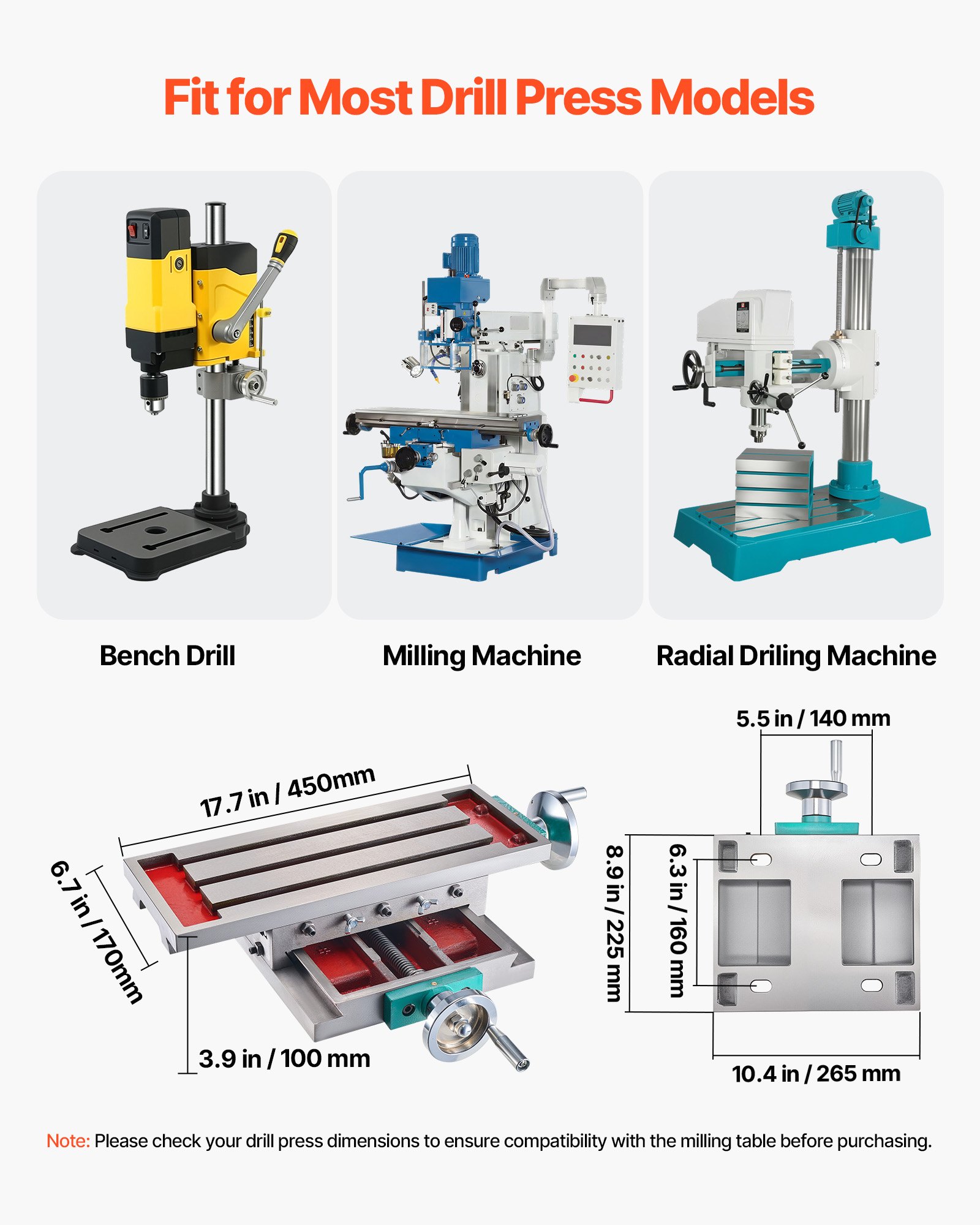

VEVOR milling machine table with dimensions 13"x23"x5".
Specifications
  • Worktable Length: 17.7 in / 450 mm
  • Worktable Width: 6.7 in / 170 mm
  • Transverse Travel(X-Route): 8.3 in / 210 mm
  • Longitudinal Travel(Y-Route): 4.3 in / 110 mm
  • Mounting Hole Size (Transverse): 6.2 in / 15.7 cm
  • Mounting Hole Size (Longitudinal): 5.3 in / 13.5 cm
  • Chassis Size: 10 x 9 in / 26 x 23 cm
  • Overall Height: 3.9 in / 100 mm
  • Net Weight: 66 lbs / 30 kg
  • Item Dimensions(L x W x H) : 23 x 13 x 5 in / 58 x 33 x 12.7 cm

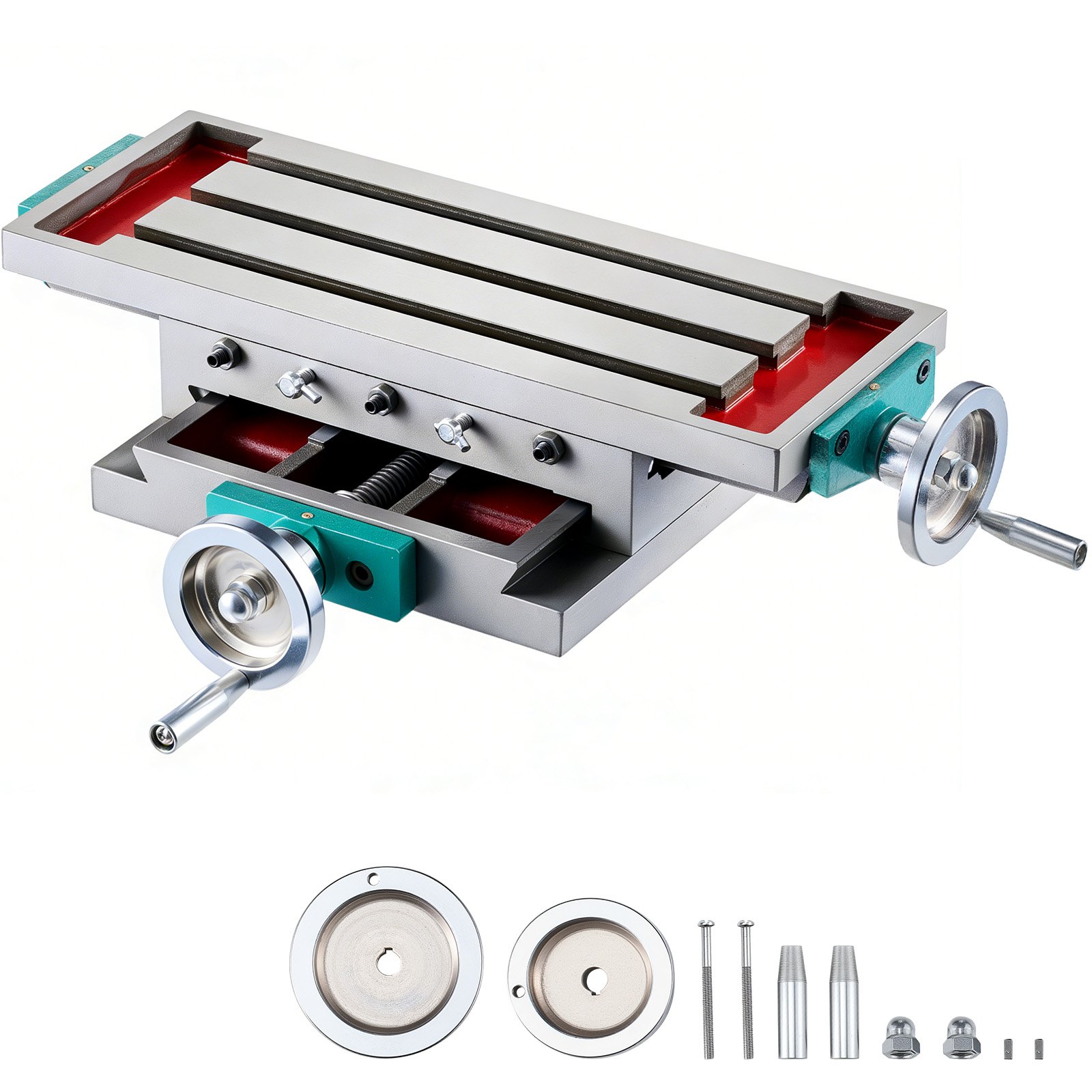

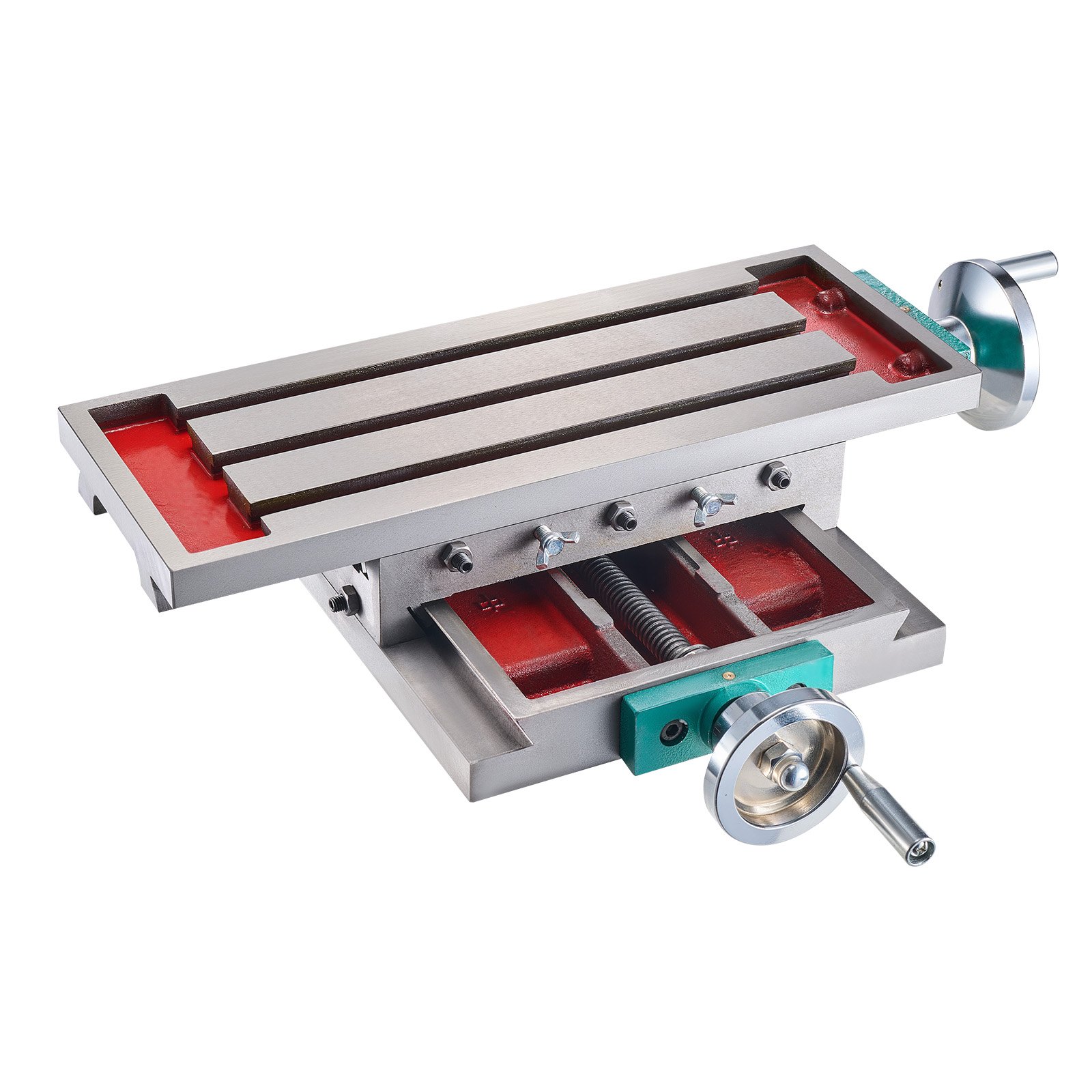

VEVOR milling machine table with precision adjustment handles and dovetail slide.
Package Content
  • 1 x Milling Support Table Worktable
VEVOR milling machine table with adjustable x & y axis and regulate ruler.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR milling machine table with green base and adjustment handles.
6.7 in / 170 mm Milling Machine Worktable
Large Worktable & Flexible Movement & High Precision
The two-axis workbench surface has three T-slots and provides dual-axis (lateral and cross) positioning via two handwheels for precise adjustments. Perfect for drilling grinding and milling operations
  • Premium Quality Structure
  • Highly Polishing & Stiffness
  • Adjustment in XY Direction
  • Tightness Adjustment
VEVOR milling machine table, heavy-duty cast iron, wear-resistant construction.
Heavy-duty Cast Iron
The cross table is made of quality cast iron, which is anti-corrosion and rust resistance, more durable and ensures long service time.
VEVOR milling machine table with t groove fixing design in metallic finish.
T Groove Fixing Design
The compound table, with great hardness and stiffness, is high ground and not easy deformation. Three T-slots design can meet different force requirements.
VEVOR milling machine table showcasing forward, backward, right, and left 2-axis movement.
2 Axis Movement
X-axis travel: 210 mm, Y-axis travel: 110 mm. You can adjust the optimal working position as you need.
VEVOR milling machine table with adjustable dials, accurate scale, and precision machining.
Adjustable Handle
A metal handle with good texture is easy to adjust the directions. With a clear scale on it, it will be more accurate when in use.
VEVOR milling machine table with quality bolts, nuts, and roughening screw rod.
Quality Bolts & Nuts
The drill press table will be more convenient to adjust the tightness of the worktable with a number of bolts and nuts.
extensive application showcasing rocker milling machine, drilling and boring machine, small grinder, and machine tools.
Wide Application
This milling working table can be used for most types of milling, drilling, and staging, ideal for all drill stands, drilling, and milling machines.
VEVOR milling machine table with precision adjustment handles and dovetail slide.
Package Content
  • 1 x Milling Support Table Worktable
VEVOR milling machine table with dimensions 13"x23"x5".
Specifications
  • Worktable Length: 17.7 in / 450 mm
  • Worktable Width: 6.7 in / 170 mm
  • Transverse Travel(X-Route): 8.3 in / 210 mm
  • Longitudinal Travel(Y-Route): 4.3 in / 110 mm
  • Mounting Hole Size (Transverse): 6.2 in / 15.7 cm
  • Mounting Hole Size (Longitudinal): 5.3 in / 13.5 cm
  • Chassis Size: 10 x 9 in / 26 x 23 cm
  • Overall Height: 3.9 in / 100 mm
  • Net Weight: 66 lbs / 30 kg
  • Item Dimensions(L x W x H) : 23 x 13 x 5 in / 58 x 33 x 12.7 cm

Robust Cast Iron Construction Promising Longevity and Resilience

The VEVOR Milling Working Table is engineered to transform your workspace into a creative fortress with its heavy-duty cast iron construction, ensuring it's a robust platform to handle different projects. Also, you can trust this table to last for many years without any rust signs. With its cast iron construction, this tool can withstand rigorous use in challenging workshop environments.


Furthermore, you would love its highly polished surface offering a precision surface to enhance your work’s quality for professional-quality results. Also, this heavy-duty milling table comes with three precise T-slots to allow you to work on different milling projects with varying force requirements. It offers a versatile and secure clamp of your workpiece so you can craft with utmost confidence.


Combines Flexibility and Precision for High-Quality Results

Our VEVOR Milling Working Table sports a 2 Axis 4 Ways feature making it easy to maneuver for better precision. It means you can easily position your workpiece on the rotary table, and make swift adjustments and movement for accurate milling and drilling results. For smooth and seamless adjustments, this 2 Axis milling table comes with trapezoidal thread spindles. Craftsmen can use the handle to change the direction for more precise control of the table’s movements.


Another feature that gets a lot of positive feedback is the meticulously calibrated X-axis and Y-axis travel distances. With its cross and lateral positioning scale, you can precisely place and adjust the workpieces with the two handwheels for excellent milling, grinding, and drilling results. Plus, the precise calibration on the table scale ensures accurate measurements and adjustments necessary in woodwork and metalwork.


Convenient Design Features for Enhanced Control and Precision

When it comes to woodwork or metalwork, craftsmen seek precise control over their drilling and milling operations. With other tables, it can be challenging. Luckily, our 17.7 x 6.7 inch milling table is equipped with premium-quality bolts and nuts to allow users to adjust the tightness of the cross-slide table depending on the project’s specific requirements. Boasting an unrivaled ability to adapt to various materials and project materials, the VEVOR Milling Table for Drilling Machine is the go-to for DIY enthusiasts and professionals for accurate and professional results.


Craft More with VEVOR Milling Working Table

The best rotary table for you should be compatible with different milling and drilling machine accessories, ensuring it’s useful in a variety of projects. This is where our VEVOR Multifunction Milling Table excels more than its competitors. You can seamlessly integrate your drill stands, milling machine, and drilling machine into this best-selling table, allowing you to work on a wide range of projects. Our users have successfully handled different tasks, from precision milling for automotive components to crafting intricate parts for model airplanes.


Also, its robust construction plays a crucial role in its versatility, as it allows users to take on heavier projects without bogging down under pressure. It’s sturdy and durable enough to handle challenging tasks without trading off its remarkable performance and precision. Our VEVOR 4 Ways Move Milling Table is what you need in your workshop to work and switch between your different machines with minimal downtime and hassle.


Level Up Your Craft Today with VEVOR 17.7 X 6.7 Inch Milling Table

There are not many options out there that offer a striking combo of versatility, robustness, and affordability. If you are not looking to break the bank on a table, VEVOR presents an attractive option - its compound milling machine work table. Built with cast iron for long-term use and precision at its core, this table is a savvy choice for DIYers and professionals alike to hook up different milling and drilling machine accessories for handling a variety of projects. It’s your best bet for elevating your craftsmanship, getting creative, and delivering stunning, professional-grade results.


See More

Specification

Worktable length
450 mm / 17.7in
Worktable width
170 mm / 6.7in
Transverse travel(X-Route)
210 mm / 8.3in
Longitudinal travel(Y-Route)
110 mm / 4.3in
Overall height
100 mm / 3.9in
Dimension
540* 310* 115 mm / 21.3 in* 12.2 in*4.5 in
Net Weight
30 kg approx.
Manual
Download Link
Questions and Answers
3 Questions
V jakých jednotkách je nonius na stavícím mechanismu. V imperiálních nebo metrických?
Je to imperiální, ne metrické.
By vevor
what is the step per revolution in mm?
The handwheel has a scale of 0-40, 10 wires is one grid, and one circle is 4mm.
By vevor
Kan der monteres digitalt aflæsning på fræsebordet?
Nej, sådan kan det ikke være.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.6
  • 4.6
  • 4.7
  • See More See Less
126 Review(s)
Clear filters
BN BN
Dunakeszi
Marógép munkaasztal kereszt csúszóasztal 4"x7,3" összeállítás asztali fúró satuhoz gyors szállítás, jó minőség, alacsony ár
- -
-
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
niko niko niko niko
Koordinatbord
Foarte bun si l-am primit foarte repede .. sunt foarte multumit.Am mai comandat si altceva si la fel de repede si calitativ a fost.. o firma serioasa care respecta clientii.
Patrick Patrick
Compound slide
Works beautiful and I love it . It is well built and required very little fetting for what I was doing
Michael Michael
Tip Top
Der Preis war gut. Bin sehr zu Frieden.
Milling Machine Table Milling Machine Table
Good, sturdy table.
I bought this small milling worktable to fit on the table of my bench drill. It certainly is a good, heavy, sturdy workable, which is just what I need to do small milling jobs. However, as other reviewers have mentioned, I did need to modify and rectify a few issues. I dismantled the worktable and filed off the burrs, which had been left after this item had been manufactured. There was also some paint overspray on the slides, which I also removed. Also the friction device, which holds the graduated scale in position on the two spindles, turned out to be masking tape! I removed this and have ordered a couple of large wavy washers to make my own friction device. This will need some machining work on the graduated scales, but after that, it should work fine. I also lubricated and adjusted the keys in the slideways, unitl the table was was moving nicely. All in all, a good, solid piece of kit for a great price, albeit needing some fettling to make it even better. I've already used it for a small milling job on aluminium, and the results were great.
gomes gomes
mesa fresagem
ferramenta de alguma qualidade estou satisfeito recomendo esta ferramenta para trabalhos bricolage e outros
José José
Rêgo
Entrega rápida, embalagem adequada, acabamento insuficiente, mas fácil de executar pelo comprador que é compensado pelo bom preço. Muito útil e prática. Boa compra. Agradeço.
Miloň Dvořák Miloň Dvořák
Dr.
Stolek je fajn. Je robustní a funkční. Zpracování ovládacích koleček je příšerné. Hlavně otočné rukojeti na kolečkách se otačí kolem šroubu malého průměru, to je téměř nefunkční, ale vyrobil jsem si své hřídelky. Podivné je, že proti stupnici na kolečkách není žádná šipka. Veškeré povrchy - jak horní deska s T drážkami, tak povrchy loží, jsou jen poměrně hrubě frézované. Matka posuvu stolků má dost vůli a nedá se seřídit její sevření.
Papu Papu
paupiu
Kiitos, todella hyvä ja käypä minun tarkoitukseeni, sekä paljon ominaisuuksia mitä tarvitsen. Hinnaltaan halpa.
