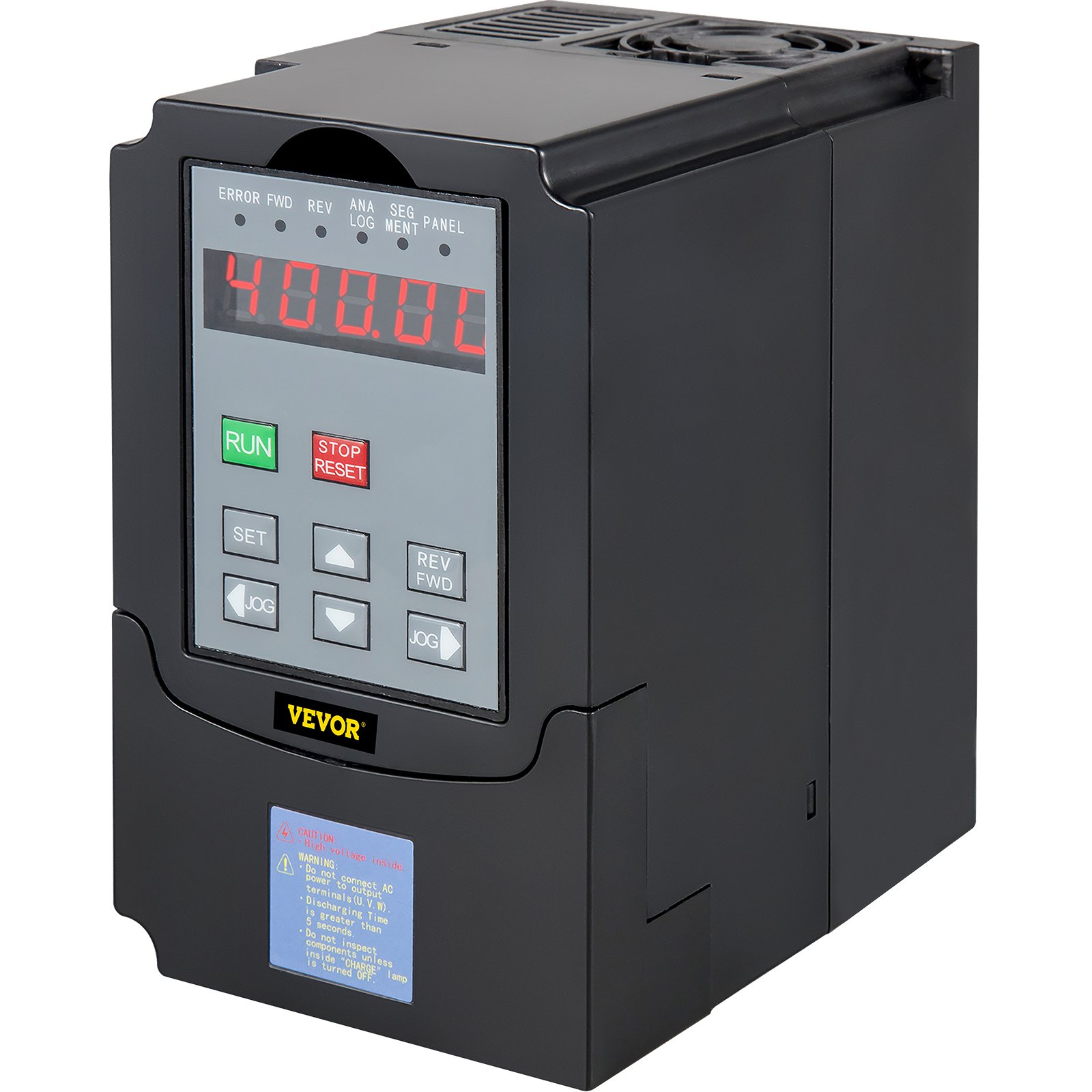

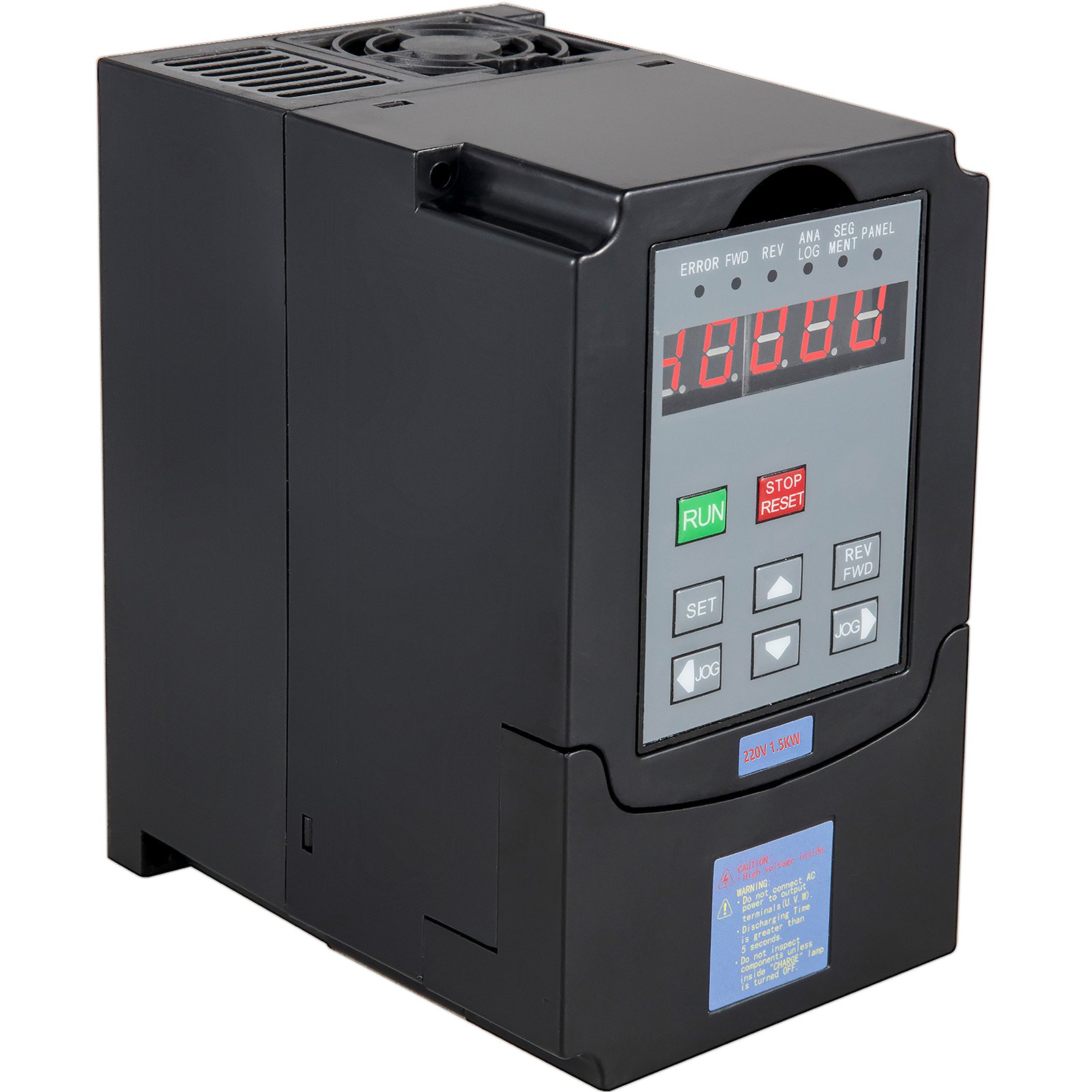

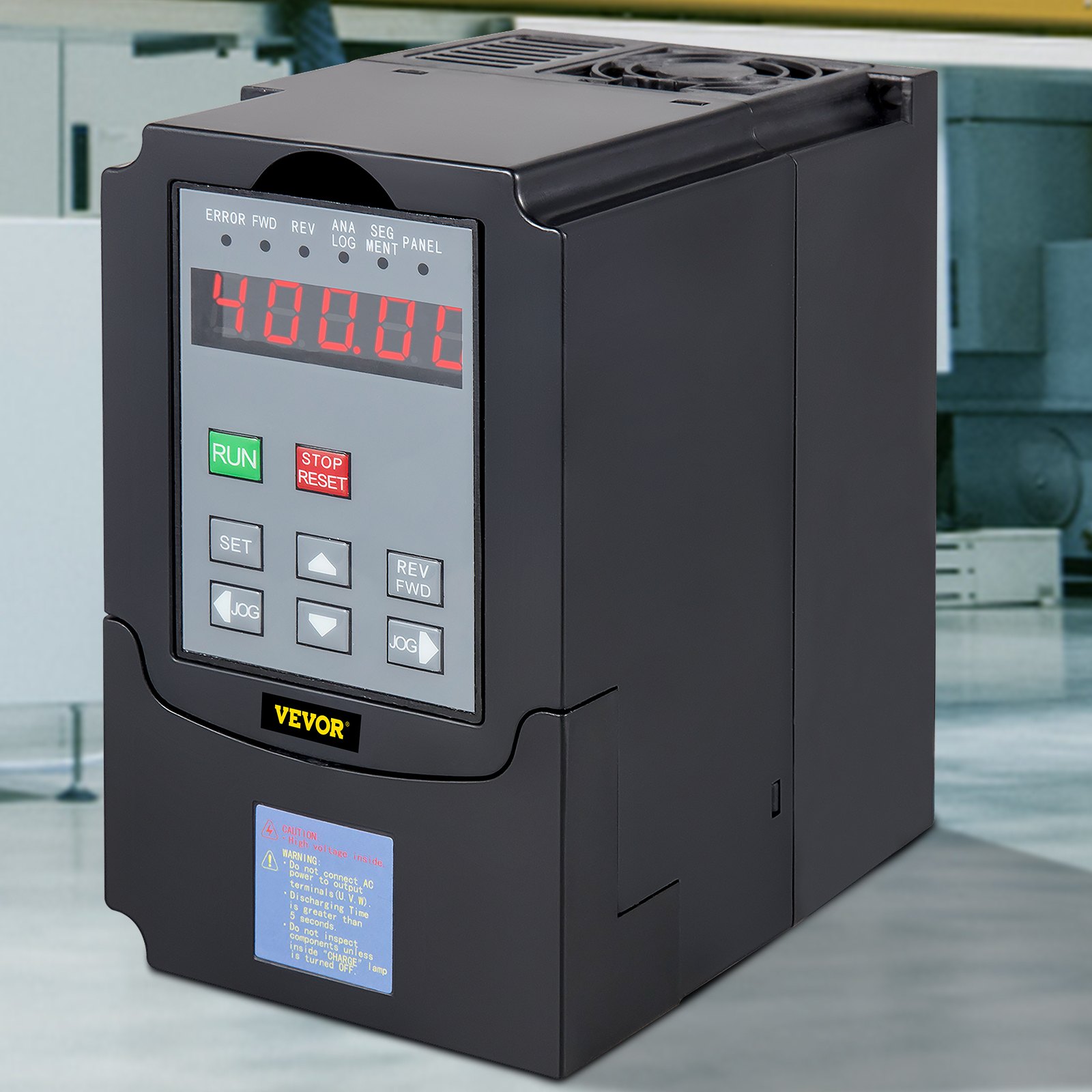

5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor

5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor 5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor 5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor 5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor 5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor 5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor 5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
149.99€
149.99

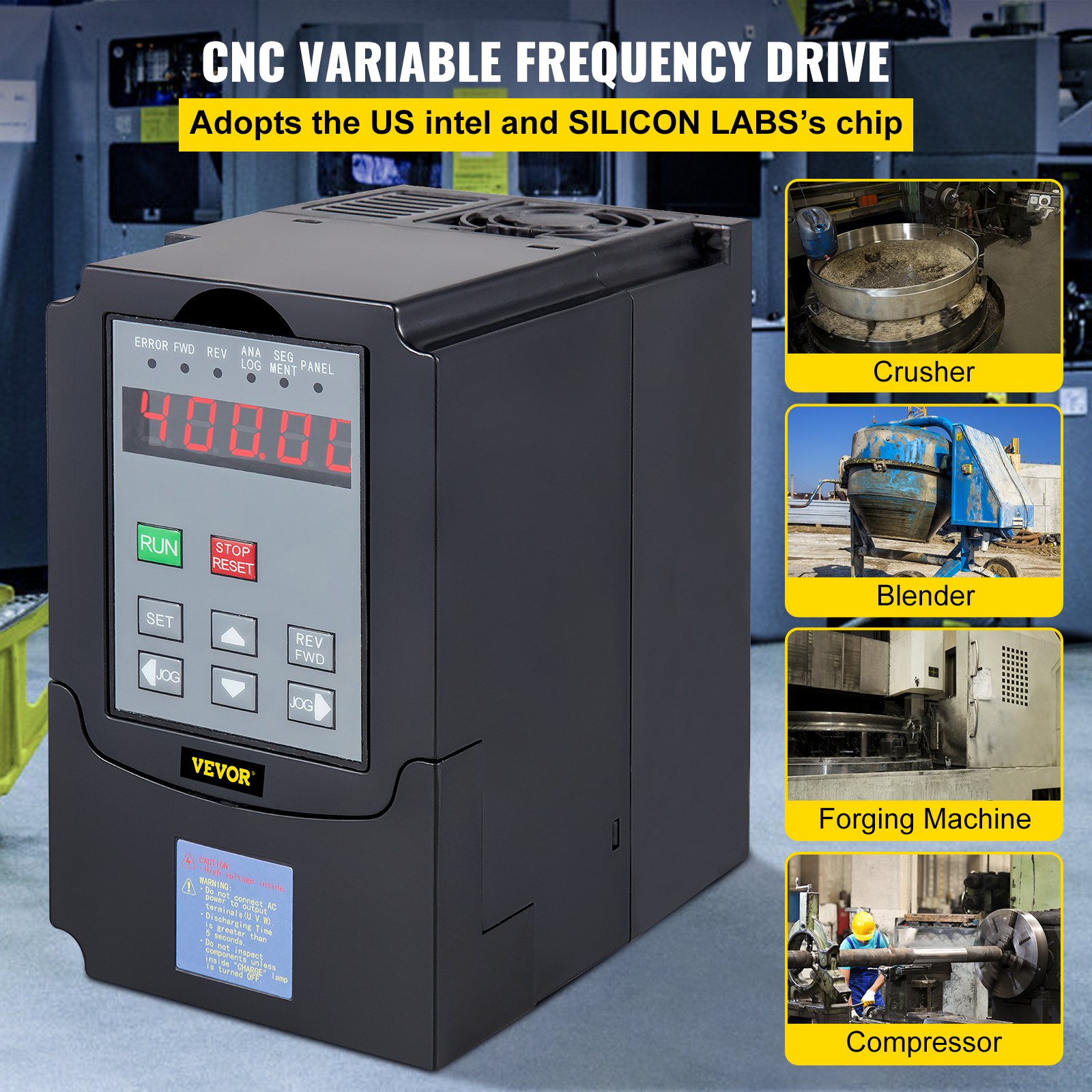

  • · 【PREMIUM QUALITY】- This VFD adopts the US intel and SILICON LABS chip. With communication port, adopting standard international MODBUS main circuit control. The input for this VFD is a single phase.

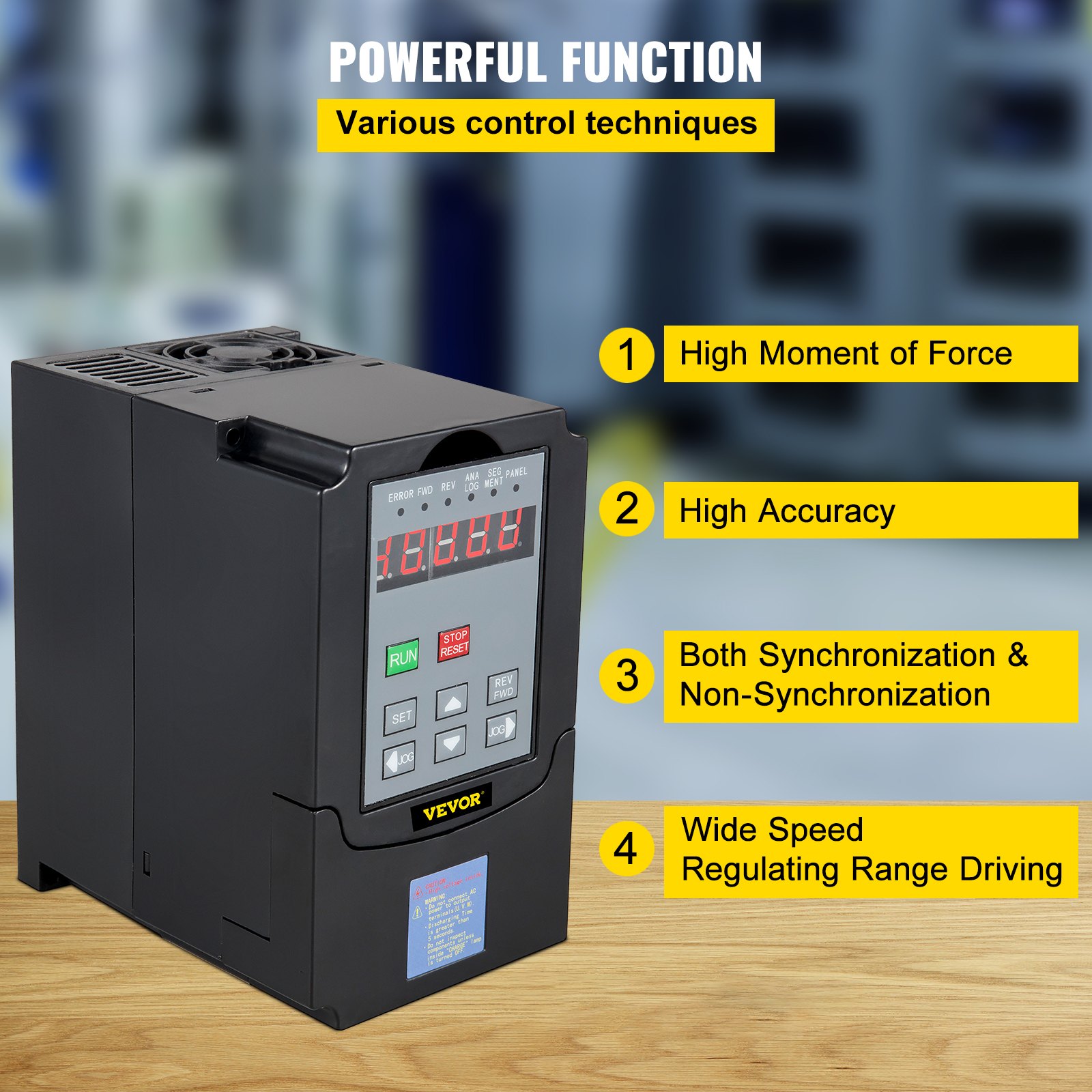

  • · 【FLEXIBLE CONTROL】- Control mode: V/F control and vector control. Frequency setting mode: digital setting, analog setting, serial communication setting, PID setting and so on. Various control techniques by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes.
  • · 【POWERFUL PERFORMANCE】- With extremely strong anti-jamming capability; With low output ratting torque, low speed running ability; Internal simple PLC, 6 multifunction input terminals, to achieve operation, zero speed, calculator, external exception program instructions and alarm; Auto voltage regulation (AVR) technique, for ensuring the inverter load capability.
  • · 【SAFETY PROTECTION】- Adopts overload protection, fuse protection, over-voltage (DC voltage>400V) or under-voltage (DC voltage<200V) protection, restart protection, stall protection, short-circuit protection and over-heat protection.
  • · 【WIDE APPLICATION】- Used for constant torque loads (such as hard starting: Air compressor, HVAC units) and variable torque loads (such as pumps, fans, etc.).


Frequently Bought Together

People Who Bought This Item Also Bought

5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
4.0KW Variable Frequency Drive
This VFD can be used for constant torque loads (for example, hard start: air compressors, HVAC units) and variable torque loads (for example, pumps, fans, etc.). It can be used as a motor speed control and phase changer. The input of this VFD is 1 phase. When using this VFD, different speeds can be controlled as needed. Many customers have purchased this VFD from us, which can be used for: lathes, milling machines, truck cranes, pumps and conveyors, etc., and then perform well. This project uses sine wave PWN (SPWM) for the control system and excellent performance.
NOTE
  • Only for light-load motors, can not be used for heavy-duty motors.
  • Premium Quality
  • Flexible Control
  • Powerful Performance
  • Safety Protection

5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor

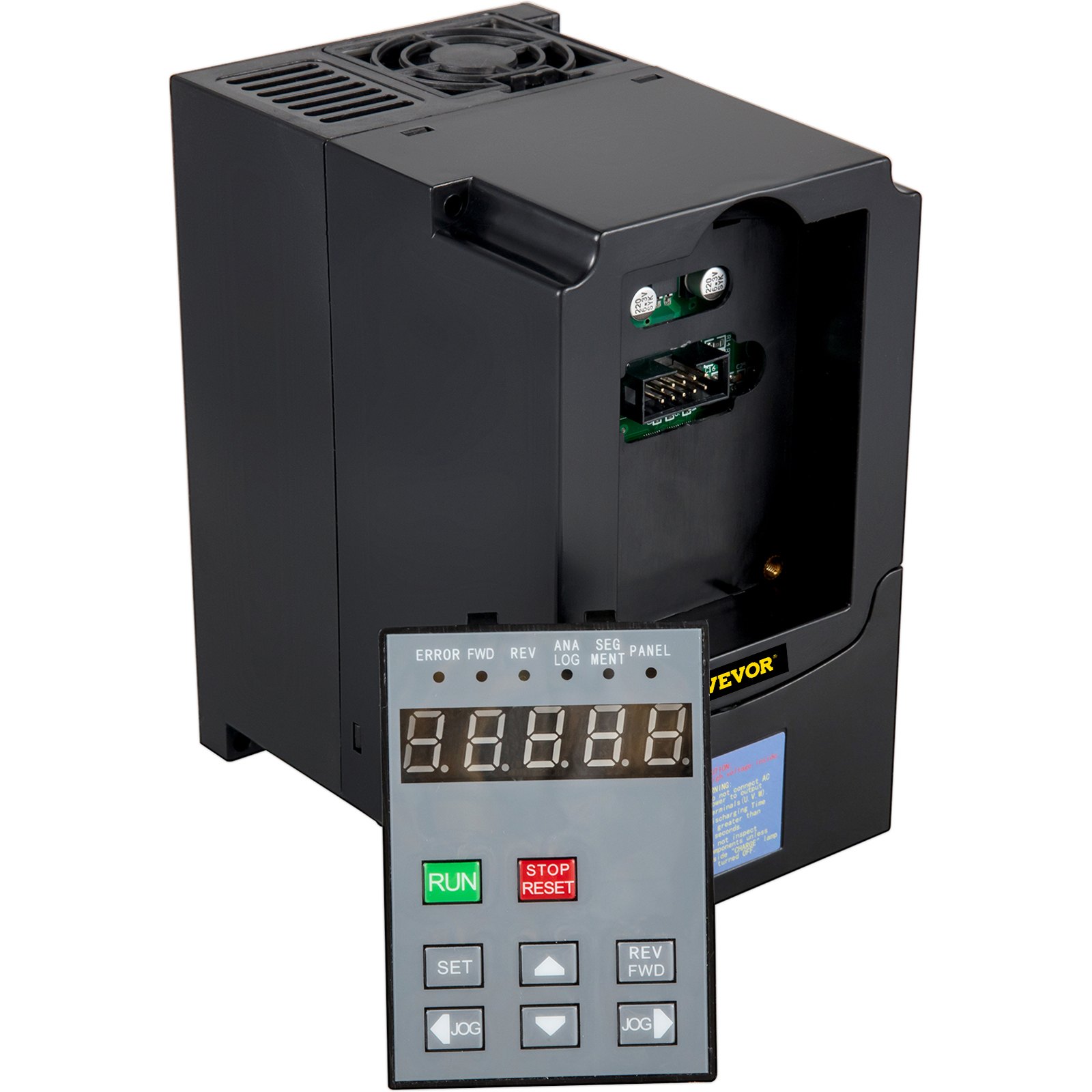

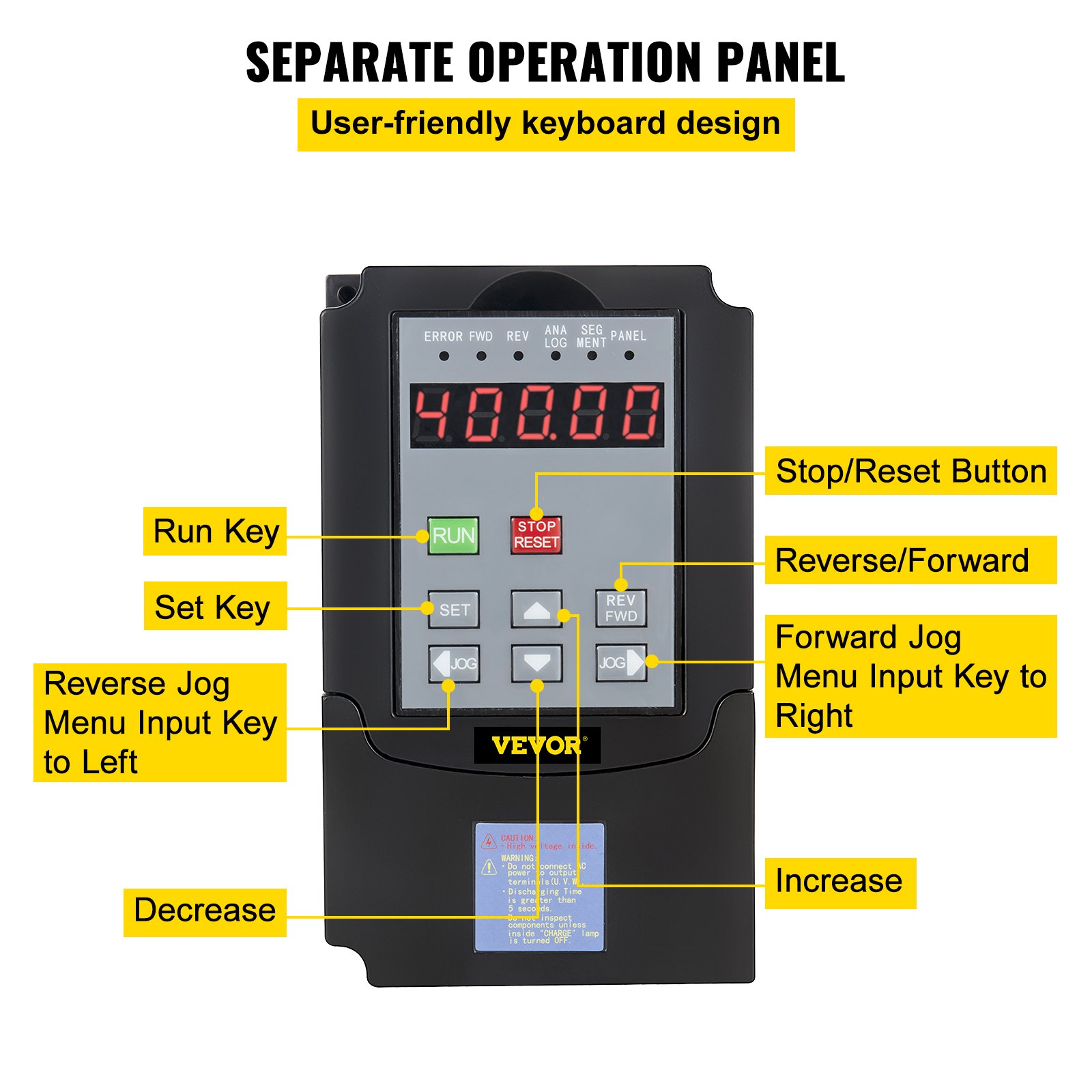

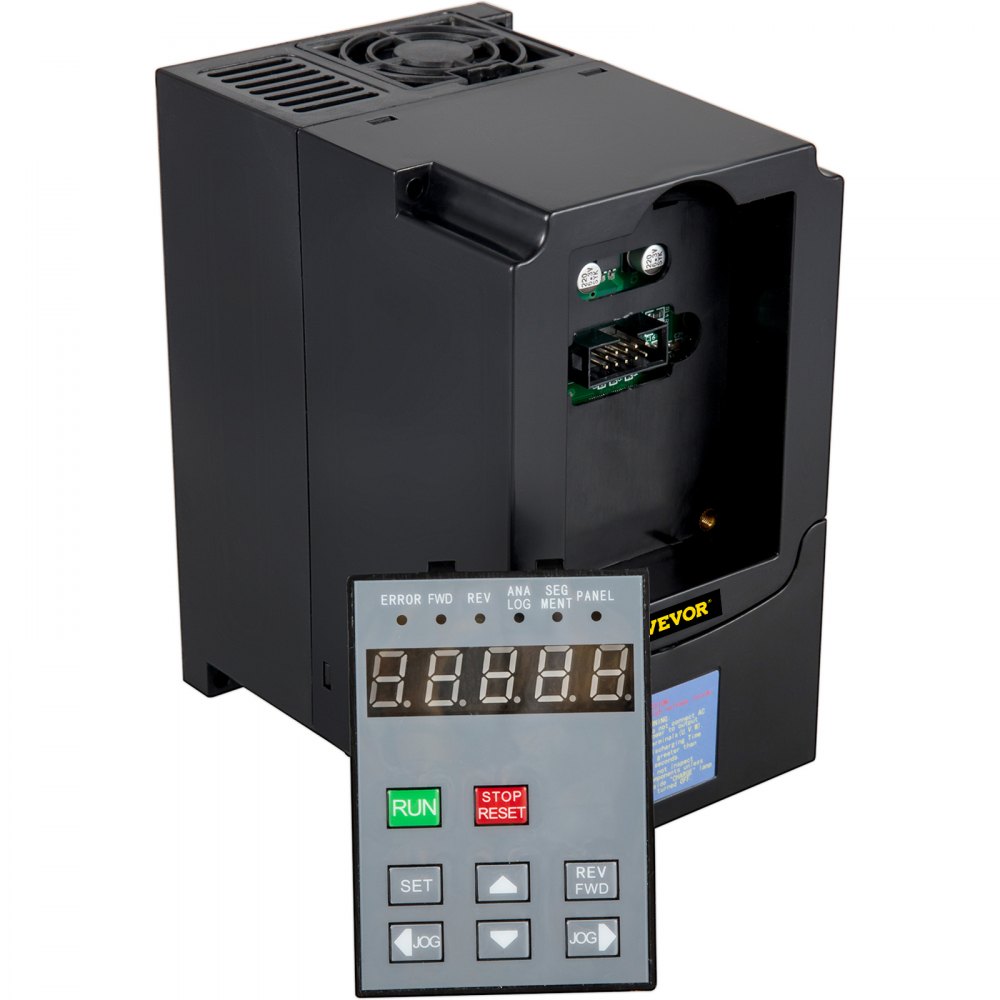

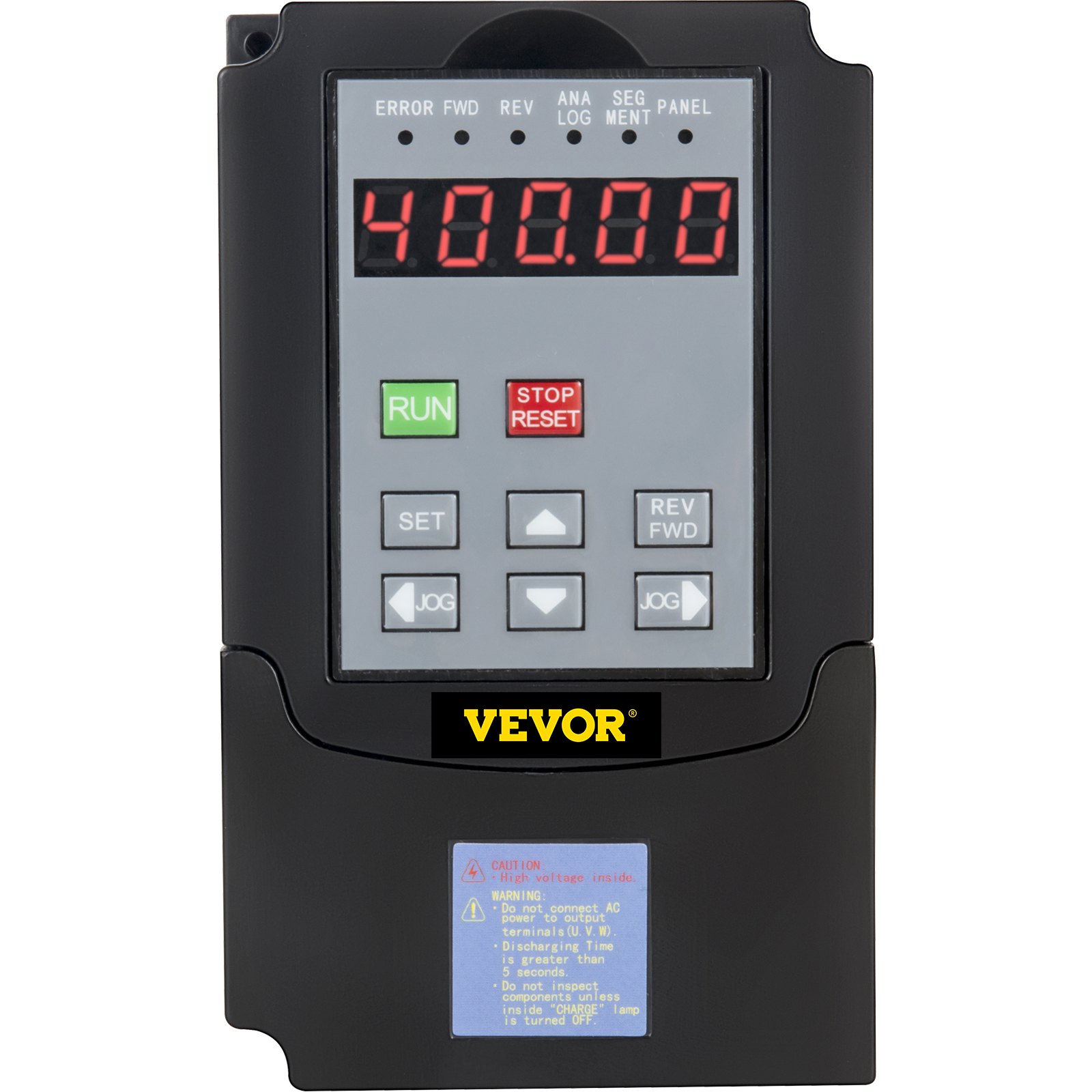

Separate Control Panel
With full-featured clear buttons to achieve quick and easy operation. The panel is detachable for convenient remote control.
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
Single/Three Phase
This VFD features 1 phase or 3 phase 220V input as well as 3 phase 220V output, 4.0KW strong power.
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
Premium Driver Board
The driver board is cleaned and painted. Adopted with the US intel and SILICON LABS chip, with communication port.
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor

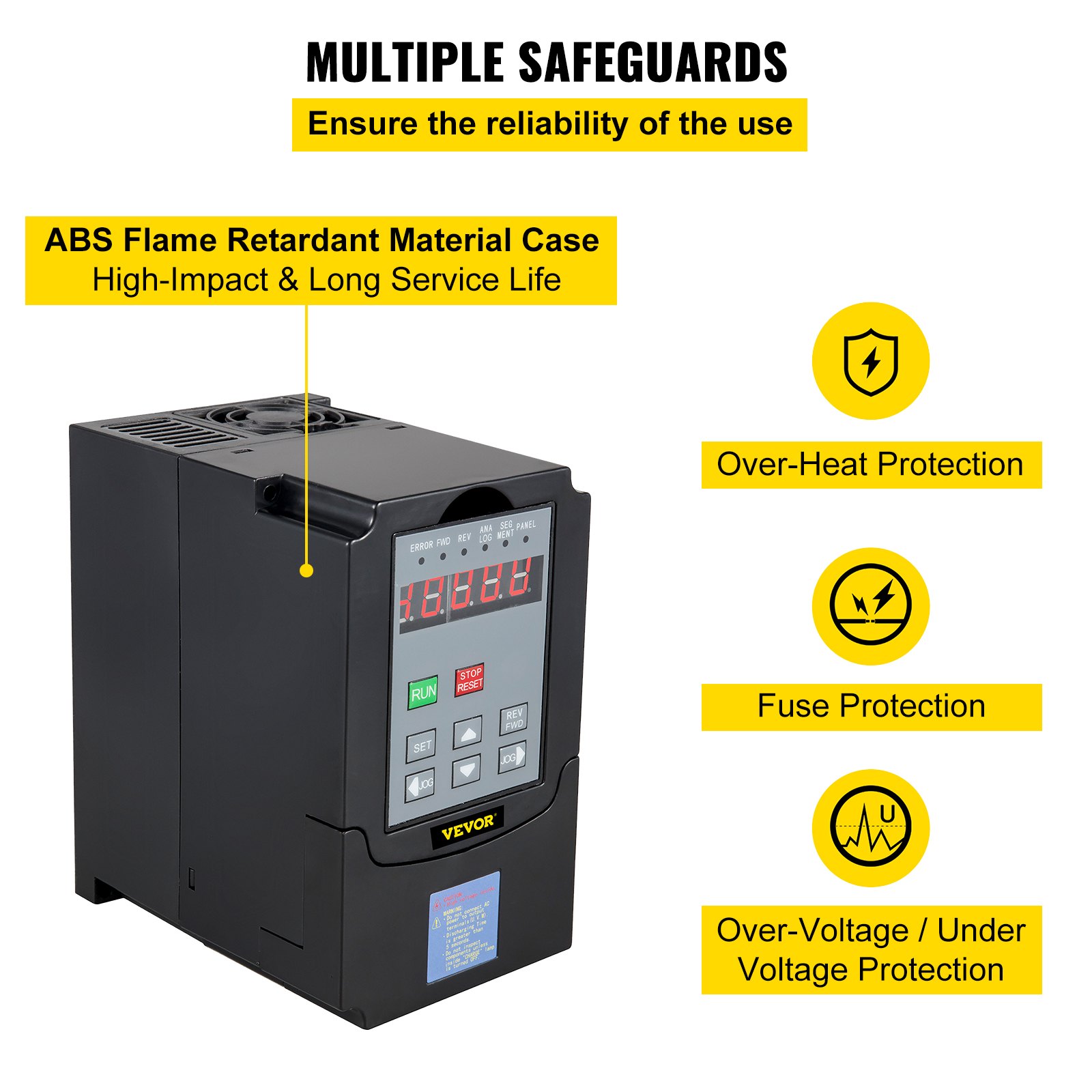

Safety Protection
Adopts overload protection, fuse protection, over-voltage (DC voltage>400V) or under-voltage (DC voltage<200V) protection, restart protection, stall protection, short-circuit protection and over-heat protection.
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor

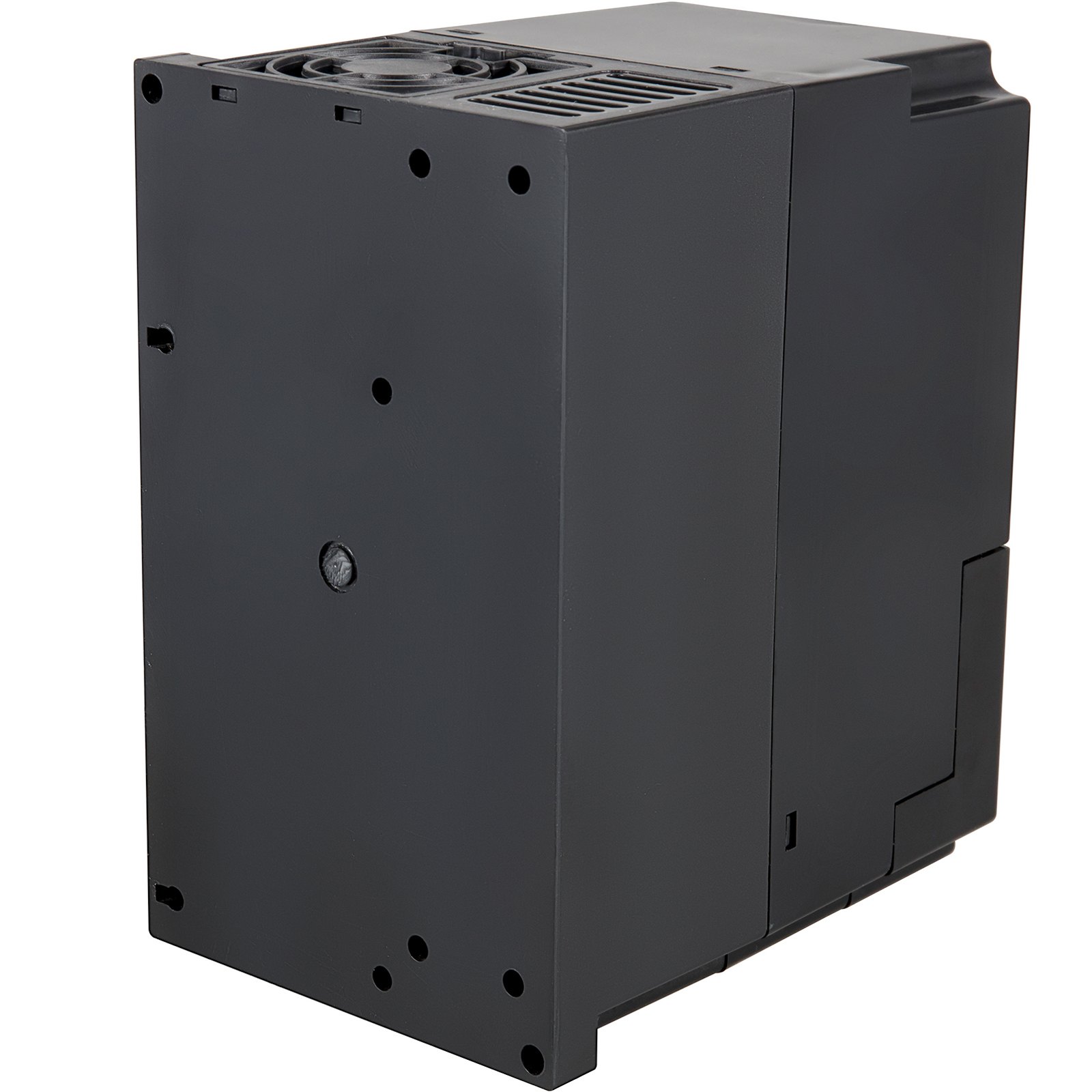

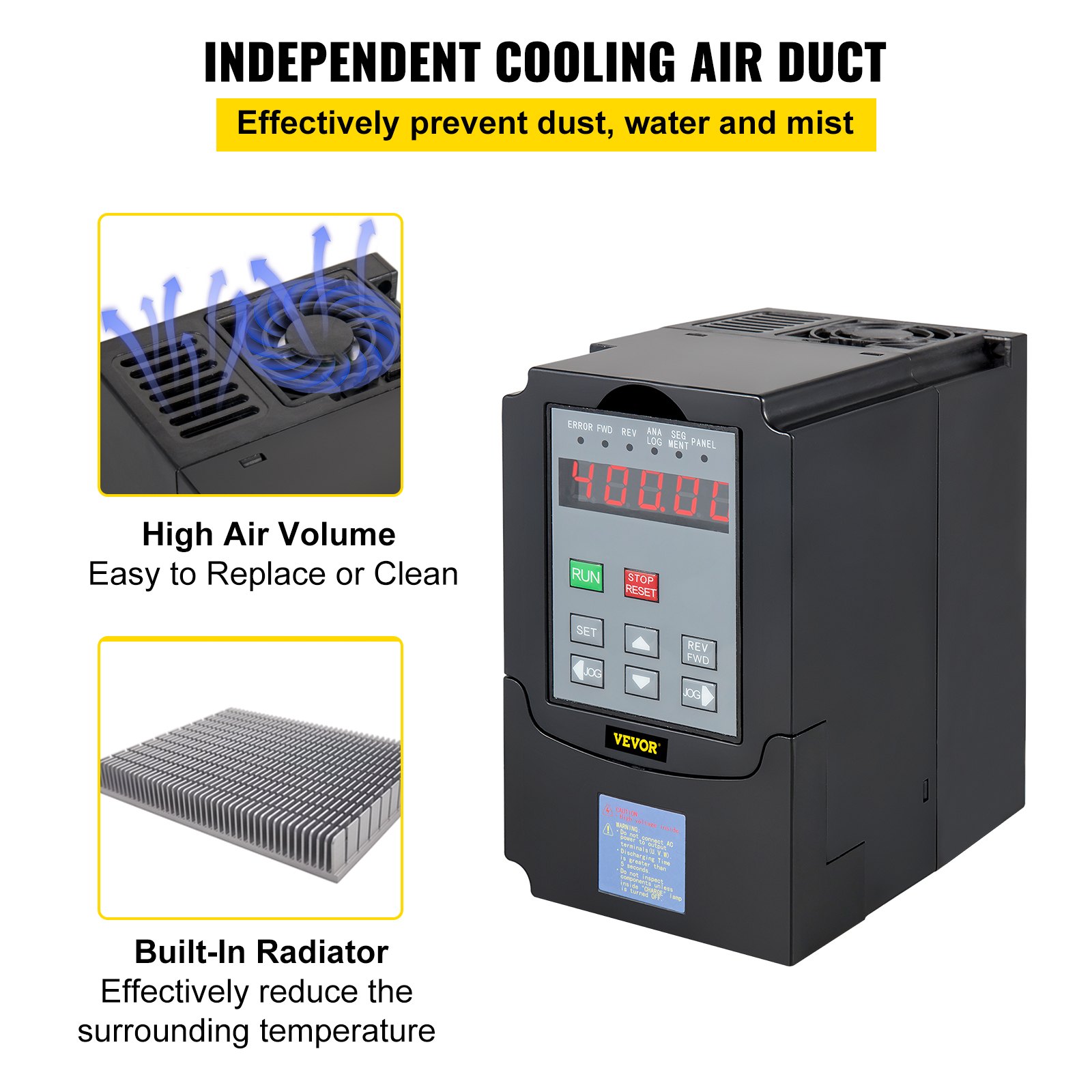

Effective Heat Dissipation
Adopts large area of cooling vents and a forced air-cooled fan, offering powerful cooling capacity.
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
Widely Used
Applied in machinery winding machine, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, elevator and other speed control machines.
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
Specifications
  • Input Voltage: 220V
  • Output Voltage: 208-240VAC (analogous to Input Voltage)
  • Input Frequency: 48-63 Hz
  • Output Frequency: 0-400 Hz
  • Input Phase: 1 phase or 3 phase
  • Output Phase: 3 phase
  • Item Manufacturer: From a well-known manufacture who manufacture VFD for more than 12 years.
  • Control Mode:SPWM
  • Input Power:220V class:220±15%
  • 5-Digits Display & Status Indicator Lamp:Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc.
  • Working Temperature: -10~40℃
  • Humidity: 0-95% Relative Humidity(without dew)
  • Vibration: Below 0.5G

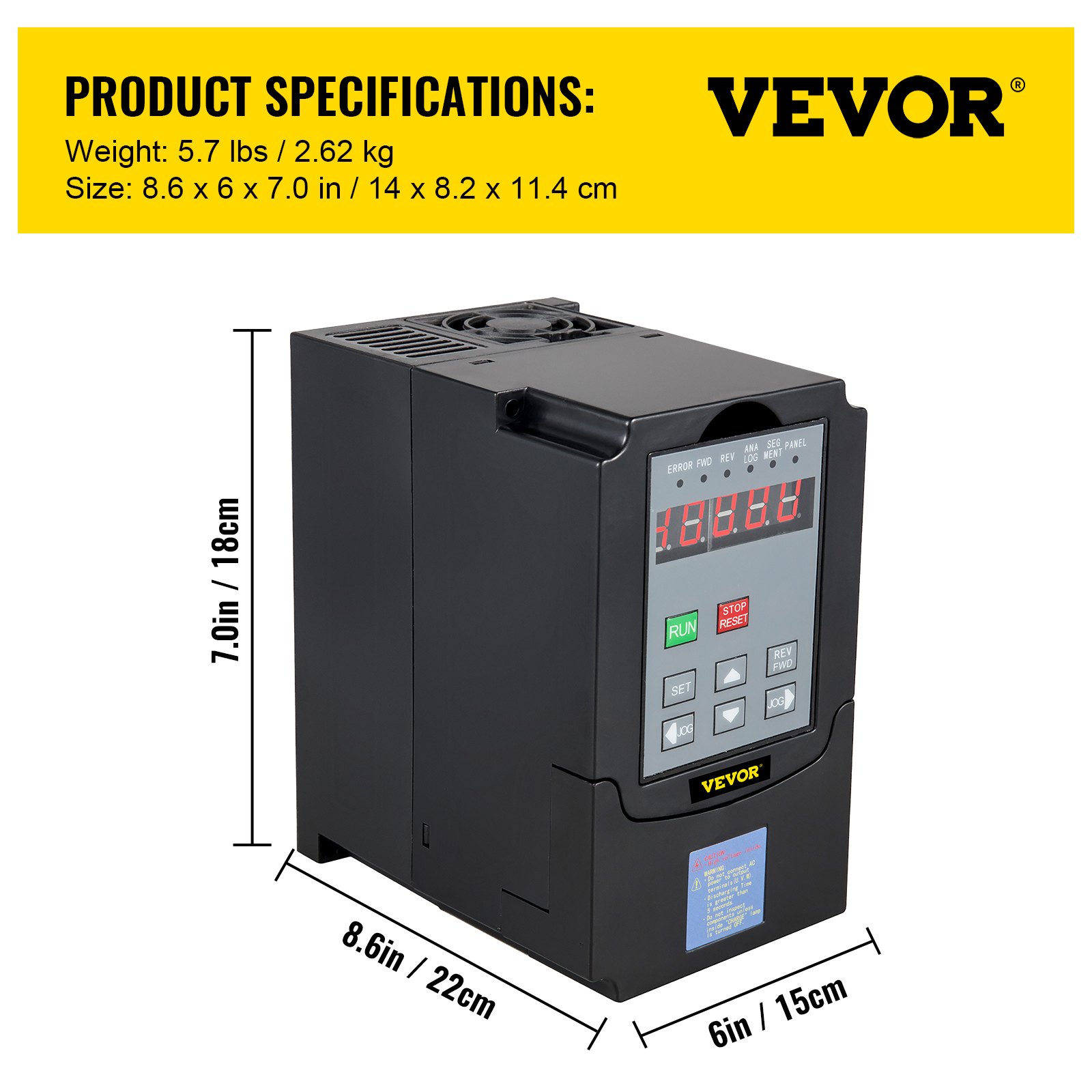

  • Dimension: 27.5 x 20.5 x 23.5 cm (L x W x H)
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
Package Content
  • 1 x 4KW Variable Frequency Drive Inverter
  • 1 x English Manual
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor

5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
4.0KW Variable Frequency Drive
This VFD can be used for constant torque loads (for example, hard start: air compressors, HVAC units) and variable torque loads (for example, pumps, fans, etc.). It can be used as a motor speed control and phase changer. The input of this VFD is 1 phase. When using this VFD, different speeds can be controlled as needed. Many customers have purchased this VFD from us, which can be used for: lathes, milling machines, truck cranes, pumps and conveyors, etc., and then perform well. This project uses sine wave PWN (SPWM) for the control system and excellent performance.
NOTE
  • Only for light-load motors, can not be used for heavy-duty motors.
  • Premium Quality
  • Flexible Control
  • Powerful Performance
  • Safety Protection
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
Separate Control Panel
With full-featured clear buttons to achieve quick and easy operation. The panel is detachable for convenient remote control.
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
Single/Three Phase
This VFD features 1 phase or 3 phase 220V input as well as 3 phase 220V output, 4.0KW strong power.
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
Premium Driver Board
The driver board is cleaned and painted. Adopted with the US intel and SILICON LABS chip, with communication port.
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
Safety Protection
Adopts overload protection, fuse protection, over-voltage (DC voltage>400V) or under-voltage (DC voltage<200V) protection, restart protection, stall protection, short-circuit protection and over-heat protection.
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
Effective Heat Dissipation
Adopts large area of cooling vents and a forced air-cooled fan, offering powerful cooling capacity.
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
Widely Used
Applied in machinery winding machine, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, elevator and other speed control machines.
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
Package Content
  • 1 x 4KW Variable Frequency Drive Inverter
  • 1 x English Manual
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
Specifications
  • Input Voltage: 220V
  • Output Voltage: 208-240VAC (analogous to Input Voltage)
  • Input Frequency: 48-63 Hz
  • Output Frequency: 0-400 Hz
  • Input Phase: 1 phase or 3 phase
  • Output Phase: 3 phase
  • Item Manufacturer: From a well-known manufacture who manufacture VFD for more than 12 years.
  • Control Mode:SPWM
  • Input Power:220V class:220±15%
  • 5-Digits Display & Status Indicator Lamp:Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc.
  • Working Temperature: -10~40℃
  • Humidity: 0-95% Relative Humidity(without dew)
  • Vibration: Below 0.5G
  • Dimension: 27.5 x 20.5 x 23.5 cm (L x W x H)

Specification

Input Voltage
220V
Output Voltage
208-240VAC (analogous to Input Voltage)
Input Frequency
48-63 Hz
Output Frequency
0-400 Hz
Input Phase
1 phase or 3 phase
Output Phase
3 phase
Item Manufacturer
From a well-known manufacture who manufacture VFD for more than 12 years.
Control Mode
SPWM
Input Power
220V class
5-Digits Display & Status Indicator Lamp
Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc.
Working Temperature
-10~40℃
Humidity
0-95% Relative Humidity(without dew)
Vibration
Below 0.5G
Dimension
27.5 x 20.5 x 23.5 cm (L x W x H)
Manual
Download Link
Questions and Answers
1 Questions
It works for dc motors aswel
No, it can only be used for three-phase asynchronous motors.
By vevor

Customer Reviews

  • 4.7
  • 4.5
  • 4.7
  • 4.7
166 Reviews
Laurens Laurens
2.2 kW 220V
Awesome cheap solution.
This really is a nice piece of kit. Four stars for quality because the housing is really cheap brittle plastic. I use it to power a three phase piston compressor and without any problems. The start/stop input wired to the pressure switch, the output of the regulator directly to the motor and bang! Done. Easy to set up and does what it promises. If I need another one, I will get a Vevor again.
0
benda benda
2.2 kW 220V
VFD 2,2Kw
Super fast delivery - 2 days, good product, arrived slightly damaged - 2 locking lugs securing the PVC cover and front panel were broken. It's a small thing, but I'm still sorry, but it doesn't affect the functionality.
0
FOTINI FOTINI
2.2 kW 220V
5hp 4kw 220v Vfd Capability Variable Frequency Drive Avc Motor
Very Good Seller super quick delivery very excellent packet and very good product, Will buy again from this seller. It's one of the fastest order I've It is one of the best products I have ever bought a very good machine
0
Engineer Engineer
1.5 kW 220V
Mr
Arrived safely and worked very well.Has all the various functions that I need when I used it to run and regulate my 72 x 2 Belt Grinder
0
Zrt121 Zrt121
1.5 kW 220V
It works Amazing
Bought this to try it, It was a low price, I have a Fobco Star drill with A three Phase motor, and I wanted to power it with 240v power. I rewired the motor To delta 240V , I had to change the setting from 400HZ to 50HZ and the motor starts and runs perfect , It is best to read the whole manual as there are a lot of setting that you can change. I bought the 1.5KW unit and it powered an old 0.33BHP / 0.25KW motor with no problems
