SKU: BPQDXN3KW220VEQ8AV7
Copy
+12
More

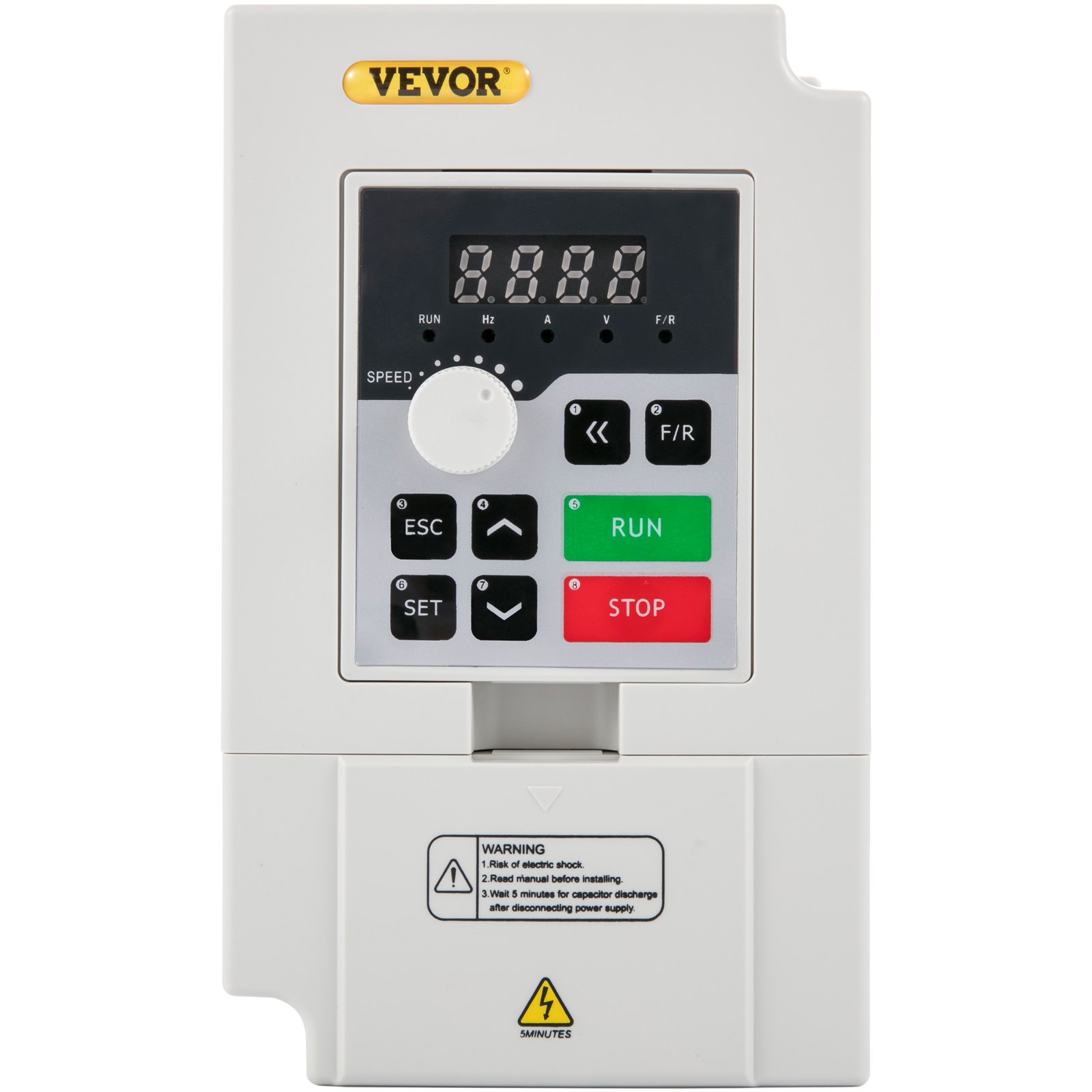

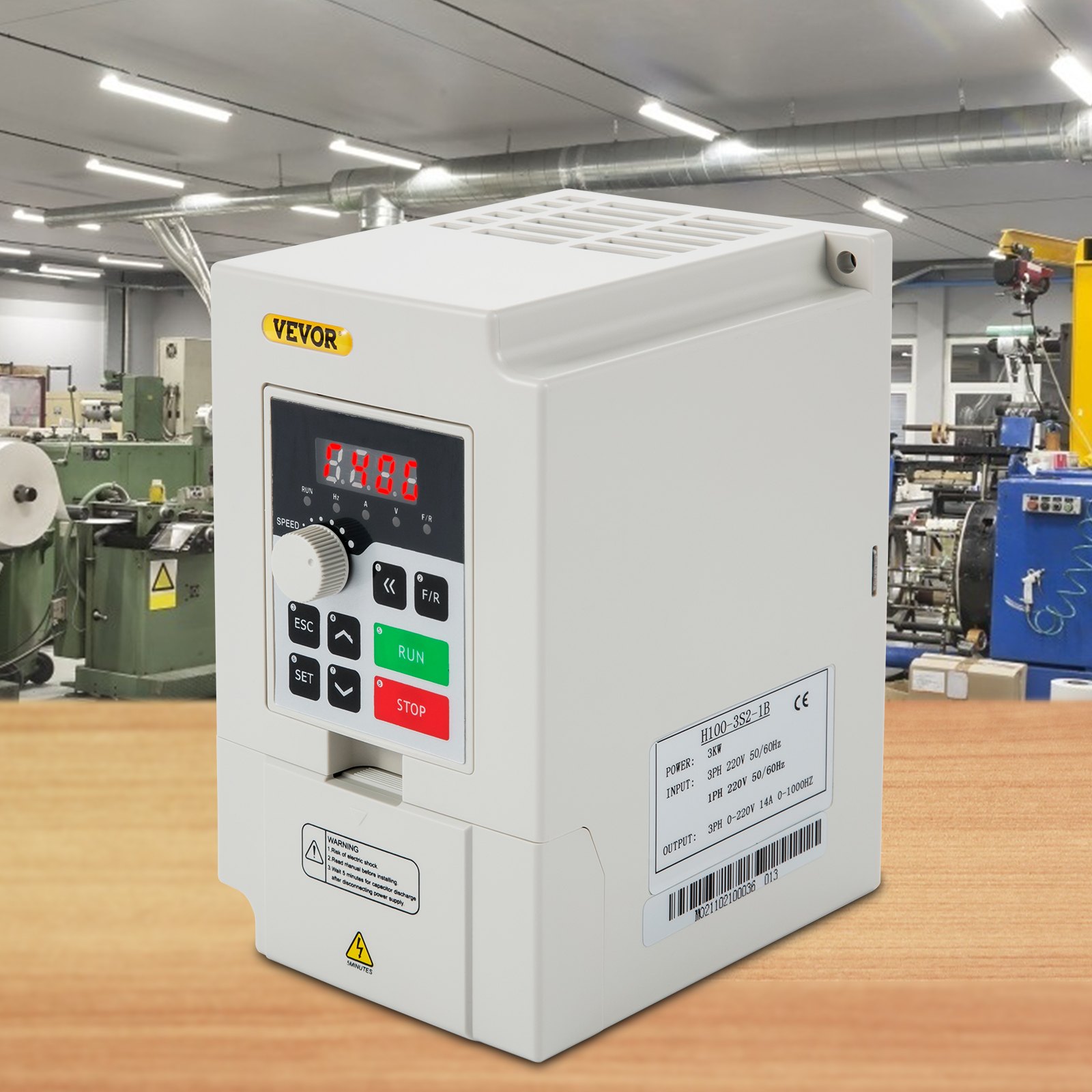

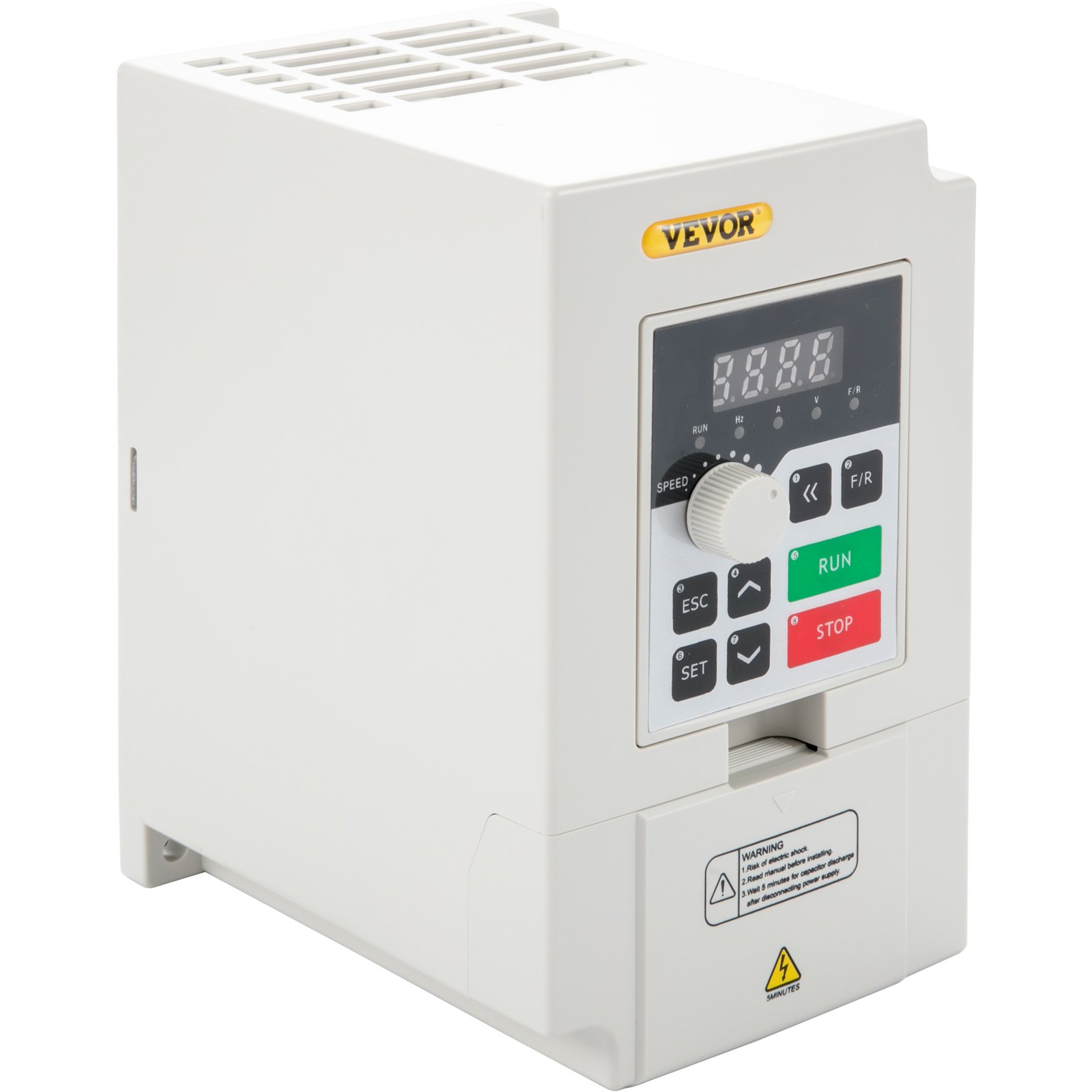

VEVOR Variable Frequency Drive, AC 220V Input 3KW Variable Frequency CNC Drive Inverter Converter, VFD 4HP 1 or 3 Phase Input, 3 Phase Output, CNC Motor Inverter Converter for Motor Speed Control
4.5 192 Reviews
$ 123 60
Earn at least 2% points on purchases or save up to 15%.
Each when you buy 0+.
Shop
Get -% off for new user
Get $5.00 Off $99.00+ Orders on Your First 3 App Orders.
Download Now
Features & Details

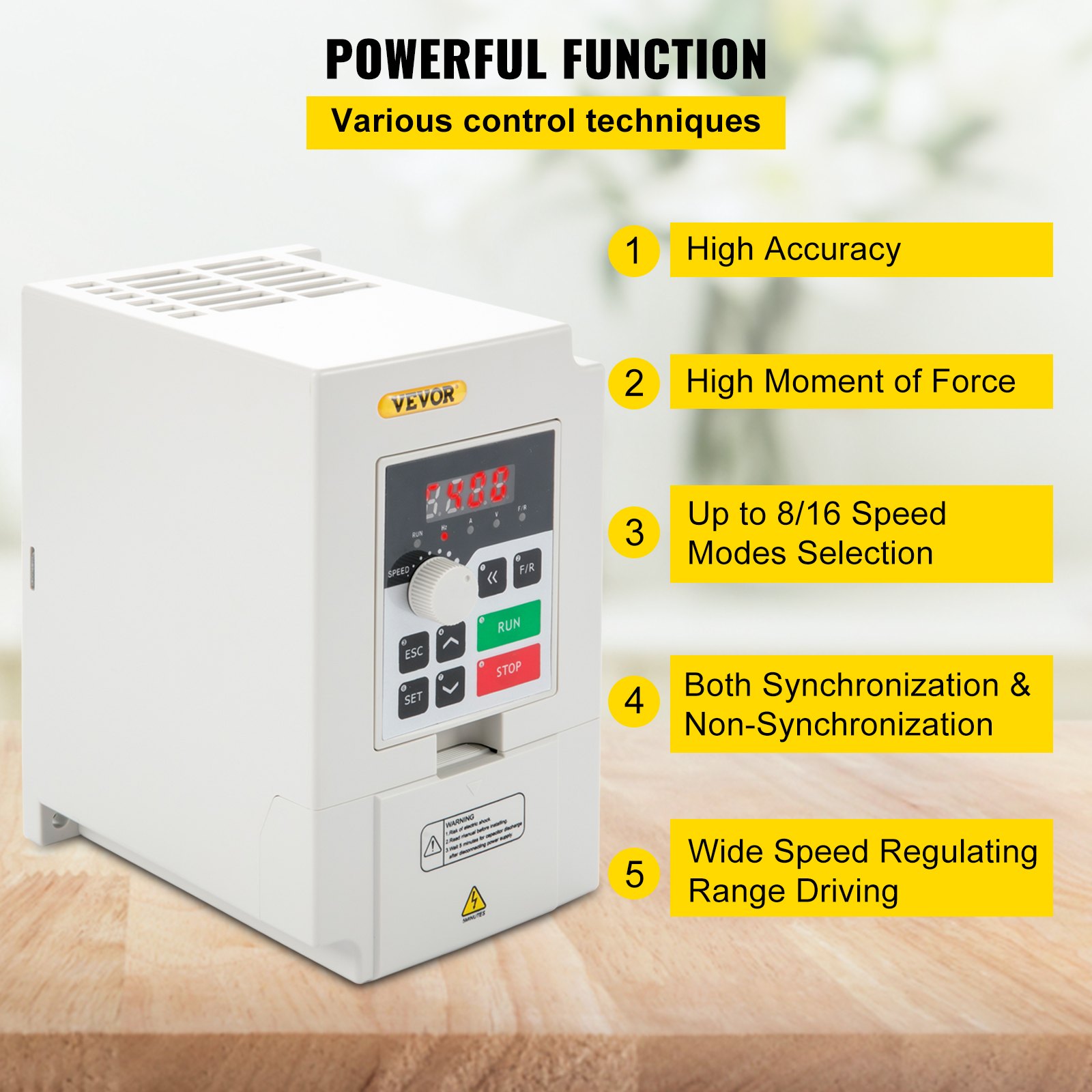

- Powerful Function: This variable frequency drive has a 1 or 3 phase input and 3 phase output. Control mode: V/F control and vector control. Frequency setting mode: digital setting, analog setting, serial communication setting (RS485 communication port, adopting standard international MODBUS main circuit control), PID setting (advanced calculus PID closed-loop arithmetic, quick responding speed, and high suitability), etc. Various control techniques by both synchronization and non-synchronization dynamically realize fast starting without changing brakes. Heavy load high torque, 1Hz up to full torque.
- Low-Noise Operation: The phase converter features low noise and low electromagnetic interference through the optimization of PWM control technology and electromagnetic compatibility of the overall design. There is enough space for heat dissipation between electronic components, and the shell adopts porous heat dissipation, which has a longer service life.
- Smart Digital Display: The VFD adopts a user-friendly keyboard design & reasonable layout, easy to operate; digital display, intuitive and clear. The detachable design is convenient for remote control.
- Multiple Protection: We adopt various protection ways to ensure the stable and reliable operation of the CNC variable frequency drive inverter. Such as overload protection, fuse protection, over-voltage (DC voltage>400V), or under-voltage (DC voltage<200V) protection, restart protection, stall protection, short-circuit protection, and over-heat protection.
- Versatile Use: The main application area involves a spindle motor, CNC engraving machine, CNC milling machine, CNC machine tool, milling machine, drilling machine, trimming machine, mixer, extruder, slitting machine, rewinder, compressor, ventilator, pump, grinder, conveyor. Speed regulators such as elevators (cannot be used for passenger elevators), centrifuges, etc.
Product specification
- Model H100-3S2-1B
- Power 3 kW
- Input Voltage 220V
- Output Voltage 0-220V
- Input Current 0-14A
- Output Current 0-14A
Frequently Bought Together
Reviews
About this item
Questions and Answers
Explore
Reviews
No customer reviews
Be the first to rate this product. your feedback will helps others make informed decisions.
Write a Review
Top Reviews
About this item
Product specification
- Model
- H100-3S2-1B
- Power
- 3 kW
- Input Voltage
- 220V
- Output Voltage
- 0-220V
- Input Current
- 0-14A
- Output Current
- 0-14A
- Input Phase
- 1 or 3 Phase
- Output Phase
- 3 Phase
- Input Frequency
- 50/60 Hz
- Output Frequency
- 0-1000 Hz
- Horsepower
- 4 HP
- Working Temperature
- 23~104℉/-5 ~ 40 ℃
- Humidity
- 0-90% Relative Humidity (without dew)
- Vibration
- Below 0.5 G
- Net Weight
- 2.43 lbs / 1.1 kg
- Product Size
- 5.9 x 3.54 x 4.6 in / 150 x 90 x 118 mm
Description
3 KW Variable Frequency Drive
Stable Performance & Digital Display & Mute Operation
This VFD converter can be used for constant torque loads (such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc.). In addition, it can be used as a motor speed control and a phase converter. The input for this VFD is 1 or 3 phase, and the output is 3 phase. You can control the different speeds you like when you use this VFD. This item uses Sine wave PWN(SVPWM) for the control system and performance excellently. It also has passed CE certification.
- Powerful Function
- Low-Noise Operation
- Smart Digital Display
- Multiple Protection
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Unique Control Method
This VFD uses a unique control method to achieve the high moment of force, high precision, and wide speed regulating range driving. It can realize functions like up to 8/16-segment speed control, a program running, 4-segment acceleration/deceleration switching, etc.
High-Quality Material
The case of CNC VFD is made of ABS flame retardant material which features strong crash-proof capabilities, good flame retardancy with a non-corrosive coating. In addition, it has good tripping prevent performance and the ability to adapt to rough power, temperature, humidity, and dust interference, greatly improved stability. The capacitor can withstand temperatures up to 105℃, higher than ordinary ones (80℃).

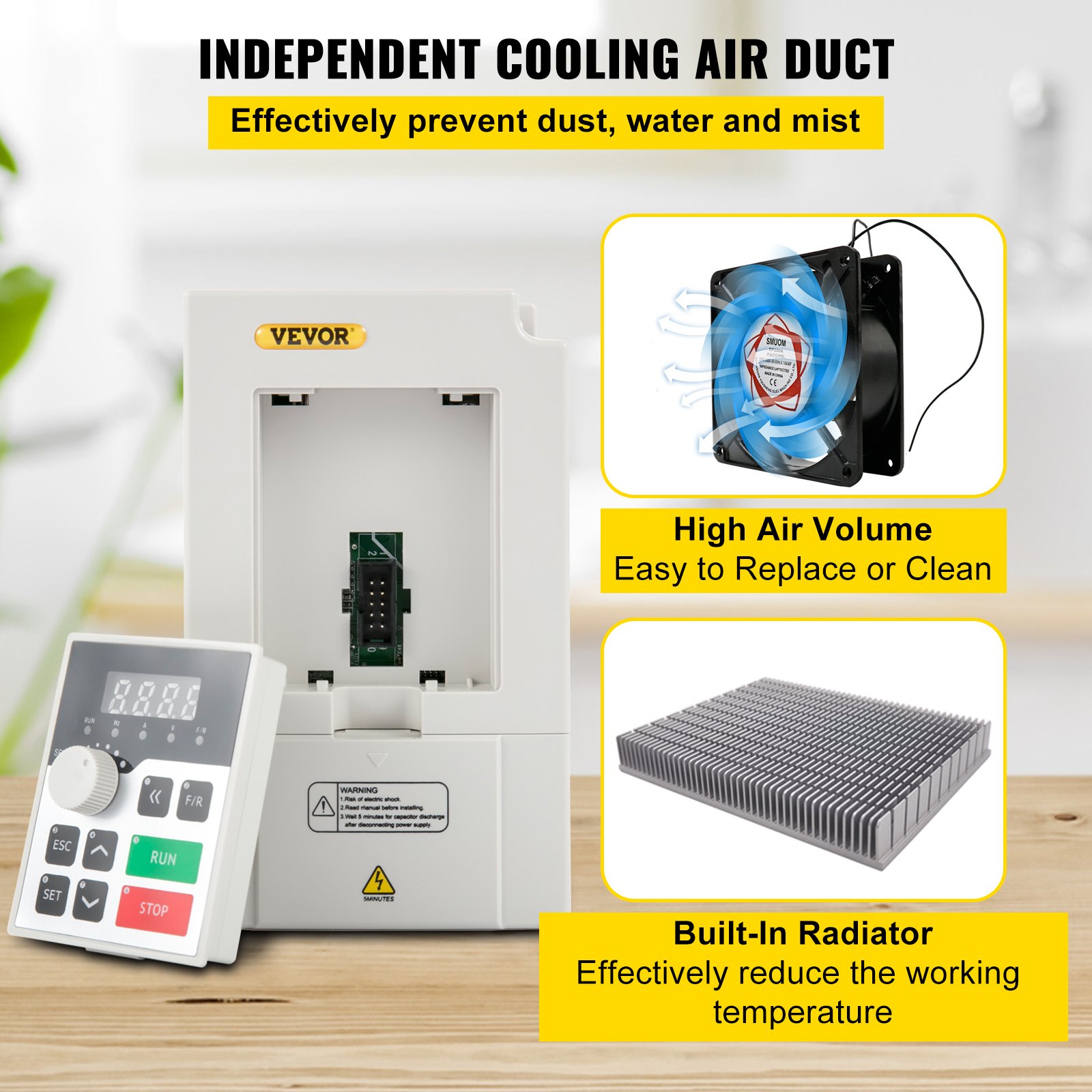

High Air Volume
The VFD drive is equipped with fan cooling and a built-in radiator. It has an efficient heat dissipation ability, ensuring a suitable temperature inside the VFD. In addition, the independent air duct is designed for electrical and contaminant isolation, allowing the product to be used in harsh environments.

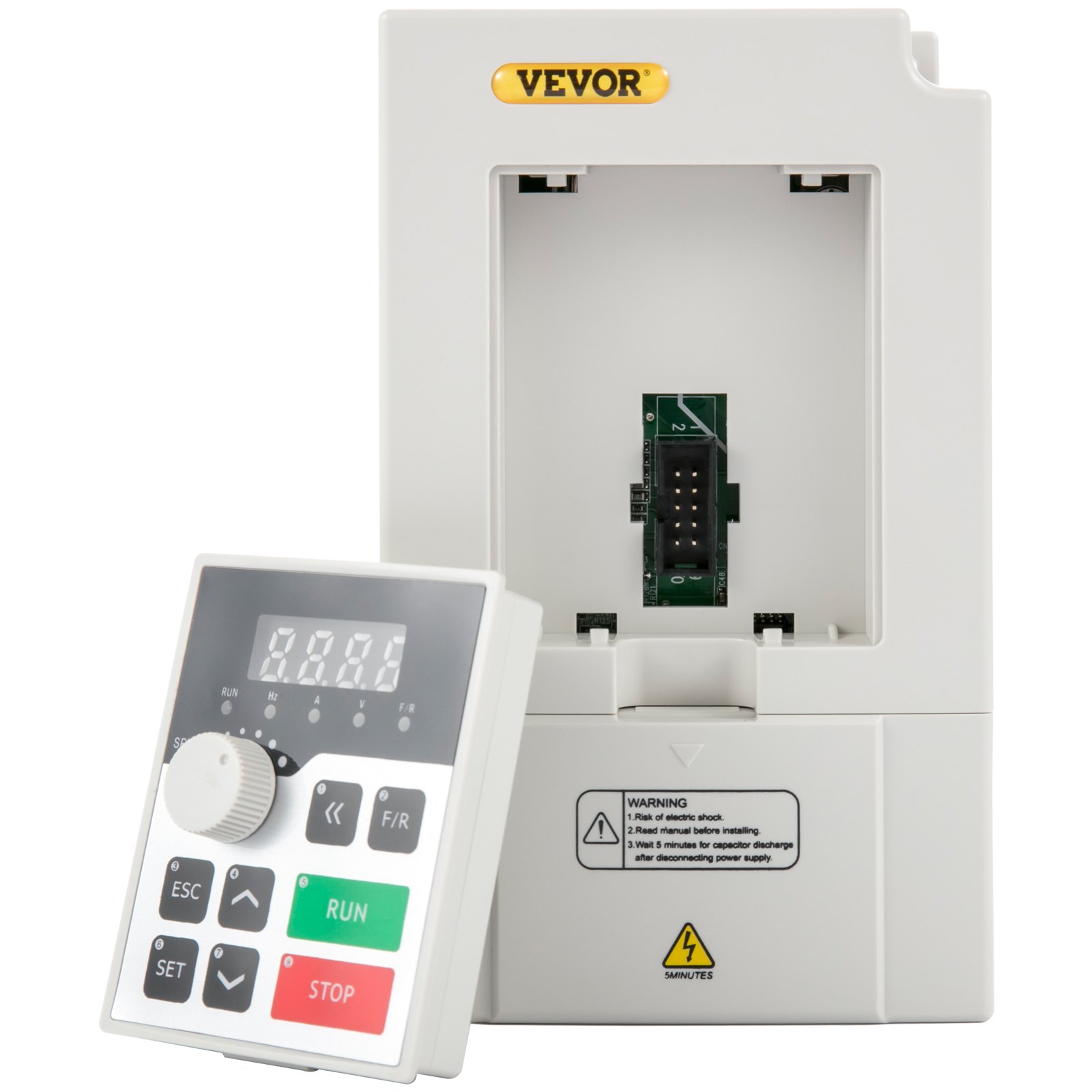

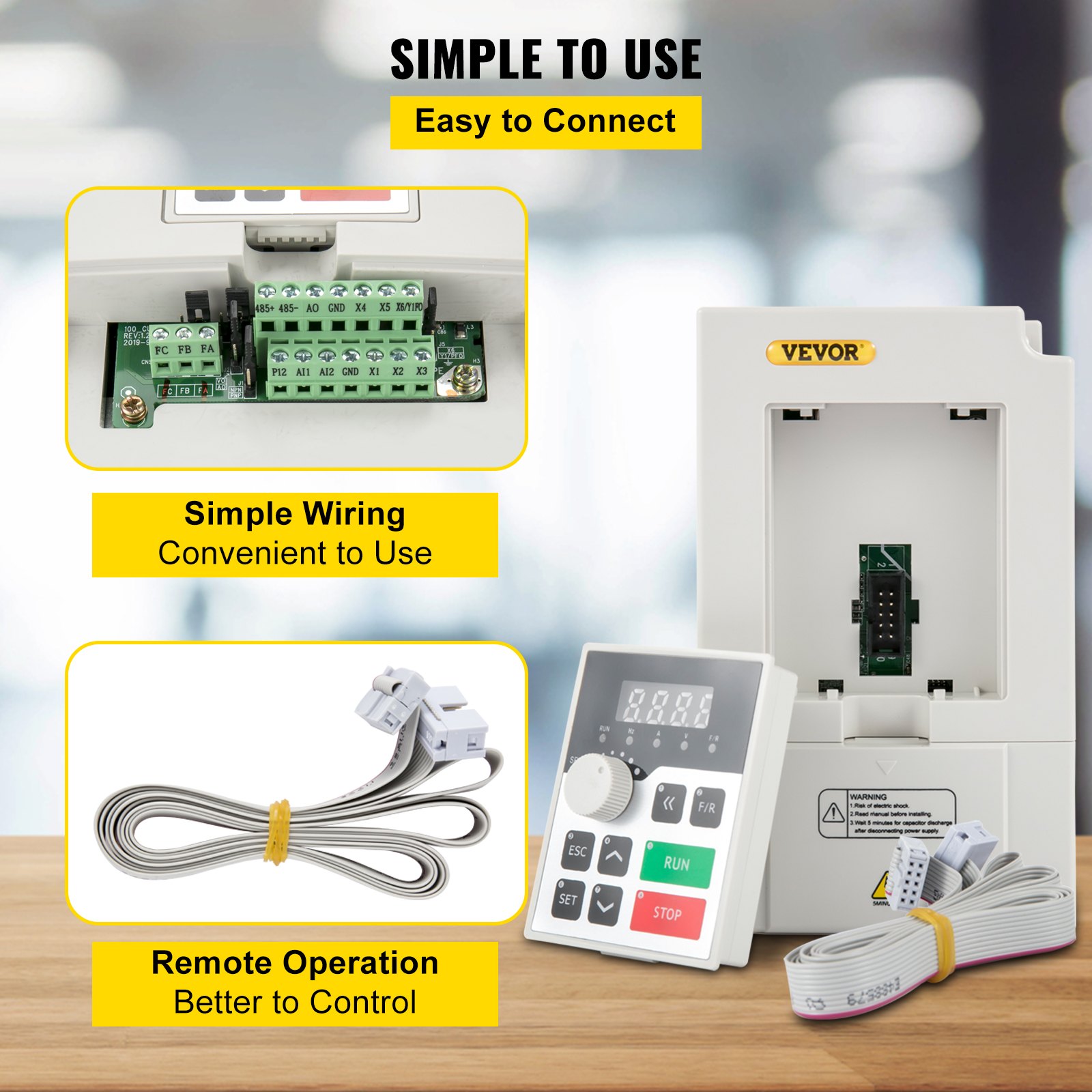

Smart Digital Display
After the panel is disassembled, it can be connected to the corresponding interface to achieve remote control. Reasonable layout and intuitive & clear digital display increase the convenience of daily use.

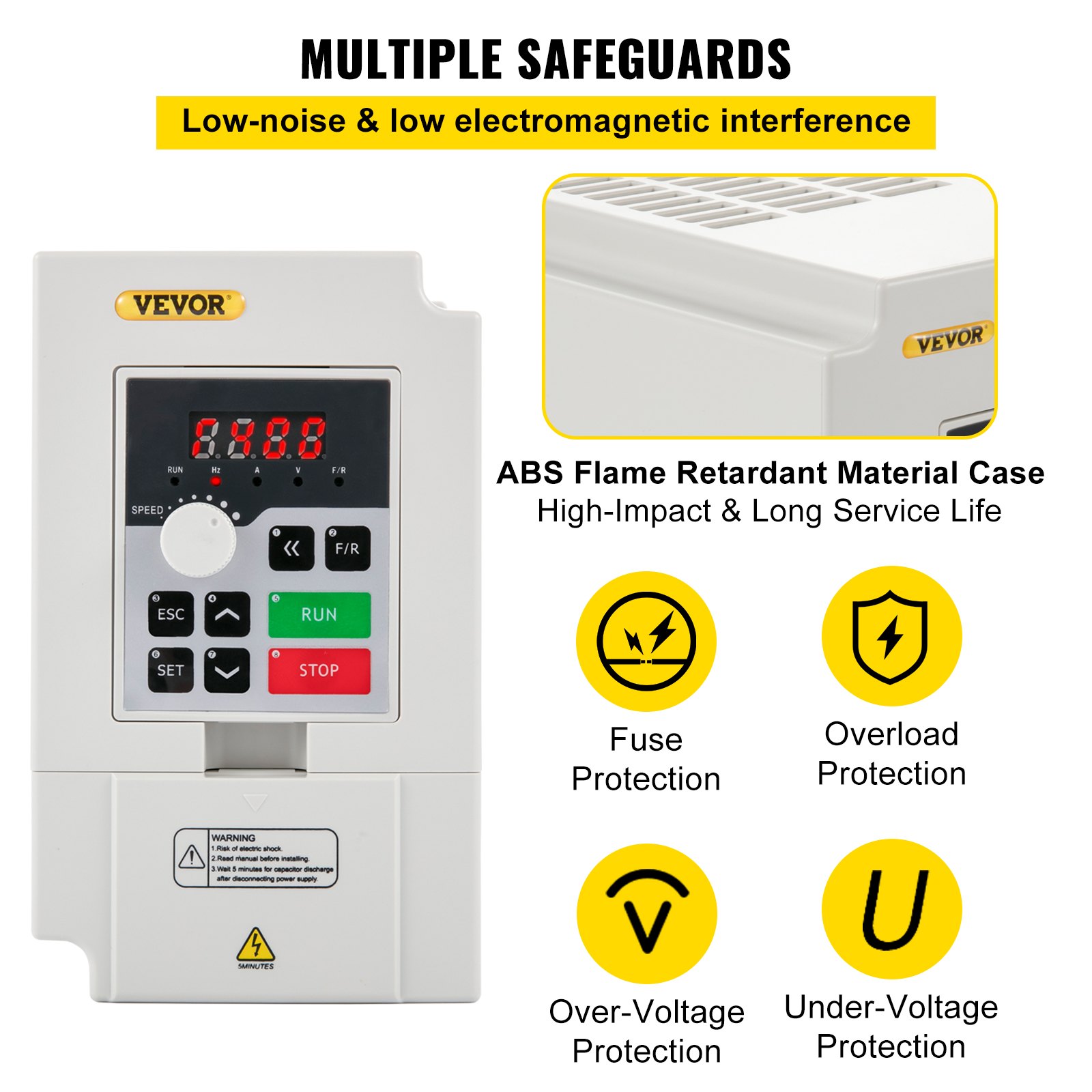

Multiple Protection
Many protection ways are adopted to ensure the stable and reliable operation of the CNC variable frequency drive inverter, like overload protection, fuse protection, over-voltage or under-voltage protection, etc.

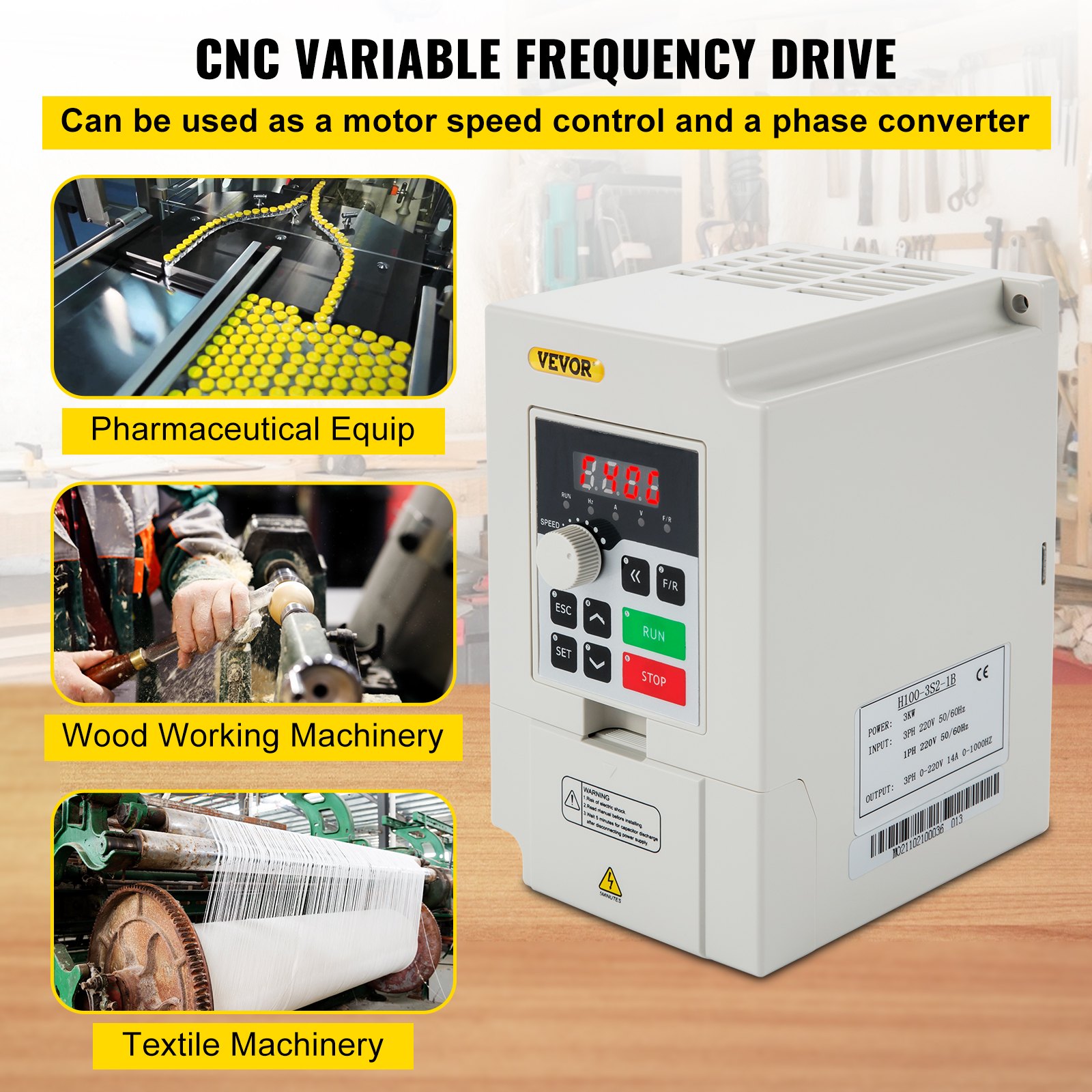

Wide Application
The variable frequency drives are applied in machinery winding machines, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, elevator, and other speed control machines.
Specifications
- Model: H100-3S2-1B
- Power: 3 kW
- Input Voltage: 220V
- Output Voltage: 0-220V
- Input Current: 0-14A
- Output Current: 0-14A
- Input Phase: 1 or 3 Phase
- Output Phase: 3 Phase
- Input Frequency: 50/60 Hz
- Output Frequency: 0-1000 Hz
- Horsepower: 4 HP
- Working Temperature: 23~104℉/-5 ~ 40 ℃
- Humidity: 0-90% Relative Humidity (without dew)
- Vibration: Below 0.5 G
- Net Weight: 2.43 lbs / 1.1 kg

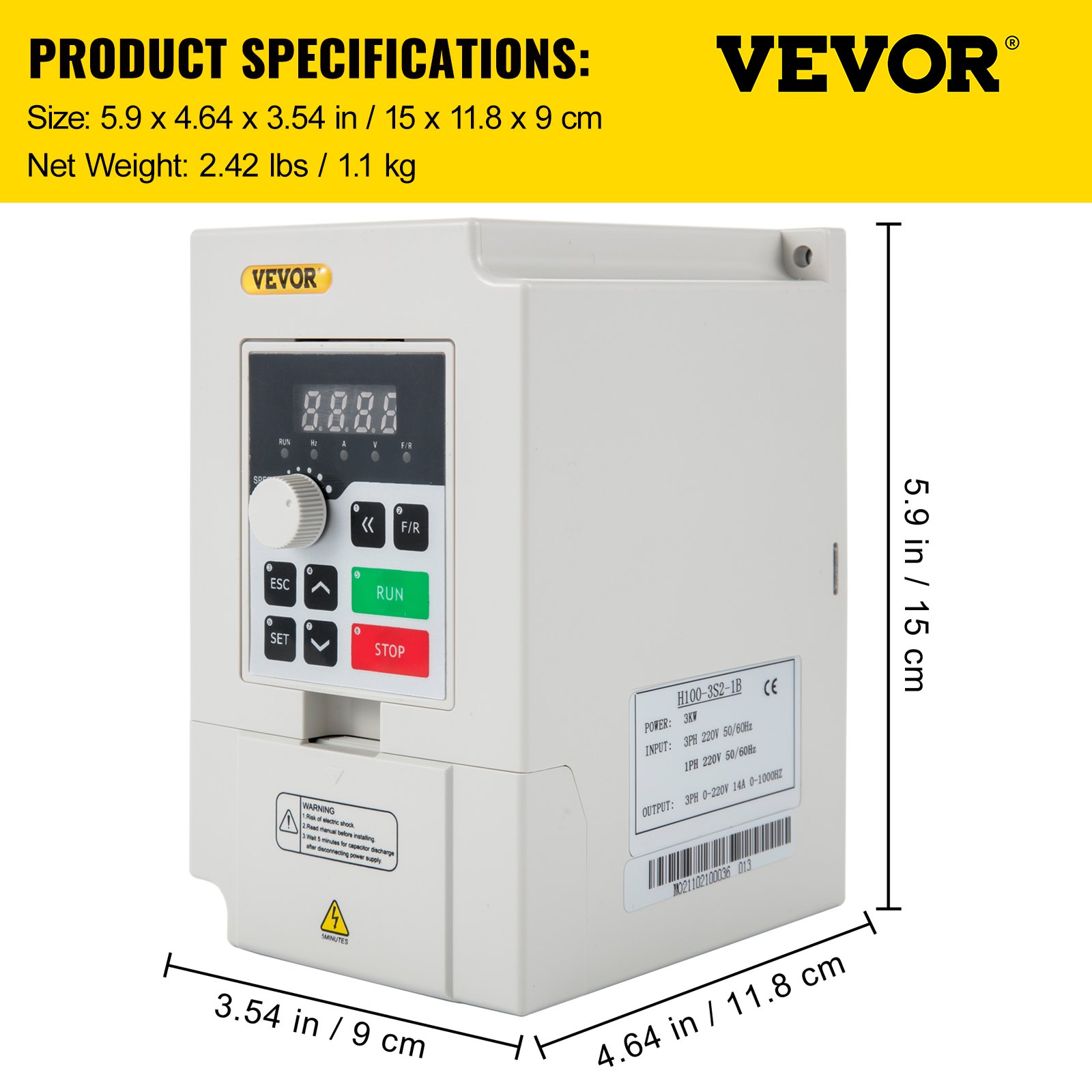

- Product Size: 5.9 x 3.54 x 4.6 in / 150 x 90 x 118 mm

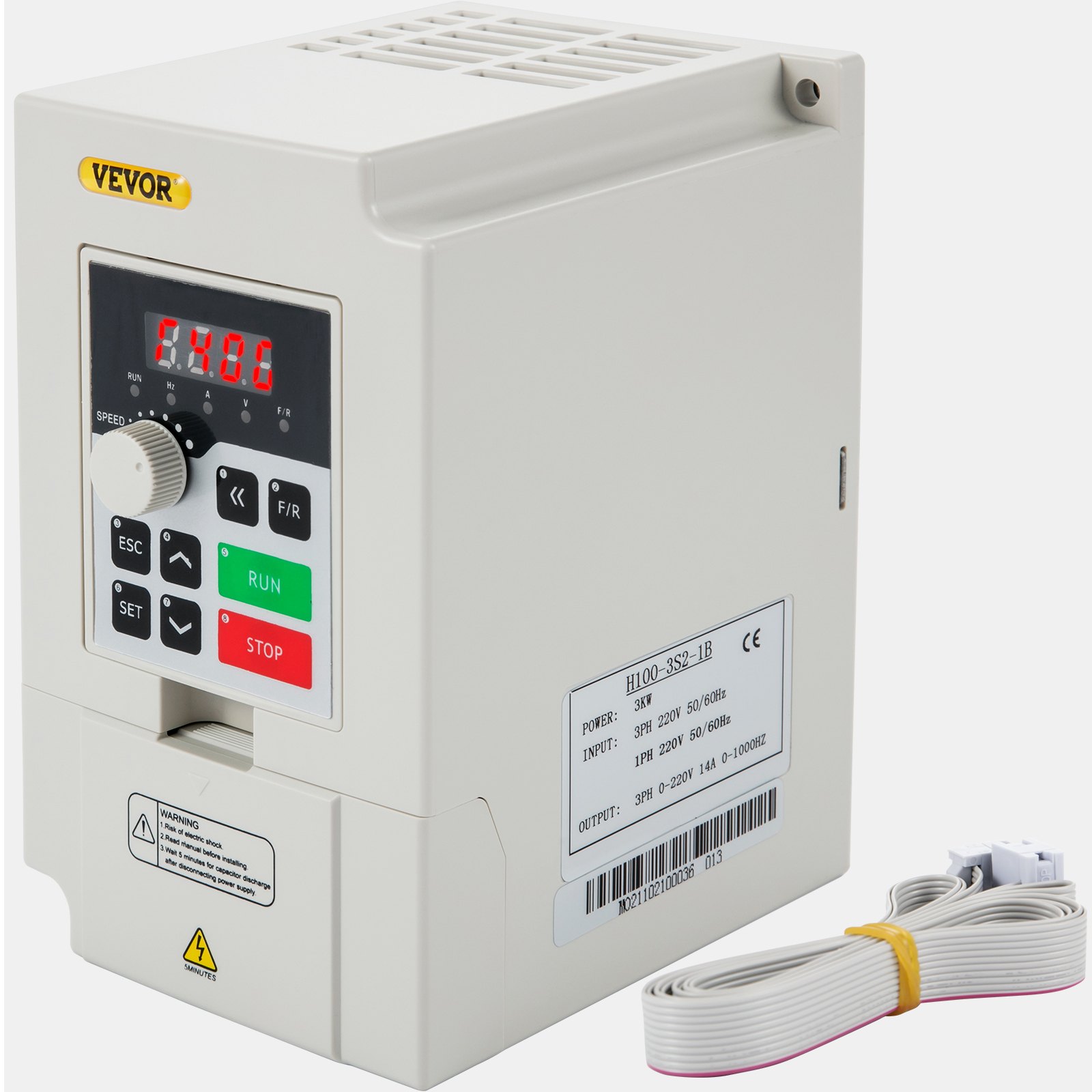

Package Content
- 1 x 3 KW Variable Frequency Drive Inverter
- 1 x English Manual
- 1 x Extension Wire
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
3 KW Variable Frequency Drive
Stable Performance & Digital Display & Mute Operation
This VFD converter can be used for constant torque loads (such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc.). In addition, it can be used as a motor speed control and a phase converter. The input for this VFD is 1 or 3 phase, and the output is 3 phase. You can control the different speeds you like when you use this VFD. This item uses Sine wave PWN(SVPWM) for the control system and performance excellently. It also has passed CE certification.
- Powerful Function
- Low-Noise Operation
- Smart Digital Display
- Multiple Protection
Unique Control Method
This VFD uses a unique control method to achieve the high moment of force, high precision, and wide speed regulating range driving. It can realize functions like up to 8/16-segment speed control, a program running, 4-segment acceleration/deceleration switching, etc.
High-Quality Material
The case of CNC VFD is made of ABS flame retardant material which features strong crash-proof capabilities, good flame retardancy with a non-corrosive coating. In addition, it has good tripping prevent performance and the ability to adapt to rough power, temperature, humidity, and dust interference, greatly improved stability. The capacitor can withstand temperatures up to 105℃, higher than ordinary ones (80℃).
High Air Volume
The VFD drive is equipped with fan cooling and a built-in radiator. It has an efficient heat dissipation ability, ensuring a suitable temperature inside the VFD. In addition, the independent air duct is designed for electrical and contaminant isolation, allowing the product to be used in harsh environments.
Smart Digital Display
After the panel is disassembled, it can be connected to the corresponding interface to achieve remote control. Reasonable layout and intuitive & clear digital display increase the convenience of daily use.
Multiple Protection
Many protection ways are adopted to ensure the stable and reliable operation of the CNC variable frequency drive inverter, like overload protection, fuse protection, over-voltage or under-voltage protection, etc.
Wide Application
The variable frequency drives are applied in machinery winding machines, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, elevator, and other speed control machines.
Package Content
- 1 x 3 KW Variable Frequency Drive Inverter
- 1 x English Manual
- 1 x Extension Wire
Specifications
- Model: H100-3S2-1B
- Power: 3 kW
- Input Voltage: 220V
- Output Voltage: 0-220V
- Input Current: 0-14A
- Output Current: 0-14A
- Input Phase: 1 or 3 Phase
- Output Phase: 3 Phase
- Input Frequency: 50/60 Hz
- Output Frequency: 0-1000 Hz
- Horsepower: 4 HP
- Working Temperature: 23~104℉/-5 ~ 40 ℃
- Humidity: 0-90% Relative Humidity (without dew)
- Vibration: Below 0.5 G
- Net Weight: 2.43 lbs / 1.1 kg
- Product Size: 5.9 x 3.54 x 4.6 in / 150 x 90 x 118 mm
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (15)
Hello, I have a single phase motor already, can I just connect one single phase? Or is it necessary to connect always all the phases and use a three phase motor? Thank you
This inverter can be connected to single-phase motor and connected to U and W terminals. And ensure that the motor power is less than 3Kw, because the current of single-phase motor will be very high.
By vevor
Helpful
(
14
)
Can this inverter/vfd be connected to you 2hk 8x82 belt grinder wich has a 2hk/1,5kw single phase motor? https://eur.vevor.com/belt-grinder-c_11006/belt-grinder-2-x-82-complete-chassis-3-tool-rest-w-2hp-motor-3-in-1-sander-p_010288052332
It is not recommended to drive a single-phase motor. The starting current of a single-phase motor is 4-5 times the rated current.
By vevor
Helpful
(
3
)
Can this control https://eur.vevor.com/spindle-motor-c_10130/vevor-square-air-cooled-spindle-motor-2-2kw-cnc-spindle-motor-220v-er20-collet-p_010648959518
It can drive the spindle motor. You need to set F005 to 400, F004 to 400, F003 to 400, and F144 to 24.00.
By vevor
Helpful
(
2
)
Can this control https://eur.vevor.com/spindle-motor-c_10130/vevor-square-air-cooled-spindle-motor-2-2kw-cnc-spindle-motor-220v-er20-collet-p_010648959518, but not manually but by software via 10 V in terminal?
Many thanks,
Marko
The 0-10 analog signal can be used to control the frequency of the inverter to control the speed of the motor. The 0-10V analog signal is connected to the GND and AI1 terminals, and the parameter F002 is set to 1 (AI1).
By vevor
Helpful
(
1
)
Yes, you can control the spindle running, stopping and speed through the inverter control keyboard. The green RUN key on the inverter control keyboard can control the spindle running, the red STOP key can control the spindle stopping, and the white knob can control the spindle speed. Before driving the spindle, you need to set the spindle frequency and speed in the inverter parameters, F005 is set to 400, F004 is set to 400, F003 is set to 400, and F144 is set to 24.00.
By vevor
Helpful
(
1
)
Good Evening
I received my 2 inverters this evening to find they are only 220v 3 phase output I need 380v output
This inverter can only output 220V, not 380V.
By vevor
Helpful
(
1
)
