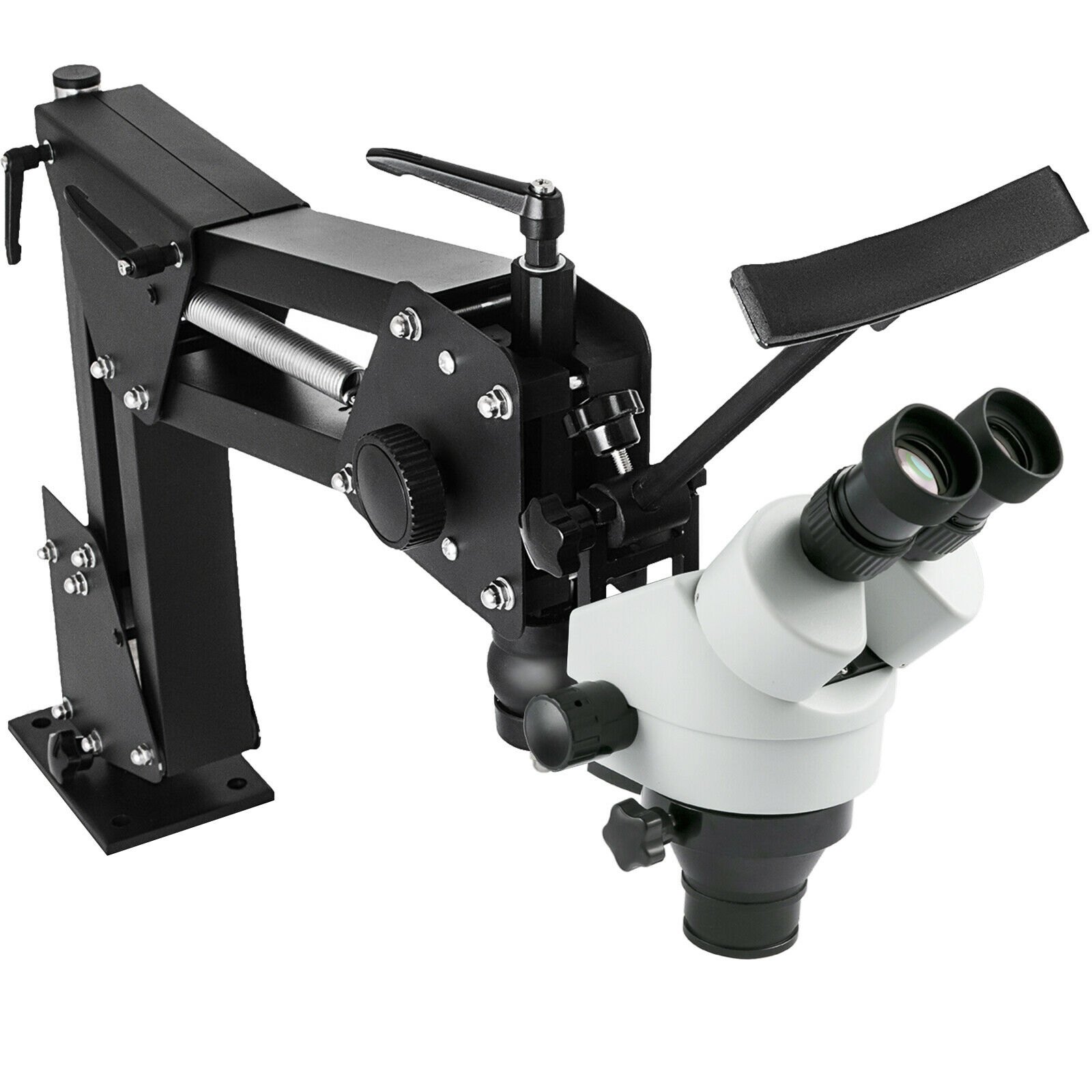

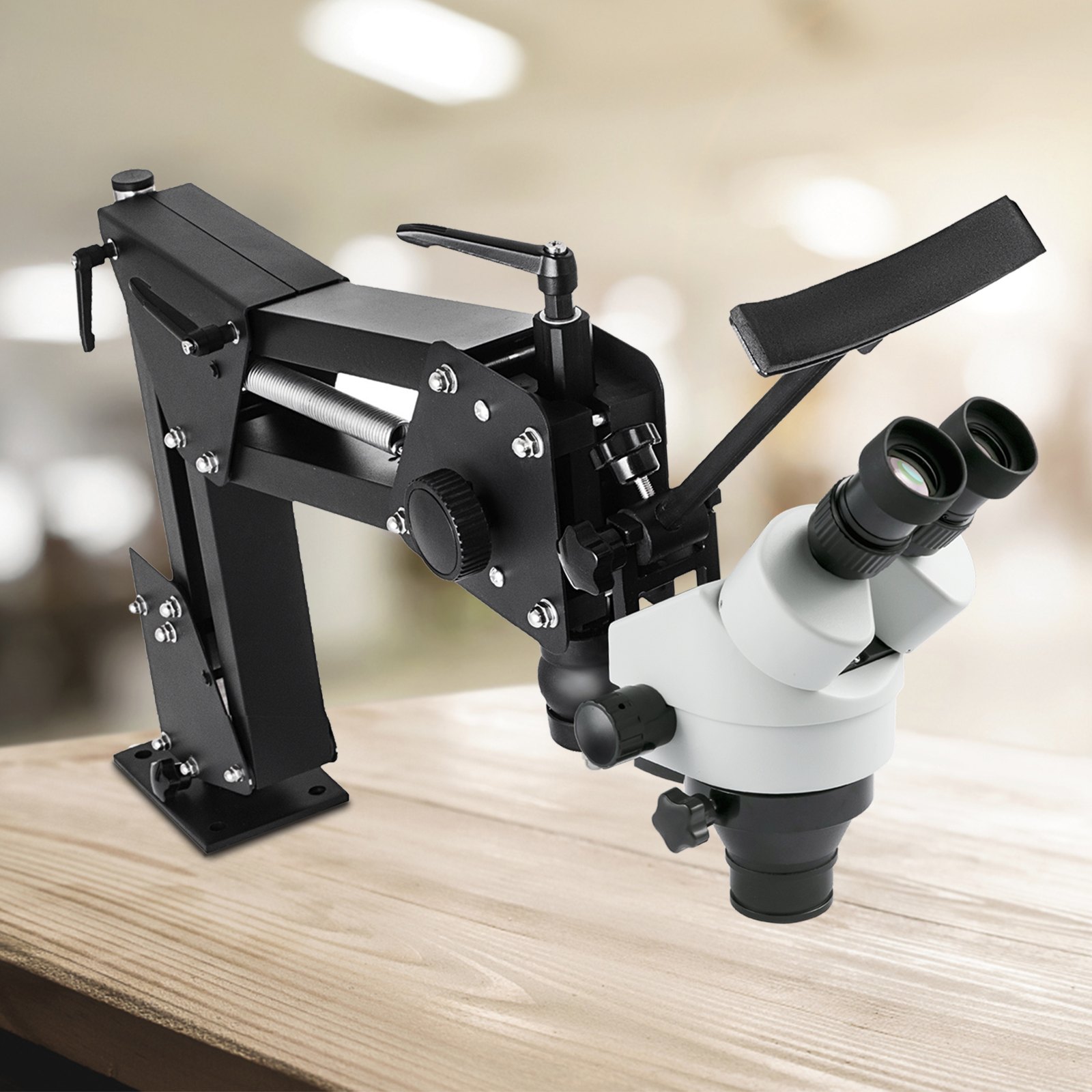

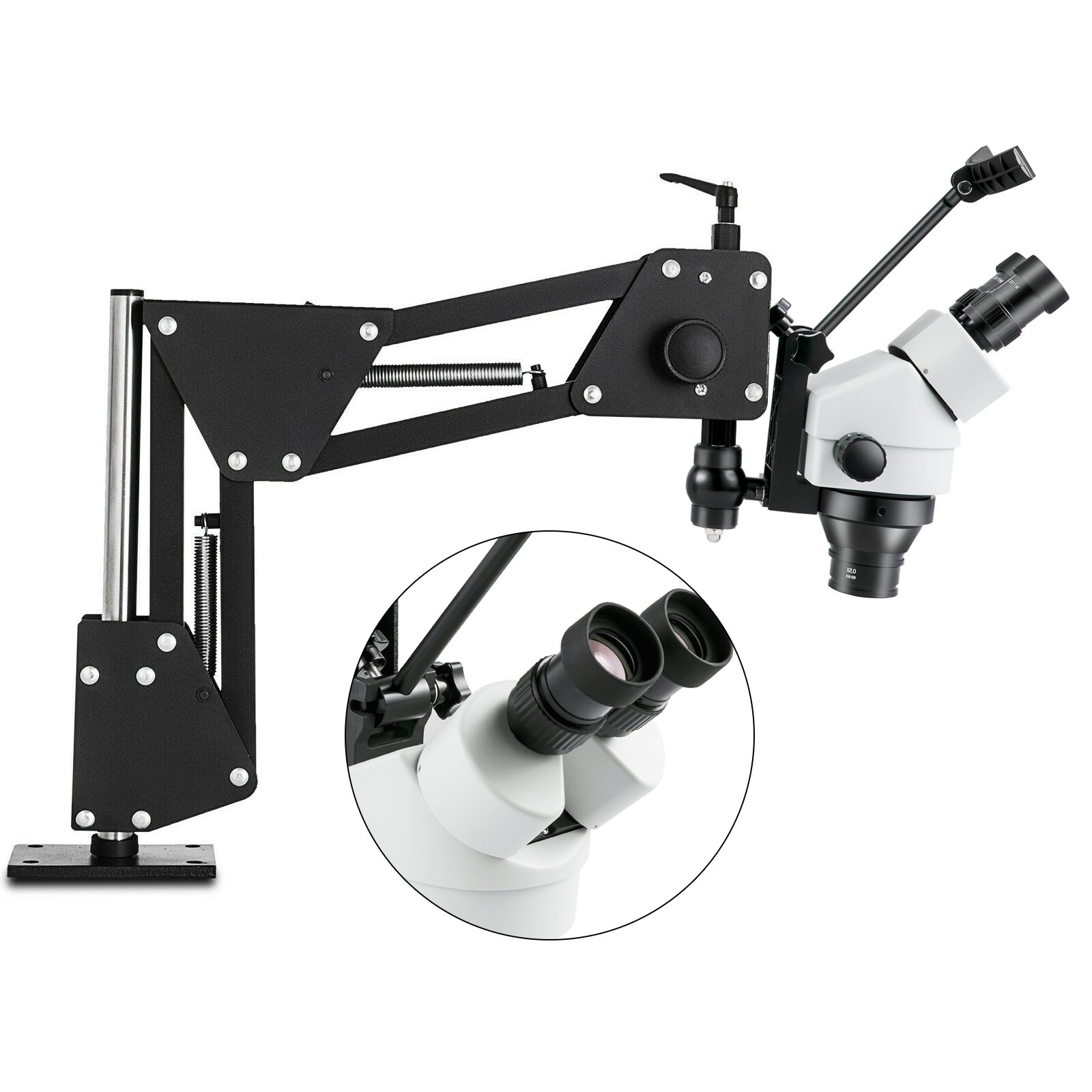

Name: VEVOR Micro Inlaid Mirror Multi-directional Micro-setting Microscope 76mm Lens Spring Bracket Jewelry Tools 7X-4.5X
Brand: VEVOR
SKU: WXQJWXTHZJ0000001V0
Price: 331.99 EUR
Availability: InStock
Rating: 4.8 (20 reviews)

VEVOR Micro Inlaid Mirror Multi-directional Micro-setting Microscope 76mm Lens Spring Bracket Jewelry Tools 7X-4.5X

Price including VATSee details

Save up to 15% with PRO price. Sign up for free PRO Account.

Exclusive 5,00€ off on your first three app orders. Only App.

Download Now

Exclusive 5,00€ off on your first three app orders. Only App.

Scan the QR code to download

About this item

【DETAILED PARAMETERS】- Continuous Zoom: 0.7X-4.5X, Long Working Distance: 95mm-300mm/ 3.7''-11.8”, Model: Jewelry Microscope Stand, Material: Hard Aluminum Alloy, Machine Objective Lens: 0.5X/165Mm, Machine Eyepiece: Wf10X/20Mm, Field Of View: 5.1-33 Mm (0.2-1.3 inch), Spin Angle: Horizontal ±15°, Straight: ±15°, Main Straight: 270°.
【CONTINUOUS ZOOM & STEREOSCOPE SENSE】- The continuous zoom microscope lens is characterized by high-definition, large field of view, and strong stereoscopic sense. Wide-angle vision technology brings high resolution and a large field of view with easy operation.
【POWERFUL PERFORMANCE】- The jewelry microscope inlaid stand is made of high rigidity aluminum alloy. With compact and stable chassis, it occupies a small space to store easily. A large zoom ratio & a wide field of view make the observation clearer and brighter.
【USER-FRIENDLY DESIGN】- The unified headrest rest frame, as a user-friendly operating design, relieves neck fatigue. Aesthetic and practical cross-section universal joints are suitable for various heights & azimuth angles.
【VARIOUS APPLICATION】- An essential tool for the micro-inlay jewelry industry, it’s able to meet all needs of operating requirements. Help you zoom in on the details of the jewelry and do better inlay work.

See More See Less

Specification

Continuous Zoom: 0.7X-4.5X

Long Working Distance: 95mm-300mm / 3.7''-11.8''

Model: Jewelry Microscope Stand

Material: Hard Aluminum Alloy

Bracket Hole: 85mm / 3.35''

Control High Range: 60mm / 2.36''

Straight: ±15°

Main Straight: 270°

Machine Objective Lens: 0. X/165 mm

Machine Eyepiece: WF10X/20 mm

Binocular Pupil Distance: Pupil distance adjustment 54-76 mm (2.13-2.99 inch)

Field of View: 5.1-33 mm (0.2-1.3 inch)

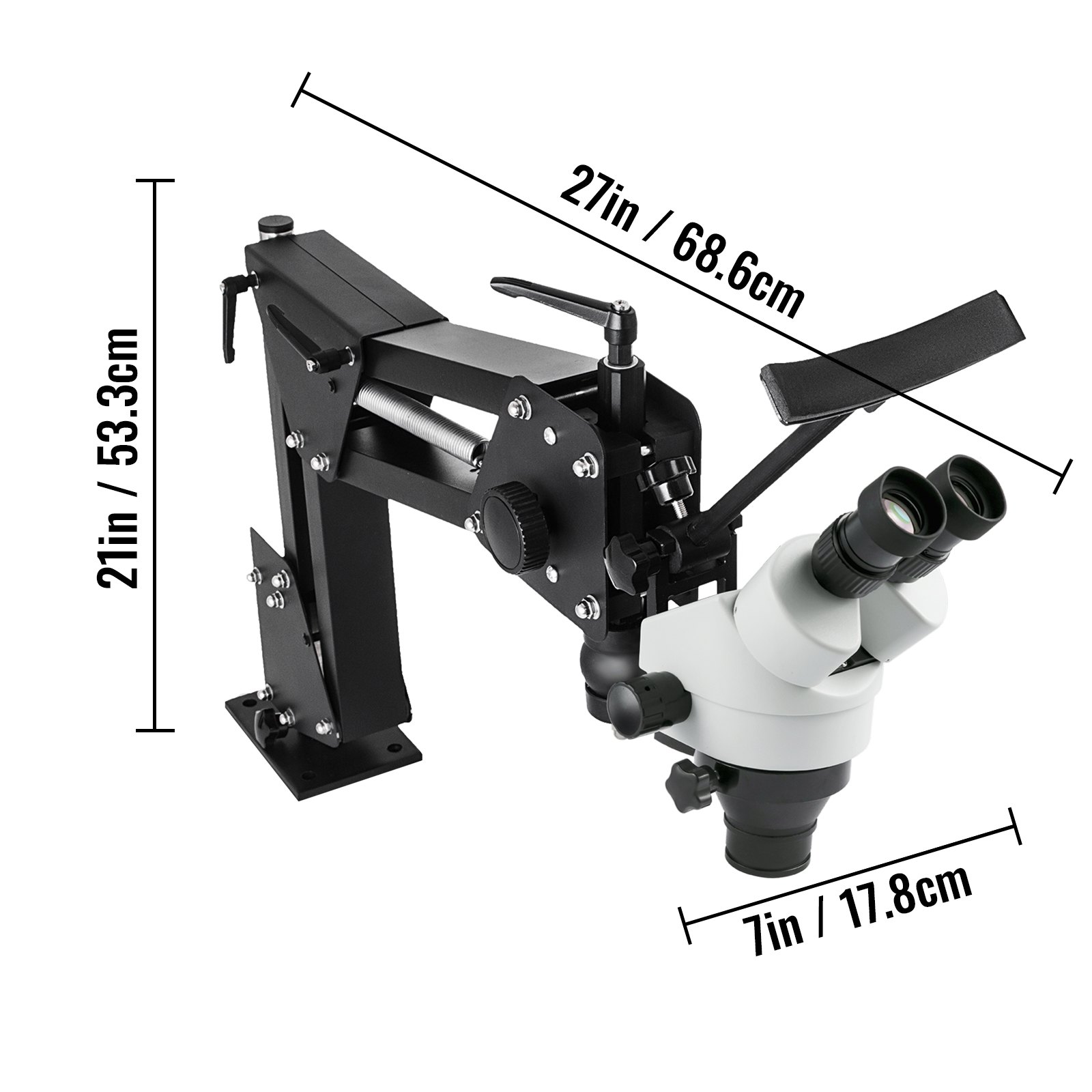

Product Size: 68.58 cm x 53.34 cm (L x H)/27'' x 21''

Manual: Download Link

Bra anbefales !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Wow! Really awesome microscope. Its a must for that low price. Only reason I give it 4 stars is because it does not include lighting or the option to buy lighting directly from vevor.

All and all I highly recommend this microscope, it’s great if you are working with jewellery or electronics repairs, you’ll just need to purchase some light to go with it and the brighter the better :) why I rate it at 4 starts not 5? It’s just because of one little annoying thing… if you extend the arm towards yourself and lower it it comes back up because of tension on springs… you can tighten the frame as much as you want it’s still going that :) I’ve took it apart and added rubber discs to prevent it so now it’s better but it’s very annoying when you work on something and it just moves and goes out of focus sometimes :)

I've been having more and more trouble with gem setting as I get older -- just being able to SEE the fine details for a bead/bright cut setting is problematic, much less checking slight cuts on a thin gauge prong setting. I tried a variety of options for magnification, but nothing quite fit the bill. I'd long ogled the industry standard microscope (after which this was clearly copied), but at roughly 10x the price, I simply couldn't justify it in today's market.Having used both, this is not QUITE as sturdy as the industry standard. It lacks some features of the new one (including a slightly better focusing mechanism and a slightly better range of motion). But this is a spot on copy of the old version, and works just as well.I was more than a little pleased by this addition to the bench, as it's saved my eyes a hundred times over, as well as letting me do things that were becoming more and more impossible with my eyesight. If you're on the fence about this, don't be. Best purchase I've made in years.

See More See Less

Customer Reviews

4.8 Out of 5

Based on 20 reviews

Ratings by Features

Price 4.8
Quality 4.6
Features 4.6
Easy to Use 4.7
See More See Less

20 Review(s)

Clear filters

Johnny

Herr

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Florin

Microscop

Ok este un microscop ok calitate preț aveți nevoie de inluminat pentru el este robust suportul de cap este cam scurt

Paywand

Martynas

Great but could be better

Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful

Neil Fusillo

Absolutely amazing microscope for a fraction of the cost of the 'industry standard.'

Richard J Olson

I’m a bench jeweler of fifty years , this changed my life. So worth the price.

Totally worth it. Richard Olson. Jeweler of fifty years.

Michael

Vevor Micro Inlaid Mirror Micro setting microscope 0.5x/165mm

This Tool is a musthave for jewellery stone setting and engraving... The quality is a much better than i expect and all the parts work very smooth and the working distance is very good, the optical system is verry clear and verry bright, absolute verry good...!

roman

Bang for buck

I recently got into diamond setting. after going to setting school on YouTube university I figured I was ready to go so I am not sure how this compares to higher end ones but this is good enough for me and pretty well built.

David B.

Great scope for the value

Great microscope for the value. Works just as good as ones 4x the cost.

Tilfahr TSarran

You get more than what you pay for, but less than the best

This is NOT a GRS-level set up. However, considering the GRS version will run you well over $2000, this is an excellent bargain and worth the investment for a beginner/novice jeweler/engraver. The stand is not made of as heavy gauge metal as the expensive alternative, but it works. The only thing I had a problem with was the locking screw for the pole. It is too chunky to allow more than a 25degree swing in either direction because it catches on the arm frame. For engraving, this can be annoying. Plus it prevents you from swinging the arm to the side to clear your workspace for doing other things. However, if what you are doing is more stationary, and you don't use that station for anything else, it's fine. I simply found a "normal" short machine screw to replace the one they give you to get the mobility in the arm I wanted. I expect this will hold up for several years, but I won't be expecting it to last forever.
