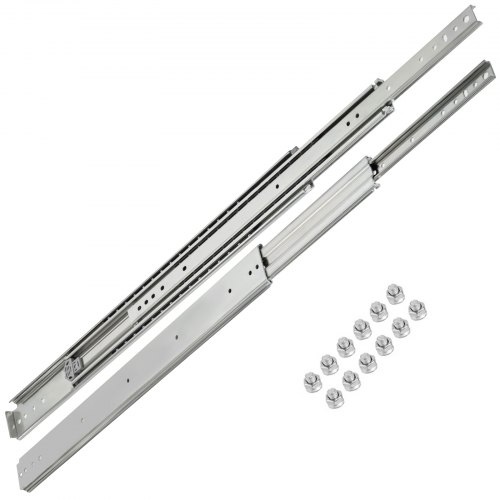

Full Extension Slide Drawers
The cold-rolled steel drawer slides are capable of high hardness with excellent stability and durability. In addition, you will be benefited from the ultra-secure, well-suited, and low-noise device with a detailed guide and handy screws. The universal places include cabinet warehouse containers, industrial drawers, commercial equipment, retrofitted vehicles, etc.
- Three-Section Slides
- Steel & 500 lbs Bearing
- Smooth & Quite to Slide
- Choose the Right Size
3-Fold Slide Drawers
Firstly, the drawers pull out the middle channels; the outer channel continues, and the inner channel lasts. The three-section slide drawers designs are for smooth slides.
Cold Rolled Steel
Made from high-grade cold-rolled steel that is zinc plated can effectively keep the drawer glides and slides scratch-proof, abrasion-proof, and away from corrosion and rust.
Low Noise Design Details
Nylon buffer can reduce the direct contact between the outer and the inner channel. In addition, the embedded steel balls make the smooth sliding and quiet.
Fit for Size
Slide length can be equal to drawer depth, and the minimized cabinet depth can be drawer length plus 4 mm. Please note that the side-mounted slide rails on both sides should be parallel.
Easy & Quick Assemble
It would be better to tighten the bolt between the side and the drawer from outside to inside. Then, the drawer and cabinet from inside to outside.
Wide Application
The wood center mount drawer slides are suitable for the following places, such as industrial drawers, modified car drawers, office cabinets, tool rooms, etc.
Package Content
- 2 x Drawer Slides
- 12 x M6 Screws
- 12 x M6 Screw Nuts
Specifications
- Model: VV-CTDG-500B WS 40YC
- Color: Sliver
- Material: Cold Rolled Steel
- Finish: Zinc Plated
- Load Capacity: 500 lbs/ 225 kg
- Fully Pull-Out Length: 80"/ 203.2 cm
- Fold Product Size: 40 x 3 x 0.75"/ 101.6 x 7.6 x 1.9 cm
- Inner Size: 40 x 1.2"/ 101.6 x 3 cm (L x W)
- Middle Size: 40 x 2.1"/ 101.6 x 5.4 cm (L x W)
- Outer Size: 40 x 3"/ 101.6 x 7.6 cm (L x W)
