Features & Details

• Efficient Motor: Equipped with a single-phase asynchronous motor, 750W, with aluminum shell, this electric hydraulic pump is energy efficient, powerful, and durable. Hydraulic pump working pressure: 2Mpa to 70Mpa. Rotate speed:1400r/min. Flow rate: 0.9L/min - 5L/min.
• Large Capacity Tank: With a large fuel tank capacity, 7L, the hydraulic power pack is efficient. A visible window for monitoring the inside. The hydraulic pump tank uses the 15th hydraulic oil. It has the advantages of compact size, lightweight, and simple structure.
• Accurate Pressure Gauge: This air hydraulic pump has a precise pressure gauge, proof to shock, helping to observe the pressure when the pump is working at any time. From 2Mpa to 70Mpa, you can try slowly and choose the right working pressure you need.
• Effective Oil Volume: Manage this single acting electric oil pump by a lever which has a rubber cap in one end for a comfortable grasp and use. The high-pressure oil pipe is of high quality and durability. The oil pipe coupling is fitted with an M10 thread. Connector Type: 3/8" NPT ISO 14540 quick hydraulic coupler with dust cap.
• Various Application: The pump can be used for a variety of hydraulic equipment, working on several assignments such as lifting, pressing, bending, straightening, cutting, assembly and disassembly. Reduce manual work and maximize work efficiency.

Frequently Bought Together

Videos for this product

About this item

Product specification

Model

ZCB-63A

Input Voltage

AC 220V 50HZ

Flow Rate

0.9L/min - 5L/min

Working Pressure

290PSI - 10152PSI/2Mpa - 70Mpa

Motor Power

750W

Oil Capacity

7 L

Low Pressure Stage Flow Rate

1.3 Gallons per minute

High Pressure Stage Flow Rate

0.18 Gallons per minute

Max Output Hydraulic Pressure

10,000 PSI (adjustable range is 725-10,000 PSI)

Description

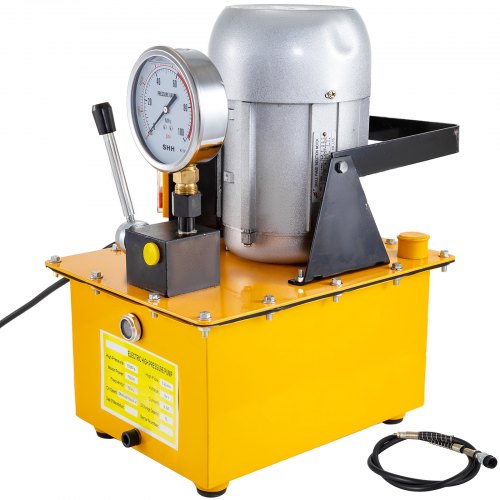

Electric Hydraulic Pump 10000PSI Single Acting Manual Valve

750W Copper Motor & 7L Oil Tank & 0.9-5 L/min Flow Rate

This single acting hydraulic pump unit is composed of single-phase asynchronous motor, high-pressure oil pump, and fuel tank. It has the advantages of small size, high pressure, lightweight, simple structure and easy to use. This pump reduces manual work and maximizes work efficiency. The oil pump's regular working temperature is between 10-50.

• Efficient Motor
• Large Capacity Tank
• Accurate Pressure Gauge
• Effective Oil Volume

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

High-power Motor

This manual hydraulic pump uses 750W power pure copper motor with aluminum shell, saving power and effort, freeing your hands. 1400 revolutions per minute, fast speed and high work efficiency.

Large Fuel Tank

This electric hydraulic cylinder can store 7L of oil, the 15th hydraulic oil. Large capacity extends working hours. Observe the hydraulic oil at any time through a visible window to inlet the oil in time.

Pressure Gauge

A precise pressure gauge is accurate. The hydraulic press is a 10,000 psi hydraulic pump, higher than most products at the market. High pressure is for driving piston and low pressure is for piston reset.

Manual Valve

Operate the electric hydraulic valve manually to control the input and output of the oil. The valve up, giving pressure; The valve down, relieving pressure. Sensitive on/off switch.

Single Acting

Single-acting is convenient and quick. Fitted with M10 thread, high-pressure oil pipe is high-quality and durable. Dust caps save the oil pipe from dirt.

Wide Application

If the hydraulic gear pump is equipped with other hydraulic tools, it can work on several assignments such as lifting, pressing, bending, straightening, cutting, assembly and disassembly.

Specifications

• Model: ZCB-63A
• Input Voltage: AC 220V 50HZ
• Flow Rate: 0.9L/min - 5L/min
• Working Pressure: 290PSI - 10152PSI/2Mpa - 70Mpa
• Motor Power: 750W
• Oil Capacity: 7 L
• Low Pressure Stage Flow Rate: 1.3 Gallons per minute
• High Pressure Stage Flow Rate: 0.18 Gallons per minute
• Max Output Hydraulic Pressure: 10,000 PSI (adjustable range is 725-10,000 PSI)

Package Content

• 1 x Electric Driven Hydraulic Pump
• 1 x Oil Hose

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

Electric Hydraulic Pump 10000PSI Single Acting Manual Valve

750W Copper Motor & 7L Oil Tank & 0.9-5 L/min Flow Rate

This single acting hydraulic pump unit is composed of single-phase asynchronous motor, high-pressure oil pump, and fuel tank. It has the advantages of small size, high pressure, lightweight, simple structure and easy to use. This pump reduces manual work and maximizes work efficiency. The oil pump's regular working temperature is between 10-50.

• Efficient Motor
• Large Capacity Tank
• Accurate Pressure Gauge
• Effective Oil Volume

High-power Motor

This manual hydraulic pump uses 750W power pure copper motor with aluminum shell, saving power and effort, freeing your hands. 1400 revolutions per minute, fast speed and high work efficiency.

Large Fuel Tank

This electric hydraulic cylinder can store 7L of oil, the 15th hydraulic oil. Large capacity extends working hours. Observe the hydraulic oil at any time through a visible window to inlet the oil in time.

Pressure Gauge

A precise pressure gauge is accurate. The hydraulic press is a 10,000 psi hydraulic pump, higher than most products at the market. High pressure is for driving piston and low pressure is for piston reset.

Manual Valve

Operate the electric hydraulic valve manually to control the input and output of the oil. The valve up, giving pressure; The valve down, relieving pressure. Sensitive on/off switch.

Single Acting

Single-acting is convenient and quick. Fitted with M10 thread, high-pressure oil pipe is high-quality and durable. Dust caps save the oil pipe from dirt.

Wide Application

If the hydraulic gear pump is equipped with other hydraulic tools, it can work on several assignments such as lifting, pressing, bending, straightening, cutting, assembly and disassembly.

Package Content

• 1 x Electric Driven Hydraulic Pump
• 1 x Oil Hose

Specifications

• Model: ZCB-63A
• Input Voltage: AC 220V 50HZ
• Flow Rate: 0.9L/min - 5L/min
• Working Pressure: 290PSI - 10152PSI/2Mpa - 70Mpa
• Motor Power: 750W
• Oil Capacity: 7 L
• Low Pressure Stage Flow Rate: 1.3 Gallons per minute
• High Pressure Stage Flow Rate: 0.18 Gallons per minute
• Max Output Hydraulic Pressure: 10,000 PSI (adjustable range is 725-10,000 PSI)
