VEVOR Mini Metal Lathe Machine, 7'' x 16'', 800W Precision Benchtop Power Metal Lathe, 150-2500 RPM Continuously Variable Speed, with 3.9'' 3-jaw Metal Chuck Tool Box for Processing Precision Parts VEVOR Mini Metal Lathe Machine, 7'' x 16'', 800W Precision Benchtop Power Metal Lathe, 150-2500 RPM Continuously Variable Speed, with 3.9'' 3-jaw Metal Chuck Tool Box for Processing Precision Parts VEVOR Mini Metal Lathe Machine, 7'' x 16'', 800W Precision Benchtop Power Metal Lathe, 150-2500 RPM Continuously Variable Speed, with 3.9'' 3-jaw Metal Chuck Tool Box for Processing Precision Parts VEVOR Mini Metal Lathe Machine, 7'' x 16'', 800W Precision Benchtop Power Metal Lathe, 150-2500 RPM Continuously Variable Speed, with 3.9'' 3-jaw Metal Chuck Tool Box for Processing Precision Parts VEVOR Mini Metal Lathe Machine, 7'' x 16'', 800W Precision Benchtop Power Metal Lathe, 150-2500 RPM Continuously Variable Speed, with 3.9'' 3-jaw Metal Chuck Tool Box for Processing Precision Parts VEVOR Mini Metal Lathe Machine, 7'' x 16'', 800W Precision Benchtop Power Metal Lathe, 150-2500 RPM Continuously Variable Speed, with 3.9'' 3-jaw Metal Chuck Tool Box for Processing Precision Parts
BZDMNJSCCSFWSEYI0V2

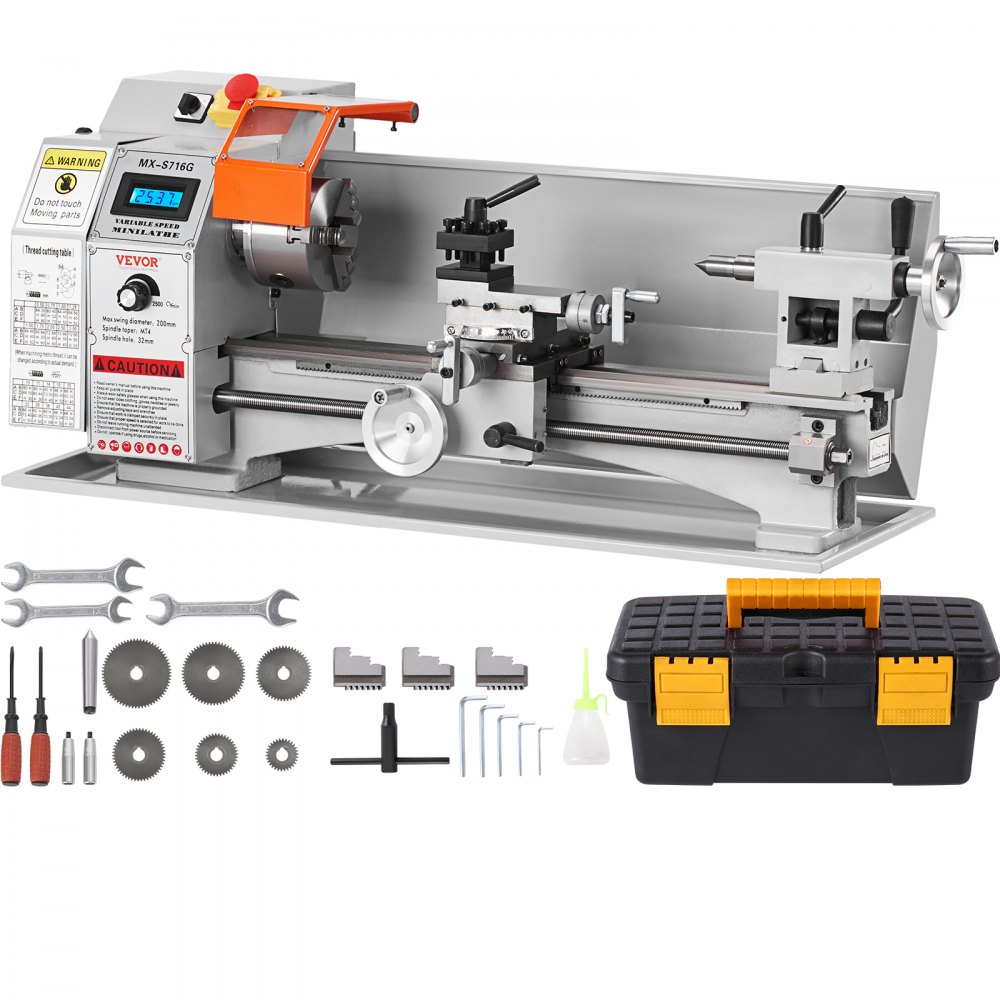

VEVOR Mini Metal Lathe Machine, 7'' x 16'', 800W Precision Benchtop Power Metal Lathe, 150-2500 RPM Continuously Variable Speed, with 3.9'' 3-jaw Metal Chuck Tool Box for Processing Precision Parts

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.

406 mm

  • 406 mm
  • 356 mm
  • 750 mm

About this item

  • Direct Drive Motor: The mini metal lathe machine adopts a direct drive motor, no belt drive, and no need to replace the belt. 800W brushless motor that provides more power and avoids the need for brush replacements, saving time and effort.
  • Built to Last: The mini metal lathe is built to last with high-quality HT200 cast iron. They come equipped with wear-resistant and strong metal gears and aluminum alloy handwheels, ensuring a longer service life.
  • Continuously Variable: Features a spindle that can turn in both forward and reverse directions with 150-2500 RPM continuously variable speed range. It also has intelligent electric speed controls and a digital display, allowing for convenient data reading.
  • Widely Used: 7'' x 16'' metal lathe machine can be used for processing precision parts and models. A wide range of turning pitches can create 19 kinds of threads, 9 kinds of the metric system (0.5-3 mm), and 10 kinds of the imperial system (10-44 TPI).
  • Security Comes First: Our power metal lathes have multiple security features in case of emergency, ensuring operator security. These include an emergency stop switch, overload protection, chuck cover power off switch, and a main control panel security switch.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Mini Metal Lathe Machine, 7'' x 16'', 800W Precision Benchtop Power Metal Lathe, 150-2500 RPM Continuously Variable Speed, with 3.9'' 3-jaw Metal Chuck Tool Box for Processing Precision Parts
406 mm
Direct Drive Motor Mini Metal Lathe
Are you ready to get more done? Our mini metal lathe measures 7 in x 16 in and features an 800W direct drive motor, no maintenance, and no belt drive. VEVOR benchtop metal lathe is specifically designed for creating complex and precise parts, simple to operate even for the novice.
  • VEVOR mini metal lathe with direct drive motor design for higher torque and no maintenance required.
  • 800w brushless motor with sufficient power and stable output for VEVOR mini metal lathe.
  • no belt drive mechanism of VEVOR mini metal lathe showcasing gears and caution label for reduced belt loss.
  • VEVOR mini metal lathe with direct drive motor design for higher torque and no maintenance required.
  • 800w brushless motor with sufficient power and stable output for VEVOR mini metal lathe.
  • no belt drive mechanism of VEVOR mini metal lathe showcasing gears and caution label for reduced belt loss.
  • VEVOR mini metal lathe with intelligent digital display and precise speed adjustment from 150-2500 rpm.
  • heavy-duty metal gears vs. nylon gears durability comparison for VEVOR mini metal lathe.
  • VEVOR mini metal lathe with a 3-jaw metal chuck, showcasing multi-directional clamping and stability.
  • VEVOR mini metal lathe with intelligent digital display and precise speed adjustment from 150-2500 rpm.
  • heavy-duty metal gears vs. nylon gears durability comparison for VEVOR mini metal lathe.
  • VEVOR mini metal lathe with a 3-jaw metal chuck, showcasing multi-directional clamping and stability.
  • VEVOR mini metal lathe threading 9 metric and 10 imperial parts with precision.
  • VEVOR mini metal lathe for stainless steel and wood processing, ideal for metal/wood projects.
  • VEVOR mini metal lathe performing turning, drilling, thread turning, and knurling for fine machining parts.
  • VEVOR mini metal lathe threading 9 metric and 10 imperial parts with precision.
  • VEVOR mini metal lathe for stainless steel and wood processing, ideal for metal/wood projects.
  • VEVOR mini metal lathe performing turning, drilling, thread turning, and knurling for fine machining parts.
Key Features
VEVOR mini metal lathe with digital rpm display and safety warnings, thread cutting table visible.
Protection Devices
Our mini metal lathe machine is designed with a probe window-type shield and power-off protection, ensuring more secure processing.
VEVOR mini metal lathe showcasing precision controls and robust construction.
Aluminum Alloy Handwheel
The aluminum alloy handwheel is equipped with a high-precision scale for easy operation and is designed to create complex and fine parts.
VEVOR mini metal lathe close-up showing precision controls and rotating spindle with safety guard.
Automatic Feed Screw
The V-shaped precision steel guide with the automatic feed screw and high strength ensures the parallelism of the main axis and lathe body.
VEVOR mini metal lathe with dimensions, spindle speed, and technical specs side-by-side on beige background.VEVOR mini metal lathe with dimensions, spindle speed, and technical specs side-by-side on beige background.

Specification

Model
MX-S716G
Main Material
HT200 Cast Iron
Lifespan
3 Years
Spindle Speed
150-2500 RPM
Hole Through Spindle Diameter
32 mm / 1.26 in
Spindle Taper
MT5
Tail Stock Taper
MT2
Motor Power
800W
Voltage
110V, 60 Hz
Chuck Diameter
100 mm / 3.93 in
Net Weight
39 kg / 85.98 lbs
Product Dimensions(L x W x H)
800 x 340 x 360 mm / 31.5 x 13.4 x 14.2 in
Manual
Download Link
Questions and Answers
6 Questions
Er det 220v på denne maskinen
Hei, dette er en 220V europeisk plugg.
By vevor
Explain table type Can it be supplied 220v
It can be powered by 220v.
By vevor
Does the VEVOR K12-125 125mm chuck fit this lathe?
The 100mm chuck can be installed directly, while the 125mm chuck requires you to make a flange connection yourself before it can be installed on the lathe.
By vevor
se pot face filete metrice si normal si invers /staga+dreapta ?
Nu, nu poate fi așa.
By vevor
se pot efectua filetari pe stanga si dreapta ?
Nu, nu poate fi așa.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.6
  • 4.6
  • 4.7
  • See More See Less
2 Review(s)
Clear filters
Pierre B. Pierre B.
Best Lathe ever.
I can make anything on this sweet machine. It can polish things to a mirror finish if you want one.
Peter Peter
Hardly a precision lathe ...but it might get there...
Hmmm... An interesting experience. This lathe is pretty cheap and lightweight, so don't expect too much from it. I don't think this lathe is still available, but this review will apply to much of what vevor sell in this price bracket. Advertised as having a MT4 spindle, I went to use a MT4 collett tool and found that it passed straight through. It is MT4 1/2. Not available Anywhere (that I can find). Vevor has refunded half the cost of the lathe but I am still trying to turn down a MT5 to 4 adapter (to MT 4 1/2 to 4). On this lathe it's not easy (too much flex/play in the slides and tool post). It can be done but you have to go slow and take great care with the pressure you put on the tool (yes, hand pressure ...you can get about 5 thou of movement with a firm hand. Beaware). Added to that is the fact that the spindle is not turning true; it is almost true at the narrow end but running out a thou at the wide end. This becomes quite visible one or two hundred mm out. So, all in all, don't expect it to be accurate. This will also need to be turned down correctly. Out of the box, the lathe was cutting a natural taper of two or three mm every 100mm of work. It needs to be bolted down well and chocked to get it turning parallel. Do check this or you won't be able to make anything properly. The tail-stock was fairly well centered, but after chocking the lathe it will need re-centering. The motor seems to have enough torque to turn case hardened steel even at under 300 rpm (40-50mm dia). Getting it to run at under 200 rpm is a touchy pot-luck thing. The speed controlling potentiometer is cheap crap, with dead spots all across the dial. It needs to be replaced (but that's easy enough). I also had to make up some new quills for the cross & compound slides. I'll post a picture of one of them. Unbelieveably badly made. It takes 10mm tools and has a 100mm center height. Getting it set up well will give you the experience you need to do almost anything. Watch some youtube vids on setting it up. All-in-all, I should have spent a little more and bought an Optimum. Visit a local machine shop if you live in a city ...you will be surprised what you can find. But I am happy to be learning on the Vevor.
