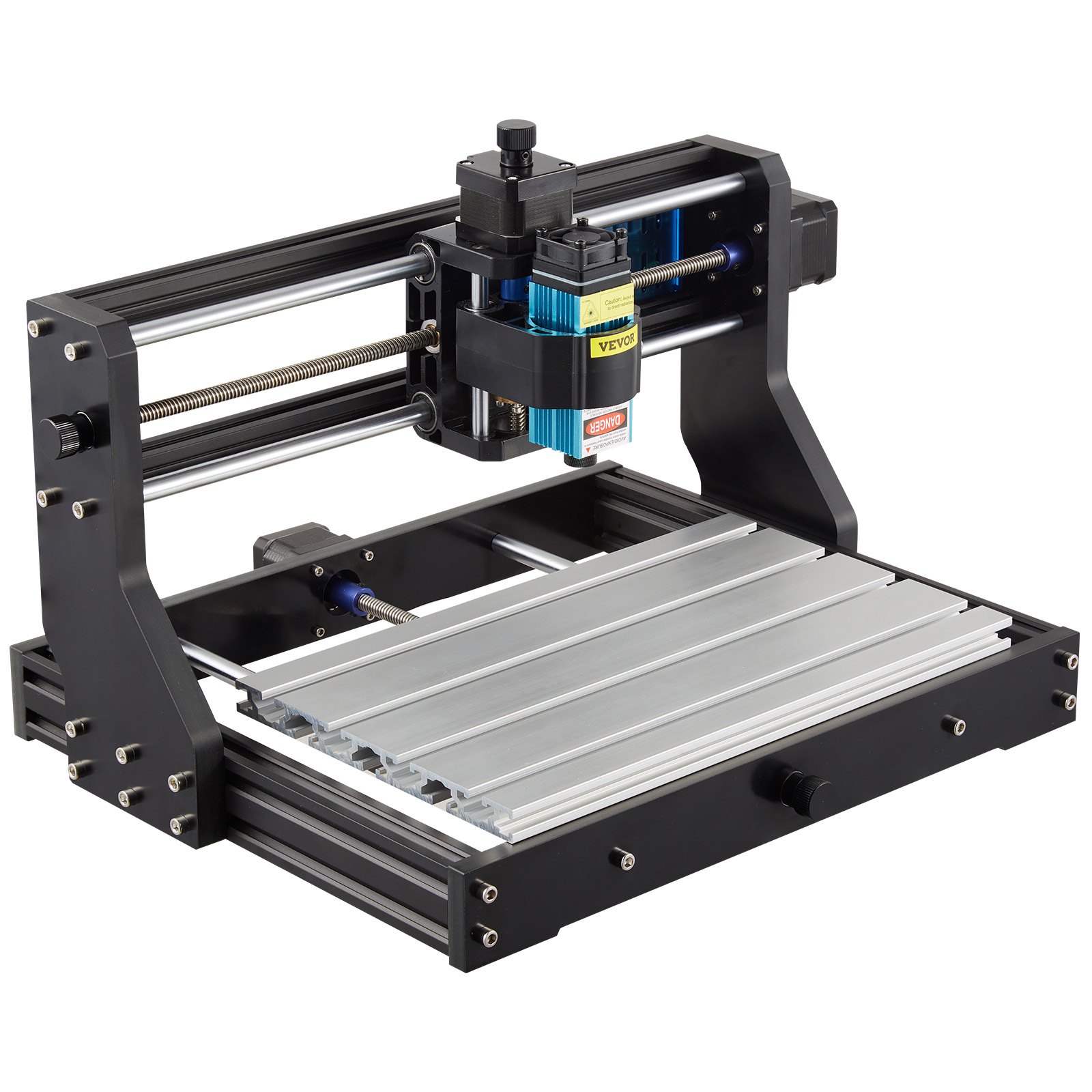

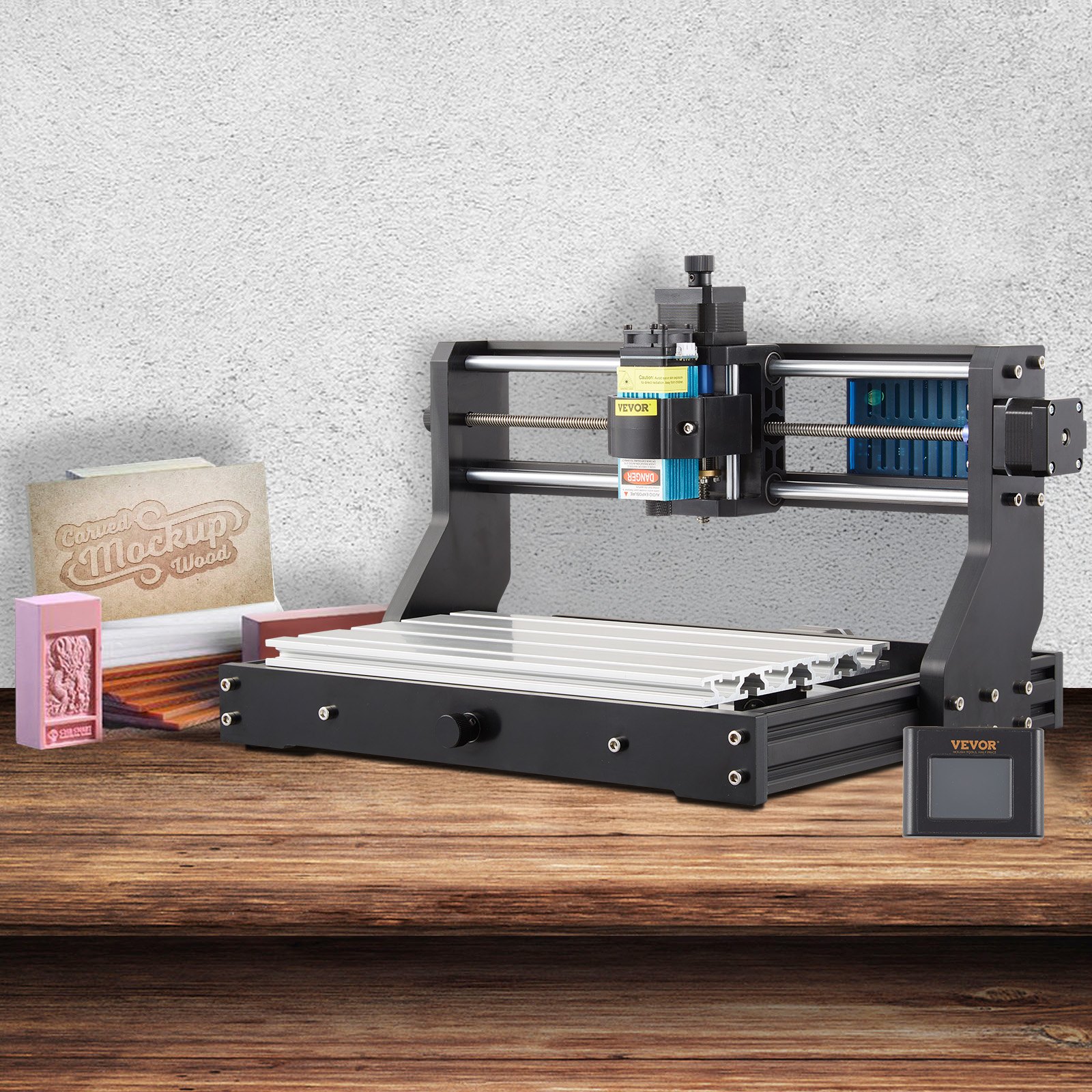

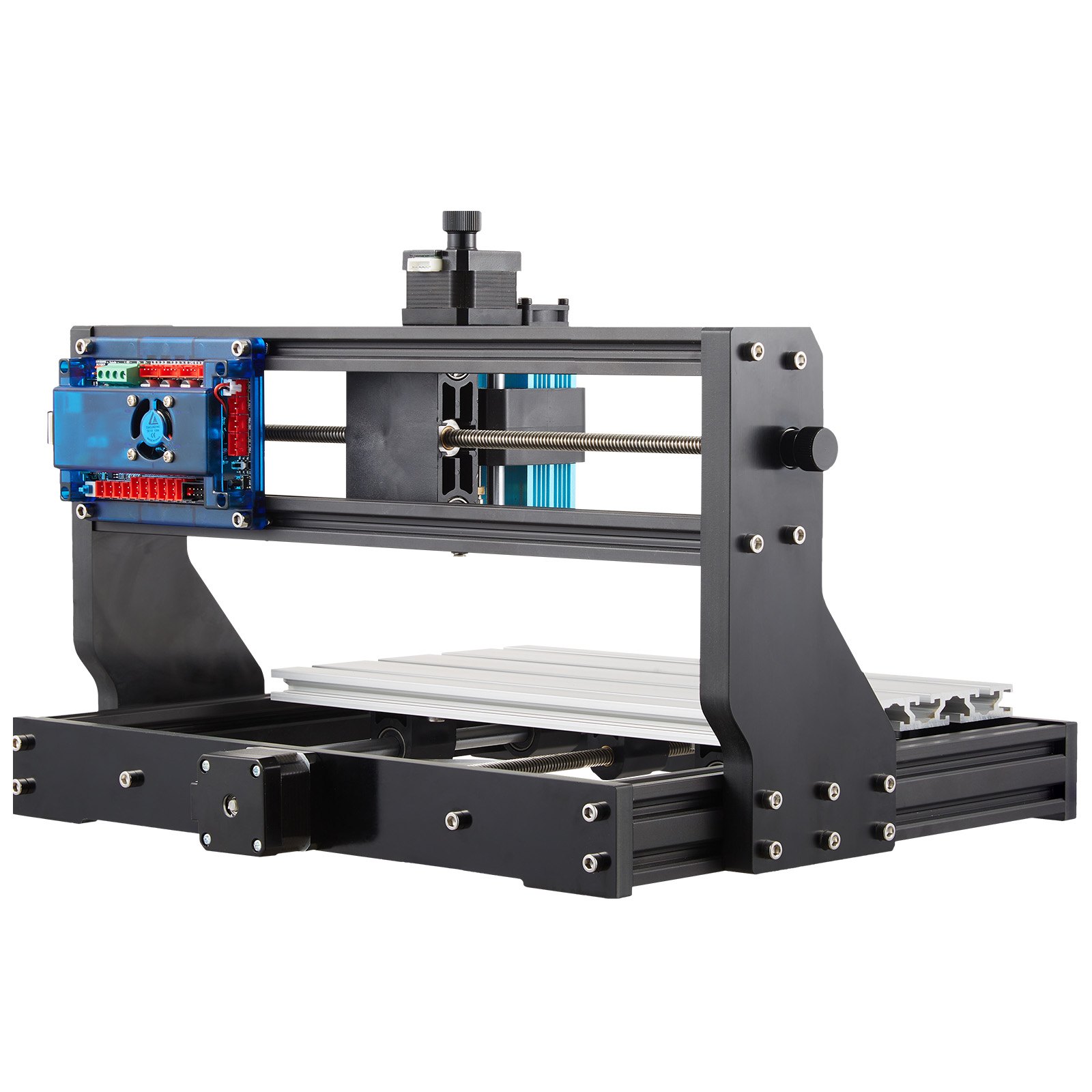

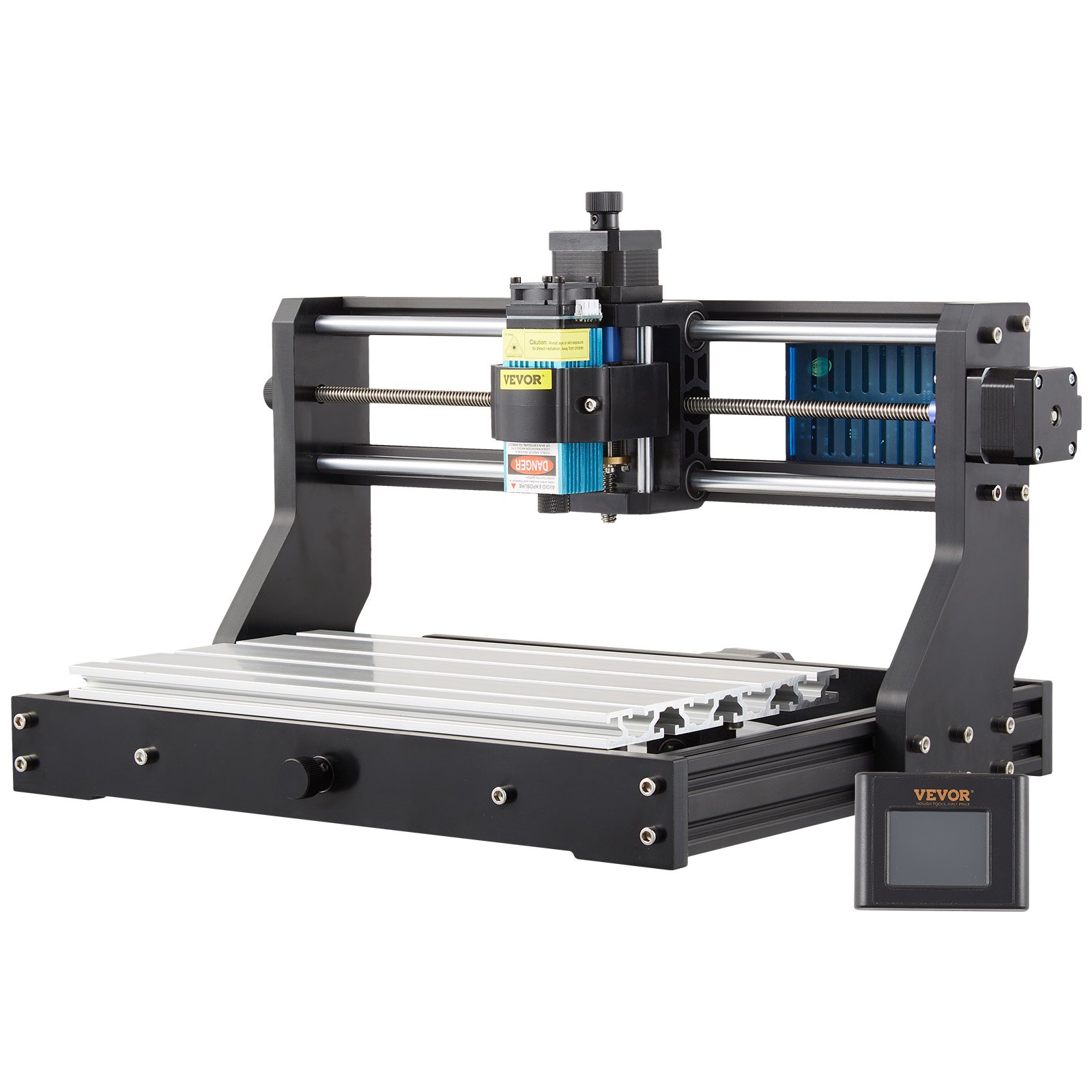

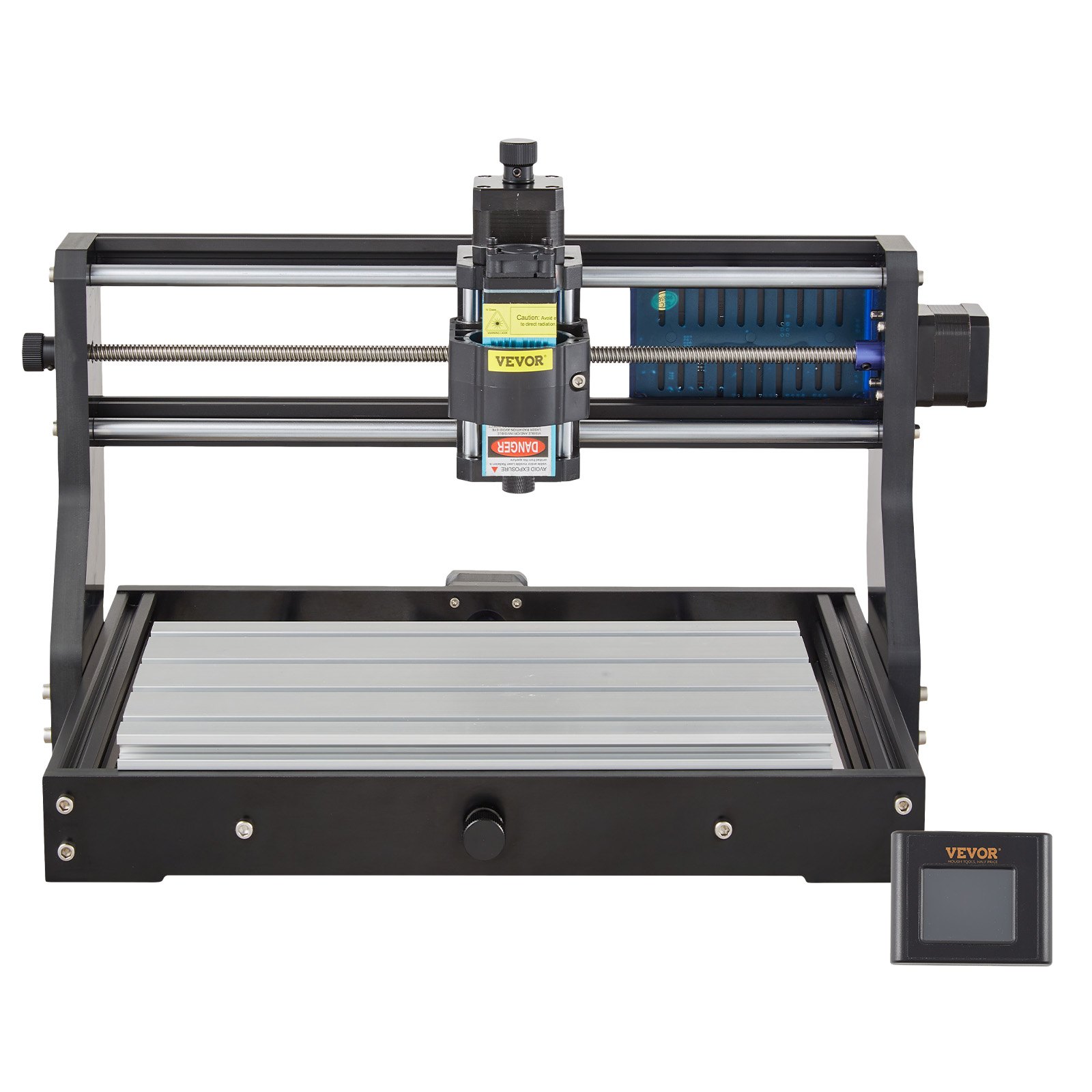

VEVOR CNC 3018 Pro 5500MW 300×180×45mm Cnc Machine GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic Acrylic PVC Wood VEVOR CNC 3018 Pro 5500MW 300×180×45mm Cnc Machine GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic Acrylic PVC Wood VEVOR CNC 3018 Pro 5500MW 300×180×45mm Cnc Machine GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic Acrylic PVC Wood VEVOR CNC 3018 Pro 5500MW 300×180×45mm Cnc Machine GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic Acrylic PVC Wood VEVOR CNC 3018 Pro 5500MW 300×180×45mm Cnc Machine GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic Acrylic PVC Wood VEVOR CNC 3018 Pro 5500MW 300×180×45mm Cnc Machine GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic Acrylic PVC Wood VEVOR CNC 3018 Pro 5500MW 300×180×45mm Cnc Machine GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic Acrylic PVC Wood
DKJ3018PRO5.5W001V2

VEVOR CNC 3018 Pro 5500MW 300×180×45mm Cnc Machine GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic Acrylic PVC Wood

See All Customer Reviews
50 Reviews 2 answered questions
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App.
Download Now
Exclusive 5,00€ off for your first three orders on the App.
Scan the QR code to download

30 x 18 cm

  • 30 x 18 cm
  • 30 x 20 cm
  • 40 x 40 cm

5.5 W

  • 15 W
  • 120 W
  • 5.5 W
  • 0.5 W
  • 300W
  • 2.5 W

About this item

  • CNC 3018 Router Machine: The 5500mW laser driver interfaces support PWM, TTL functions for full function laser engraving. We provide a detailed user manual, assembly instructions, and installation video for your convenience. You can enjoy the delight of engraving plastics, soft aluminum, acrylics, PVC, PCB, and many more.
  • Large Working Area: The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of stainless steel screw rods. It uses double copper nuts to clear round trip errors.
  • Excellent Motor: This CNC engraving machine is equipped with three stepper motors(1.3A; 12V; 0.25 Nm torque) and 775 DC(12-24V) 24V spindle motors with a rotational speed of 10,000 r/min. And the engraver supports Windows 7, Windows 8, Windows 10, Linux, macOS system, and other software to directly import .nc/.txt/.tape/.gcode format files for engraving.
  • Upgraded Control Board: The integrated GRBL control features full functionality and stability. And the advantages of the offline controller lies in the following ones: 1. No need to connect to the computer; 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.4. High precision: less than 0.003 inches.
  • Sturdy Material: The frame is mainly made of aluminum alloy and bakelite materials, with high strength and precision. The thickened side plates can improve the accuracy of the x-axis. Moreover, it is durable enough to withstand the rigors of all-day use repeatedly.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR CNC 3018 Pro 5500MW 300×180×45mm Cnc Machine GRBL Control Mini Laser Engraver with Offline Controller 3 Axis Laser Engraving Machine for Carving Milling Plastic Acrylic PVC Wood
30 x 18 cm 5.5 W
Description Specification Questions and Answers Reviews
CNC 3018 Engraving Machine
Easy to Use & Upgrade Material & Complete Accessories
This CNC engraving machine with an effective working area of 11.8(X)x7.1(Y)x1.8(Z) inch is made of aluminum and bakelite. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave all types of plastics, soft aluminum, wood, PVC, etc.
  • CNC 3018 Router Machine
  • Large Working Area
  • Excellent Motor
  • Upgraded Control Board
  • Sturdy Material
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

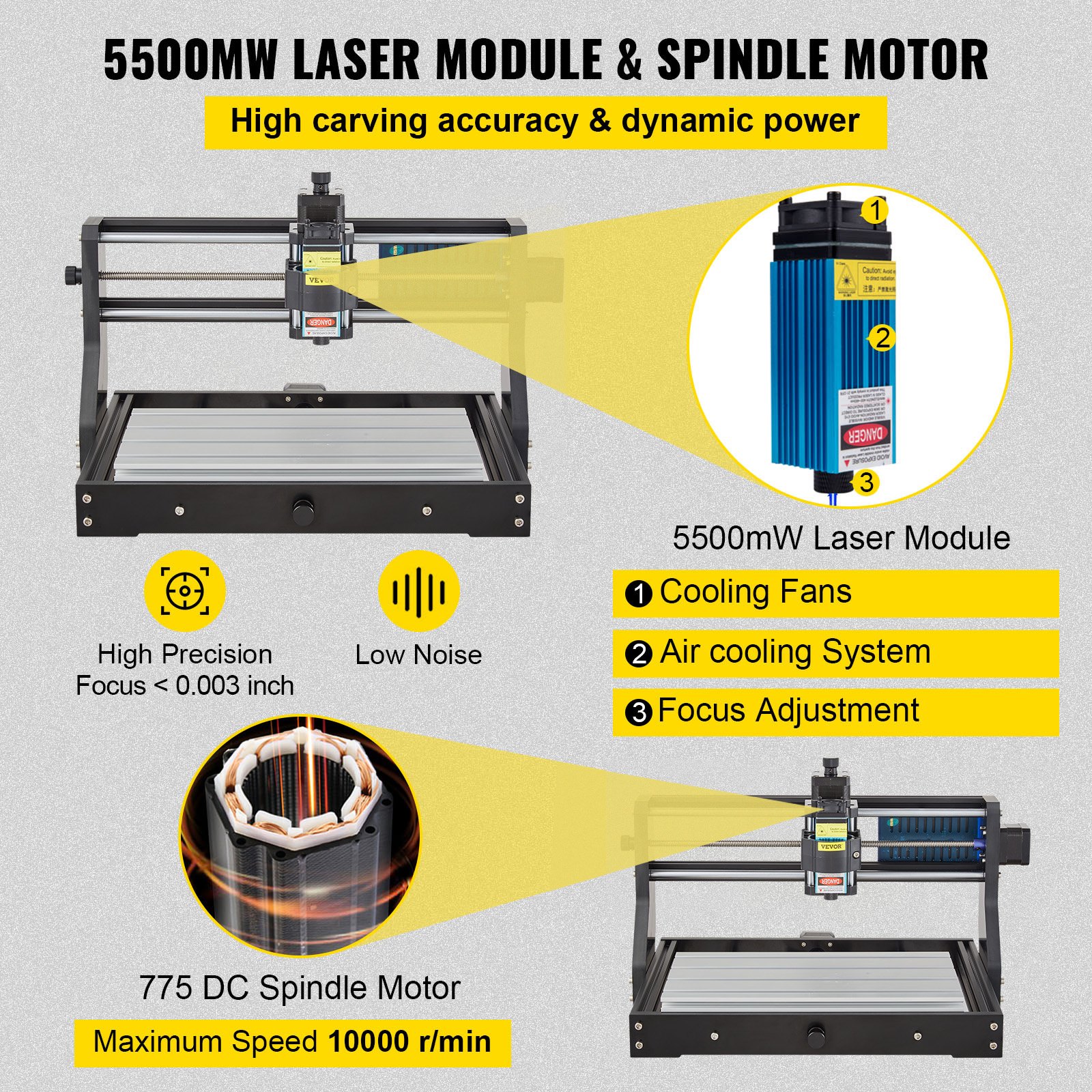

5500mW Laser Module & Spindle Motor
The 5500mW laser module and 775 DC spindle motor on the Z-axis can realize a high speed. There are three stepper motors on three axes for smooth movement.

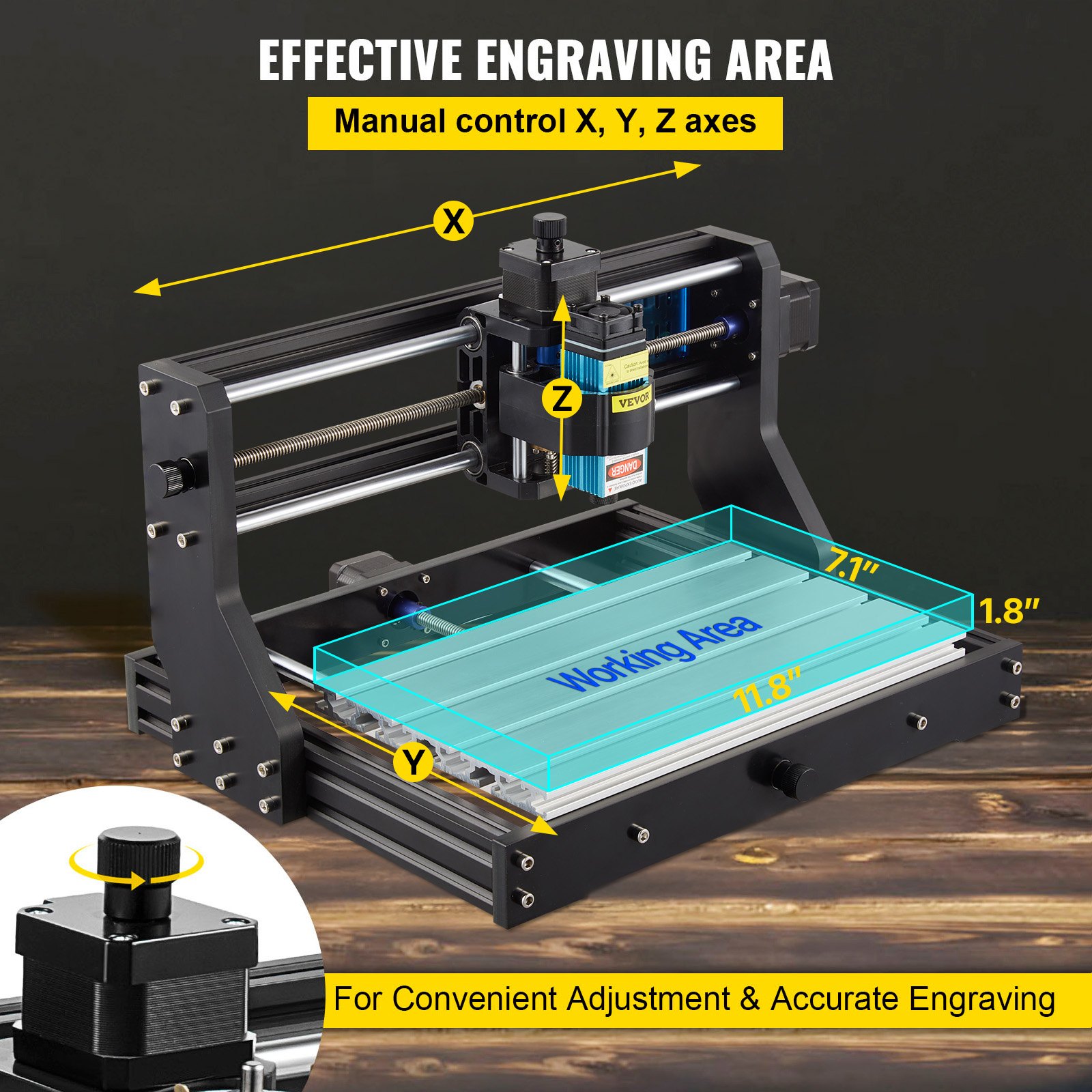

Large Working Area
The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. The axes are equipped with knobs to help you move the carving machine manually, improving working efficiency.

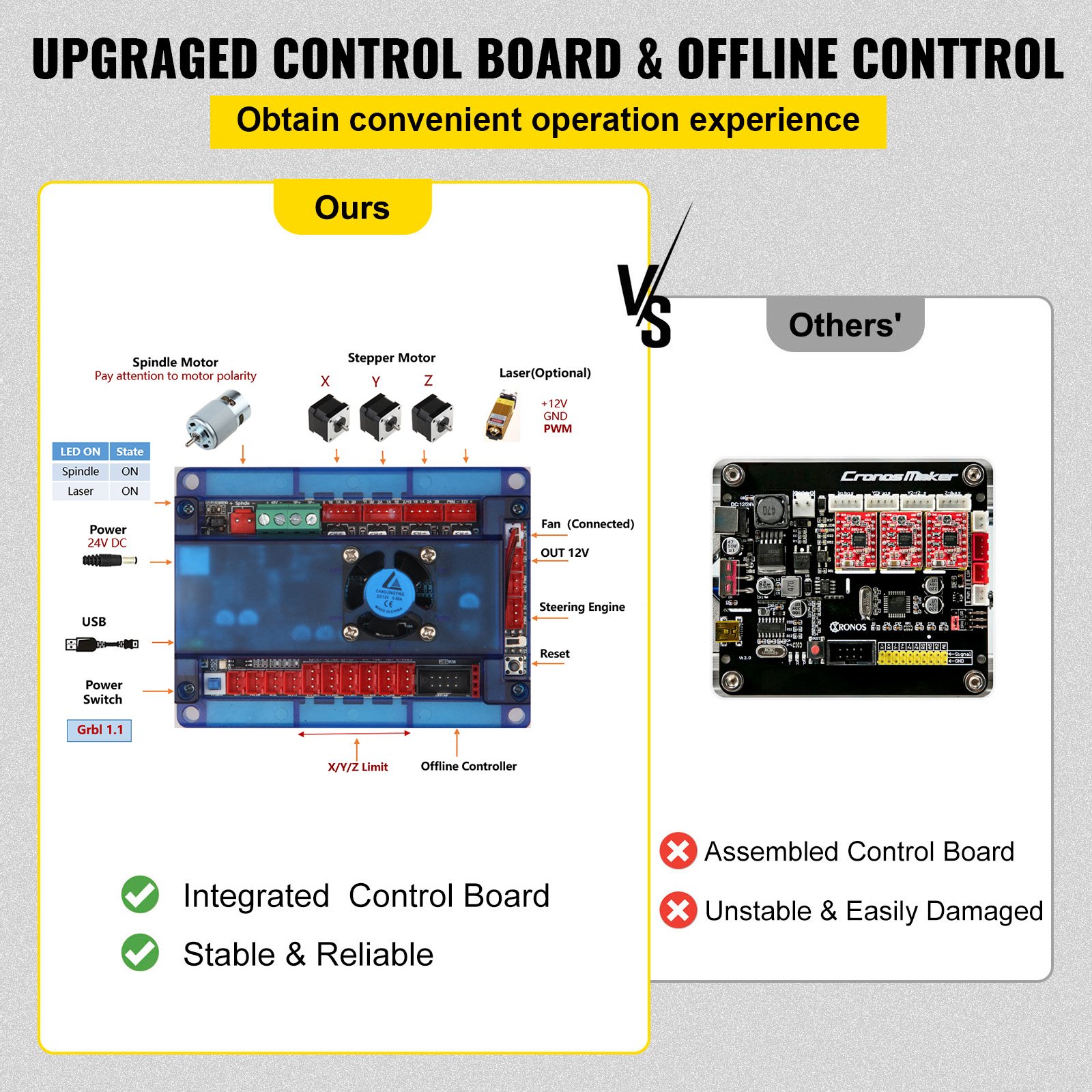

Functional Control Board
The GRBL control board could be connected via a USB interface to a computer. It features full functionality and can gear toward long-lasting use.

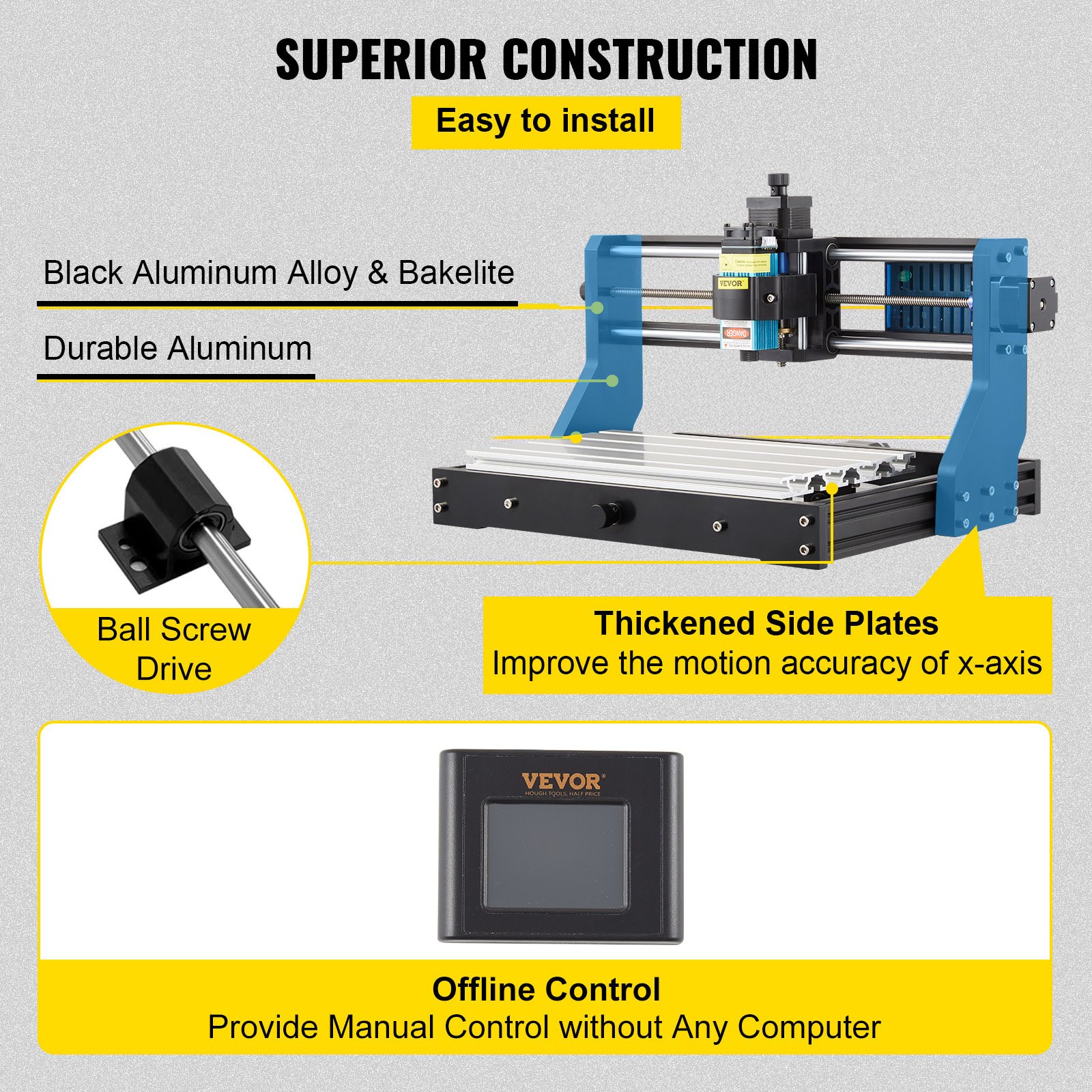

Extraordinary Quality
Constructed with aluminum alloy and bakelite materials, the CNC 3018 Pro is characterized by good appearance, high precision, and durability.
Easy to Install
We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions.

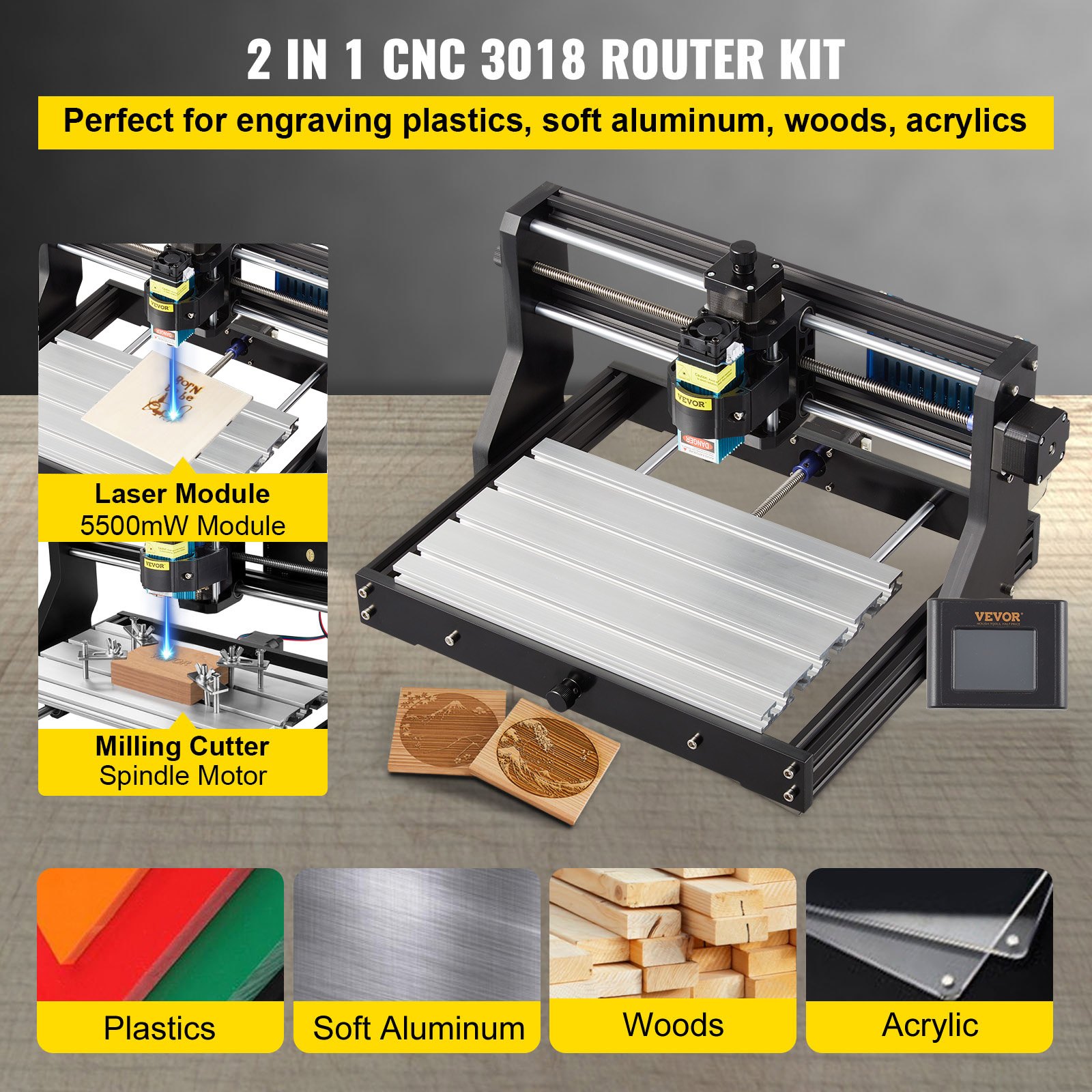

Wide Application
This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.

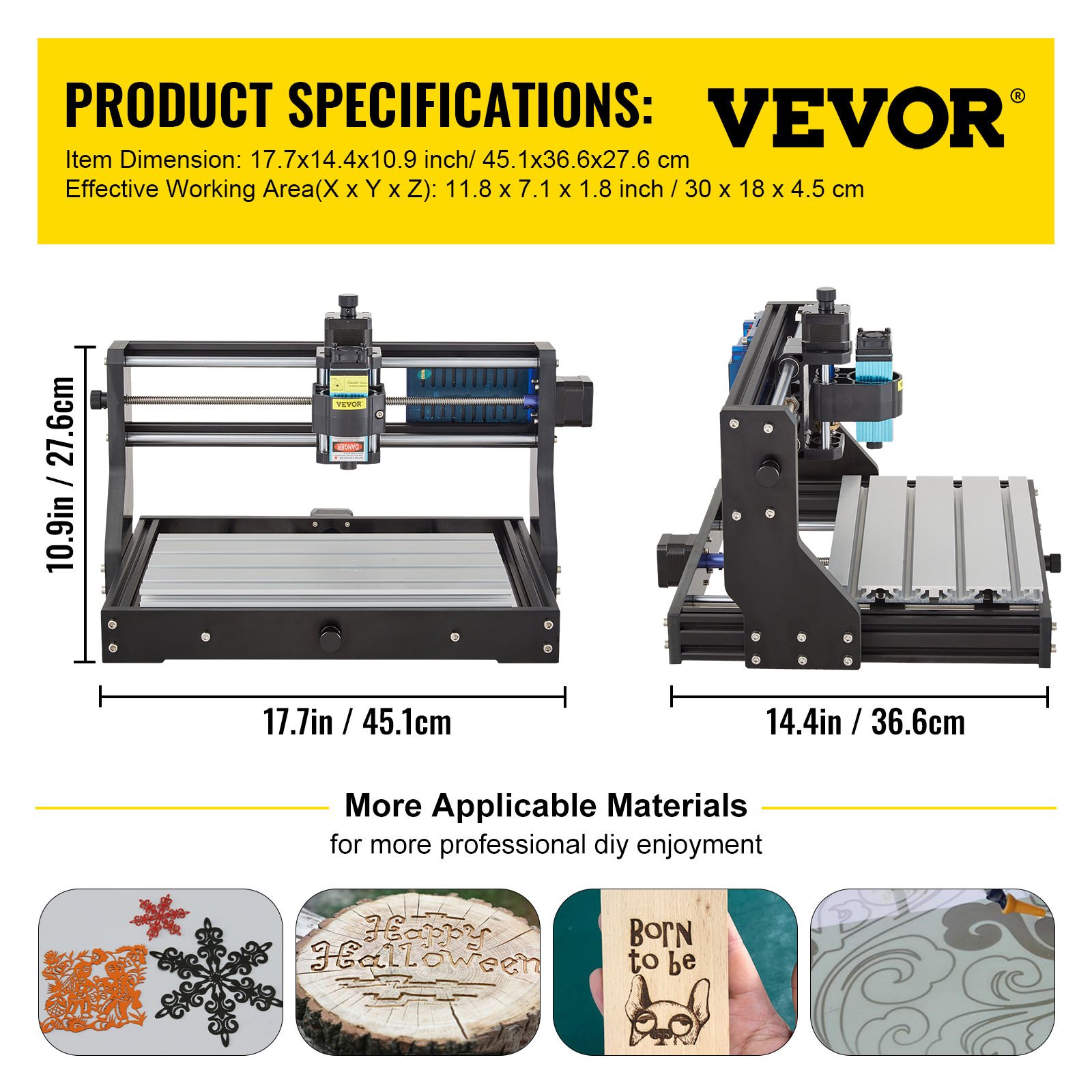

Specifications
  • Model: VG-S3018 Pro
  • Effective Working Area(X x Y x Z): 11.8 x 7.1 x 1.8 inch/ 30 x 18 x 4.5 cm
  • Materials: Aluminum Profile & Bakelite
  • Input Power: DC 24V 5A
  • Driving Units: T8 Stainless Steel Screws
  • Spindle Speed: 10000 rpm
  • Stepping Motor: Size 42, 12V; Torque: 0.25 N/m
  • Control Software: GRBL Control
  • Cutter Diameter: 0.125" / 3.175 mm
  • Positioning Accuracy: 0.003 inch/ 0.07 mm
  • Item Dimension: 17.7 x 14.4 x 10.9 inch/ 45.1 x 36.6 x 27.6 cm

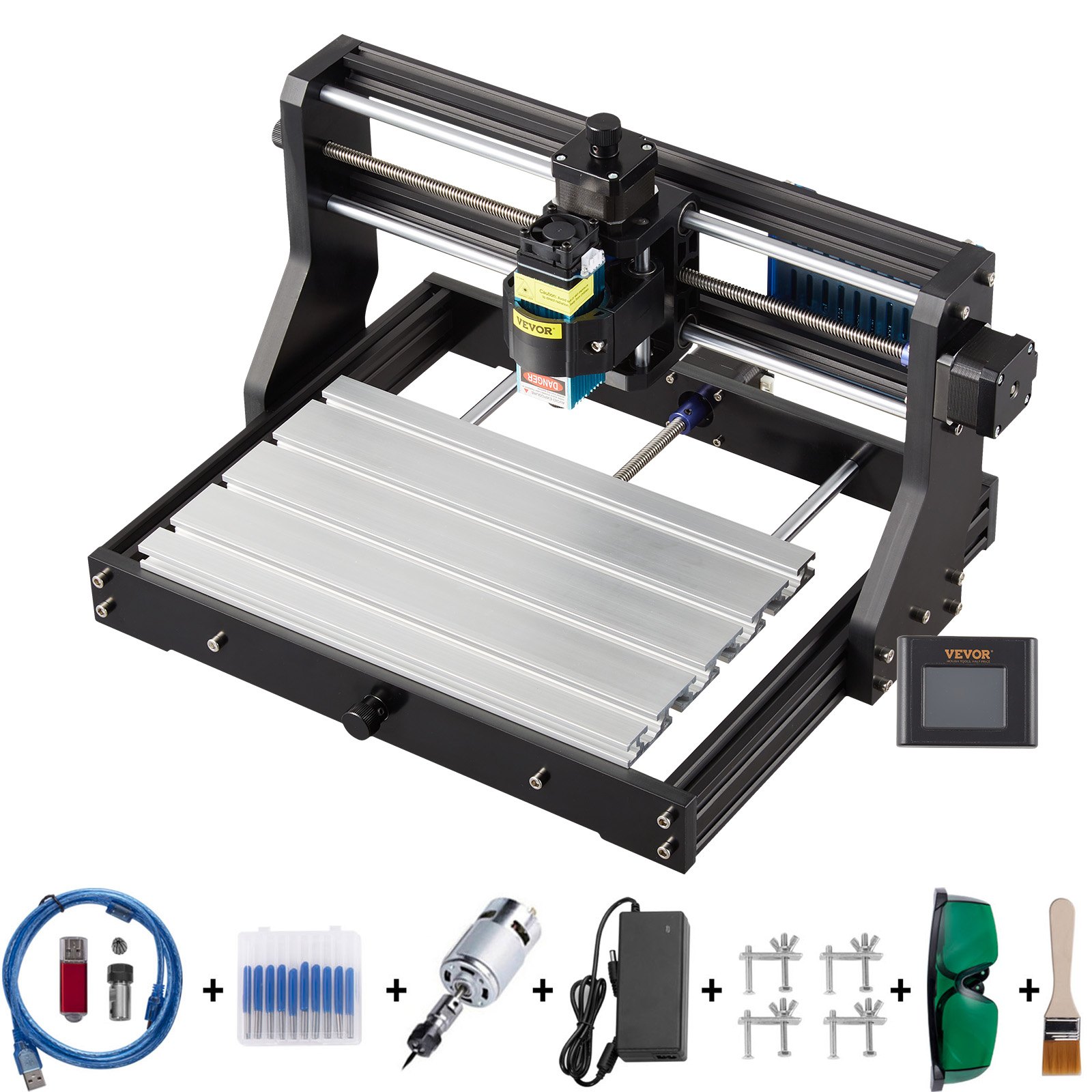

Package Content
  • 1 x 3018 CNC Router Kit
  • 1 x 5500mw Laser Module
  • 1 x Spindle
  • 1 x U-Disk (Software & Instruction)
  • 1 x Set of Milling Cutter
  • 1 x Pair of Protective Glasses
  • 1 x USB Cable
  • 1 x Power Supply
  • 1 x Set of Tools
  • 1 x Brush
  • 1 x Manual
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
CNC 3018 Engraving Machine
Easy to Use & Upgrade Material & Complete Accessories
This CNC engraving machine with an effective working area of 11.8(X)x7.1(Y)x1.8(Z) inch is made of aluminum and bakelite. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave all types of plastics, soft aluminum, wood, PVC, etc.
  • CNC 3018 Router Machine
  • Large Working Area
  • Excellent Motor
  • Upgraded Control Board
  • Sturdy Material
5500mW Laser Module & Spindle Motor
The 5500mW laser module and 775 DC spindle motor on the Z-axis can realize a high speed. There are three stepper motors on three axes for smooth movement.
Large Working Area
The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. The axes are equipped with knobs to help you move the carving machine manually, improving working efficiency.
Functional Control Board
The GRBL control board could be connected via a USB interface to a computer. It features full functionality and can gear toward long-lasting use.
Extraordinary Quality
Constructed with aluminum alloy and bakelite materials, the CNC 3018 Pro is characterized by good appearance, high precision, and durability.
Easy to Install
We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions.
Wide Application
This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.
Package Content
  • 1 x 3018 CNC Router Kit
  • 1 x 5500mw Laser Module
  • 1 x Spindle
  • 1 x U-Disk (Software & Instruction)
  • 1 x Set of Milling Cutter
  • 1 x Pair of Protective Glasses
  • 1 x USB Cable
  • 1 x Power Supply
  • 1 x Set of Tools
  • 1 x Brush
  • 1 x Manual
Specifications
  • Model: VG-S3018 Pro
  • Effective Working Area(X x Y x Z): 11.8 x 7.1 x 1.8 inch/ 30 x 18 x 4.5 cm
  • Materials: Aluminum Profile & Bakelite
  • Input Power: DC 24V 5A
  • Driving Units: T8 Stainless Steel Screws
  • Spindle Speed: 10000 rpm
  • Stepping Motor: Size 42, 12V; Torque: 0.25 N/m
  • Control Software: GRBL Control
  • Cutter Diameter: 0.125" / 3.175 mm
  • Positioning Accuracy: 0.003 inch/ 0.07 mm
  • Item Dimension: 17.7 x 14.4 x 10.9 inch/ 45.1 x 36.6 x 27.6 cm

Specification

Model
VG-S3018 Pro
Effective Working Area(X x Y x Z)
11.8 x 7.1 x 1.8 inch/ 30 x 18 x 4.5 cm
Materials
Aluminum Profile & Bakelite
Input Power
DC 24V 5A
Driving Units
T8 Stainless Steel Screws
Spindle Speed
10000 rpm
Stepping Motor
Size 42, 12V; Torque
Control Software
GRBL Control
Cutter Diameter
0.125" / 3.175 mm
Positioning Accuracy
0.003 inch/ 0.07 mm
Item Dimension
17.7 x 14.4 x 10.9 inch/ 45.1 x 36.6 x 27.6 cm
Manual
Download Link
Questions and Answers
2 Questions
or Ask a Question
Se poate grava pe inox?
Answer This Question
5,5 W nu este suficientă putere, necesită 15 W: https://eur.vevor.com/wood-engraving-machine-c_11142/3018-pro-cnc-router-15w-laser-engraver-engraving-machine-w-offline-controller-p_010326627311
By vevor
Helpful ( 0 )
musim za tento vyrobok zaplatit clo ale poplatky este musim zaplatit pri dovoze na slovensko?
Answer This Question
Všetky naše produkty sú oslobodené od cla a poplatkov za dopravu.
By vevor
Helpful ( 0 )
